IR10 Infrared Laser Zoom Spotlight

  • Matrice 400
$9,988.65 CAD
$9,988.65 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Power Consumption: ≤ 40 W
Water / Dust proof
Compatible with Matrice 400/350
Illumination Distance: ≥ 1000 m
70x Zoom
Infrared Zoom Spotlight

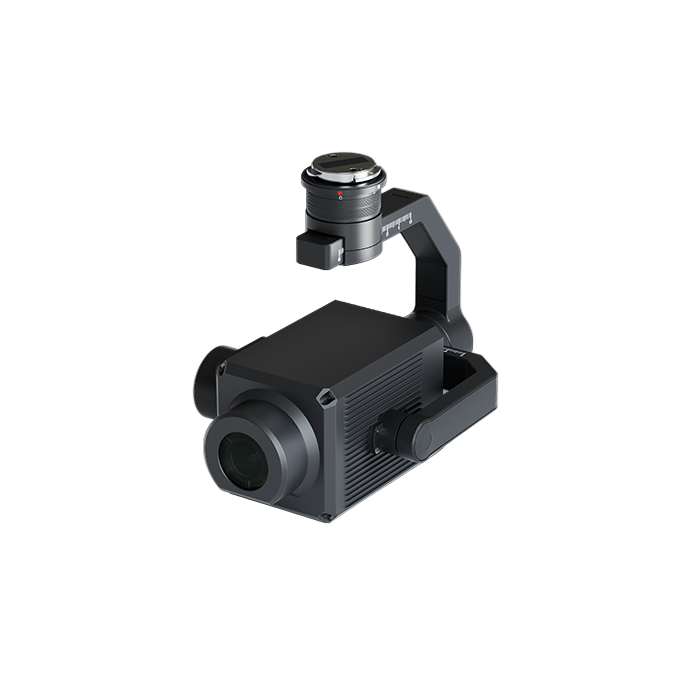

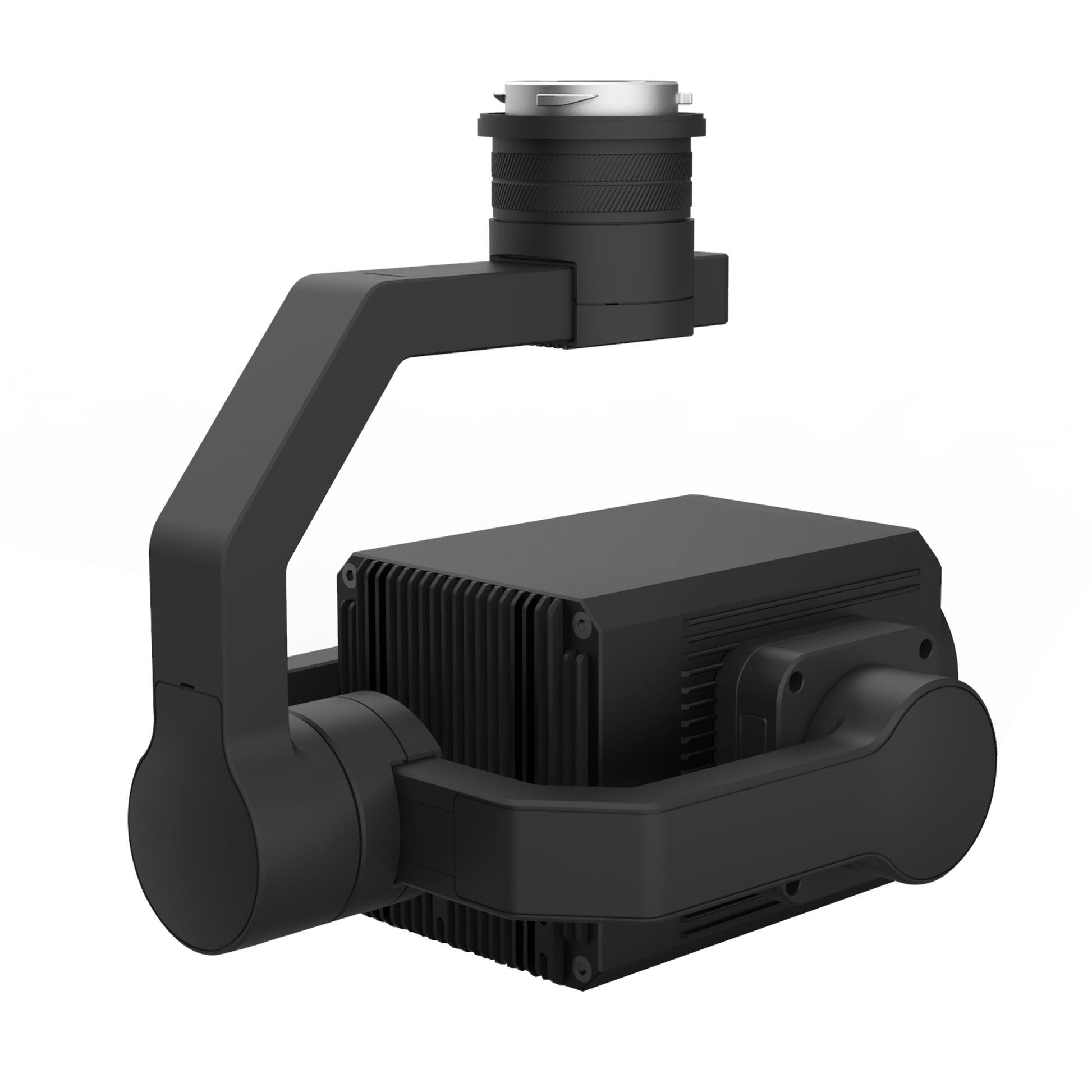

The IR10 is a high-performance infrared laser fill-light and zoom spotlight payload designed for enterprise UAVs. Leveraging fiber-laser technology (12 W output) and up to 70× optical zoom, it supports long-distance illumination (up to ~1,000 m) for inspections, search & rescue, covert surveillance and enterprise drone missions. Compatible via DJI SkyPort V2.0 for DJI Matrice 400, M300 RTK, M350 RTK and similar platforms.

IR10 — Technical Parameters

Model

IR10

Version

See-through rain/haze IR fill-in light (940 nm)

Electrical Interface

DJI SkyPort V2.0

Dimensions & Weight

Size

186 × 128 × 158 mm

Weight

800 g ± 5 g

Power & Optical Performance

Power Consumption

≤ 40 W

Output Light Power

12 W ± 0.5 W

Field of View (FOV)

0.56° to 45°

Luminous Wavelength

808 nm / 940 nm

Effective Illumination Distance

≥ 1000 m

Laser Safety Distance

≥ 90 m

Gimbal & Control Angles

Standard Individual Control Angles

Pitch: −125° to +40°
Horizontal: ±320°

Head Port Compatibility & Movement Range

IR10 on Head Port No. 1 + DJI H20T

Pitch: −125° to +40°
Horizontal: −25° to +45°

IR10 on Head Port No. 2 + DJI H20T

Pitch: −125° to +40°
Horizontal: −15° to +12°

IR10 on Head Port No. 1 + DJI H20

Pitch: −125° to +40°
Horizontal: ±45°

IR10 on Head Port No. 2 + DJI H20

Pitch: −125° to +40°
Horizontal: ±45°

Environmental Adaptability

Operating Temperature

−20°C to +50°C

1 × IR10 Infrared Laser Zoom Spotlight unit.

Remote Robotic is a North American authorized dealer for CZI IR10 Infrared Laser Zoom Spotlight.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

CZI IR10 user manual

We offer training for all robotic solutions

Learn more

IR10 Infrared Laser Zoom Spotlight FAQ

With 12 W output and zoom capability, the IR10 can serve as a long-distance fill light or spotlight up to ~1,000 m, making it effective for night inspections and extended surveillance missions.

The IR10 supports integration with DJI Matrice 400, Matrice 300 RTK, and Matrice 350 RTK platforms using the SkyPort V2.0 interface

Yes — the IR10 uses invisible infrared light (e.g., ~808 nm or 940 nm version) to provide stealth illumination, making it suitable for surveillance where visible light would be detected
