SPH Engineering

EchoLogger ECT D052S

Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Altitude range resolution : 1mm
Ping rate : up to 100Hz
50/200kHz, 30/200kHz
Backscatter data
Bathymetric survey
`

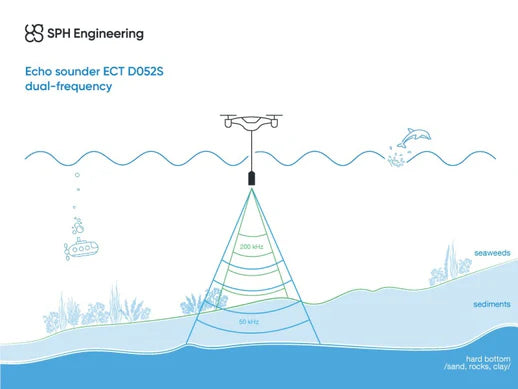

The EchoLogger ECT D052S is a drone-integrated dual-frequency echo-sounder system optimized for bathymetric and underwater surveys from UAV platforms. Operated at 50 kHz and 200 kHz, it allows for depth measurement up to 200 m depending on frequency, distinguishing both sediment layers and hard bottom substrate.

Engineered for integration with UAVs such as the DJI M350 RTK or M300 RTK, the ECT D052S includes tilt and temperature sensors, an RS-232 interface for the SkyHub onboard computer, and a rugged mounting system for aerial deployment.

Ideal for hydrographic mapping, dredging monitoring, environmental assessment and shoreline or shallow-water surveys, the ECT D052S brings aerial bathymetry into the UAV domain for enhanced coverage, safety and efficiency.

  • Acoustic Frequencies:50 kHz / 200 kHz
  • Measurement Range:1.0 … 200 m at 50 kHz; 0.5 … 200 m at 200 kHz
  • Beam Width (Conical -3dB):27° at 50 kHz / 7° at 200 kHz
  • Weight of Sensor (in air):1.85 kg
  • Weight of all components (sensor + SkyHub + altimeter + housing + cables + mountings):2.45 kg
  • Cable Length:2.5 m
  • Interface:RS-232 (connector for SkyHub)
  • Compatible UAVs:DJI M350 RTK, DJI M300 RTK (or Pixhawk drones of comparable size)
  • HS Code:90158040 (hydrographic instruments)

Please note: that additional components and software must be purchased to use this sensor with drones.

Remote Robotic is a North American authorized dealer for SPH Engineering EchoLogger ECT D052S.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

EchoLogger ECT D052S brochure

We offer training for all robotic solutions

Learn more

EchoLogger ECT D052S FAQ

The ECT D052S supports depth measurements from approximately 0.5 m (at 200 kHz) up to 200 m depending on water clarity and substrate conditions. The 50 kHz channel enables deeper penetration through softer sediments (up to ~200 m) while the 200 kHz channel provides higher resolution for shallower surveys.

The ECT D052S is engineered to mount on enterprise UAV platforms such as the DJI M350 RTK or M300 RTK (or comparable systems). Operators should verify the aircraft’s payload capability, mounting configuration, and integration with the onboard computer (SkyHub) and terrain-following/radar altimeter systems for best performance.

This echo sounder is geared for aerial bathymetry, dredging and sediment monitoring, hydrology surveys, shallow-water depth mapping, and remote area survey operations where traditional boats are impractical. The dual-frequency design allows both sediment layer detection and depth profiling, making it ideal for environmental and infrastructure applications.
