SL60 Multicolour Strobe Searchlight

  • Matrice 400
$5,349.00 CAD
$5,349.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Weight: ≤788g
Illumination Area: 132.7 m² (50m) / 530.6 m² (100m)
Compatible with Matrice 350
Max illumination range: 100m
Operating Temperature: −15°C to +50°C
Multi-color spotlight
`

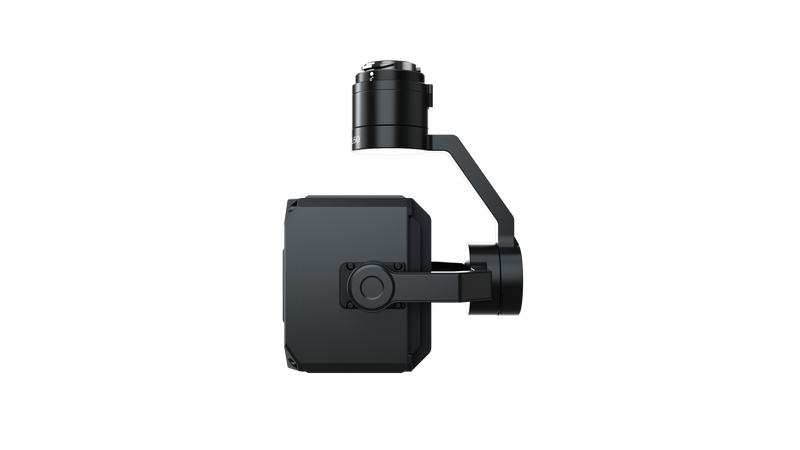

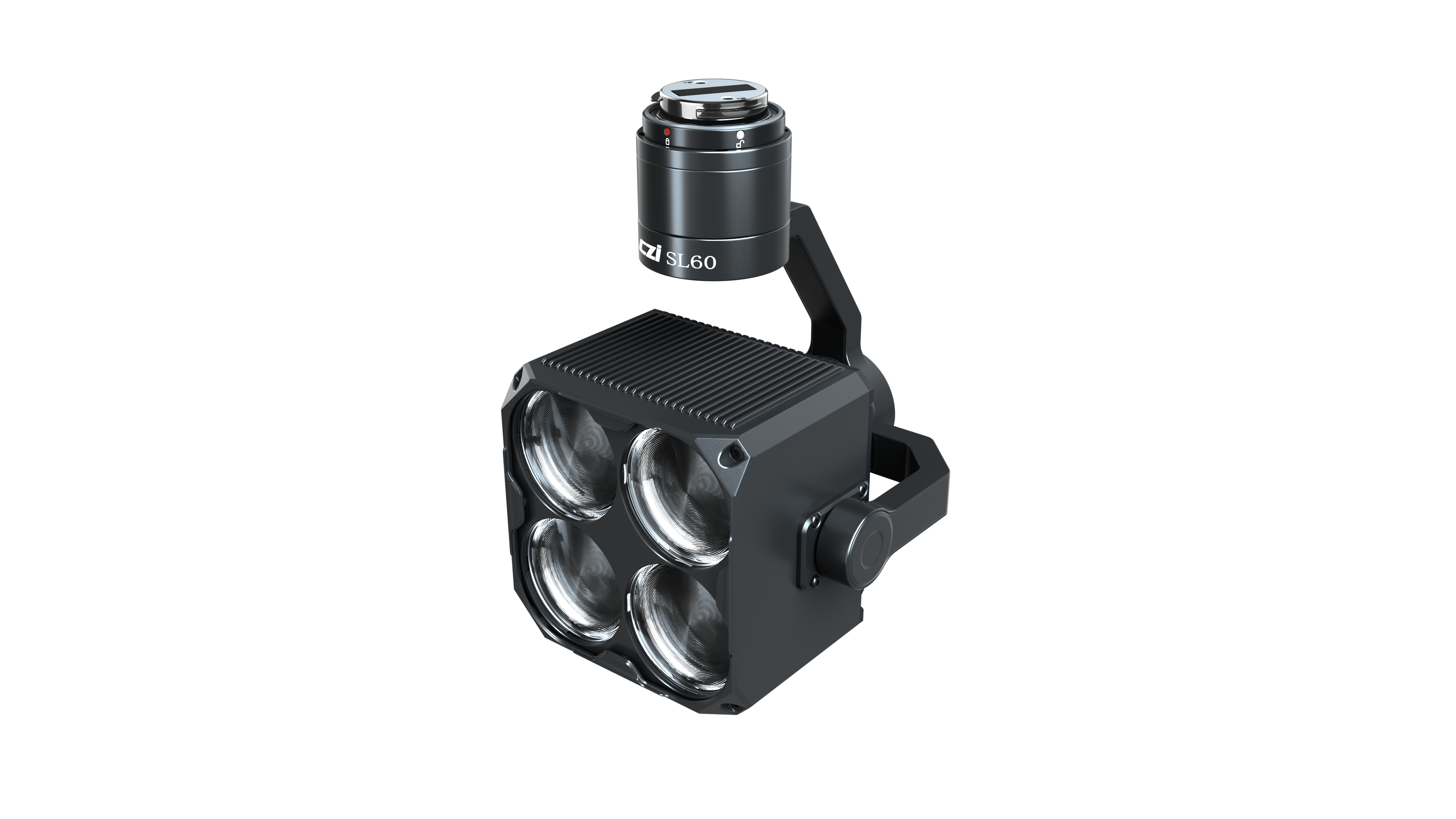

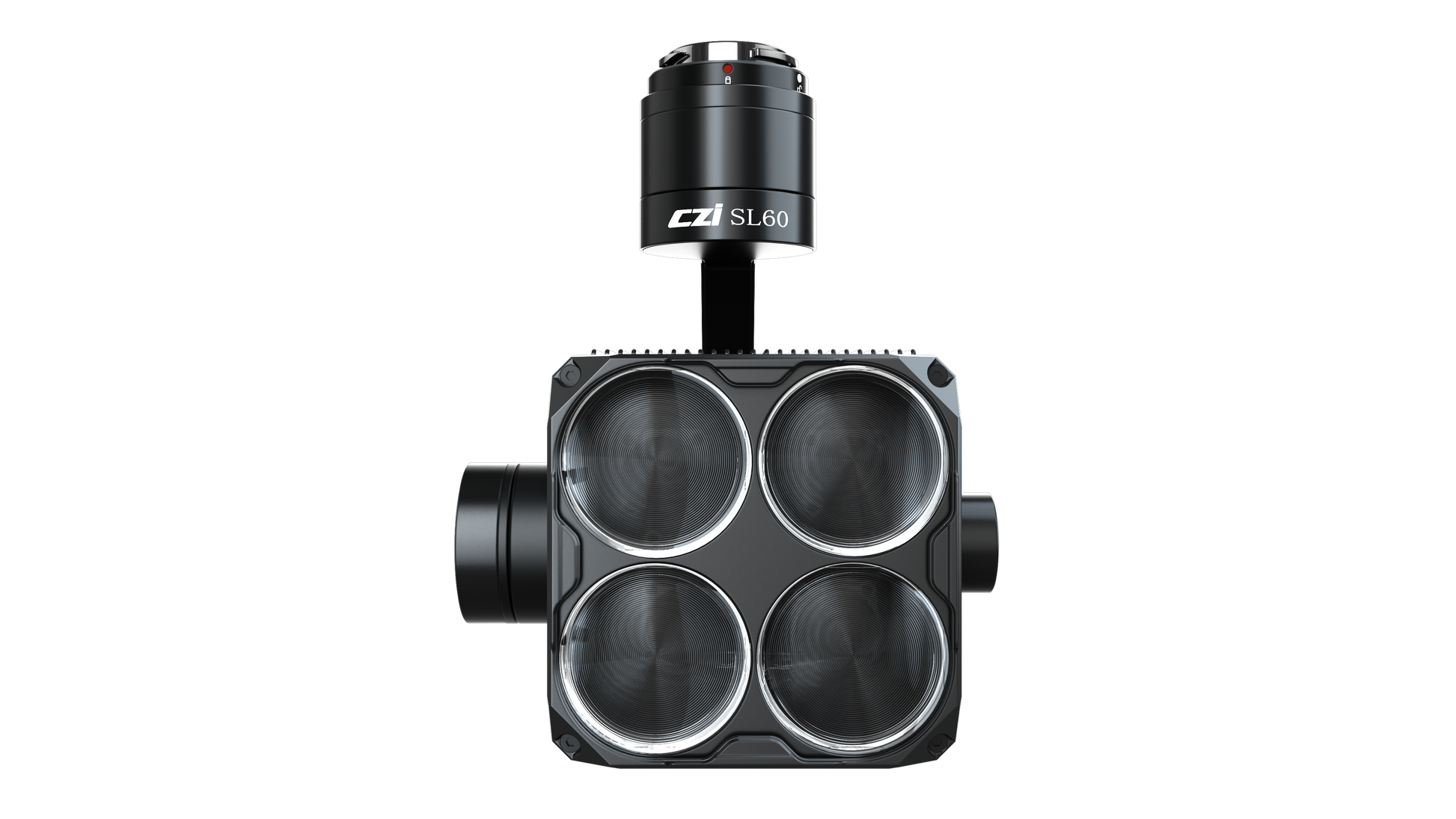

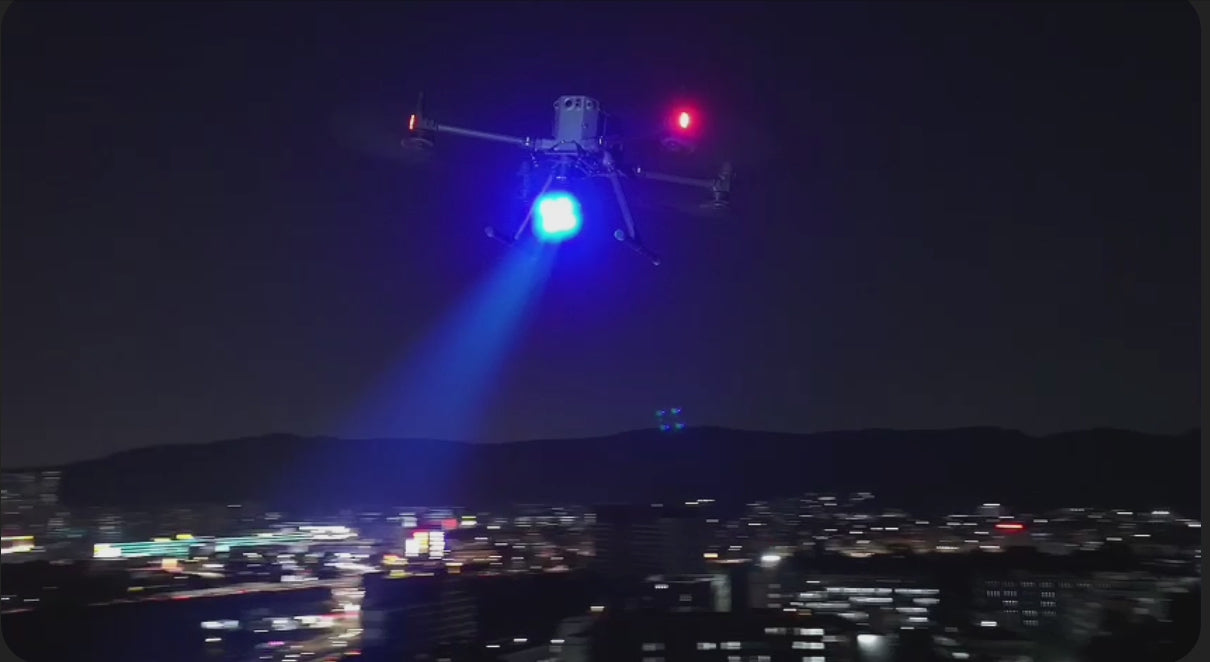

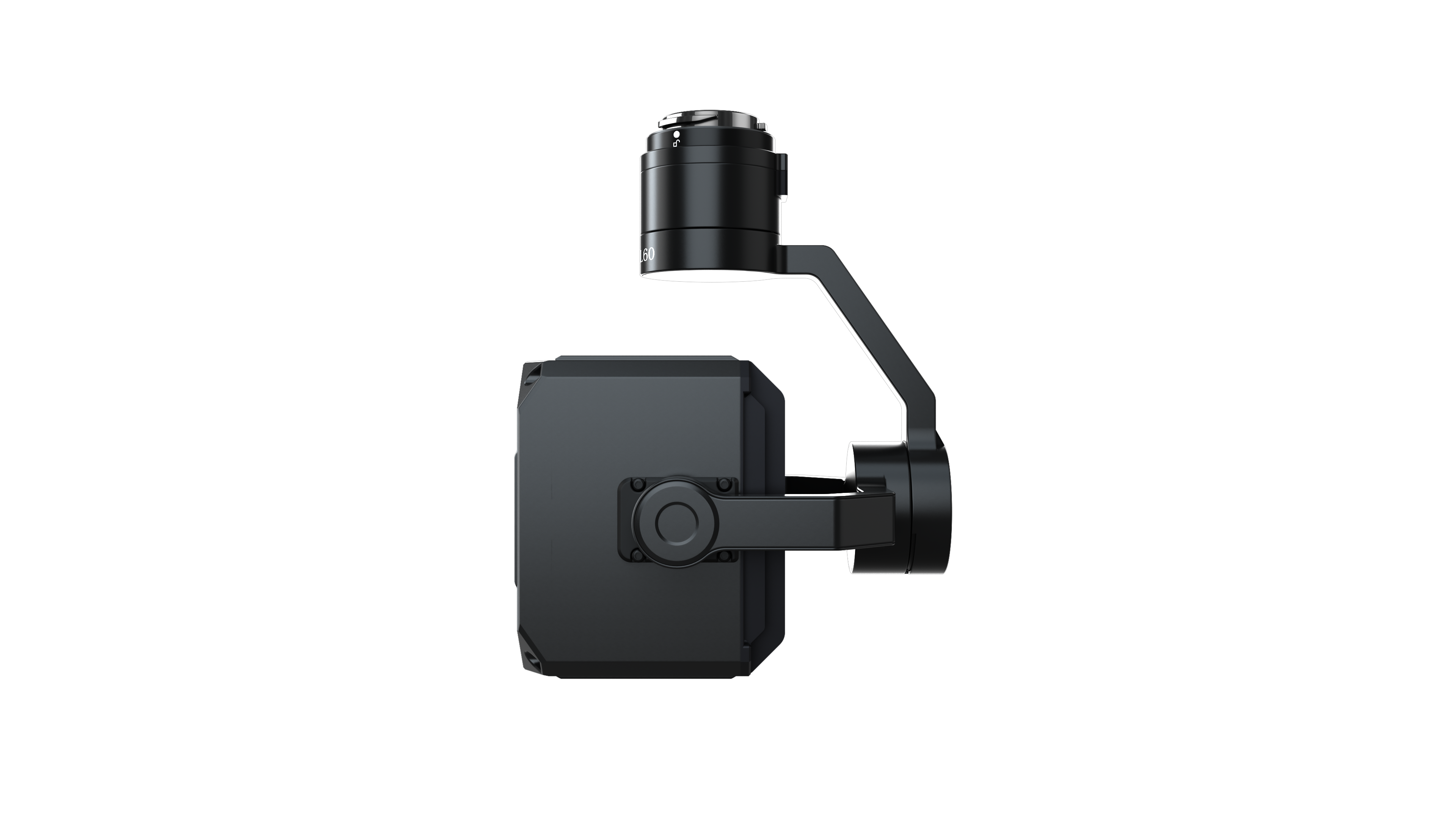

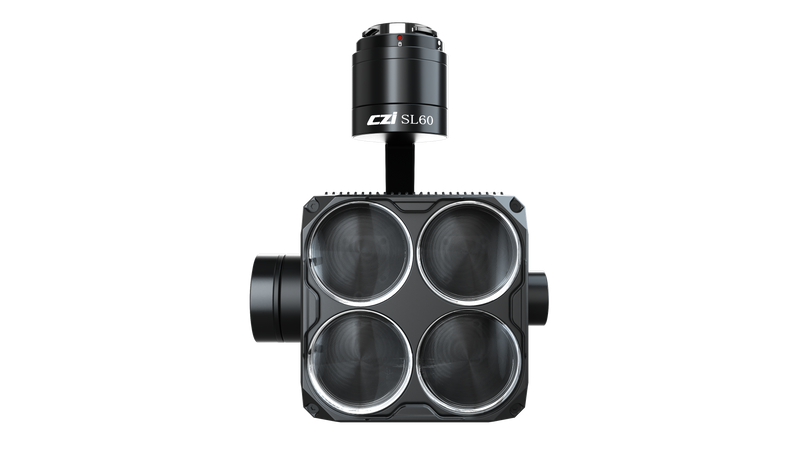

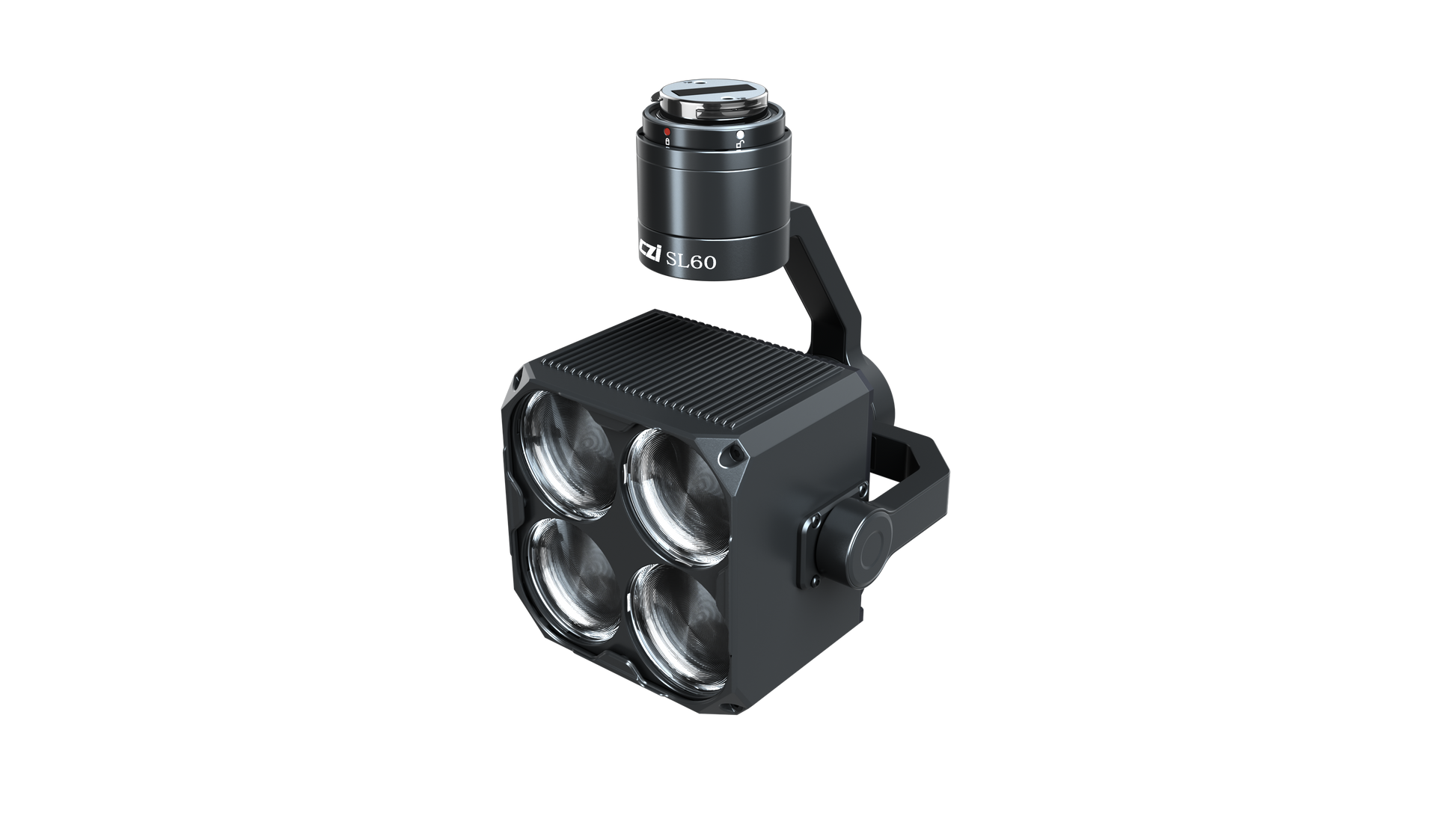

The CZI SL60 is a high-power multicolour strobe and searchlight payload designed for enterprise UAVs (such as the DJI Matrice 300/350 series). It features red, blue, yellow and green lighting modes, rapid flashing strobe effect for disorientation or visual deterrence, and auxiliary white light for induction at night. It integrates via DJI SkyPort, making it serious gear for security, patrol, event management and law-enforcement drone missions.

SL60 — Technical Parameters

Model

SL60

Electrical Interface

DJI SkyPort V2.0

Weight

≤ 788 g

Dimensions

129 × 131 × 172 mm

Field of View (FOV)

≥ 15°

Optical Performance

Luminous Flux

Red light: 1471 lm ± 3%
Blue light: 460 lm ± 3%
Yellow light: 2620 lm ± 3%
Green light: 3080 lm ± 3%

Light Wavelength

Red light: 621 nm ± 10%
Blue light: 452 nm ± 10%
Yellow light: 592 nm ± 10%
Green light: 522 nm ± 10%

Power & Voltage Options

Supply Voltage

PSDK 17 V + OSDK 24 V
PSDK 17 V (alternate configuration)

Total Power

≤ 98 W (dual-voltage)
≤ 68 W (single-voltage)

LED Power

90 W (dual-voltage)
60 W (single-voltage)

Illumination Performance

Illumination Distances

50 m and 100 m

Spot Diameter

13 m at 50 m
26 m at 100 m
(consistent for both voltage versions)

Illumination Area

132.7 m² at 50 m
530.6 m² at 100 m

Central Illuminance

Dual-voltage version:
30.4 lux at 50 m
8.3 lux at 100 m

Single-voltage version:
22.3 lux at 50 m
5.5 lux at 100 m

Function Modes

Normally On Mode

90 W (dual-voltage)
60 W (single-voltage)

Strobe Light Mode

60 W for both versions

Gimbal & Control

Gimbal Angle Adjustment

Automatic follow
Brightness adjustment supported

Gimbal Rotation Range

Pitch: −90° to +15°
Horizontal: ±90°

Gimbal Design Scope

Pitch: −100° to +25°
Horizontal: ±100°
Roll: −90° to +60°

Environmental Adaptability

Operating Temperature

−15°C to +50°C

  • 1x CZI SL60 Multicolor Strobe Searchlight
  • 1x Quick-release mounting adapter (DJI Matrice compatible)
  • 1x User manual

Remote Robotic is a North American authorized dealer for CZI SL60 Multicolour Strobe Searchlight.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

CZI SL60 user manual

We offer training for all robotic solutions

Learn more

SL60 Multicolour Strobe Searchlight FAQ

The SL60 can output up to approximately 90 W of LED power and covers an area of 530.6 m² at 100 m distance, delivering strong visual presence for night operations or deterrence roles.

The SL60 is mount-compatible with DJI Matrice 300/350 RTK via SkyPort V2.0, designed to work as an aerial security and patrol payload with fast integration.

Yes — the SL60 features four coloured LED modes (red, blue, yellow, green) plus auxiliary white lighting, and both strobe and steady modes, making it versatile for visual signalling, deterrence and illumination.
