Ascent AeroSystems

Spartan – Heavy-Lift Coaxial VTOL

  • Coaxial VTOL
  • NDAA
Contact us for best pricing
Contact us for best pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Up to 70+ minutes of flight
IP54 Rated
Payload Capacity: 15.3 lbs (6.9 kg).
Operating temperature: -28°C to 54°C

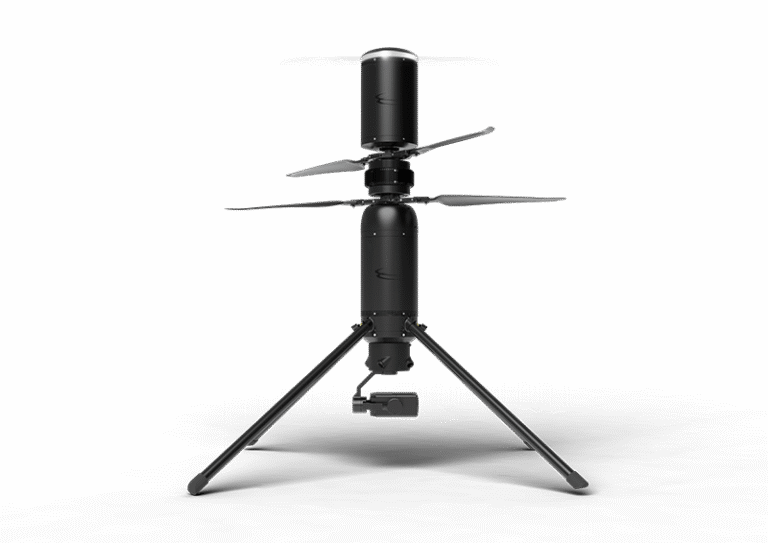

The Spartan represents the next evolution in coaxial VTOL platforms—built for defence, industrial, and public-safety operations. Offering extended endurance (70+ minutes) and heavy payload capability (up to ~15.3 lbs / ~6.9 kg), it delivers a rugged, all-weather performance in a modular, mission-ready design. Ideal for BVLOS operations, large-area coverage, and demanding remote-operations use-cases.

Specification Sheet

  • Payload Capacity: up to 15.3 lbs (6.9 kg)
  • Endurance: 70 + minutes (in optimal configuration)
  • Range: up to 24 miles (38.6 km) per mission
  • Area Coverage: up to 1,800 sq miles (4,662 km²)
  • Modular Payload Interface: top & bottom MOSA quick-connect mounts
  • Environmental Rating: IP54 battery enclosure, weather-resistant frame
  • Wind Tolerance: operational in winds exceeding 40 mph (18 m/s)
  • Platform Architecture: coaxial heavy-lift with redundant power design
  • Construction: carbon-fiber airframe with sealed electronics housing

Remote Robotic is a North American authorized dealer for Ascent AeroSystems Spartan – Heavy-Lift Coaxial VTOL.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

We offer training for all robotic solutions

Learn more

Spartan – Heavy-Lift Coaxial VTOL FAQ

The platform is engineered for BVLOS-scale endurance and telemetry, but regulatory approvals (e.g., SFOC in Canada) depend on the operator and data-link configuration.

Yes. The modular quick-connect interfaces allow top-and-bottom payload mounting—such as a mapping sensor plus delivery module.

The Spartan is purpose-built for challenging conditions including high winds, rain, snow, and dust, thanks to its IP-rated design and coaxial propulsion system.
