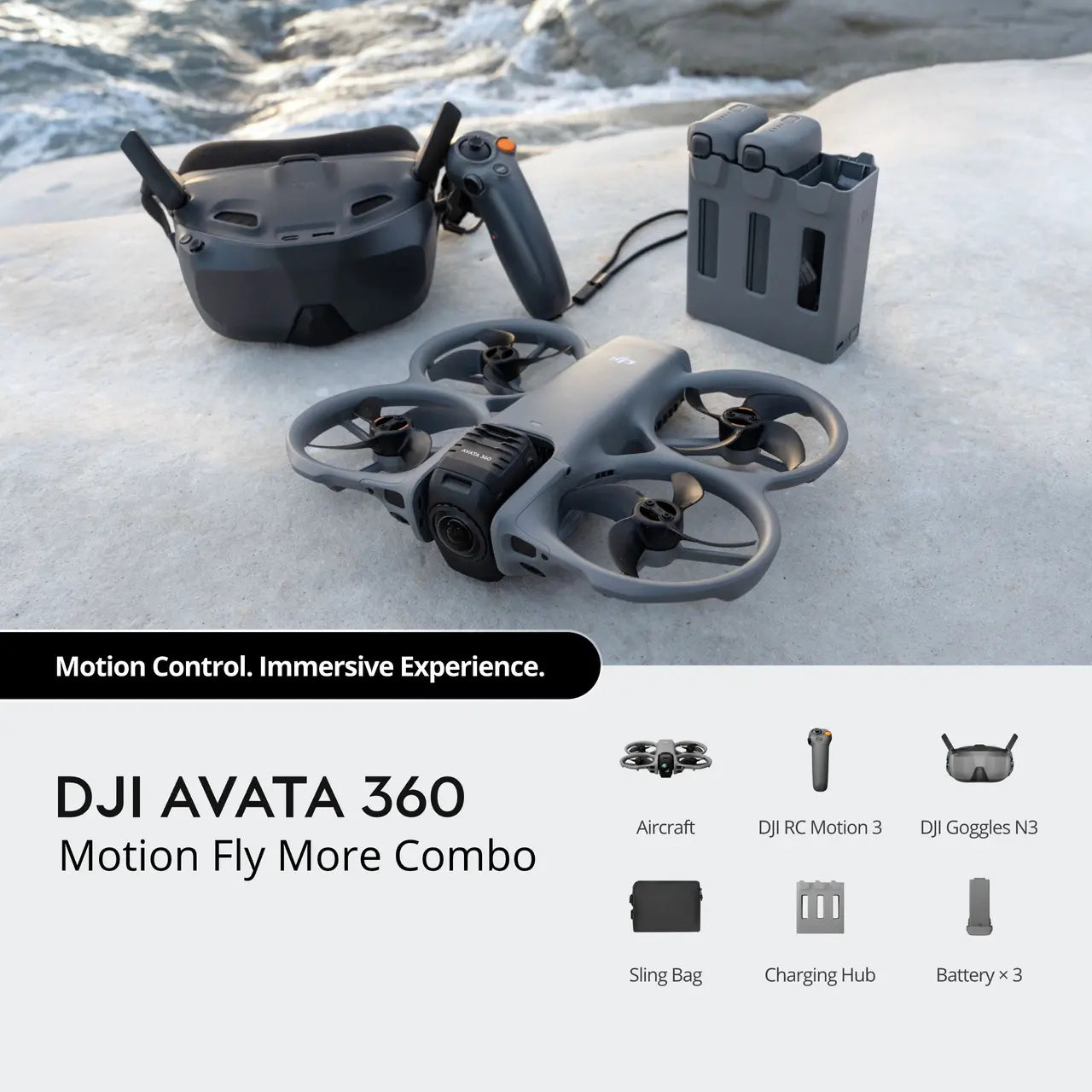

DJI Avata 360 Motion Fly More Combo (DJI Goggles N3)

Aircraft

Takeoff Weight

• Approx. 455 g

Dimensions

• 246×199×55.5 mm (L×W×H)

Max Ascent Speed

• 2 m/s (Cine mode)
  6 m/s (Normal mode)
  10 m/s (Sport mode)

Max Descent Speed

• 1.5 m/s (Cine mode)
  6 m/s (Normal mode)
  10 m/s (Sport mode)

Max Horizontal Speed

• 6 m/s (Cine mode)
  16 m/s* (Normal mode)
  18 m/s (Sport mode)Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft ascending vertically to a height of 1.5 meters above the ground. Actual experience may vary depending on the environment, usage, and firmware version.
  * Up to 12 m/s in Normal mode by default, adjustable to 16 m/s in settings.

Max Takeoff Altitude

• 4500 mMeasured in a windless environment when taking off from an altitude of 4500 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

Max Flight Time

• Approx. 23 minsMeasured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 21.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Max Hovering Time

• Approx. 22 minsMeasured when hovering in a windless environment at sea level, and the camera in photo mode, until a forced landing due to battery depletion. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.

Max Flight Distance

• 13.5 kmMeasured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 39.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Max Wind Speed Resistance

• 10.7 m/s (Level 5)

Max Pitch Angle

• 48°

Operating Temperature

• -10° to 40° C (14° to 104° F)

Global Navigation Satellite System

• GPS + Galileo + BeiDou

Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with satellite positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with satellite positioning)

Internal Storage

• 42 GB

Class

• C1 (EU)

Camera

Image Sensor

• Two 1/1.1-Inch Square CMOS Sensors
  Effective Pixels per Sensor: 64MP

Lens

• FOV: 200°
  Format Equivalent: 7.8 mm
  Focal Length: 2.5 mm
  Aperture: f/1.9
  Focus mode: FF
  Focus: 1.5 m to ∞

ISO Range

• 360° Video:
  8K@60/50/48fps: 100-12800 (Normal/D-Log M)
  8K@30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)
  6K@60/50/48/30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)

  360° Photo: 100-6400

  Single-Lens Video: 100-12800

Shutter Speed

• Video: 1/8000-1/25 s
  Photo: 1/8000-1/30 s

Still Photography Mode

• Single Shot:
  In 360° mode, the resolution is 30 MP* or 120 MP**.* For 30MP/8K 360° photos, the resolution is 7776×3888 (30 MP) in JPEG and 7680×3840 (29.49 MP) in DNG.
  ** For 120MP/16K 360° photos, the resolution is 15520×7760 (120 MP) in JPEG and 15360×7680 (118 MP) in DNG.

• Max Image Size

• 360° Photo: 15520×7760

Photo Format

• JPEG/DNG (RAW)

Video Resolution

• 360° Mode:
  8K (2:1): 7680×3840@60/50/48/30/25/24fps
  6K (2:1): 6000×3000@60/50/48/30/25/24fps

  Single Lens Mode:
  4K (4:3)*: 3840×2880@60/50/48/30/25/24fps
  4K (16:9): 3840×2160@60/50/48/30/25/24fps
  2.7K (4:3)*: 2688×2016@120/100/60/50/48/30/25/24fps
  2.7K (16:9): 2688×1512@120/100/60/50/48/30/25/24fps* Only supported when using DJI Goggles 3/N3 paired with DJI RC Motion 3 or DJI FPV Remote Controller 3.

• Video Format

• OSV/MP4 (H.265)

Max Video Bitrate

• 180 Mbps

Color Mode

• Normal
  D-Log M

• EIS

• Single Lens Mode:
  With RC 2/RC-N2/RC-N3: Supports only RockSteady 3.0
  With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Supports a switch between RockSteady 3.0 and HorizonBalancing

Camera FOV

• Single Lens Mode:
  With RC 2/RC-N2/RC-N3: Natural Wide
  With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide

• Supported File System

• exFAT

Gimbal

Stabilization

• Single-Axis Mechanical Gimbal (tilt)
  360° Virtual Gimbal

Mechanical Range

• Tilt: -95° to 173°

• Controllable Range

• Single-Axis Mechanical Gimbal:
  Tilt (With RC 2/RC-N2/RC-N3): -30° to 60°
  Tilt (With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3): -60° to 60°

  360° Virtual Gimbal:
  Tilt: -180° to 180°
  Roll: -180° to 180°

Max Control Speed

• Single-Axis Mechanical Gimbal:
  Tilt: 100°/s

  360° Virtual Gimbal:
  Tilt: 100°/s
  Roll: 100°/s

• Angular Vibration Range

• Single-Axis Mechanical Gimbal:
  ±0.01°

Sensing

Sensing Type

• Omnidirectional vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

Forward

• Measurement Range: 0.5-20 m
  FOV: Horizontal 90°, Vertical 90°

Backward

• Measurement Range: 0.5-18 m

• Lateral

• Measurement Range: 0.5-18 m

• Upward

• Measurement Range: 0.5-18 m

Downward

• 3D ToF Effective Measurement Height: 10 m
  Precise Hovering Range: 0.3-10 m
  3D ToF FOV: Horizontal 60°, Vertical 60°
  Measurement Range: 0.5-20 m
  FOV: Horizontal 90°, Vertical 90°

• Operating Environment

• Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement)
  Adequate lighting (lux > 1, normal indoor lighting conditions)

Video Transmission

• Video Transmission System

• O4+

• Live View Quality

• Single Lens Mode:
  1080p@100*/60/50/48/30/25/24fps

  360° Mode:
  1080p@60/50/48/30/25/24fps* In Single Lens Mode, 1080p/100fps is supported only when the aircraft is used with Goggles 3/N3 and RC Motion 3.

• Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz*
  5.725-5.850 GHz* 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.170-5.250 GHz:
  < 23 dBm (CE)

  5.725-5.850 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Communication Bandwidth

• Max 40 MHz

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 20 km
  CE: 10 km
  SRRC: 10 km
  MIC: 10 kmMeasured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the camera view during your flight.

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference: Urban landscape, approx. 1.5-4 km
  Medium Interference: Suburban landscape, approx. 4-10 km
  Low Interference: Suburb/seaside, approx. 10-20 kmData tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
  Low Interference and Obstructed by Trees: Approx. 0.7-4.5 kmData tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Lowest Latency

• With RC 2/RC-N2/RC-N3:
  1080p/60fps Video Transmission Quality: Approx. 130 ms** Actual experience may vary depending on the environment, usage, and firmware version.

• Max Video Bitrate

• 60 Mbps

• Max Download Speed

• O4+: 10 MB/s
  Wi-Fi 6: 100 MB/s** Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.

• Antennas

• 4 antennas, 2T4R

Intelligent Flight Battery

• Capacity

• ≥ 2700 mAh

• Weight

• Approx. 149 g

• Nominal Voltage

• 14.32 V

• Max Charging Voltage

• 17.2 V

• Battery Type

• Li-ion

• Energy

• ≥ 38.67 Wh

• Discharge Rate

• 7C (typical)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• With Charging Hub (100W max charging power):
  One Battery, From 0% to 100%: Approx. 47 min
  One Battery, From 10% to 90%: Approx. 31 min
  Three Batteries, From 0% to 100%: Approx. 100 min
  Three Batteries, From 10% to 90%: Approx. 70 min

  Directly Charging the Drone (65W max charging power):‌
  One Battery, From 0% to 100%: Approx. 73 min
  One Battery, From 10% to 90%: Approx. 51 minData tested under laboratory conditions at 25° C (77° F) and can be used for reference only. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.

Charger

• Recommended Charger

• Supports DJI 65W Portable Charger and DJI 100W USB-C Power Adapter
  With Charging Hub: DJI 100W USB-C Power Adapter is recommended.

Battery Charging Hub

• Input

• 5-20 V, max 5 A

• Output (power accumulation)

• Max 60 W

• Output (charging)

• Max 17.2 V

• Charging Type

• Supports Charging up to Three batteries SimultaneouslyParallel charging requires the DJI 65W Portable Charger or DJI 100W USB-C Power Adapter. With an input of 65 W or higher, the hub supports parallel charging. Otherwise, it charges sequentially, prioritizing the highest battery level.

• Compatibility

• DJI Avata 360 Intelligent Flight Battery

Storage

• Recommended microSD Cards

• Lexar SILVER PLUS 64GB A2 V30 microSDXC
  Lexar SILVER PLUS 128GB A2 V30 microSDXC
  Lexar SILVER PLUS 256GB A2 V30 microSDXC
  Lexar SILVER PLUS 512GB A2 V30 microSDXC
  Lexar SILVER PLUS 1TB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 512GB A2 V30 microSDXCUsing Lexar SILVER PLUS series microSD cards may deliver a better photography experience.

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac/ax

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)

  5.725-5.850 GHz:
  < 26 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.4

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

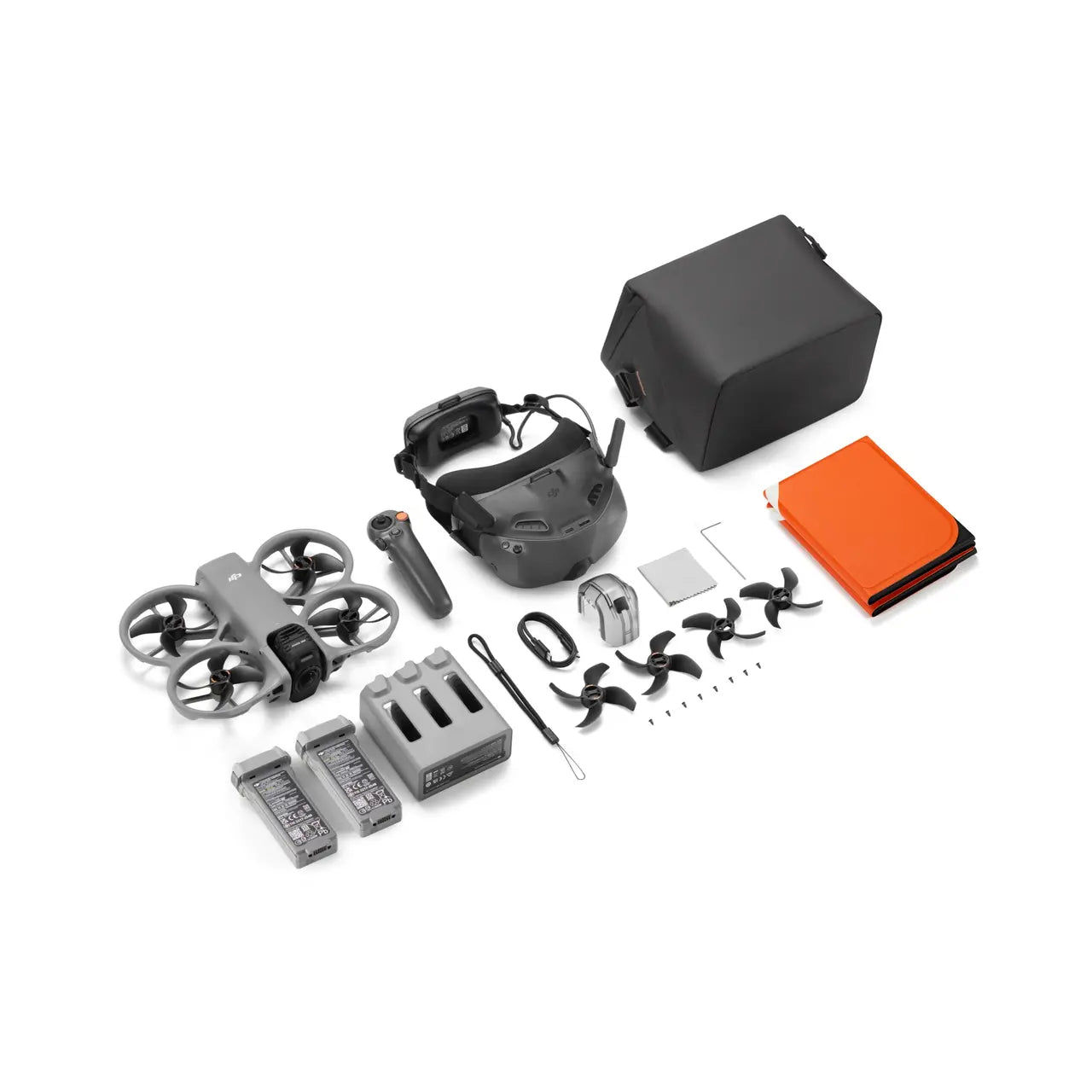

• DJI Avata 360× 1
• DJI RC Motion 3× 1
• DJI Goggles N3× 1
• DJI Avata 360 Intelligent Flight Battery× 3
• DJI Avata 360 Charging Hub× 1
• DJI Avata 360 Sling Bag× 1
• DJI Avata 360 Gimbal Protector× 1
• DJI Avata 360 Spare Propellers (Pair)× 2
• Screwdriver× 1
• DJI Avata 360 Foldable Landing Pad× 1
• DJI Avata 360 Lens Cleaning Cloth× 1
• DJI RC Motion 3 Lanyard× 1
• USB-C to USB-C Data Cable× 1
