DJI

DJI Matrice 4D

  • DJI Matrice 4D
$8,979.00 CAD
$8,979.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Up to ~54 minutes of flight
IP55 rated
Built for Mapping & Inspection
25 km Max Transmission
Operating Temperature: –20 °C to +50 °C
RGB Wide-Angle & Tele
`

The DJI Matrice 4D is a next-generation enterprise UAV built for demanding inspection, mapping, and public-safety operations. With triple-camera imaging (4/3″ wide-angle + tele + medium tele), cm-level RTK accuracy, IP55 weather protection and up to 54 minutes of flight time, the 4D delivers high-performance data capture with rugged reliability. Designed for the field, its advanced sensing suite and transmission system streamline complex missions — so your team can fly smarter, collect richer intelligence, and deploy faster.

Aircraft - General

Weight

  • 1850 g

    This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors.

Max Takeoff Weight

  • 2090 g

Dimensions

  • 377.7×416.2×212.5 mm (L×W×H, without propellers)

Wheelbase

  • Diagonal Wheelbase: 498.5 mm
    Front Motor Left-Right Wheelbase: 383.0 mm
    Rear Motor Left-Right Wheelbase: 343.0 mm
    Front-Rear Wheelbase: 341.6 mm

Max Ascent Speed

  • 6 m/s (Normal Mode)
    10 m/s (Sport mode)

Max Descent Speed

  • 6 m/s (Normal Mode)
    8 m/s (Sport mode)

Max Horizontal Speed (at sea level, no wind)

  • Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways
    Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways

    When used with DJI Dock, only Normal mode is supported.

Max Wind Speed Resistance

  • During Operation: 12 m/s
    During Takeoff/Landing: 12 m/s

Max Takeoff Altitude

  • 6500 m

Max Flight Time

  • 54 minutes

    Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 12 m/s in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Hovering Time

  • 47 minutes

    Measured with the DJI Matrice 4D Series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Operating Radius

  • 10 km

    Measured in an environment of approximately 25° C (77° F) with a safe battery level of 15%, windless environment, round-trip flight speed of approximately 15 m/s, and hovering operation of 18 minutes. Results may vary depending on the environment, actual use, and firmware version.

Max Flight Distance

  • 43 km

    Measured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Pitch Angle

  • 25° (Normal Mode)
    30° (Sport Mode)

Max Angular Velocity

  • 200°/s

Global Navigation Satellite System

  • GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)

Hovering Accuracy Range (windless or breezy)

  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)

Operating Temperature

  • -20° to 50° C (-4° to 122° F)

Ingress Protection Rating

  • IP55

Motor Model

  • 2611

Propeller Model

  • 1364F foldable low-noise anti-ice propellers

RTK Module

  • Integrated on the aircraft

Beacon

  • Integrated on the aircraft

Aircraft - Cameras

Image Sensor

  • DJI Matrice 4D:
    Wide-Angle Camera: 4/3 CMOS, Effective Pixels: 20 MP
    Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
    Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP

    DJI Matrice 4TD:
    Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
    Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
    Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP

Lens

  • Wide-Angle Camera
    DJI Matrice 4D
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/2.8-f/11
    Focus: 1 m to ∞
    DJI Matrice 4TD
    FOV: 82°
    Format Equivalent: 24 mm
    Aperture: f/1.7
    Focus: 1 m to ∞

    Medium Tele Camera
    FOV: 35°
    Format Equivalent: 70 mm
    Aperture: f/2.8
    Focus: 3 m to ∞

    Tele Camera
    FOV: 15°
    Format Equivalent: 168 mm
    Aperture: f/2.8
    Focus: 3 m to ∞

Lens Defogging

  • DJI Matrice 4D and DJI Matrice 4TD: Wide-angle, medium tele, and tele cameras all support lens defogging

ISO Range

  • Normal Mode: ISO 100-25600

    Night Scene Mode:
    Matrice 4D
    Wide-Angle Camera: ISO 100-204800
    Medium Tele Camera: ISO 100-409600
    Tele camera: ISO 100-409600
    Matrice 4TD
    Wide-Angle Camera: ISO 100-409600
    Medium Tele Camera: ISO 100-409600
    Tele Camera: ISO 100-819200

Shutter Speed

  • DJI Matrice 4D
    Wide-Angle Camera:
    Electronic Shutter: 2-1/8000 s
    Mechanical Shutter: 2-1/2000 s
    Medium Tele Camera:
    2-1/8000 s
    Tele Camera:
    2-1/8000 s

    DJI Matrice 4TD
    2-1/8000 s

Max Image Size

  • DJI Matrice 4D
    Wide-Angle Camera: 5280×3956
    Medium Tele Camera: 8064×6048
    Tele Camera: 8192×6144

    DJI Matrice 4TD
    Wide-Angle Camera: 8064×6048
    Medium Tele Camera: 8064×6048
    Tele Camera: 8192×6144

Minimum Photo Interval

  • DJI Matrice 4D: 0.5 s
    DJI Matrice 4TD: 0.7 s

Still Photography Modes

  • DJI Matrice 4D
    Wide-Angle Camera:
    Single: 20 MP
    Timed: 20 MP
    JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
    JPEG + RAW: 2/3/5/7/10/15/20/30/60 s
    Smart Capture: 20 MP
    Panorama: 20 MP (raw image); 100 MP (stitched image)
    Medium Tele Camera:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Capture: 12 MP
    Tele Camera:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Capture: 12 MP

    DJI Matrice 4TD
    Wide-Angle Camera:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Capture: 12 MP
    Panorama: 12 MP (raw image); 100 MP (stitched image)
    Medium Tele Camera:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Capture: 12 MP
    Tele Camera:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Capture:12MP

Video Codec and Resolution

  • DJI Matrice 4D and DJI Matrice 4TD
    Video Codec: H.264, H.265
    Encoding Strategy: CBR, VBR
    Resolution:
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps

Video Bitrate

  • DJI Matrice 4D and DJI Matrice 4TD
    H264: 60 Mbps
    H265: 40 Mbps

Supported File System

  • exFAT

Photo Format

  • DJI Matrice 4D:
    Wide-Angle Camera: JPEG/DNG (RAW)
    Medium Tele Camera: JPEG
    Tele Camera: JPEG

    DJI Matrice 4TD: JPEG

Video Format

  • DJI Matrice 4D and DJI Matrice 4TD:MP4 (MPEG-4 AVC/H.264)

Digital Zoom

  • Tele Camera:
    16x (112x hybrid zoom)

Aircraft - NIR Auxiliary Light

Infrared Illumination

  • DJI Matrice 4TD:
    FOV: 5.7°±0.3°

Aircraft - Laser Module

Laser Rangefinding

  • Normal Incidence Range: 1800 m (1 Hz) @20% reflectivity target*
    Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
    Blind Zone: 1 m
    Distance Measurement Accuracy:
    1 m to 3 m: System Error <0.3 m, Random Error <0.1 m @1σ
    Other Distances: ±(0.2+0.0015D) (Distance in meters)

    * Performance degradation may occur in rainy or foggy conditions.

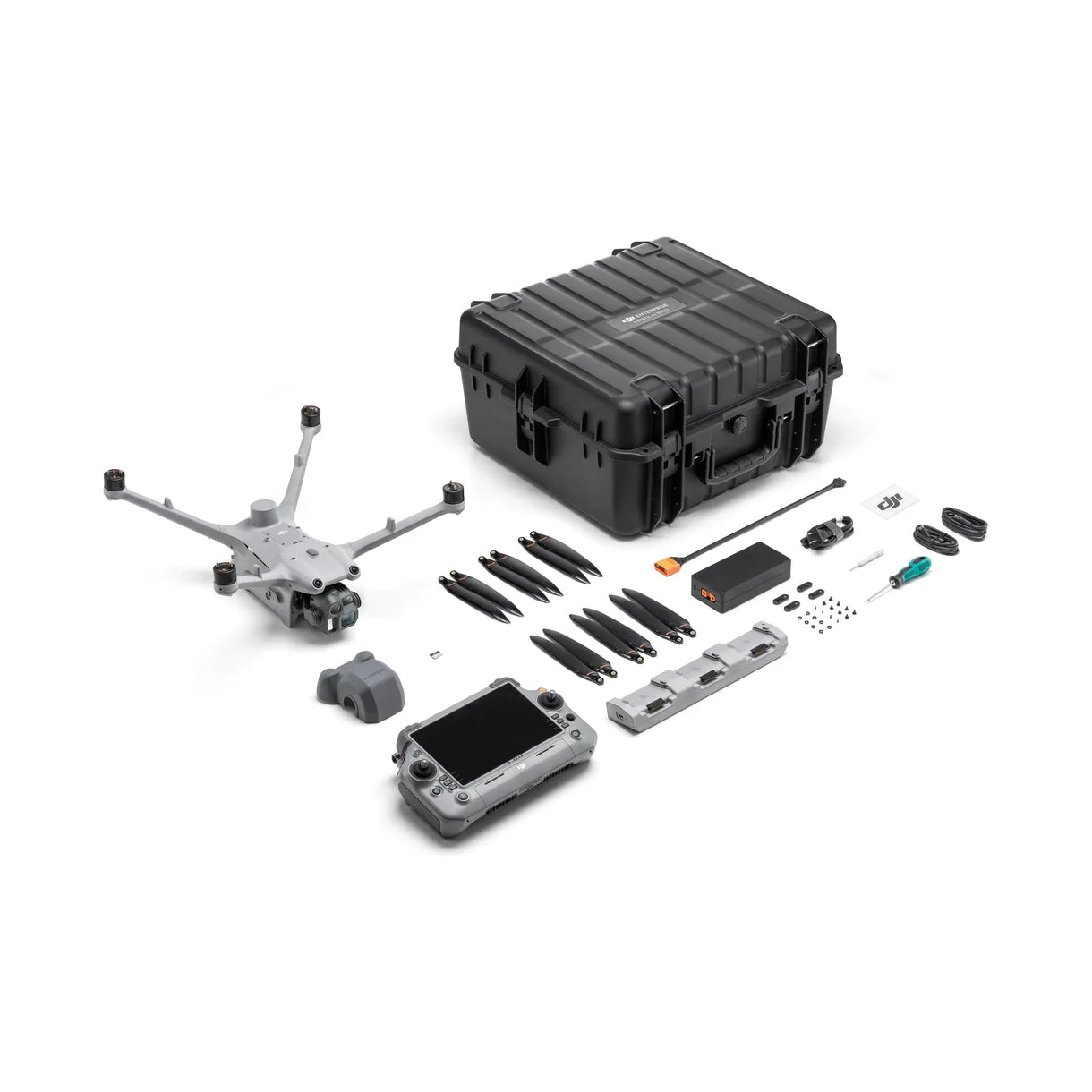

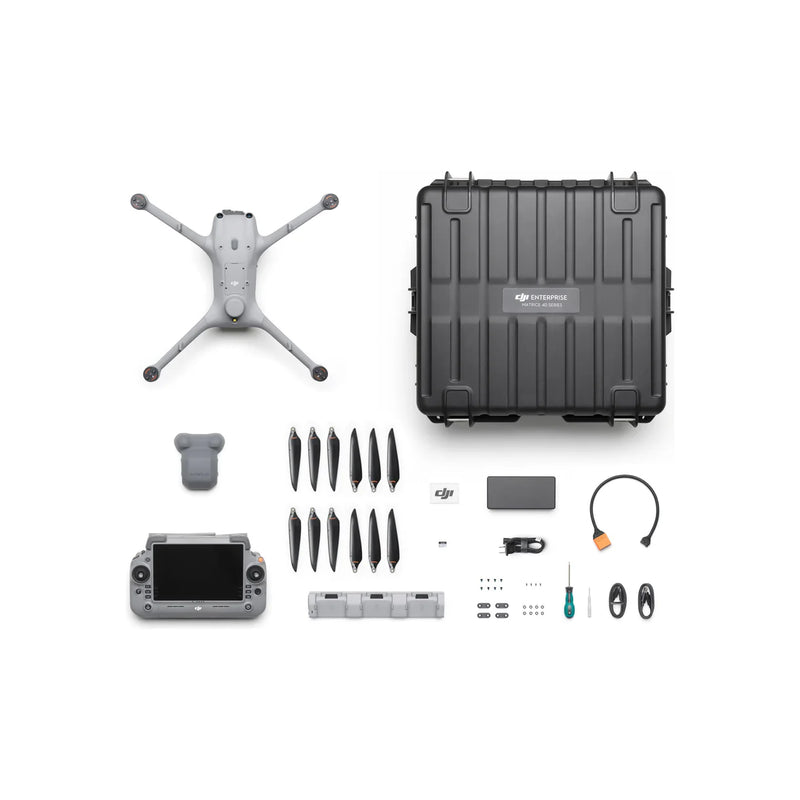

DJI Matrice 4D/M4TD (DJI RC Plus 2 Enterprise (NA)

DJI 240W Power Adapter

DJI Matrice 4D Series 240W Charging Hub

DJI Matrice 4D Series Carrying Case

DJI RC Plus 2 Controller

Flight battery sold separately

Remote Robotic is a North American authorized dealer for DJI DJI Matrice 4D.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Matrice 4 series manual

We offer training for all robotic solutions

Learn more

DJI Matrice 4D FAQ

It excels in aerial inspection with the tele camera, photogrammetry mapping with a mechanical shutter wide angle camera and public-safety workflows where high fidelity imagery, long endurance and rugged field performance are essential.

The 4D features a wide-angle 4/3″ 20 MP camera (mechanical shutter) plus tele-cameras and a laser rangefinder measuring up to ~1,800 m

With an IP55 rating, rugged design, and extended operating-temperature capability, it is designed for harsh field use — including dusty, rainy or cold settings.
