DJI Matrice 4E for Construction: RTK Mapping, Progress Capture & Earthworks

Last verified against DJI's published Matrice 4 Series specifications: July 2026.

Why the Matrice 4E Fits Construction Mapping

Reality capture on an active site lives or dies on two things: how accurately the aircraft positions, and how quickly it deploys for a repeatable weekly flight. Owner and GC reporting, dispute resolution, and BIM coordination all depend on data that's measurable and repeatable — not a set of pretty photos.

The Matrice 4E was built for that, and DJI markets it specifically for surveying, mapping, and construction. Its distinguishing feature is a 4/3-inch 20 MP wide camera with a mechanical shutter — the sensor and shutter combination that produces distortion-free imagery for accurate photogrammetric reconstruction, which the thermal-focused Matrice 4T doesn't carry. Pair that with RTK positioning (1 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical) and the aircraft produces orthomosaics and 3D models that hold up as a record of record — and it folds into a case and launches in minutes for a repeatable weekly capture.

The Operational Advantage

DJI Matrice 4E Key Specifications for Construction Work

Per DJI's footnotes, flight-time figures were measured in windless conditions without payload and are reference data — real-world numbers vary with wind, altitude, accessories, and firmware. Note the -10°C operating floor and the battery's lack of low-temperature charging support, which matter for Canadian winter work (see the cold-weather note below).

What Can the Matrice 4E Do on a Construction Site?

Six jobs cover most of what the 4E does well on a Canadian construction or infrastructure program. Each maps to a specific, verified capability.

1. Weekly Site Progress Capture

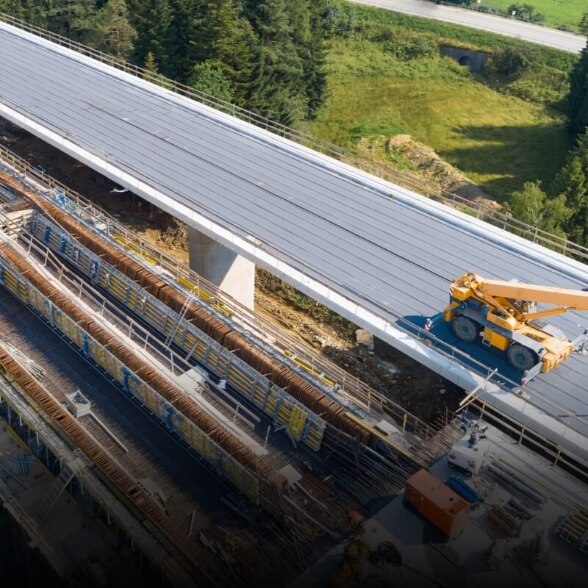

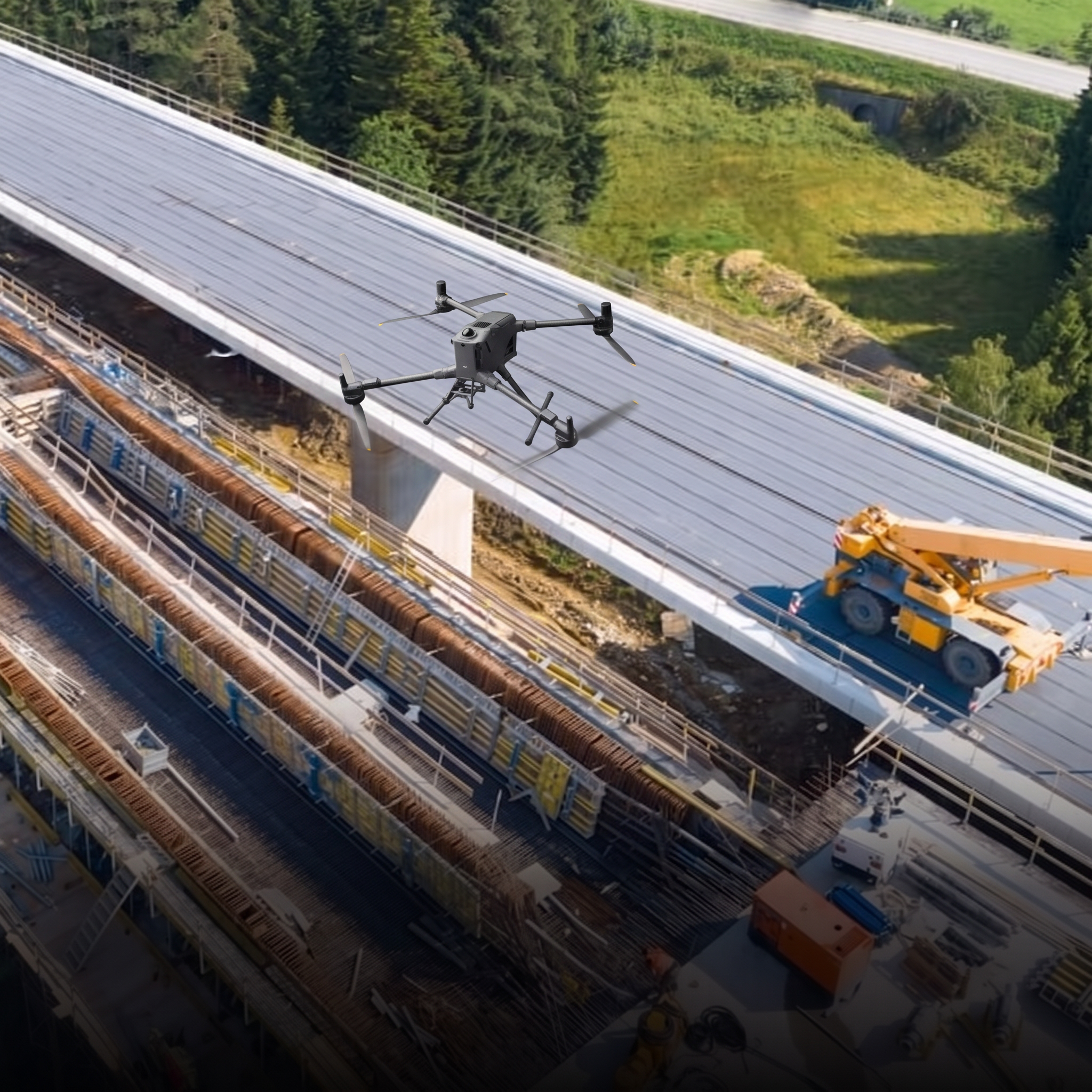

Owners and GCs need a consistent, dated record of what changed on site each week — for progress billing, coordination, and dispute resolution. The 4E's 4/3-inch mapping camera, flown on an automated mapping route with RTK-tagged imagery, produces repeatable orthomosaics and 3D models week over week. A 49-minute flight and 0.5 s minimum photo interval cover a site efficiently in one mission.

Why it matters: a measurable, dated site record that settles a billing or schedule dispute instead of arguing over photos.

2. Earthworks & Volume Measurement

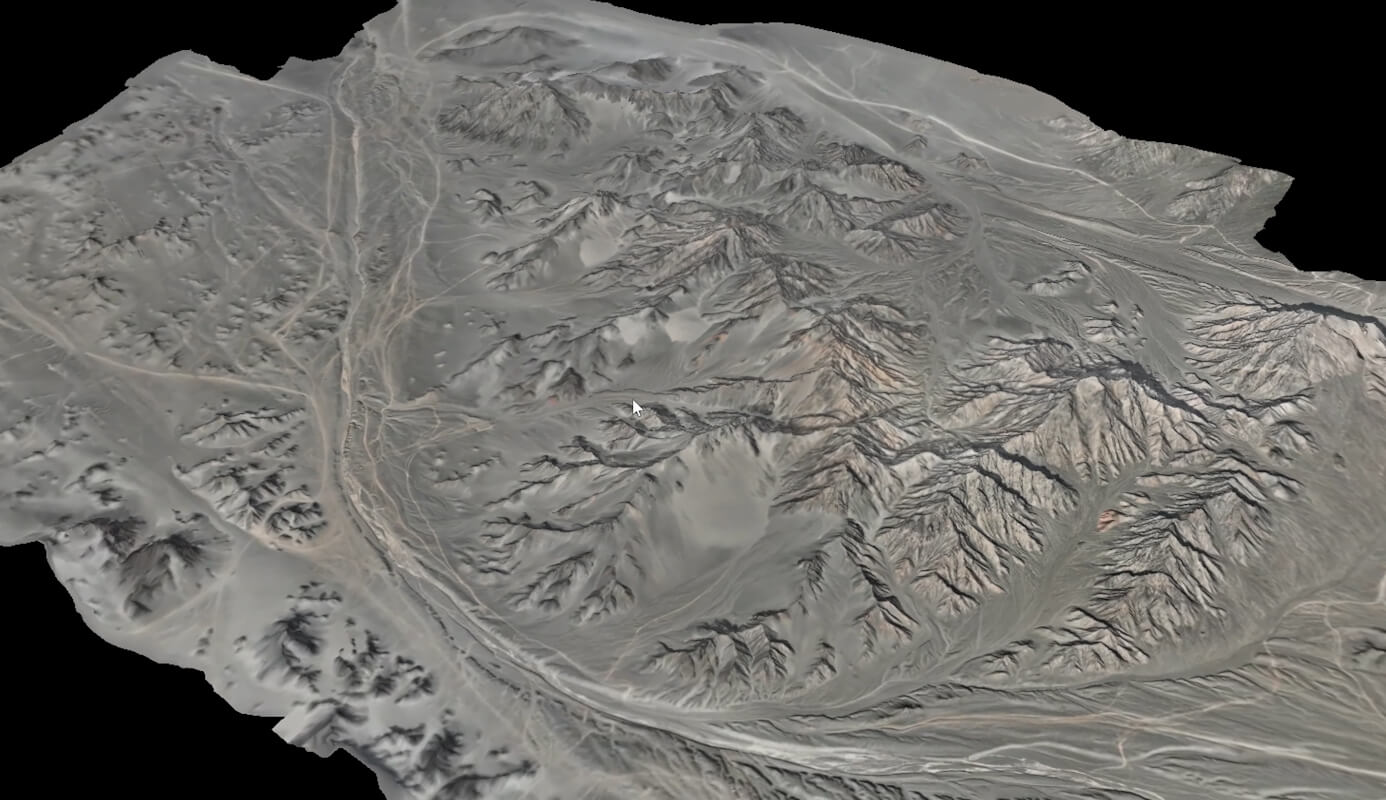

Cut/fill balances and stockpile volumes need real accuracy, not estimates. The mechanical shutter gives distortion-free imagery for photogrammetric reconstruction, and RTK positioning (1 cm + 1 ppm) ties the model to your site datum — so volumes and quantities reconcile against design and against the pay estimate.

Why it matters: earthworks quantities backed by a measurable model, tied to your datum, without a dense ground-control field.

3. Topographic & Site Survey

Base mapping, existing-conditions surveys, and design updates need survey-grade positioning. The 4E's RTK module and mapping camera produce georeferenced orthomosaics and elevation data at centimetre accuracy, cutting the field time a conventional survey would take on an open site.

Why it matters: survey-grade base mapping in a single flight instead of days of ground survey.

4. As-Built & BIM Deliverables

Reality-capture data is only useful if it lands in the tools your team runs. The 4E's RTK-tagged imagery processes in DJI Terra, Pix4D, or third-party software into standard deliverable formats — orthomosaics (GeoTIFF), 3D meshes (OBJ/FBX), and point clouds (LAS/LAZ) — that load into Autodesk, Bentley, Trimble, and Procore workflows for as-built comparison and BIM coordination.

Why it matters: as-builts and BIM inputs that drop straight into your coordination stack, not a folder of raw photos.

5. Detail & Defect Zoom Capture

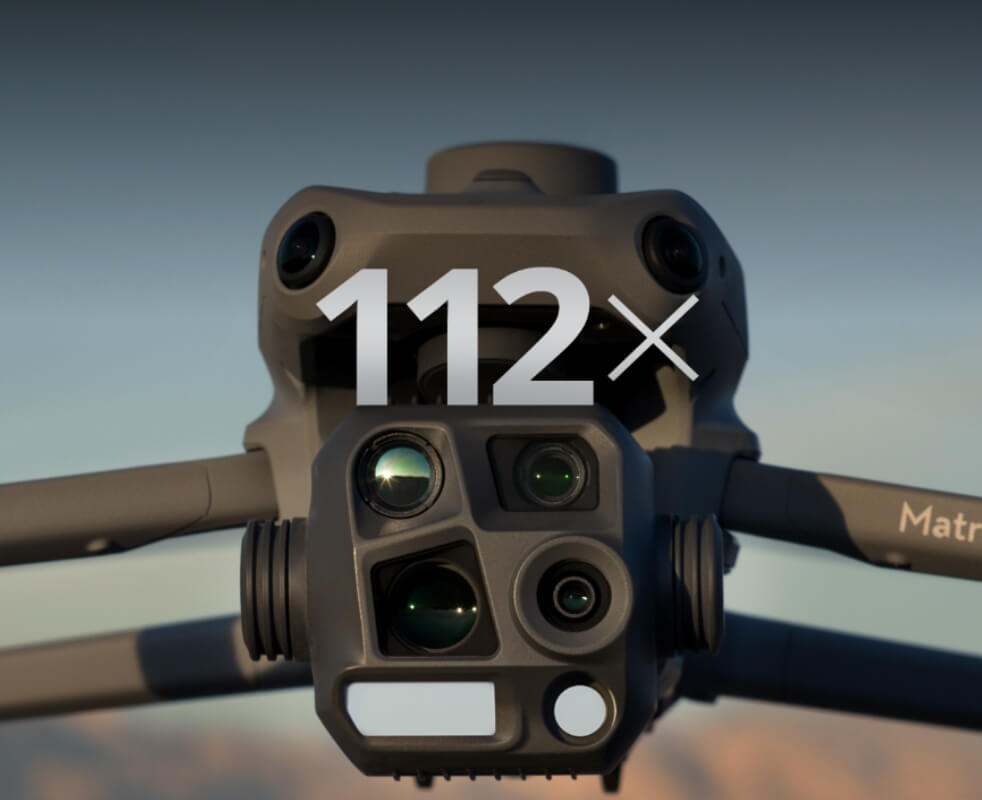

Beyond mapping, the 4E carries medium-tele and tele cameras reaching 112x hybrid zoom, so the same aircraft that maps the site can also capture close visual detail of a structure, a connection, or a defect from a standoff without a second flight.

Why it matters: map the site and grab detail shots in one deployment.

6. Greenfield Survey Without a Base Station

Greenfield and early-stage sites often have no established RTK base. Custom Network RTK connects to an NTRIP server over cellular or Wi-Fi, or set up your own on-site reference with the DJI D-RTK 3 Multifunctional Station for centimetre positioning where there's no network coverage.

Why it matters: survey-grade positioning from day one on a site with no infrastructure yet.

BIM & Coordination-Stack Ready

The Matrice 4E's RTK-tagged imagery processes into the standard deliverable formats your team already uses — orthomosaics (GeoTIFF), 3D meshes (OBJ/FBX), and point clouds (LAS/LAZ) — through DJI Terra, Pix4D, or third-party processors, and loads into Autodesk, Bentley, Trimble, and Procore workflows. We route deliverables into your existing coordination stack rather than handing you raw files.

Does the Cold and Weather Affect Operations?

It's a real planning factor, and it comes down to two things: temperature and ingress protection.

Temperature. The Matrice 4E is rated to -10°C, and its Intelligent Flight Battery does not support low-temperature charging. For Canadian winter work, keep batteries warm until launch and plan shorter flights in the cold.

Ingress protection. This is the one to plan around: the standard Matrice 4E (and 4T) carry no official IP rating — DJI lists "no standard protection level" — so they shouldn't be flown in anything beyond incidental light moisture, which limits wet-weather and heavy-dust site work. If year-round, all-weather capture is central to your program, the Matrice 4D / Matrice 4TD is the answer: these are the IP55-rated variants of the Matrice 4 Series, sealed against dust and sustained water jets and rated to a much colder -30°C. Crucially, the 4D/4TD can be operated as standalone handheld aircraft or deployed in the DJI Dock 3 for automated, recurring capture — so the same weather-hardened platform covers both piloted flights and pilot-free scheduled missions. For a Canadian site that needs to capture through rain, snow, and dust, that IP55 rating is the difference between a program that runs year-round and one that stands down when the weather turns.

For sustained sub-zero or wet-weather programs, we'll be straight with you about whether the standard 4E, the docked 4D/4TD, or the larger Matrice 400 (IP55, -20°C, self-heating batteries) is the right platform for your climate and cadence.

What About Flying Over Active Sites and People?

An active site means flying near people, and in urban work often near controlled airspace — and the rules run through Transport Canada, not the spec sheet. At about 1.2 kg the Matrice 4E sits well within the small-RPAS class, so operating near or over people is an advanced operation under CARs Part IX. That requires a pilot certified for Advanced Operations, NAV CANADA authorization in controlled airspace, and a valid RPAS Safety Assurance declaration for that operation. We handle RPAS Advanced certification, SFOC for controlled airspace, and operational risk assessments for downtown and near-airport sites — ask us to scope the regulatory footing for your project.

On parachutes for over-people flight: a deployable parachute is a recognized ground-risk mitigation for flying over uninvolved people in urban areas, and it's worth planning into a downtown construction program. For the Matrice 4E we supply the AVSS Parachute Recovery System for the DJI Matrice 4 Series — a 149 g bolt-on that mounts without interfering with the aircraft's GPS, deploys in under 0.5 seconds, integrates a flight-termination system that cuts the motors on activation, and brings the aircraft down at a controlled ~3.8 m/s. It ships with the compliance documentation (ASTM F3322 / EASA MOC) that supports operations over people, and is designed to support Transport Canada frameworks for flight over people. If routine flight over uninvolved people is central to your urban work, we'll scope the parachute into your operational approvals — ask us to confirm the current Canadian regulatory pathway for your operation.

Common Questions

The Bottom Line for Canadian Builders

The Matrice 4E is the fast-deploy, survey-grade mapping tier of a construction drone program: a 4/3-inch mechanical-shutter camera for accurate photogrammetry, RTK to 1 cm for reportable data, and 49-minute flights in a folding 1.2 kg airframe that launches in minutes. It's the right tool for weekly progress capture, earthworks volumes, and BIM deliverables — with LiDAR as-builts and heavy-payload structural work belonging on the Matrice 400 instead.

Two things to settle before you commit: match the aircraft to the job (4E for mapping and progress, 4T for thermal inspection, M400 for LiDAR and large sites), and plan around the -10°C cold-weather envelope for Canadian winter work.

If you're scoping a construction mapping program, request a proposal. Tell us your site size, capture cadence, and deliverable software stack, and we'll scope the right aircraft, accessories, and training.

Matrice 4T vs 4E vs 4TD: Which DJI Matrice 4 Is Right for Construction?

DJI's Matrice 4 Series comes in variants that look nearly identical but do different jobs. Here's how they line up for a construction and infrastructure program — and when each earns its place.

The Short Version

• Matrice 4E — the mapping aircraft. Choose it for survey, progress capture, earthworks, and BIM.
• Matrice 4T — the inspection aircraft. Choose it for thermal, facade, structural, and site-safety work.
• Matrice 4TD — the IP55, all-weather version of the 4T. Flies standalone or in the DJI Dock 3 for automated, recurring missions, and holds up in rain, dust, and deep cold.

Side-by-Side for Construction

The 4TD is the IP55-rated, weather-hardened variant of the Matrice 4 Series — it can be flown standalone or deployed in the DJI Dock 3 for automated recurring missions. Exact configuration and Canadian availability are quote-only — confirm current details with us.

Which One for Your Program?

Choose the Matrice 4E if your core need is measurable data — weekly progress orthomosaics, earthworks volumes, topographic survey, and BIM-ready deliverables. The mechanical-shutter mapping camera is the reason this is the construction aircraft.

Choose the Matrice 4T if your work is inspection and awareness — building-envelope thermal scans, facade and structural inspection, site safety, and night security. The thermal camera and laser rangefinder are what set it apart.

Choose the Matrice 4TD if you need all-weather capability (IP55, down to -30°C) or the 4T's inspection sensors running on a schedule — it flies standalone or from the DJI Dock 3 for recurring site documentation, security sweeps, or safety rounds with no pilot dispatched each time.

Most construction programs lead with a 4E for mapping and add a 4T (or a docked 4TD) where thermal inspection and recurring autonomous coverage matter. And where the job needs LiDAR as-builts or heavy structural-inspection payloads, that's the Matrice 400's role, not the Matrice 4 Series.

Not sure which fits? Talk to us — tell us your asset mix and capture cadence, and we'll scope the right combination rather than sell you one aircraft for every job.

Sources

• DJI Matrice 4 Series specifications: enterprise.dji.com/matrice-4-series/specs
• DJI Matrice 4 Series User Manual (cameras, mechanical shutter, RTK, sensing, transmission)
• Transport Canada, Drone operation categories and pilot certificates: tc.canada.ca
