DJI Drones for Survey & Mapping in Canada: The Complete Guide

Last verified against DJI's published specifications: July 2026.

Why Platform Choice Matters in Survey

Survey deliverables are defined by accuracy, density, and repeatability — and no single aircraft optimizes all three across every job. A stockpile volume, a bare-earth model under forest canopy, a 60 km pipeline corridor, and a monthly monitoring capture are four different problems. "Which drone" is the wrong first question; "which deliverable, at what accuracy, how often" is the right one.

DJI's survey-relevant lineup splits cleanly by payload and autonomy — photogrammetry, heavy LiDAR, and automated capture. Around it, specialist systems handle canopy-penetrating LiDAR, long corridors, and GPS-denied environments. The rest of this guide walks each, and where it hands off.

The DJI Survey Lineup at a Glance

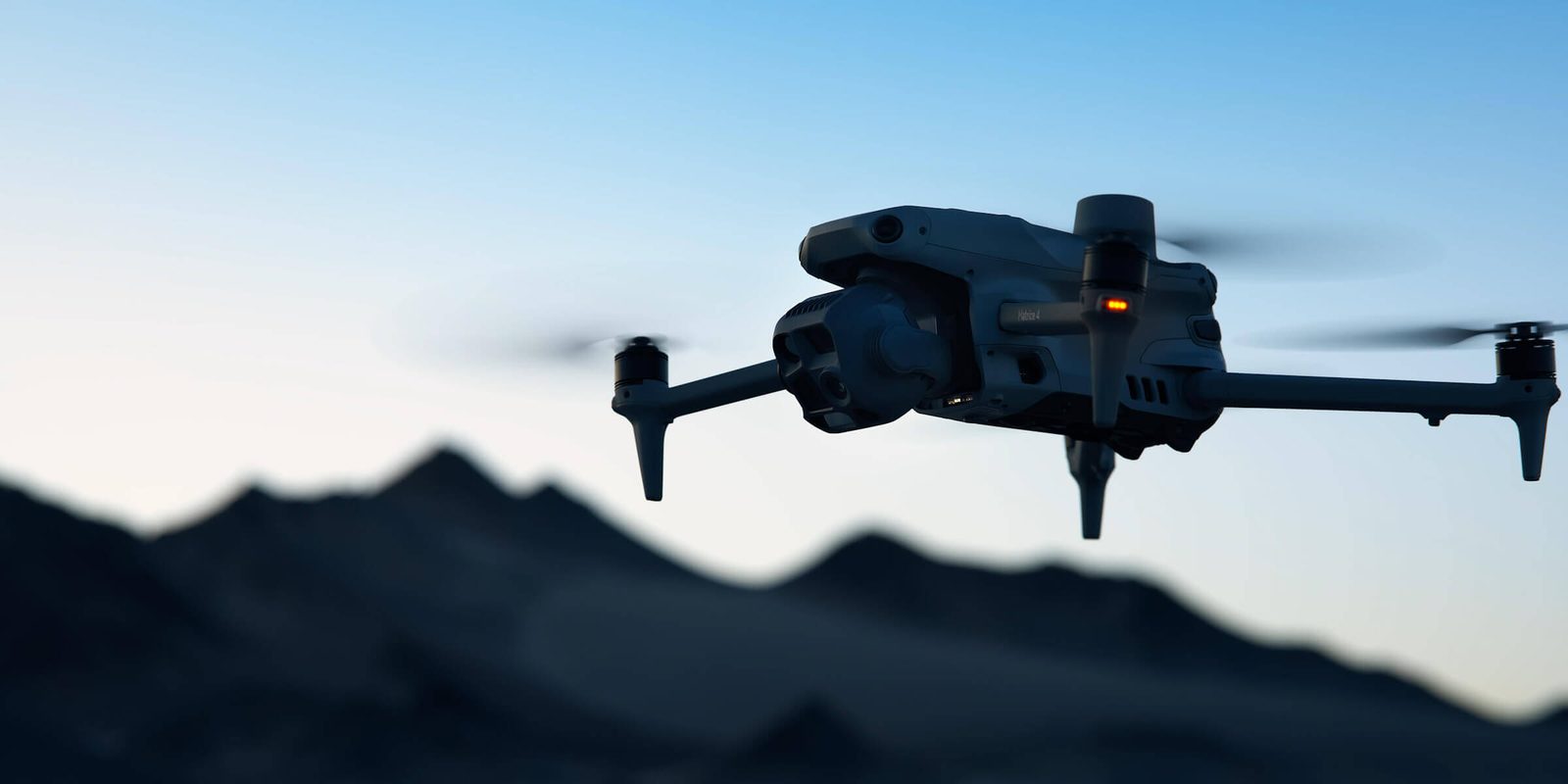

Matrice 4E — The RTK Photogrammetry Workhorse

The Matrice 4E is DJI's compact mapping aircraft: a 4/3-inch 20 MP mechanical-shutter camera — the sensor-and-shutter combination that produces distortion-free imagery for accurate reconstruction — RTK positioning to 1 cm + 1 ppm, and 49-minute flights in a folding 1.2 kg airframe. It's the tool a surveyor grabs for a site survey, a volumetric, or a progress capture: fast to deploy, survey-grade output.

Best for: topographic and site survey, orthomosaics and DSMs, volumetrics, construction progress, corridor photogrammetry. Key limit: 200 g payload, no gimbal port — it can't carry a LiDAR sensor. That's the Matrice 400's job.

Matrice 400 — The Heavy-Lift LiDAR Platform

When the deliverable needs LiDAR — dense point clouds, canopy penetration, bare-earth models — the Matrice 400 is the heavy-lift airframe: a 6 kg payload capacity, IP55 weather sealing, a -20°C operating floor with self-heating batteries, 59-minute flights, and survey-grade RTK. It carries the gimbal LiDAR payloads the compact aircraft can't.

Best for: high-density aerial LiDAR, vegetation-penetrating terrain models, large-area and mixed photogrammetry-plus-LiDAR survey, over-people work with a parachute (below). Key strength: it's the airframe that carries a LiDAR payload like the DJI Zenmuse L3, and the only DJI survey platform compatible with the DJI AP100 Parachute.

DJI Dock 3 — Automated, Pilot-Free Recurring Survey

The DJI Dock 3 puts a Matrice 4D on site permanently and flies the same RTK photogrammetry mission on a schedule, with no pilot dispatched. It adds the one capability a conventional survey fleet lacks: automated, recurring capture — monitoring, progress tracking, volumetric cadence, change detection — managed from the office through DJI FlightHub 2.

Best for: recurring monitoring survey, progress and change detection, volumetric tracking, remote-site and corridor monitoring. Key strength: the weather story — the dock is IP56 and rated to -30°C, the docked Matrice 4D is IP55 and -20°C with a self-heating battery, making genuinely year-round automated capture realistic in Canada.

Completing the Fleet: The Full Survey Ecosystem

DJI aircraft cover the RTK photogrammetry and gimbal-LiDAR layers, but a complete professional survey fleet spans jobs that need specialist LiDAR, fixed-wing endurance, and GPS-denied scanning. Here's how the whole ecosystem we supply fits together.

Most survey programs run a DJI aircraft (or a dock) for the day-to-day photogrammetry and layer in specialist LiDAR, corridor VTOL, and SLAM for the jobs only those platforms do. We scope the fleet against your accuracy spec, terrain, and deliverables.

Survey & Mapping Use Cases Across the Lineup

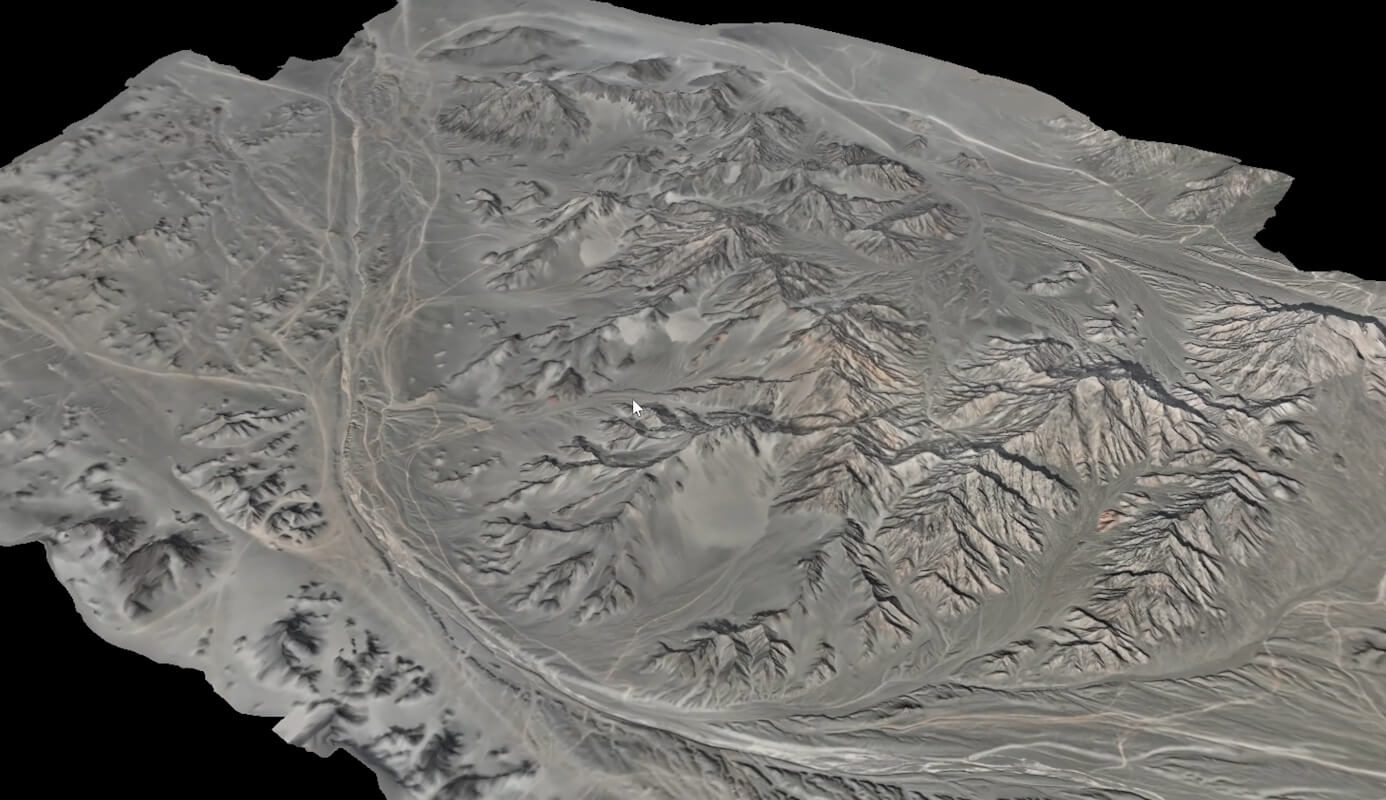

1. Topographic & Site Survey

Survey-grade base mapping and existing-conditions surveys in a single flight. The Matrice 4E with RTK produces georeferenced orthos and elevation data at centimetre accuracy, cutting days of ground survey on open sites.

2. Volumetric Surveying

Stockpiles, borrow pits, and material inventories tracked accurately. The 4E handles on-demand volumes; the Dock 3 automates them on a cadence — both tied to your datum by RTK.

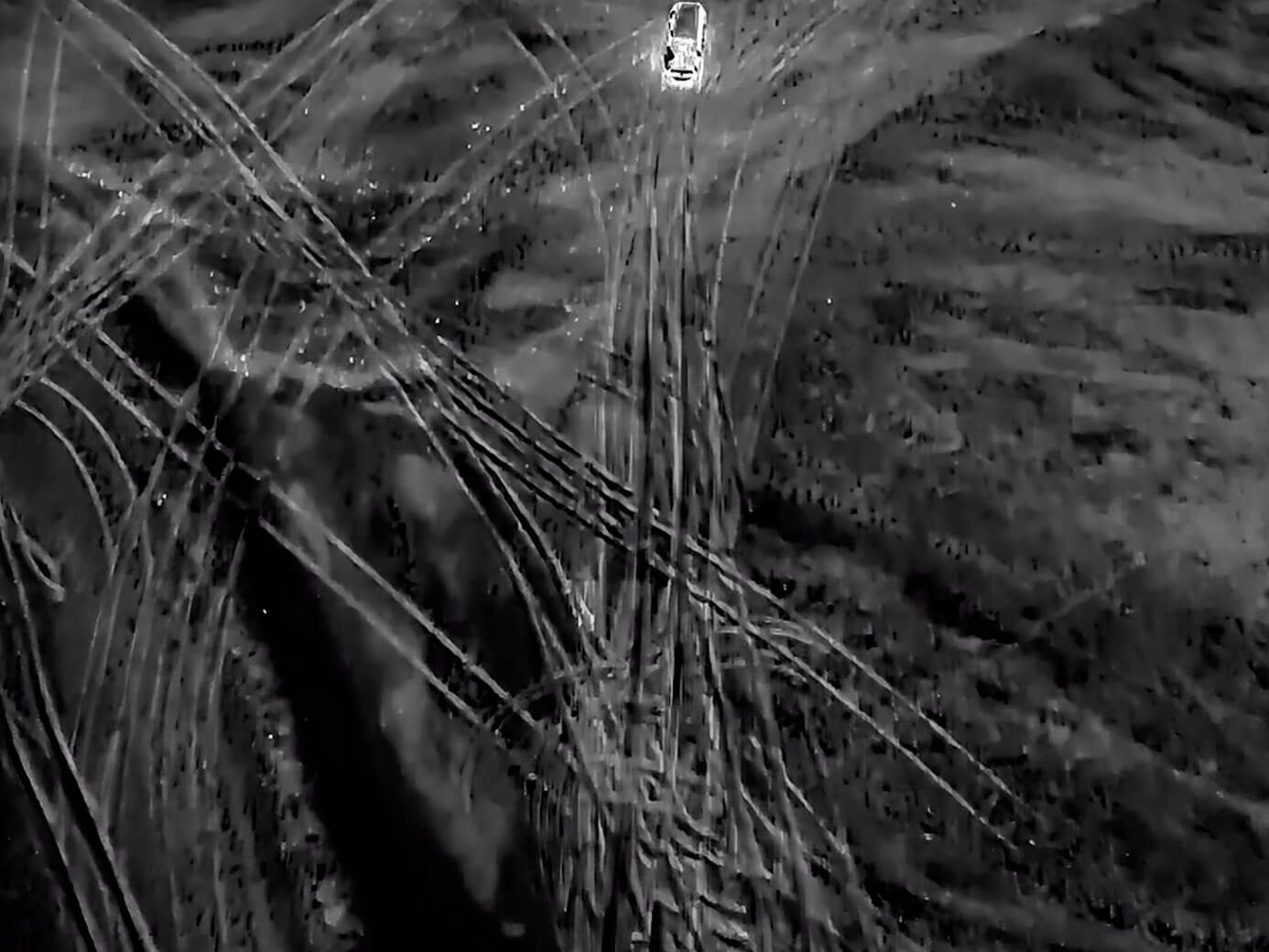

3. Aerial LiDAR & Canopy Penetration

Bare-earth models under vegetation for forestry, corridor, and reclamation work — a Matrice 400 + DJI Zenmuse L3 (or GreenValley LiAir) job, beyond the compact aircraft's payload.

4. Corridor & Linear Survey

Roads, rail, transmission, and pipeline corridors running for kilometres. Short segments suit a quad; long-linear routes are a DeltaQuad Evo fixed-wing VTOL job for endurance.

5. Monitoring & Change Detection

Recurring capture for construction progress, slope movement, or reclamation — flown identically each time. A Dock 3 automates this; a 4E covers on-demand repeat visits.

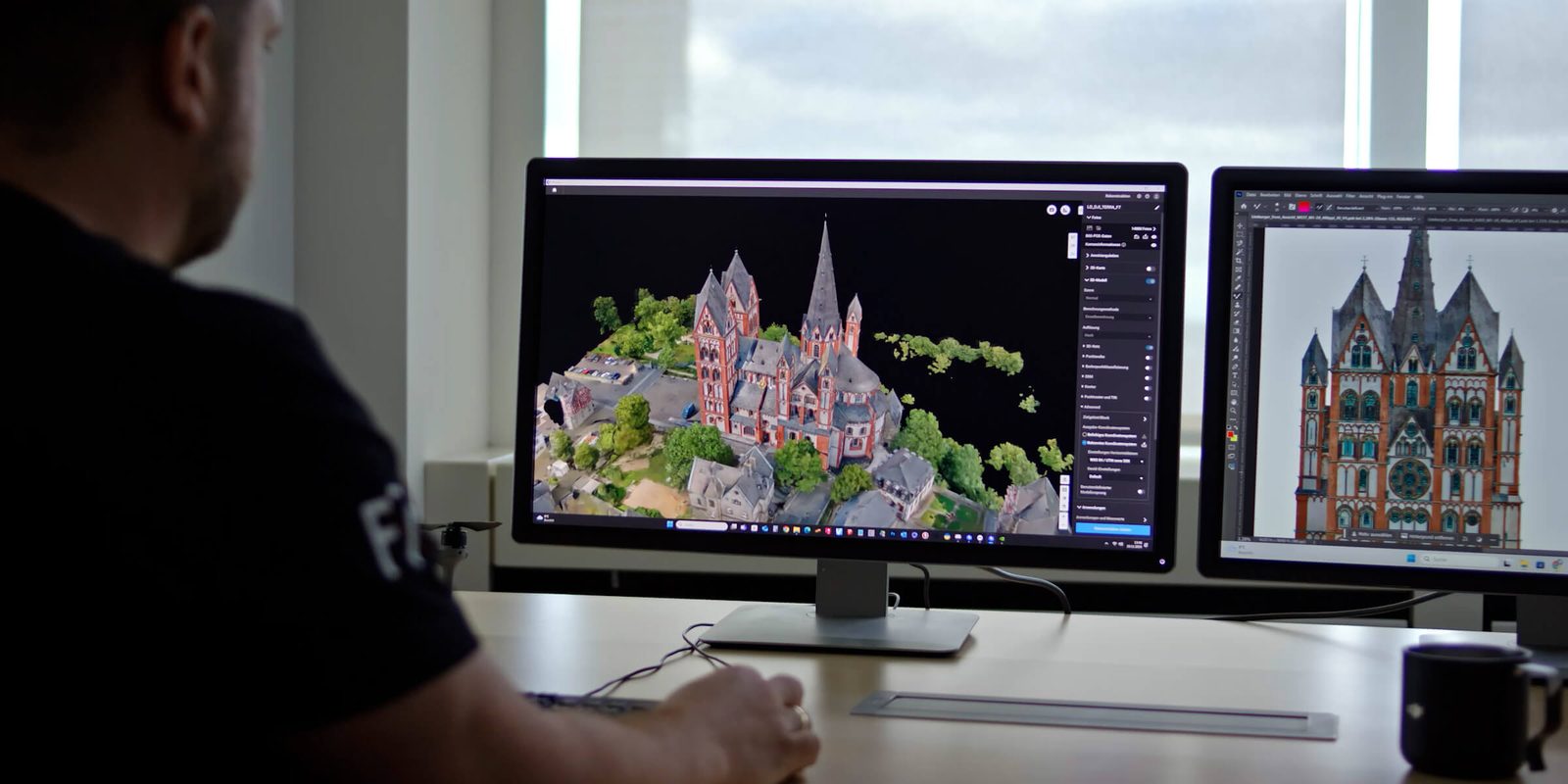

6. Deliverables into Your Software

Aerial outputs export as LAS/LAZ, DXF, GeoTIFF, and industry formats for processing in DJI Terra, LiDAR360, Pix4D, and downstream CAD/GIS platforms.

Parachutes & Over-People Flight

Flying over people is an advanced operation under Transport Canada's CARs Part IX, and a deployable parachute is the recognized ground-risk mitigation. The right system is platform-specific — a parachute is engineered for a particular airframe and doesn't transfer:

For the Matrice 4 Series (4E and the docked 4D), the AVSS system is the recognized mitigation; for the heavy-lift Matrice 400, it's the DJI AP100. Parachute integration and its Canadian regulatory standing are configuration-specific, so we scope the parachute and the over-people compliance case together with the platform — essential for surveying active sites or urban corridors where uninvolved people are below the flight path.

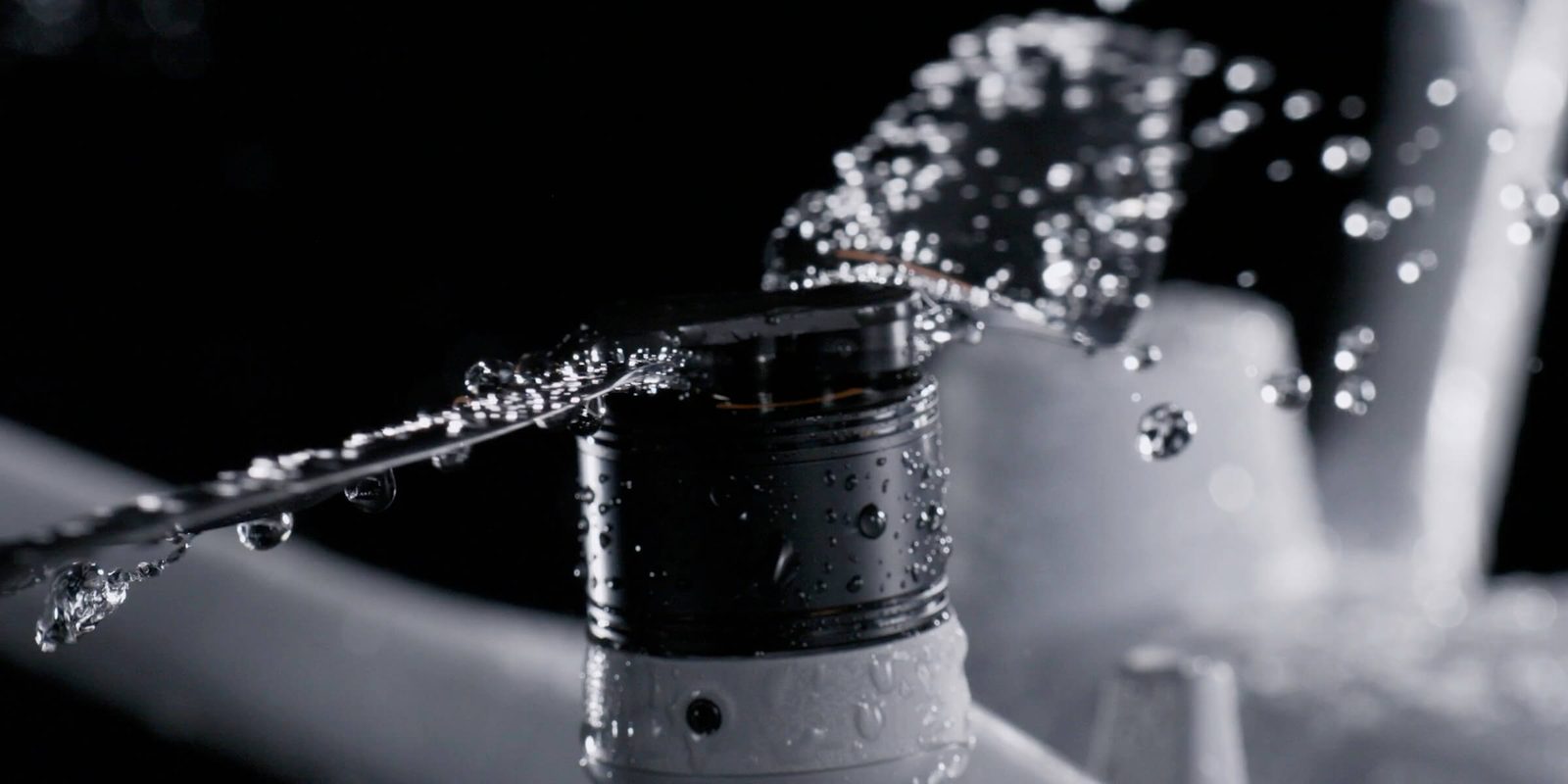

IP Ratings & Canadian Weather

Ingress protection decides whether a survey cadence holds year-round or stands down when the weather turns — a real point of difference across the DJI lineup:

The takeaway for a Canadian survey program: the standard handheld Matrice 4E has no IP rating and shouldn't fly in rain, so for all-weather or year-round work the Matrice 400 (IP55) or a Dock 3 deployment (IP56 dock, IP55 aircraft, -30°C) is the platform. Match the ingress rating to your field conditions during scoping.

Compliance & Operations

Survey routes over active sites or populated areas can mean flying over uninvolved people — an advanced operation under CARs Part IX, requiring a pilot certified for Advanced Operations, NAV CANADA authorization in controlled airspace, and a valid RPAS Safety Assurance declaration. We support Transport Canada Advanced Operations, BVLOS pathways, airspace authorization, and SFOC applications — and for teams that want capture delivered as data, our Remote Operations Center runs survey as a managed service.

Common Questions

The Bottom Line for Canadian Survey Teams

DJI's survey lineup isn't one drone — it's a photogrammetry aircraft (Matrice 4E), a heavy-lift LiDAR platform (Matrice 400), and an autonomous dock (DJI Dock 3 + Matrice 4D), each matched to a different deliverable. Around them, specialist LiDAR, corridor VTOL, and SLAM complete a professional Canadian survey fleet. The right build depends on your accuracy spec, your terrain, and your cadence — and matching the IP rating and payload to the job is what separates a program that runs year-round from one that doesn't.

If you're building or expanding a survey fleet, request a proposal. Tell us your survey area, deliverable cadence, accuracy spec, and software stack, and we'll scope the right combination of aircraft, specialist platforms, parachute, and processing.

Matrice 4E vs Matrice 400 vs DJI Dock 3: Which for Your Survey Work?

The three DJI survey platforms overlap on the surface but produce genuinely different deliverables. Here's the side-by-side.

Which One for Your Fleet?

Choose the Matrice 4E if your core need is fast, survey-grade photogrammetry — topographic survey, orthos, volumes, and progress captures flown on demand.

Choose the Matrice 400 if you need aerial LiDAR, canopy penetration, or a mixed photogrammetry-plus-LiDAR capability, plus IP55 all-weather operation and the AP100 parachute option for over-people work.

Choose a DJI Dock 3 with the Matrice 4D if your need is recurring, pilot-free capture — monitoring, progress tracking, and change detection, run from the office in any weather.

And add the specialist platforms — GreenValley or YellowScan LiDAR, a DeltaQuad Evo for long corridors, and Leica BLK ARC on Boston Dynamics Spot for GPS-denied work — for the deliverables no photogrammetry quad can produce. Most professional survey fleets combine a DJI aircraft or dock with these specialist systems.

Not sure which fits? Talk to us — tell us your survey area, accuracy spec, and cadence, and we'll scope the right combination rather than sell you one aircraft for every job.

Sources

• DJI Matrice 400, Matrice 4 Series, and Dock 3 specifications: enterprise.dji.com
• DJI Matrice 400, Matrice 4 Series, and Matrice 4D / Dock 3 User Manuals
• Transport Canada, Drone operation categories and pilot certificates: tc.canada.ca
