Atlas – Automated Drone Docking

Drone Dock

Regular price: Contact us for pricing
Sale price: Contact us for pricing

Built for Matrice 300/350

IP55 Rated

Built-in HVAC system

Automatic battery swap

Operating temperature: –20 °C to +50 °C

Drone Dock System

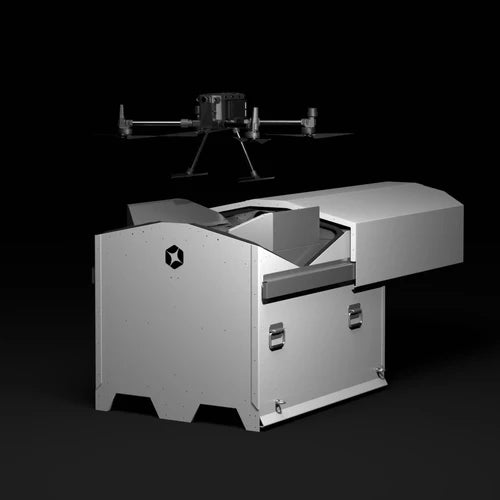

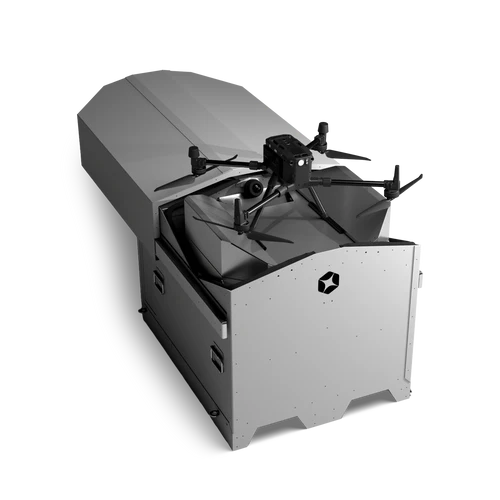

The Hextronics Atlas is a robust, enterprise-grade drone-dock solution engineered for automated, repeatable unmanned operations. Compatible with platforms like the DJI Matrice 300/350, the Atlas integrates weather-sealed housing, HVAC climate control, precision landing (+/-15 cm), and a high-speed battery-swap mechanism — enabling near-continuous flight readiness, ideal for BVLOS, inspection, infrastructure, and surveillance programs.

DIMENSIONS – CLOSED ROOF
1.4 m × 1.1 m × 1.0 m | 55" × 43" × 39"

TOTAL WEIGHT – WITHOUT AIRCRAFT
180 kg | 415 lbs

EXTERNAL MATERIAL
Insulated Anionized Aluminum

OPERATING TEMPERATURE
-20°C to 50°C | -5°F to 122°F

INTERNAL REGULATED TEMPERATURE
10°C to 35°C | 50°F to 95°F

RADIO FREQUENCIES
2.4 GHz – 2.5 GHz

API COMMUNICATION
Ethernet / 4G LTE

INPUT VOLTAGE
110 VAC – 240 VAC | 50 Hz – 60 Hz

MAXIMUM POWER CONSUMPTION
1400 W

EXTERNALS BOX

DIMENSIONS
28.5 cm × 19.6 cm × 13 cm | 11.2" × 7.7" × 5.1"

WEIGHT
3.17 kg | 7 lbs

OPERATING TEMPERATURE
-20°C to 50°C | -5°F to 122°F

DRONE STATION COMMUNICATION
USB 3.0

RADIO FREQUENCIES
2.4 GHz – 2.5 GHz

INPUT POWER
12V DC

MAXIMUM POWER CONSUMPTION
50 W

COOLING SYSTEM
12V Thermoelectric

HARDWARE

SUPPORTED AIRCRAFT
DJI Matrice 300 and 350 Series

SUPPORTED PAYLOADS
H20, H20N, P1, L2, and third-party payloads

COOLING SYSTEM
Compressor-based HVAC

HEATING SYSTEM
Thermoresistive 200W

BATTERY STORAGE
8 sequential smart-charge batteries

HANDLES
500 lbs weight capacity

STEEL RINGS
500 lbs weight capacity

OUTDOOR WEATHER SEAL
Protects interior from rain, dust, and debris

ACTUATING ROOF
Powered by DC motor

DUMBELDORE MOTHERBOARD
12V & 24V ESP32 microcontroller (motor & switch actuation)

RASPBERRY PI
Communicates and runs commands through Hextronics Dashboard

ODROID N2+
Runs flight software and controls drone RCV thermoelectric

IO PANEL

MAIN POWER OUTLET
IP66 plug, 110/240VAC

USB COMMUNICATION PORT
USB port for externals box

ETHERNET OUTLET
IP66 plug for internet

EXTERNALS BOX POWER OUTLET
IP66 plug, 110/240VAC

ROOF KEY SWITCH
Manual switch

SOFTWARE

FLIGHT SOFTWARE PROVIDERS
FlytNow Auto+

MISSION PLANNING
Scheduled or continuous

VIDEO RECORDING AND UPLOADING
4K quality, cloud storage

PRECISION LANDING RANGE
±15 cm

PRECISION LANDING RELIABILITY
99.99%*

MODULAR ADD-ONS

CELLULAR NETWORK PACKAGE
Includes router and antenna

WEATHER STATION
Monitors and regulates wind speed, temperature, humidity, rain, and pressure

CODES AND CERTIFICATIONS

HS CODE
8537.10.9090

INGRESS PROTECTION RATING
IP55 (Self Certified)

CERTIFICATIONS
CE Pending

BLUE UAS
NDAA Compliant

WARRANTIES

HEXCARE+
Licenses, upgrades, registration

HEXCARE++
Onsite installation & training, BVLOS training, BVLOS certification (additional add-on)

SETUP AND MAINTENANCE

SETUP
Flat surface with no obstructions overhead or within 2 meters

MAINTENANCE
Operation frequency and environment dependent
Bi-annual minimum
Monthly recommended
Bi-weekly for optimal performance in harsher conditions

PERFORMANCE

UNOBSTRUCTED FLIGHT RADIUS
3.5 mi*

OPERATING AREA
15 sq km | 9.3 sq mi

MAXIMUM OPERABLE WIND SPEED
20 knots

BATTERY SWAPPING RELIABILITY

99.99%*

LAND-TO-LAUNCH
150 seconds

LIFESPAN
4 years*
