Hextronic

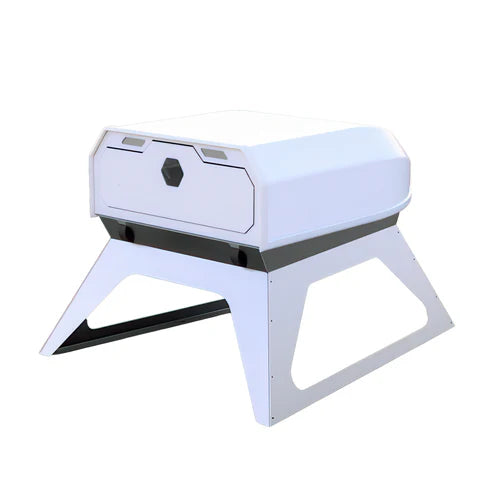

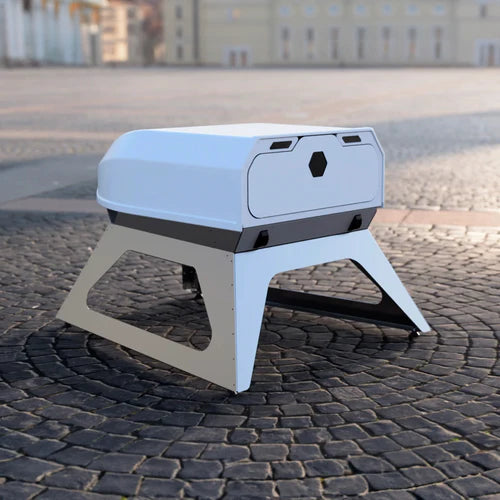

Universal Drone Docking System

  • Drone Dock
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

80-second battery swap
IP56 Rated
HTTPS communication
Compressor-based HVAC system
Operating temperature: -20°C to 50°C
Compatible with Mavic 3, Anafi UKR, series
`

Bring true “drone-in-a-box” capability to small enterprise fleets. The Hextronics Universal is a compact, climate-controlled docking station with automated battery swapping (~80 s), ±15 cm precision landing, and an IP-ratedenclosure. Purpose-built for continuous, remote operations with DJI Mavic 3 (E/T/M), Parrot Anafi series and Anzu Robotics Raptor series, Universal keeps aircraft ready between missions—cooling or heating batteries, swapping cells, and protecting the drone so your team can scale BVLOS-style monitoring, inspection, and security workflows with minimal on-site staff.

UNIVERSAL SPECS

PROPERTIES
Dimensions – Closed Roof: 1.07 m × 0.76 m × 0.31 m | 42" × 30" × 12"
Total Weight – Without Aircraft: 31.75 kg | 70 lbs
External Material: UV Resistant ABS
Operating Temperature: -20°C to 50°C | -5°F to 120°F
API Communication: HTTPS over Ethernet / Cellular
Input Voltage: 100 VAC – 240 VAC | 50 – 60 Hz
Idle Power Consumption: 80 W
Max Power Consumption: 750 W

HARDWARE
Supported Aircraft: DJI Mavic 3 Series, Parrot Anafi AI, Anafi USA GOV/SE
Payloads Supported (DJI Mavic 3): RTK, CCI MP10, JZ H1, CSDI GL10, JZ U3, and third-party payloads
Cooling System: Compressor-based HVAC
Heating System: Thermoresistive 200 W
Battery Storage (C Model): 60 W MagSafe Charger
Battery Storage (CS Model): 4 slots using fast charging interface connector
Reconfiguration Kits: Convert Universal Unit configuration between drones
Integration Tray: Dedicated area for user-installed hardware

SOFTWARE
Flight Software Providers: FlytNow Auto+, Votix, or user-developed solutions
Station Software: Hextronics API

MODULAR ADD-ONS
BVLOS Camera Kit: Inspects drone pre/post-flight for BVLOS operations
Edge Compute: On-board server for real-time data processing
Cellular Expansion: 4G/5G connectivity for remote or mobile installations
Pelican Case: Rugged enclosure for harsh deployments

CODES AND CERTIFICATIONS
HS Code: 8537.10.9090
Shock and Vibration: ISTA 1A (self-tested)
Ingress Protection Rating: IP56 (self-tested)
Certifications: UL & CE (testing pending)
Blue UAS: NDAA Compliant

WARRANTIES
HexCare+: Licenses, upgrades, registration
HexCare++: Onsite installation, training, and BVLOS certification (additional add-on)

SETUP AND MAINTENANCE
Setup: Flat surface with no obstructions overhead or within 2 m
Maintenance:
• Bi-annual minimum
• Monthly recommended
• Bi-weekly for optimal performance in harsher environments

PERFORMANCE
Lifespan: 4 years (dependent on use)
Unobstructed Flight Radius: 2.4 km (1.5 mi)
Operating Area: 11.3 sq km (7 sq mi)
Battery Swapping Reliability: >99.99%*
Precision Landing Range: ±15 cm (6 in)
Precision Landing Reliability: ~99.99%*
Land-to-Launch: 160 seconds

TRUCK BED COMPATIBILITY
Takeoff and Landing: Platform must remain stationary (for takeoff and landing only)

Remote Robotic is a North American authorized dealer for Hextronic Universal Drone Docking System.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Altas Spec sheet

We offer training for all robotic solutions

Learn more

Universal Drone Docking System FAQ

Universal is designed around DJI Mavic 3 Enterprise/Thermal/Multi-Spectral and Parrot Anafi AI/USA (GOV/SE) models. Confirm your exact sub-model and firmware before deployment.

After landing, the dock opens, the robotized mechanism removes depleted packs and inserts charged packs (~80 s). HVAC keeps packs within optimal temperature to protect health and readiness.

Yes—UV-resistant enclosure, HVAC climate control, and an IP-rated design help the dock operate in rain, dust, heat, and cold (–20 °C to +50 °C). Site selection and siting/mast accessories may still be recommended.
