DJI

Zenmuse P1

  • Matrice 400
$9,099.00 CAD
$9,099.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Full-frame global shutter
IP4X rated
Compatible with Matrice 400/4350
Minimum photo interval: 0.7 s
Operating temperature: −20°C to +50°C
45mp photogrammetry camera
`

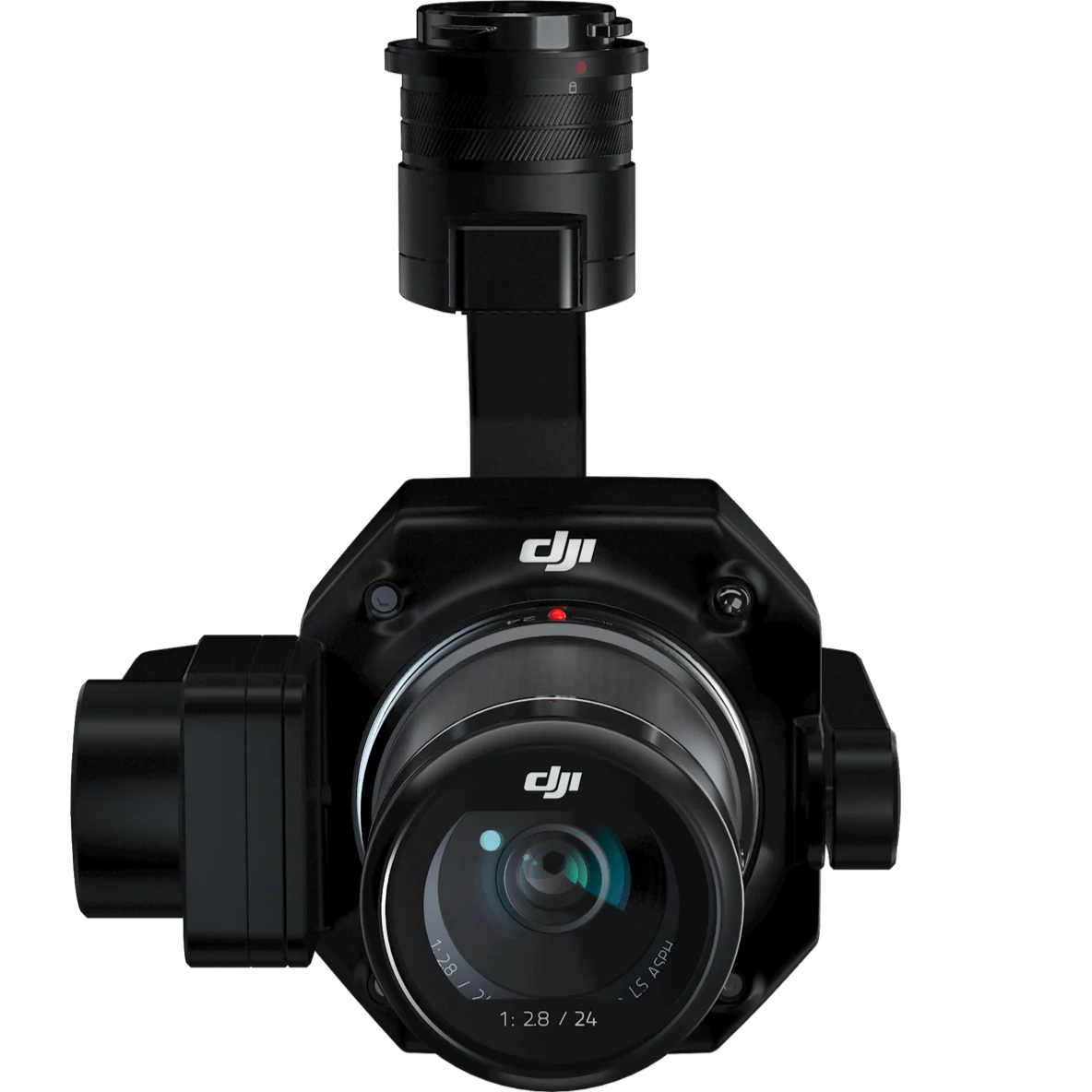

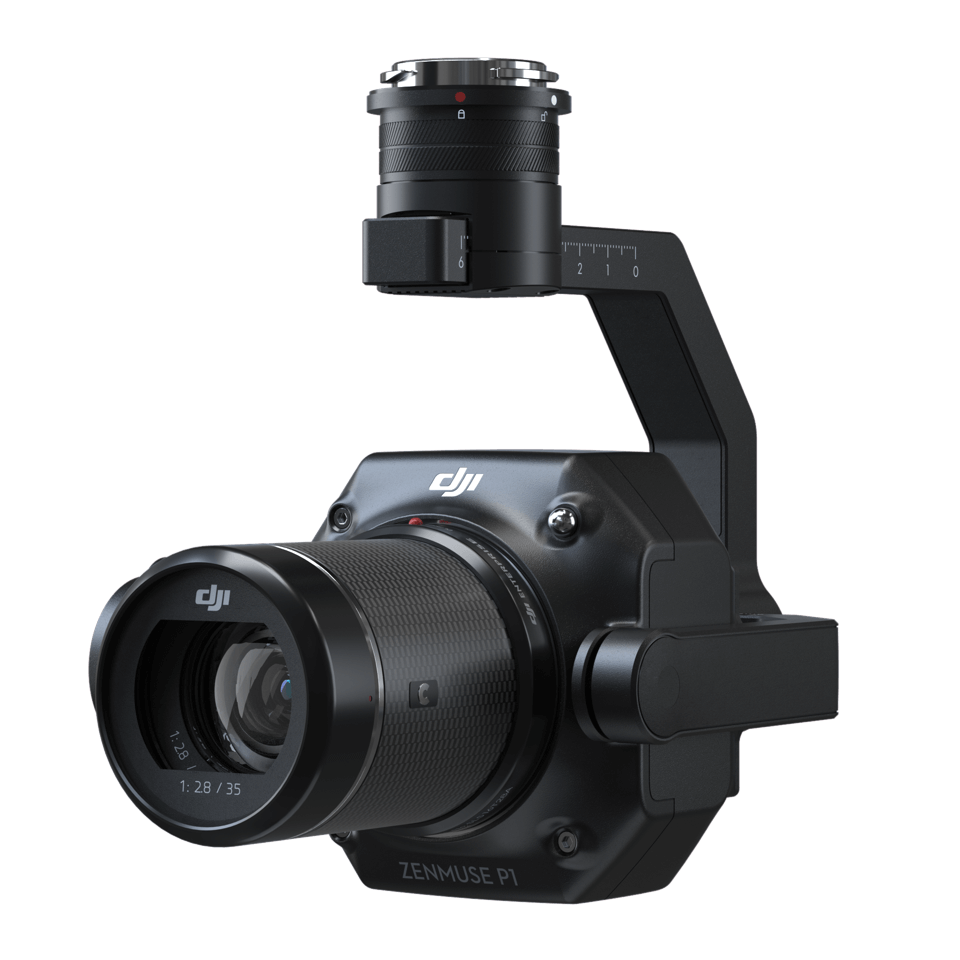

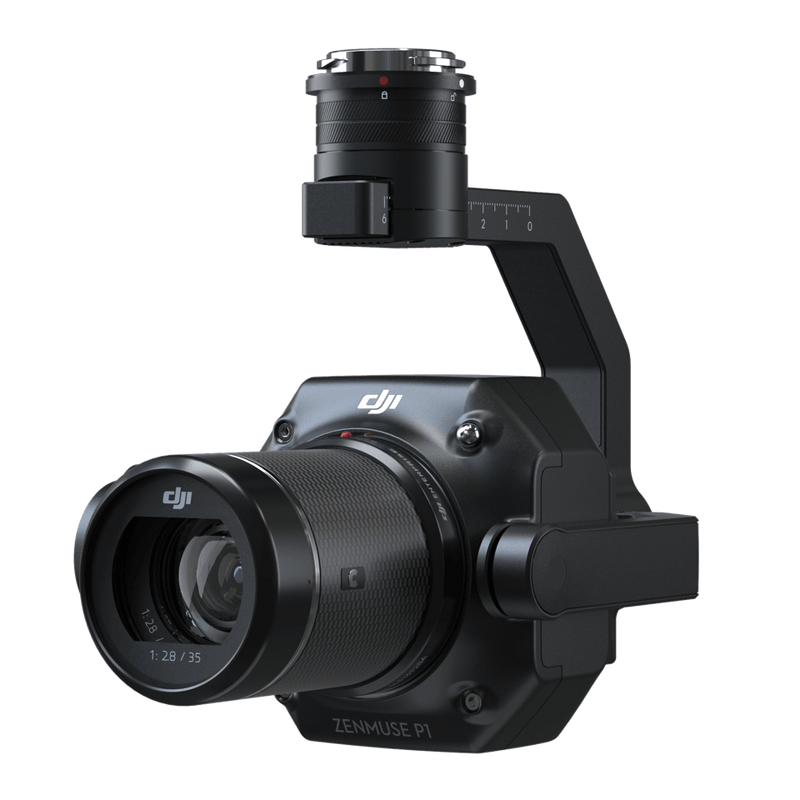

The Zenmuse P1 combines a 45 MP full-frame sensor, global mechanical shutter, TimeSync 2.0 micro-second synchronization, and interchangeable fixed-focus DJI DL 24/35/50 mm lenses—mounted on a 3-axis stabilized gimbal. Designed for high-efficiency aerial mapping and surveying missions (2D orthomosaics, 3D models, oblique capture), it enables coverage of ~3 km² in a single flight, and supports centimetre-level accuracy (as little as 3 cm horizontal, 5 cm vertical) without ground control points (GCPs).

Zenmuse P1 — Technical Specifications

General

Product Name

Zenmuse P1

Dimensions

198 × 166 × 129 mm

Weight

Approximately 800 g

Power Consumption

20 W

IP Rating

IP4X

Supported Aircraft

Matrice 300 RTK
Matrice 350 RTK
Matrice 400

Operating Temperature Range

−20°C to +50°C (−4°F to +122°F)

Storage Temperature Range

−20°C to +60°C (−4°F to +140°F)

Absolute Accuracy

Horizontal: 3 cm
Vertical: 5 cm
Based on mapping mission at 3 cm GSD, 15 m/s flight speed, 75% front overlap, 55% side overlap.

Camera

Sensor

Still image sensor size: 35.9 × 24 mm (full frame)
Maximum video recording area: 34 × 19 mm
Effective pixels: 45 MP
Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with hood & balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with hood & balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with hood & balancing ring/filter), FOV 46.8°

Supported SD Cards

UHS-I or above
Maximum capacity: 512 GB

Storage File Types

GNSS raw observation data
Image log file

Photo Size

3:2 — 8192 × 5460

Operation Modes

Video
Playback

Minimum Photo Interval

0.7 seconds

Shutter Speed

Mechanical: 1/2000 s* to 1 s
Electronic: 1/8000 s to 1 s
*Aperture no larger than f/5.6

Aperture Range

f/2.8 – f/16

ISO Range

Photo: 100 – 25600
Video: 100 – 25600

Video

Video Format

MP4
MOV

Video Resolution

1920 × 1080 (16:9)
3840 × 2160 (16:9)*
*Only supported with 35 mm lens

Frame Rate

Up to 60 fps

Gimbal

Stabilization System

3-axis gimbal (tilt, roll, pan)

Angular Vibration Range

±0.01°

Mount

Detachable DJI SkyPort

Mechanical Range

Tilt: −130° to +40°
Roll: −55° to +55°
Pan: ±320°

1x P1 Gimbal & Camera

1x Storage case

1x Camera body cap

1x Lense rear cap

1x Cleaning cloth

Remote Robotic is a North American authorized dealer for DJI Zenmuse P1.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

DJI Zenmuse P1 user manual

We offer training for all robotic solutions

Learn more

Zenmuse P1 FAQ

With its full-frame 45 MP sensor and high throughput (photo every ~0.7 s), the Zenmuse P1 is ideal for large-area aerial surveying, mapping up to ~3 km² in one flight under proper conditions.

Yes — with a global shutter and TimeSync 2.0 module that synchronizes the camera, gimbal, RTK module and flight controller at microsecond-level accuracy, the P1 ensures optimal georeferenced imagery for centimetre-level precision.

Yes — the Zenmuse P1 supports Smart Oblique Capture whereby the gimbal automatically rotates to capture multiple angles needed for 3D reconstructions, enhancing efficiency of survey missions
