SPH Engineering

EchoLogger ECT 400S

Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Accuracy: 0.2% off the depth measurement
Range resolution: 1.0mm
Measurement range: 0.15 - 100 meter
Frequency: 450 kHz
Beam width: 5° Conical (-3dB)
SBES, Single-frequency Bathymetric
`

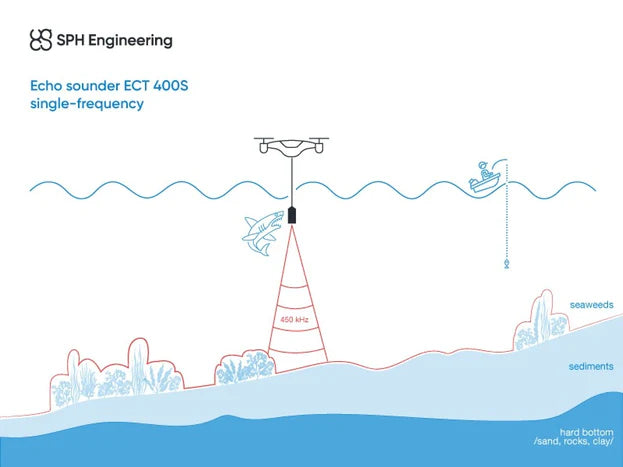

The EchoLogger ECT 400S is a compact, high-precision single-frequency echo-sounder specifically engineered for UAV bathymetric and hydrographic surveys. With a 450 kHz acoustic frequency and a measurement range from ~0.15 m to 100 m, it is ideal for shallow-water depth mapping, sediment profiling, flood-zone monitoring and shoreline asset inspection.

Integrated with tilt and temperature sensors, RS-232 interface and compatible mounting for UAVs like the DJI M300/350 RTK, the ECT 400S supports efficient airborne deployment in otherwise inaccessible or hazardous environments.

Optimize your drone-based survey workflow by reducing field time, removing boat or man-entry requirements, and capturing reliable depth and backscatter data with minimal setup overhead.

Acoustic Parameters

  • Acoustic Frequency:450 kHz (ECT400, ECS400)200 kHz (ECT200, ECS200)
  • Beam Width: 5° (450 kHz) / 10° (200 kHz) — conical (−3 dB)
  • Transmit Pulse Width: 10 µs – 200 µs (10 µs step)
  • Measurement Range: 0.15 m – 100 m
  • Repetition (Ping) Rate: Up to 10 Hz
  • Sampling Rate: 100 kHz
  • Water Column Resolution: ≈ 7.5 mm
  • Altimeter Range Resolution: 1.0 mm
  • Accuracy: ± 0.2 % of depth measurement

Sensors & Environmental Data

  • Temperature Resolution: 0.1 °C
  • Tilt Sensor (Integrated Optional):Dual-axis, horizontal operation ± 90°Inclination accuracy ± 0.1°
  • Operating Temperature: −10 °C to +50 °C
  • Operating Depth: Available in 100 m, 1,000 m, and 6,000 m versions

Construction & Connectivity

  • Housing Material:Acetal (ECT400, ECT200)Aluminium (ECS400, ECS200)
  • Connector: SEACON subsea connector
  • Digital Output Interface: RS-232, RS-485, RS-422
  • Communication Speed: 4,800 – 921,600 baud (default 115,200 baud)
  • Data Output Format: ASCII TXT, NMEA0183, or user-defined (optional)
  • Configuration & Data Reading: Via Echologger Control Program or any terminal program

Electrical & Power

  • Power Supply: 8 – 75 V DC (2 W max)

Mechanical Specifications

  • Dimensions:D 56 × L 85 mm (ECT400, ECT200)D 55 × L 70 mm (ECS400, ECS200)
  • Weight:270 g (ECT400, ECS200)310 g (ECS400, ECS200)

Additional Features

  • Software Compatibility: Hypack, HydroMagic, ReefMaster (NMEA, Echogram output)

Remote Robotic is a North American authorized dealer for SPH Engineering EchoLogger ECT 400S.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

ECT400 spec sheet

We offer training for all robotic solutions

Learn more

EchoLogger ECT 400S FAQ

The ECT 400S system requires a UAV capable of carrying the sensor plus mounting hardware (~1.9 kg) and maintaining stable low-altitude flight for accurate bathymetric data collection. The DJI M300/350 RTK series or similar enterprise platforms are recommended.

The ECT 400S supports surveys from very shallow water (~0.15 m) up to ~100 m when using the 450 kHz frequency. It is particularly effective for shallow-water mapping, vegetated/flowing waters, flood zones, sediment layer detection and inaccessible shoreline or riverbed surveys.

By integrating flight-ready hardware, tilt/temperature sensing, and drone compatible mounting, the ECT 400S enables bathymetric surveys without vessels or manned entry. Paired with onboard logging (via SkyHub), terrain-following drones and downstream processing software, it significantly reduces survey setup time and cost while maintaining high-quality depth and backscatter data.
