Pivot ROV

  • Underwater
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Swappable battery / Tethered power
Rotating Tool Platform: 97°
Modular Payload Support
Depth-Rated to 305 m (1,000 ft)
Operating Temp : -5°C to 50°C (14°F – 122°F)
Camera: 4K UHD
`

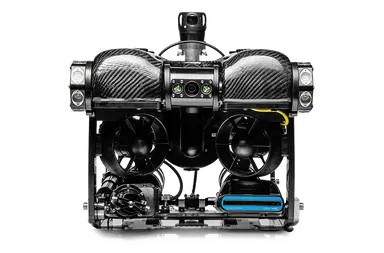

The PIVOT ROV offers a compelling blend of portability, maneuverability and advanced sensor readiness—designed for work where mobility matters but power and precision cannot be compromised. Built on a six-thrust design, lithium-battery powered, and outfitted with 4K imaging and modular sensor support, it’s ideal for underwater inspections, photogrammetry / 3D modelling, search-&-recovery, aquaculture monitoring and complex infrastructure surveys.

It is typically supplied in multiple configuration packages (Smart, Expert, NAV) which cater from straightforward visual inspections through to advanced navigation & positioning tasks (USBL/DVL integration, waypoint planning)

DEEP TREKKER PIVOT — TECHNICAL SPECIFICATIONS

ROV GENERAL SPECIFICATIONS

Width: 360 mm (14.2")
Height: 310 mm (12.2")
Length: 576 mm (22.7")
Weight (in air): 16.7 kg (36.8 lb)
Body Material: Anodized machined aluminum, carbon fiber, stainless steel, and buoyancy foam
Window Material: Sapphire and acrylic
Depth Rating: 305 m (1000 ft)
Operating Temperature: –5 °C to 50 °C (14 °F to 122 °F)
Case (Optional): Custom Pelican Air 1637 with handle and wheels
Drives / Thrusters: Magnetically coupled and sealed
Warranty: 1 year (parts and labor) | Optional 2–3 years extended coverage

ROV ELECTRICAL SYSTEM

System Voltage: 19.2 VDC
Battery Run Time: Up to 3 hours
Thruster Control: 6× independent control | infinitely variable | 100% reversible

ROV CONTROLLER

Screen: 178 mm (7") wide-angle LCD
Recording: Up to 4K resolution (16:9 aspect ratio)
Enclosure: Weatherproof
Connectivity: USB, SD, HDMI, and Ethernet

LIGHTS AND CAMERA

Video: Full HD 1080p (1920 × 1080) @ 30 FPS | 0.001 Lux | 200° total range of view
Photo: JPG format | 8 MP resolution
Lights: High-efficiency LEDs | fully dimmable | 1,000 lumens tracking with camera
Optional Lighting: 1,000 – 4,400 lumens add-on packages

ROV TETHER

Diameter: 4.5 mm (0.18") – 6.5 mm (0.26")
Weight: Neutrally buoyant in water
Minimum Breaking Strength: 90 kg (200 lb)

Note: Deep Trekker reserves the right to amend these specifications at any time without notice.

Remote Robotic is a North American authorized dealer for Deep Trekker Pivot ROV.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Pivot ROV user manual

We offer training for all robotic solutions

Learn more

Pivot ROV FAQ

The Smart package offers a basic inspection setup (4K camera, standard tether). The Expert adds tool platform rotation, grabber, longer tether and spare battery. The NAV package layers in advanced navigation (USBL/DVL), extended tether (300 m), mission logging and extended warranty.

Yes — the system is modular and upgradeable, with packages and add-ons including longer tether reels, USBL/DVL sensors, manipulator/grabber arms.

Depending on configuration and mission profile, typical runtime is up to ~3 hours per battery before swap or run indefinitely with the tethered power system
