Inspired Flight IF800 Tomcat - Remote Robotic

Inspired Flight

Inspired Flight IF800 Tomcat

IF800
NDAA

Regular price: $27,930.00 CAD
Sale price: $27,930.00 CAD
Regular price

Ground station:

Product variants:

54-Minute Max Flight Time

IP43 Rated

3 KG (6.6 LBS) Max Payload

19 km max range with Blue Herelink

Operating Temperature: –10 °C to +45 °C

Blue UAS & NDAA Compliant

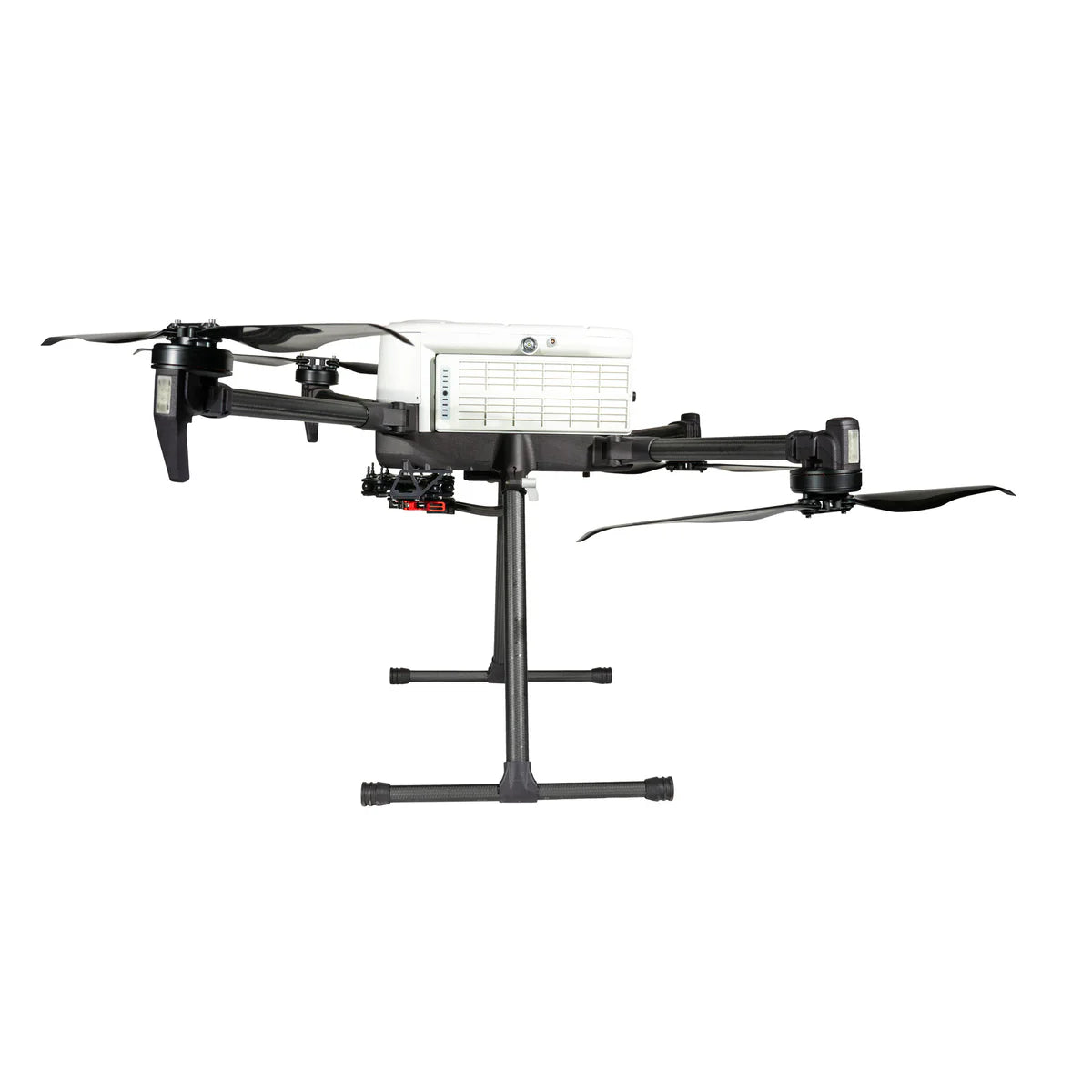

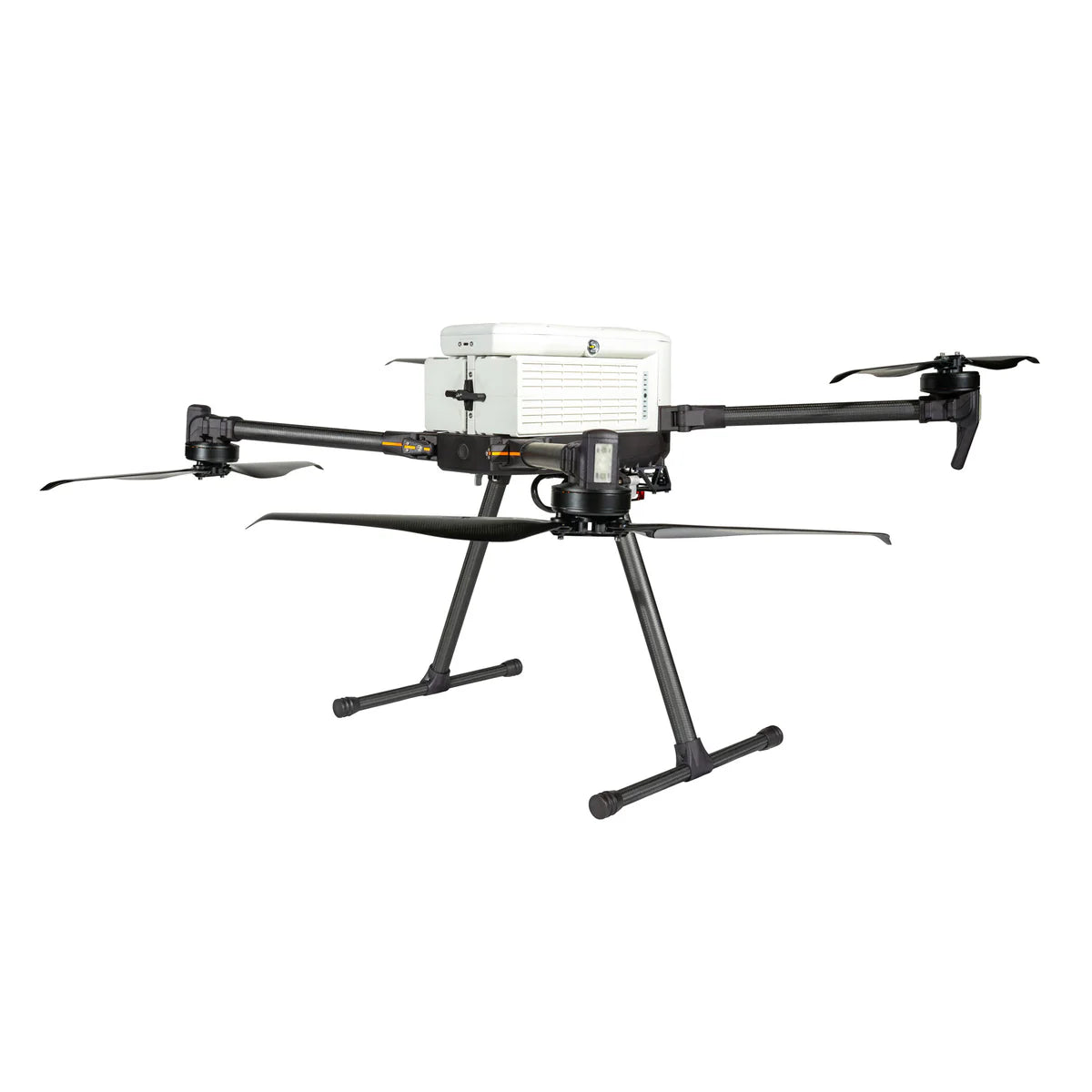

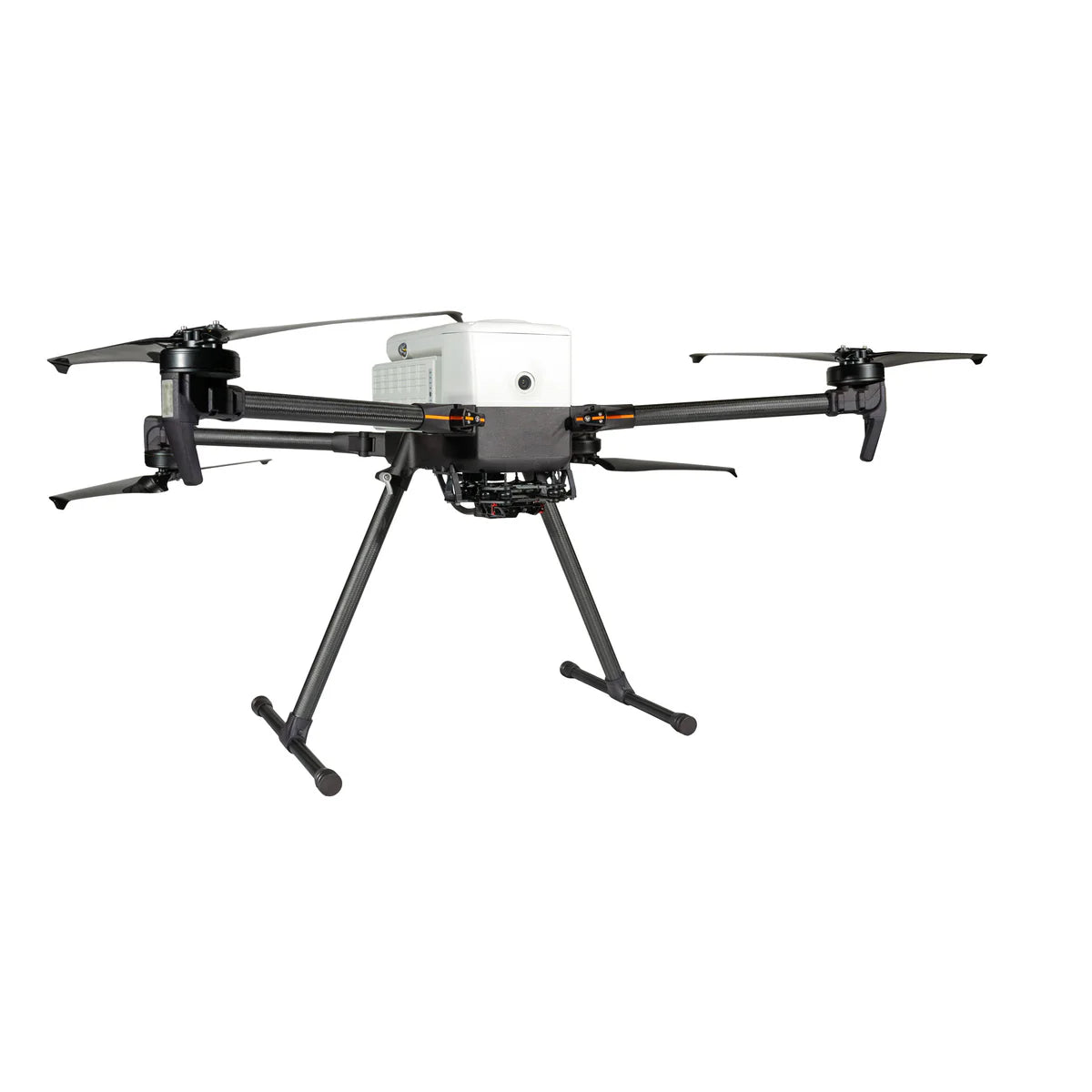

The IF800 Tomcat by Inspired Flight is a U.S.-manufactured, NDAA-/Blue UAS-compliant medium-lift drone platform built for professional enterprise missions. With up to 54 minutes of flight time, up to 6.6 lbs (≈3 kg) of payload capacity, foldable portability and hot-swappable dual batteries, it’s designed for survey, inspection, public-safety and defense-grade aerial operations.

Performance

Max Ascent Speed: 5 m/s (16 ft/s)
Max Descent Speed: 3 m/s (10 ft/s)
Max Air Speed: 22 m/s (49 mph)
Max Wind Resistance: 10 m/s (19 knots) sustained, 12 m/s (23 knot) gusts
Max Tilt Angle: 30°
Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
Operating Temperature: -20°C to 45°C (-4°F to 113°F)
Operating Humidity: IP43 rated, 5%–99%

Physical Features

Diagonal Size (propeller center to center): 905 mm (35.6 in)
Unfolded Size (WxLxH): 132 × 114 × 52 cm (51.8 × 44.8 × 20.3 in)
Folded Size (WxLxH): 36 × 44 × 20 cm (14.2 × 17.4 × 7.8 in)
Empty Weight (without batteries): 4.2 kg (9.2 lbs)
Weight (with batteries): 8.5 kg (18.7 lbs)
Max Gross Takeoff Weight: 11.5 kg (25.3 lbs)
Max Payload Capacity: 3.0 kg (6.6 lbs)
Transport Case Size (WxLxH): 52.8 × 80.7 × 31.7 cm (20.8 × 31.8 × 12.5 in)
Transport Case Weight (with aircraft & GCS): 18 kg (40 lbs)

Flight Stack

Flight Controller: CubePilot Cube Blue H7 (Triple Redundant IMU)
GNSS / Compass: Dual CubePilot Here4 Blue
Downward Ground Sensor: LightWare SF000/B
Payload Power Rails: 6s Battery Voltage – 5V, 12V, 18V
Payload Interface: IF800 Universal Payload Interface
Operating Software: Copter by Ardupilot

Flight Modes

Position Hold: Automatically maintains altitude and position with manual control
Loiter: Holds altitude and position, allowing precision GPS-guided maneuvers
Auto: Executes predefined waypoint missions autonomously
RTL (Return to Launch): Returns to takeoff location and performs auto-landing
Land: Automated landing while maintaining horizontal stability
Altitude Hold: Maintains altitude only (failsafe mode if GPS signal is lost)

Ground Station options:

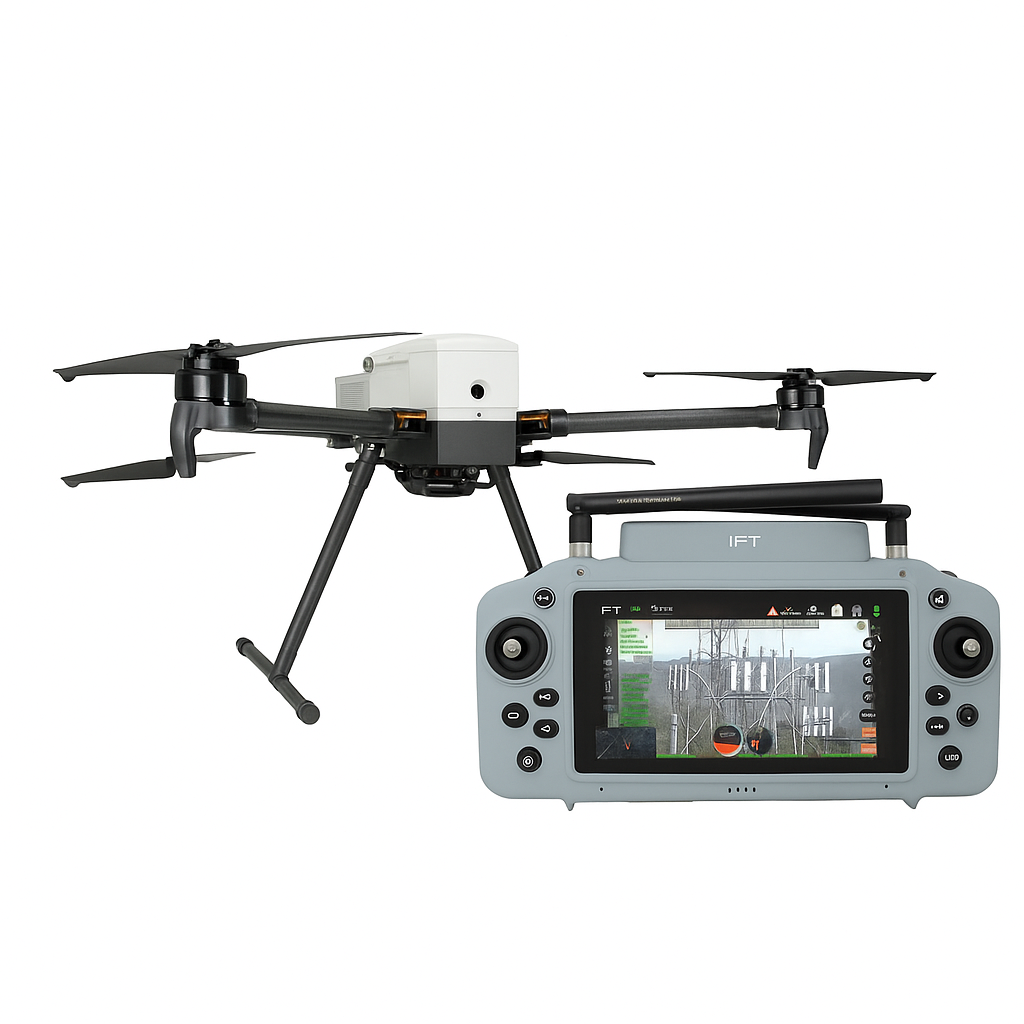

GS-ONE

Features:

7 inch touchscreen, 2,000 NITS
Hot-swappable battery
IP55-rated enclosure for field conditions
Customizable buttons
Up to 5 hours of runtime
Transmission range up to 6 miles

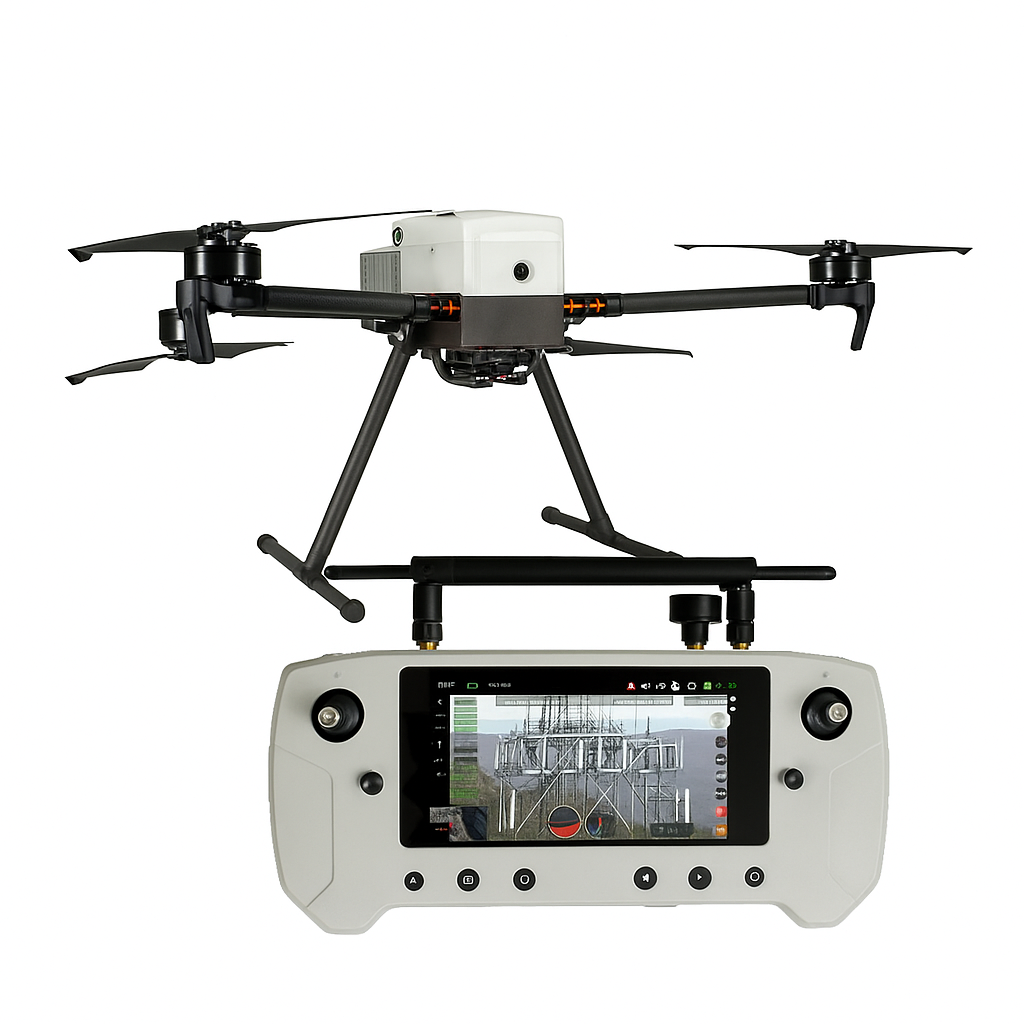

Northwest Blue Herelink

Features:

5.46 inch touchscreen, 1,000 NITS
Built-in 4,950 mAh Li-ion battery
Customizable buttons and wheel
2.4 GHz frequency
Transmission range up to 12 miles

IF800 aircraft x 1

Herelink controller OR GS-ONE controller x 1

Transport case x 1

IF800 Battery set x 1

IF800 charger x 1

(Payloads, extra sensors, and accessories sold separately.)

Remote Robotic is a North American authorized dealer for Inspired Flight Inspired Flight IF800 Tomcat.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Inspired Flight IF800 manual

We offer training for all robotic solutions

Learn more

Inspired Flight IF800 Tomcat FAQ

It’s tailored for enterprise and professional operations: surveying, infrastructure inspection, public safety, LiDAR mapping, and government/defense use thanks to NDAA/Blue UAS compliance.

It features dual hot-swappable smart batteries, enabling minimal downtime between missions and extended operational readiness.

The frame is foldable and transport-case ready; folded size approx 36 × 44 × 20 cm, making it practical for mobile operations.
