SPH Engineering

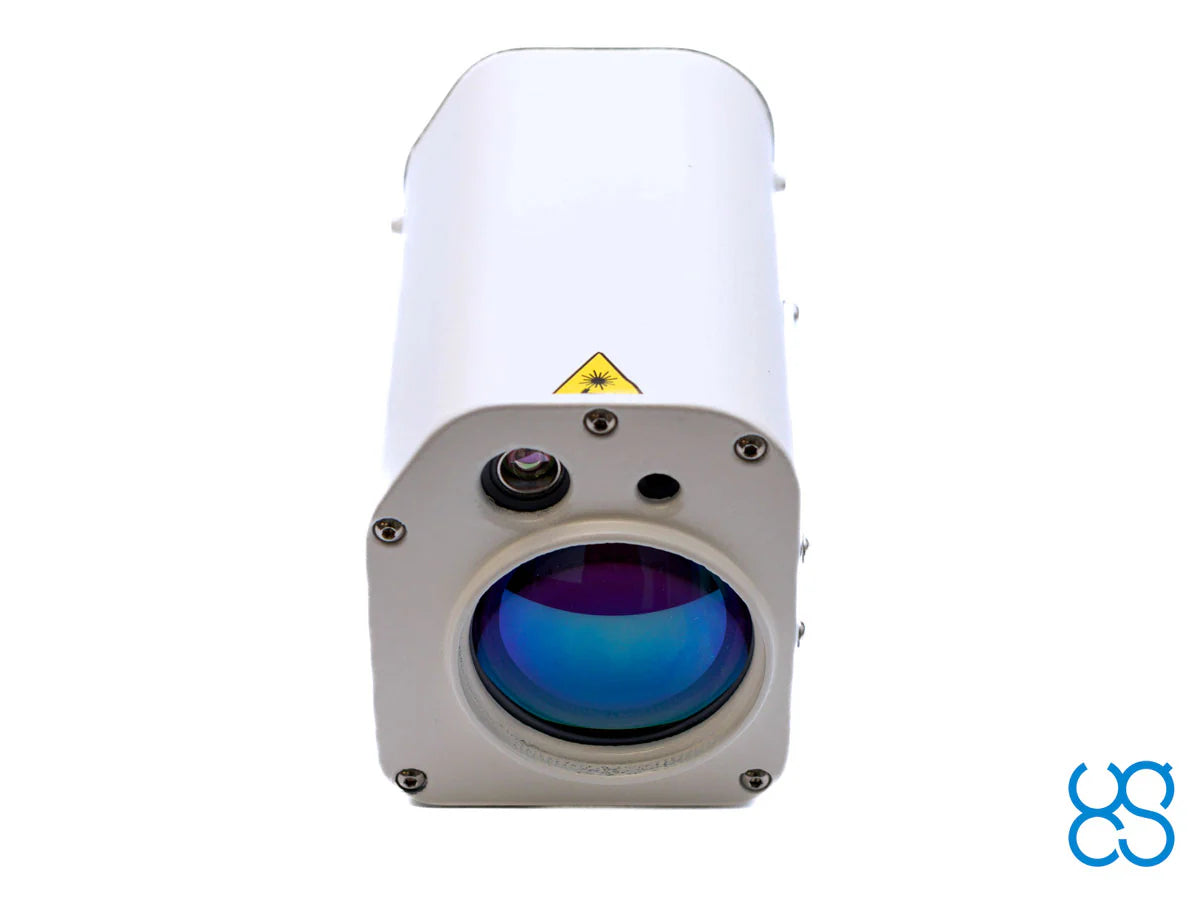

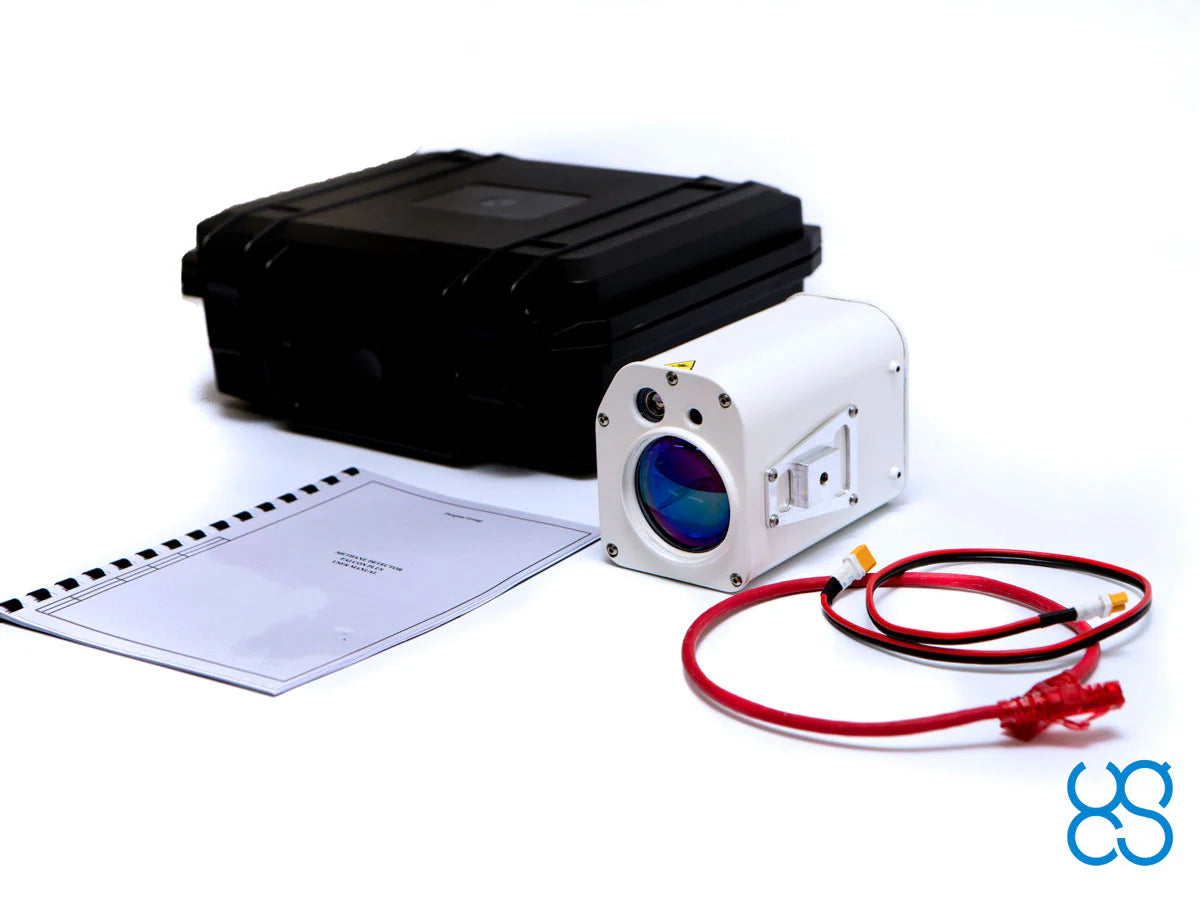

Laser Falcon Plus TDLAS Methane Detector

Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Survey speed: 30 m/s
Detectable flow rate: 1g/h (approx 500ppm)
Payload weight: 360 gram
Detection range: 10 - 80 m
Sensitivity: 0..100 000 ppm x m
Methane gas detection sensor (TDLAS) for aerial use.
`

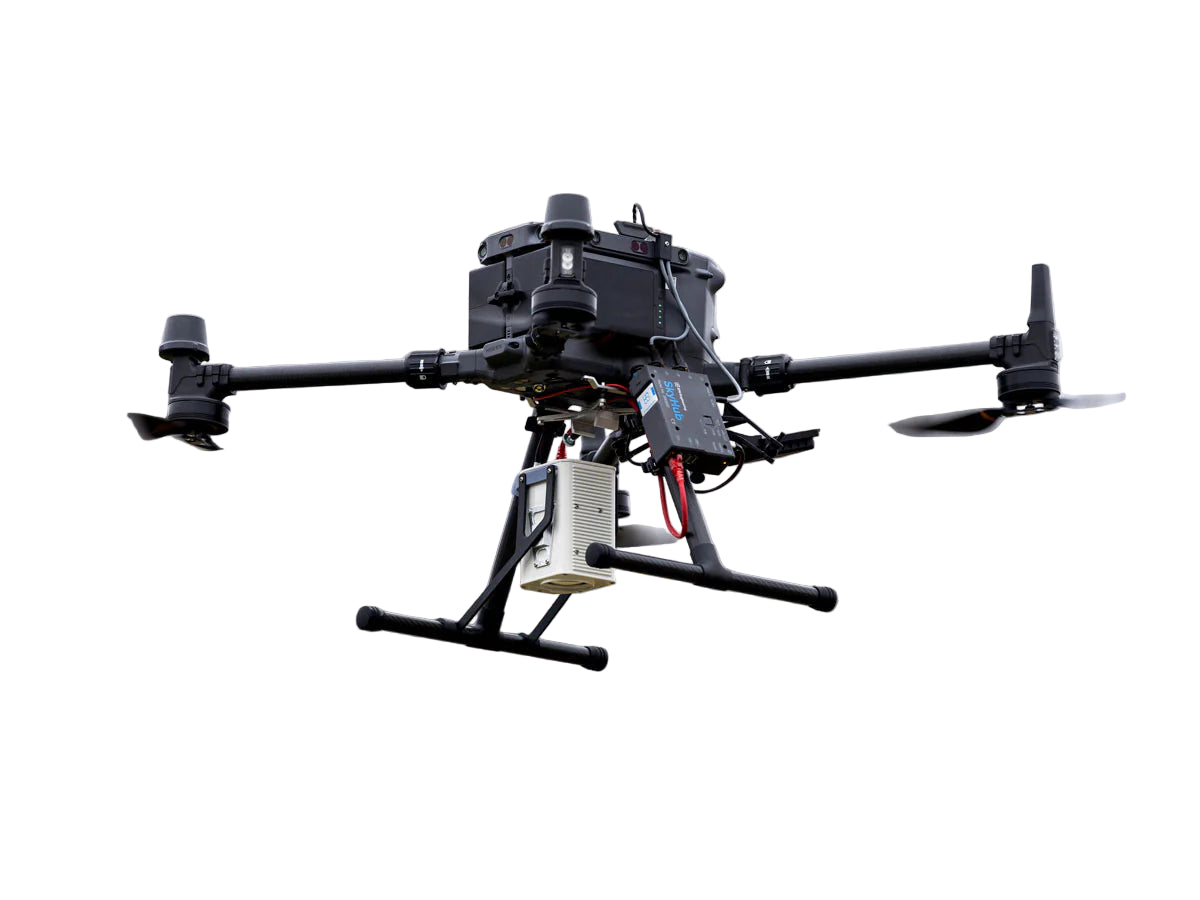

The Laser Falcon Plus is a tunable-diode-laser-absorption-spectroscopy (TDLAS) methane sensor payload designed for drones. It supports airborne methane leak screening with real-time data, GPS georeferencing, and integration with systems like DJI M300/350, Wispr, SkyFront, and the SkyHub onboard computer. The system is aimed at oil & gas, landfill, and emissions-monitoring applications.

  • Detection Range: Reliable methane detection from distances of 10 to 80 meters
  • Response time: 25ms
  • Maximum survey speed: 30 m/s or 108 km/h or 67 mph (mainly limited by drone speed)
  • Minimal detectable flow rate: 1g/h (approx 500ppm)
  • Sensitivity: 0..100 000 ppm x m. Identifies methane presence effectively, facilitating rapid leak localization
  • Dimensions: 130x98x98mm
  • Weight: 360g
  • Self-Calibrating System: Integrated reference gas cell ensures consistent, accurate performance and minimal maintenance.
  • Laser Safety Class:Methane detection laser: Class 1 infrared laser ensures safe operations compliant with international safety standards.Green pointer laser: Class 3R ensures high point visibility from long distances (keep away from human eyes)
  • Real-Time Data: Yes
  • Data recording with georeferencing: Yes
  • RTK georeferencing: Yes

Remote Robotic is a North American authorized dealer for SPH Engineering Laser Falcon Plus TDLAS Methane Detector.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Falcon Plus specificiations

We offer training for all robotic solutions

Learn more

Laser Falcon Plus TDLAS Methane Detector FAQ

The system integrates via drone payload mounts and works with UgCS flight-planning software and SkyHub onboard computers, enabling automated missions over pipelines, landfills, or facilities.

The sensor is designed specifically for methane detection and does not detect other gases, reducing false positives in industrial and environmental applications.

Yes — the Laser Falcon Plus records methane concentration data (ppm×m) with georeferenced coordinates, enabling mapping of leak sources and export of results for field teams.
