Vantage Robotics

Trace

  • NDAA
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Flight time: ~30 min
IP53 Rated
Ultra-light nano ISR platform (~153 g)
Range: Up to ~2 km LOS
Operating temperature: -20° – 45° C
2-axis stabilized EO/IR
`

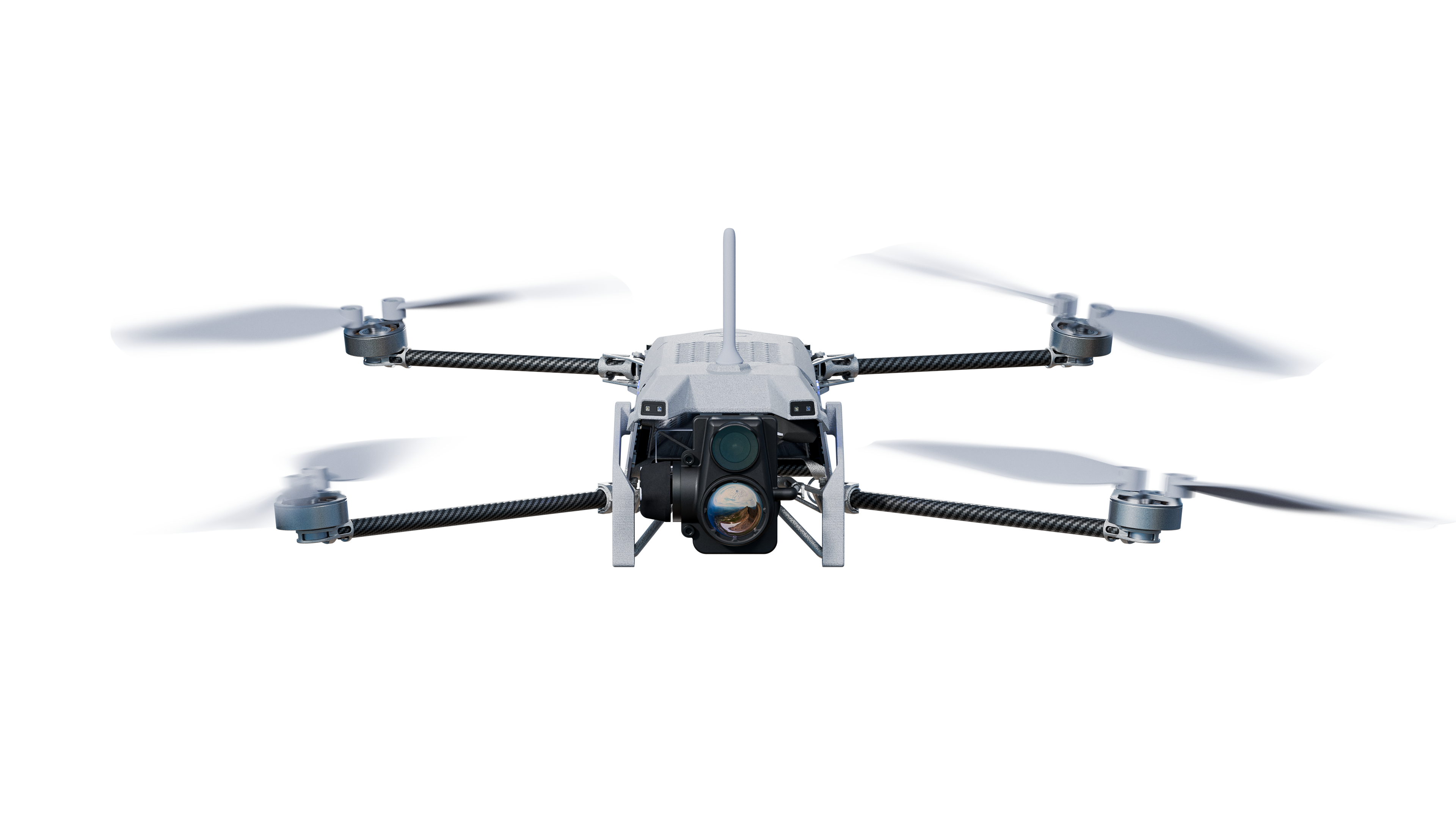

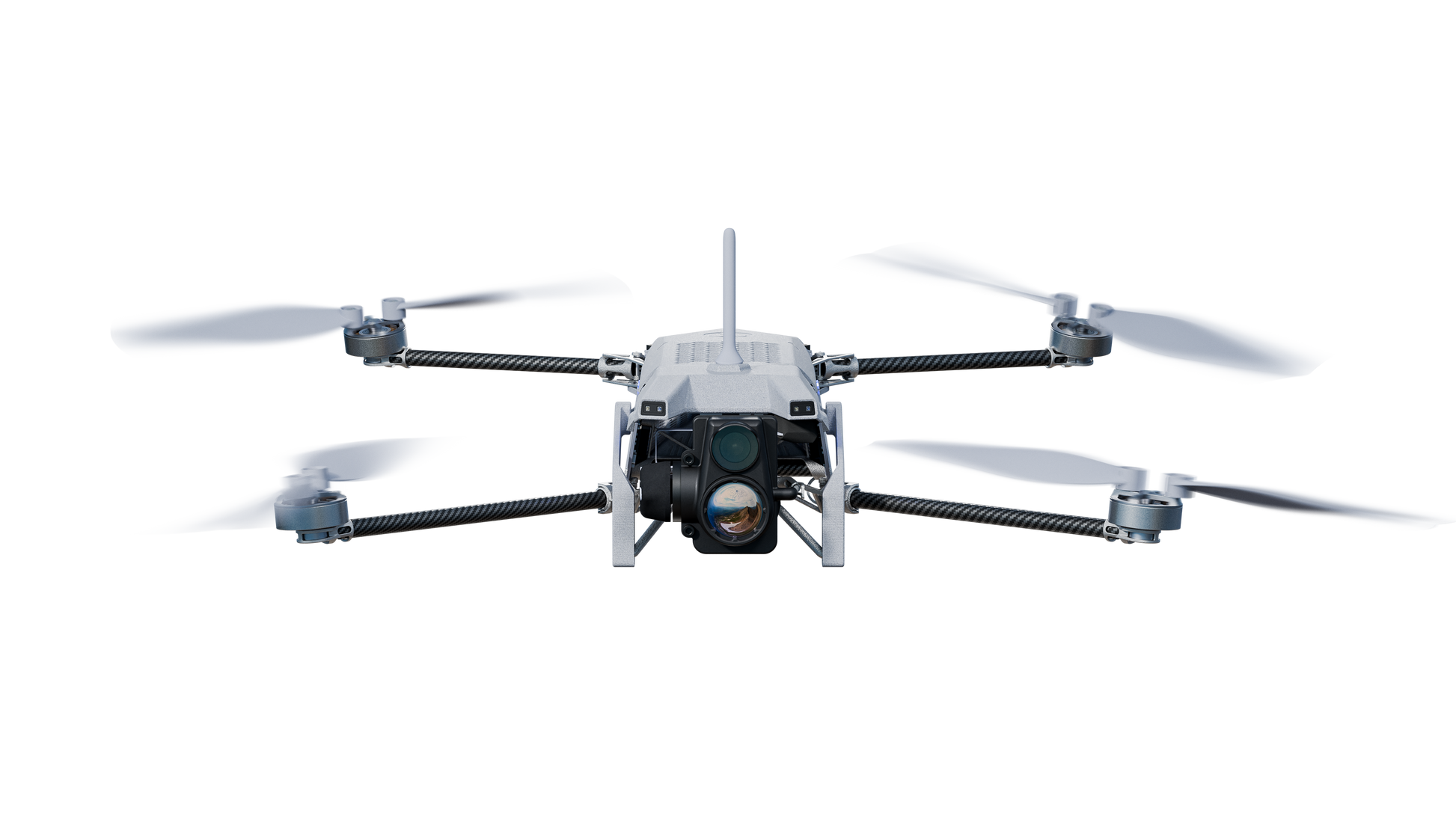

The Vantage Robotics Trace is an ultra-portable nano ISR drone built for public safety, tactical, and industrial inspection teams that need discreet aerial intelligence in tight or sensitive environments. Weighing roughly 153 g, Trace delivers stabilized EO + thermal imaging, GPS-denied flight capability, and extremely low acoustic signature for covert overwatch and indoor reconnaissance.

Trace is designed for rapid deployment and confined-space operations. Folding arms, a backpack-ready form factor, and a 30-second launch time enable quick deployment from vehicles or on foot. The drone supports 48 MP EO imaging, thermal sensing, and digital zoom, giving operators the situational awareness of much larger UAV systems in a pocket-sized platform.

With AES-256 encrypted communications, NDAA-compliant manufacturing, and compatibility with Vantage’s Vision2 ground control system, Trace is purpose-built for mission-critical ISR and infrastructure inspections.

Typical use cases include:

  • Indoor tactical reconnaissance

  • Critical infrastructure inspection

  • Confined-space industrial inspections

  • Covert overwatch for public safety

  • Security and perimeter awareness

Aircraft

  • Takeoff weight: ~153–178 g
  • Flight time: ~30 min (standard battery)
  • Top speed: ~52 km/h (32 mph)
  • Launch time: ~30 sec

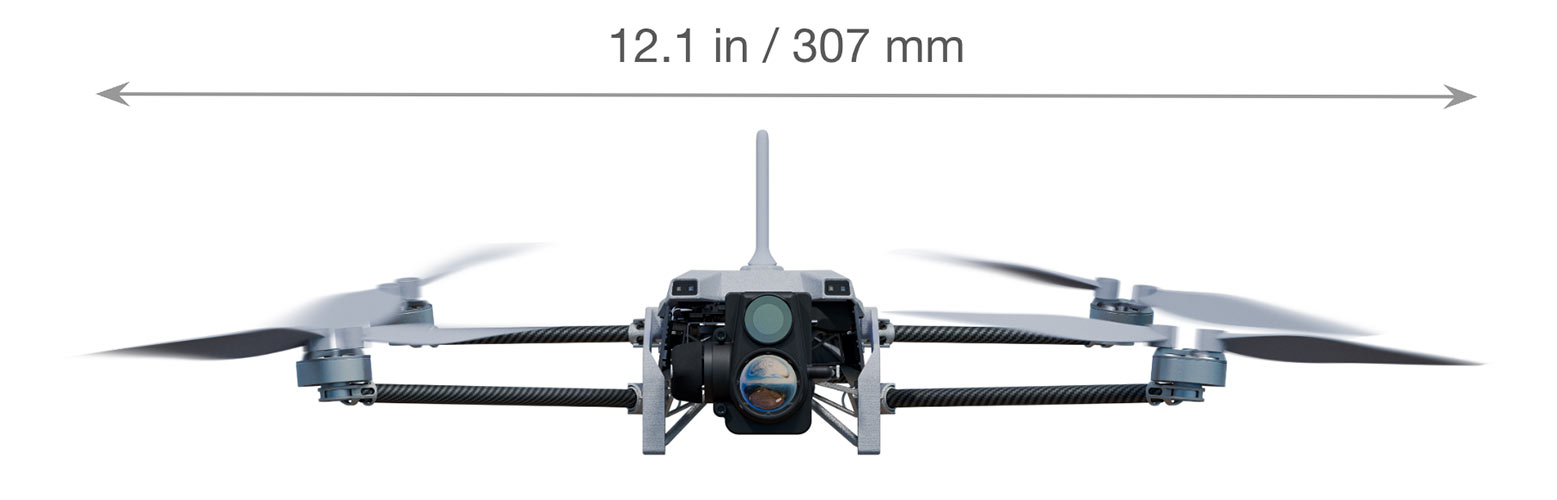

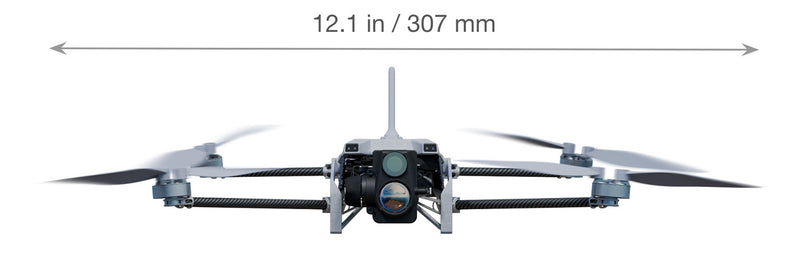

  • Operational size: ~12 in across in flight
  • Acoustic signature: <34–37 dBA
  • Weather resistance: IP53 airframe

Range & communications

  • Range: Up to ~2 km LOS (typical configuration)
  • Encryption: AES-256
  • GPS-denied flight: Yes (visual positioning + sensors)

Camera & payload

  • Gimbal: 2-axis stabilized EO/IR
  • EO camera: 48 MP
  • Thermal: 320×240 VOx, upgradeable to 640×480
  • Zoom: Up to 24–25× digital
  • Video: 1080p or 4K MPEG-4

Sensors & navigation

  • Laser range sensors: 7 obstacle-avoidance sensors
  • Visual positioning: Downward visual + illumination for low light

Portability

  • Deployment: <30 sec
  • Case: IP67 waterproof, crush-resistant
  • System weight (with GCS & case): ~3 lb total

Compliance & security

  • NDAA compliant: Yes
  • Encryption: AES-256
  • Origin: Designed and built in USA

Remote Robotic is a North American authorized dealer for Vantage Robotics Trace.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Trace spec sheet

We offer training for all robotic solutions

Learn more

Trace FAQ

Pricing varies by bundle and configuration. Contact us for a quote

Yes. The drone is designed for indoor and GPS-denied flight, with visual positioning sensors and obstacle-avoidance systems to operate in tight spaces and low light.

The manufacturer states Trace uses AES-256 encryption and is NDAA compliant, with U.S.-built manufacturing and secure communications.
