Boston Dynamics

Spot Arm

  • Boston Dynamics Spot
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Max. reach height on robot: 1800 mm
Water & dust resistant
~11 kg lift capacity
Drag capacity* (on carpet): Up to 25 kg
Operating Temperature: −20 °C to +45 °C
Manipulator arm + gripper
`

Expand the capabilities of your Spot Robot with the Spot Arm: a 6-degree-of-freedom manipulator plus gripper that lets the robot lift, carry, place and drag objects. Reach up to ~1 m, lift up to 11 kg, and manipulate doors, valves or equipment—opening new mission profiles in inspection, remote operations, utilities and more. Designed to integrate seamlessly with the Spot platform’s mobility and perception stack.

Total Weight (with Battery): 40.5 kg
Maximum Height (Spot at full standing height with Spot Arm at maximum vertical extension): 1820 mm

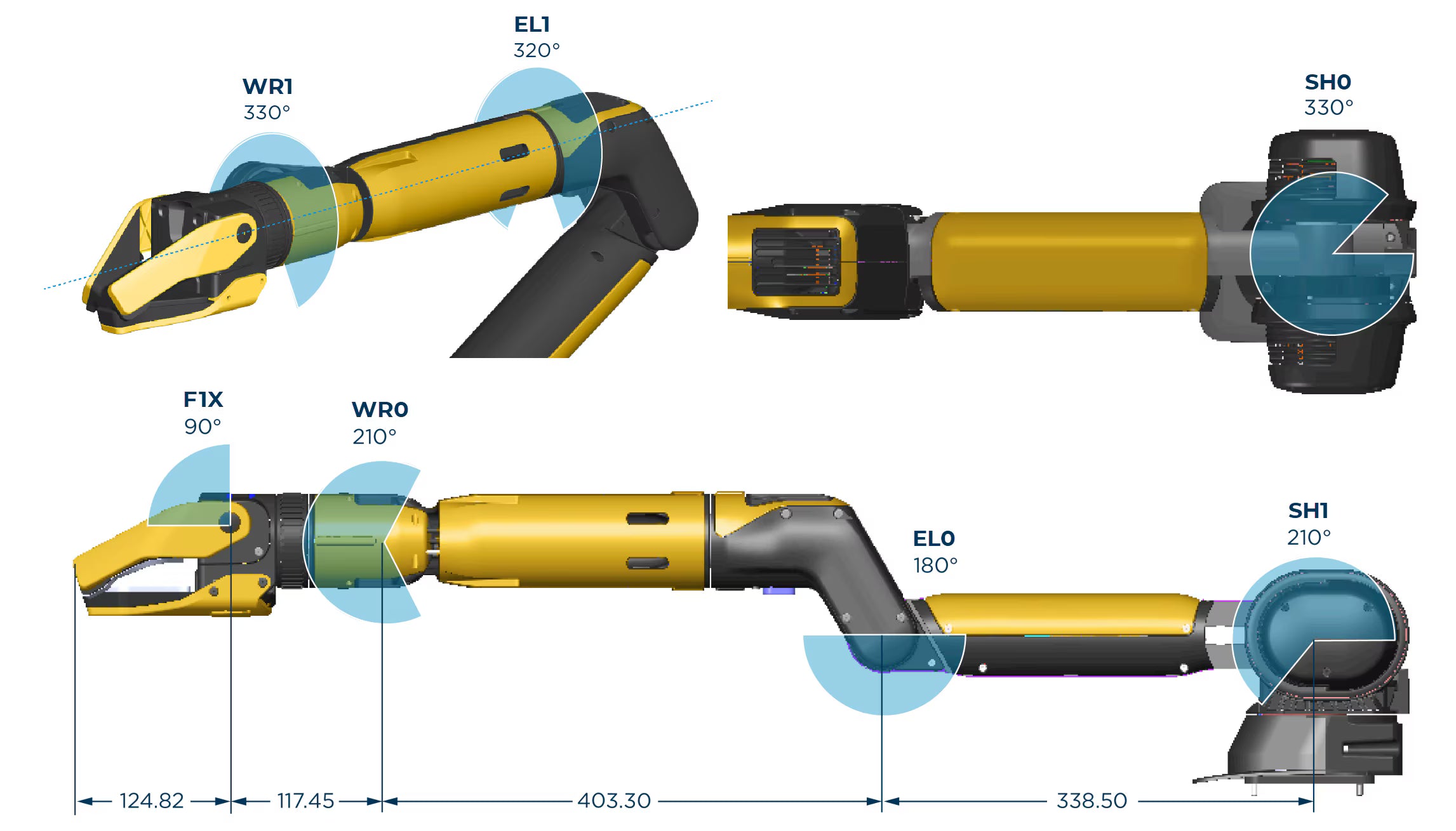

SPOT ARM (MANIPULATOR AND GRIPPER)
Combined Weight: 8 kg
Combined Length: 984 mm
Lift Capacity (at 22°C): Up to 11 kg
Continuous Lift Capacity (at 500 mm extension, 22°C): 5 kg
Drag Capacity (on carpet): Up to 25 kg
Maximum Endpoint Speed: 10 m/s
Operating Temperature: -20°C to 45°C
Ingress Protection: IP54 (water and dust resistant)
Degrees of Freedom: 6 + gripper
Length at Full Extension: 984 mm
Maximum Reach Height (on robot): 1800 mm

GRIPPER
Depth of Grip: 90 mm
Maximum Aperture: 175 mm
Peak Clamp Force (at tip): 130 N
Integrated Sensors:

  • Time-of-Flight (ToF) Depth Sensor
  • IMU
  • 4K RGB Camera
    Accessory Port: Gigabit Ethernet, 50W Power, Camera Sync (PPS)
    Maximum Camera Field of View (FOV):
  • RGB: 60.2° × 46.4°
  • Depth: 55.9° × 44°

NOTES

  • Lift and drag capacities measured at 22°C.
  • Arm and gripper rated for operation within the Spot platform’s IP54 environmental standard.

Remote Robotic is a North American authorized dealer for Boston Dynamics Spot Arm.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Spot Arm User manual

We offer training for all robotic solutions

Learn more

Spot Arm FAQ

Yes — the arm supports a drag capacity up to ~25 kg on carpet and lift up to 11 kg under rated conditions.

The Spot Arm is designed to integrate with the Spot body, allowing balanced manipulation while maintaining mobility and terrain capability.

The Arm supports API control, both joint-space and end‐effector trajectories, with built-in gripper, sensors and accessory ports for custom payloads.
