StreamCaster 5200 - Remote Robotic
StreamCaster 5200 - Remote Robotic
Silvus Technologies

StreamCaster 5200

  • NDAA
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Dedicated RoIP interface
Single/Dual Band Frequency Options
2×2 MIMO MANET radio
Up to 2 W output power (effective 4 W)
550+ node scalability
Up to 100 Mbps Data
`

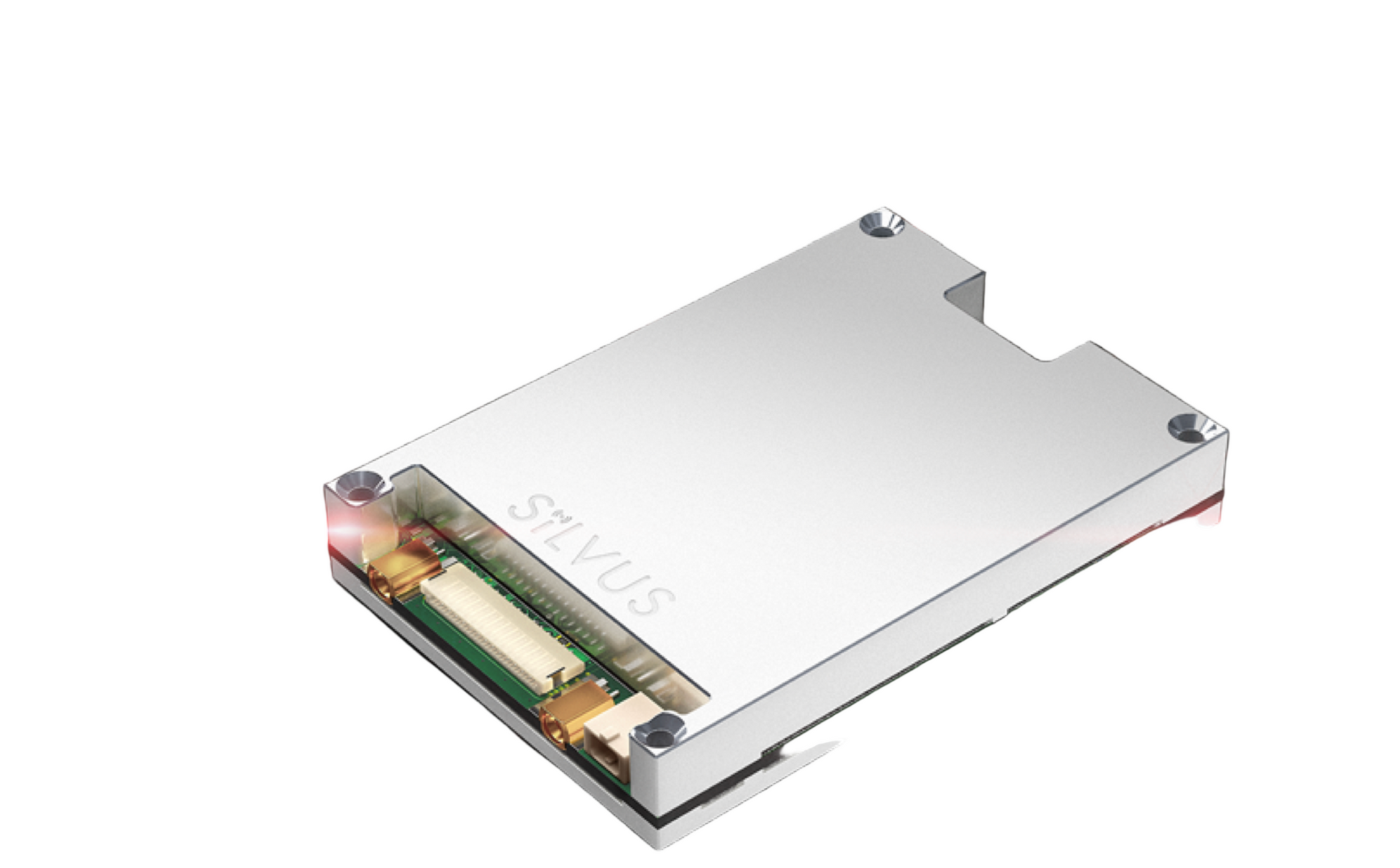

The Silvus StreamCaster MINI 5200 (SM5200) is an ultra-compact, full-performance 2×2 MIMO MANET radio engineered for platforms where size, weight, and power constraints matter — without sacrificing capability. Despite its slim footprint, the MINI 5200 delivers the same advanced MN-MIMO waveform used across Silvus' 4000-series radios, enabling high-bandwidth, low-latency, and highly resilient mesh networking across air, ground, and dismounted applications.

Designed for next-generation unmanned systems, robotic platforms, and wearable operator kits, the MINI 5200 provides reliable connectivity in complex and contested RF environments. With up to 2 W output power (and 4 W effective with TX beamforming), it supports long-range performance, real-time video transport, telemetry links, and robust command-and-control operations.

Its flexible I/O interfaces, compact architecture, and compatibility with the entire StreamCaster ecosystem make the MINI 5200 an ideal drop-in radio for UAVs, UGVs, sensor payloads, tactical communications kits, and embedded software-defined systems — especially when every gram of weight and cubic millimetre of space matters.

StreamCaster LITE 5200 – SL5200 OEM Module

Smaller, lighter, more power-efficient — with increased performance

Key Distinctions

  • Powerful performance with long-range, resilient connectivity
  • Ultra-low SWaP (60% smaller, 50% lighter than SL4200 OEM)
  • Advanced encryption up to AES256 / FIPS 140-3
  • Flexible I/O interfaces: Ethernet, USB, RS232
  • Designed for seamless integration into unmanned and manned platforms
  • Up to 2W native / 4W effective TX power
  • Up to 100 Mbps throughput
  • 550+ node MANET scalability

General

  • Native TX Power: 2W (user adjustable from 1mW)
  • Effective TX Power: Up to 4W with beamforming
  • Data Rate: Up to 100 Mbps (adaptive)
  • Node Capacity: 550+ nodes
  • Integration: Optimized for compact unmanned/manned systems
  • Encryption: AES256; FIPS 140-3; DES56 (standard)
  • Interfaces: Ethernet, USB, RS232

Mechanical

  • Operating Temperature: -40°C to +85°C
  • Dimensions: 63.5 × 44.5 × 10.4 mm
  • Weight:26 g (bare PCB)52 g (with shields)
  • Material: Aluminum 6061-T6

Radio Performance

  • Waveform: Mobile Networked MIMO (MN-MIMO)
  • MIMO Techniques: Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming
  • Latency: 7 ms average (20 MHz bandwidth)
  • Sensitivity:-101 dBm @ 5 MHz-107 dBm @ 1.25 MHz (optional)
  • Channel Bandwidths: 20 / 10 / 5 MHz (2.5 / 1.25 MHz optional)

Spectrum Dominance

Advanced LPI/LPD and anti-jam features, including:

  • MANET Spectrum Analyzer (MAN-SA)
  • MANET Power Control (MAN-PC)*
  • MANET Protected Waveform (MAN-PW)*
  • MANET Interference Avoidance (MAN-IA)
  • MANET Interference Cancellation (MAN-IC)*

*Features marked with * are ITAR-controlled.

Power

  • Input Voltage: 9–32 VDC
  • Power Consumption: 4–13 W @ 2W TX power

Interfaces

RF

  • Antenna 1: SMPM (m)
  • Antenna 2: SMPM (m)

Peripheral I/O

  • Ethernet
  • RS232
  • USB

Mechanical Integration

  • Standard mounting holes
  • Digital I/O
  • Power input via dedicated pads

Frequency Band Options

(All ranges in MHz; additional bands available based on market demand)

L-Band

  • Code 139: 1350–1440 MHz

S-Band

  • Code 235: 2200–2500 MHz

Dual L + S Band

  • Code 139235: 1350–1440 + 2200–2500 MHz

Available in different configurations, please contact us.

Remote Robotic is a North American authorized dealer for Silvus Technologies StreamCaster 5200.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

StreamCaster 5200 Spec sheet

We offer training for all robotic solutions

Learn more

StreamCaster 5200 FAQ

The SM5200 delivers full 2×2 MIMO MANET capabilities — including 100 Mbps throughput, mesh networking, and EW-resilient comms — in a remarkably compact, low-profile package perfect for SWaP-constrained platforms or wearable use.

Yes — it uses the same proprietary MN-MIMO waveform as the 4000-series, so it remains fully compatible with larger 4000/4200-series radios for mesh interoperability.

Use cases where size/weight/power constraints matter — e.g. light UAVs/ UGVs, wearable operator kits, dismounted missions, embedded sensor platforms, or any application needing a compact MANET radio with full mesh capabilities.
