DeltaQuad

Evo Stealth

  • DeltaQuad Evo
  • Mapping
  • VTOL
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Maximum flight time: ~4 hours+
IP54 Rated
Payload capacity up to ~3 kg
Maximum range up to ~254 km
Operating temperature: –20 °C to +45 °C
Modular swappable payload
`

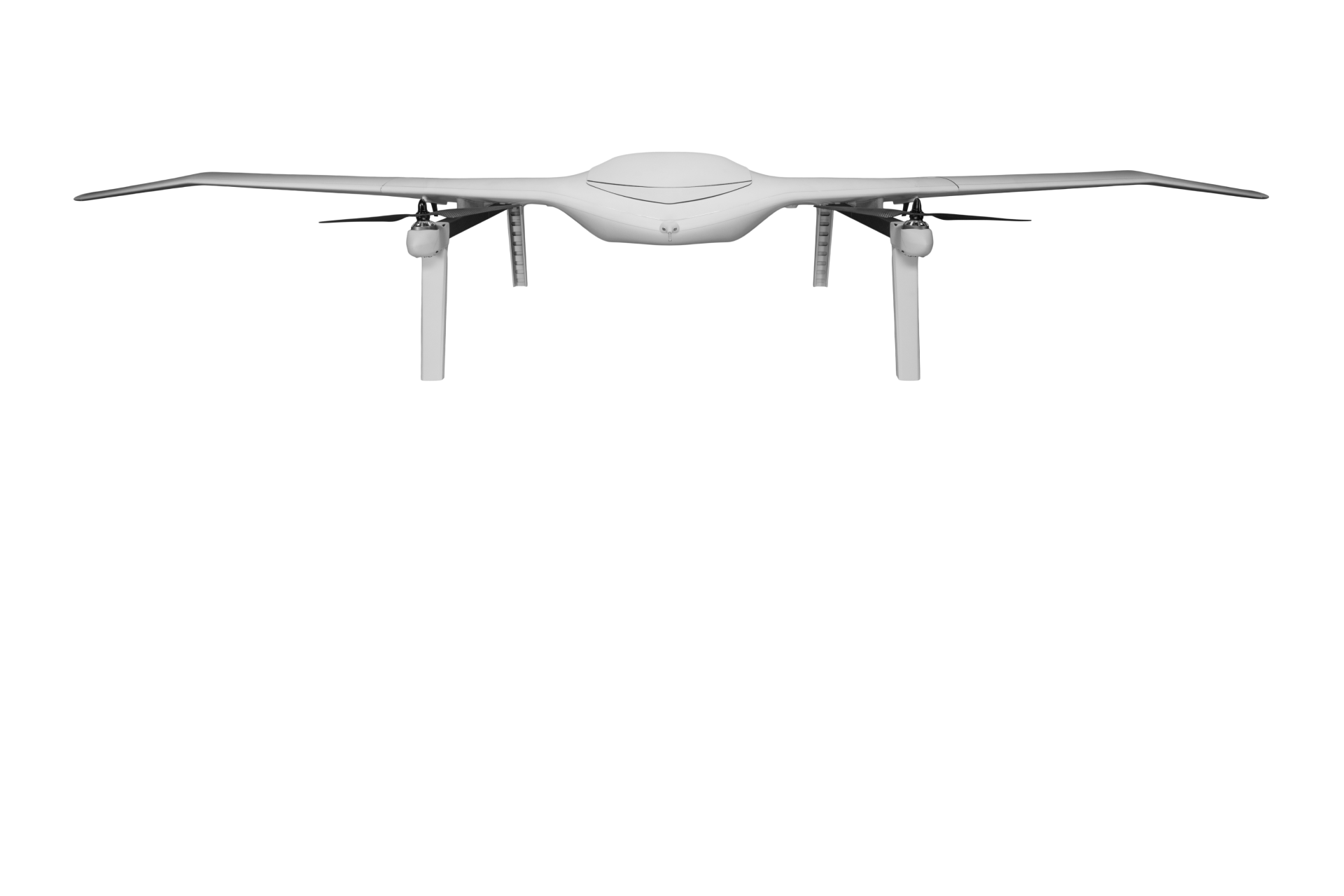

Operate where others cannot. The DeltaQuad Evo Stealth is engineered for covert, high-risk missions: GPS-denied environments, anti-jamming operations, stealth radio logic and full vertical take-off & landing (VTOL) flexibility. Featuring dual swappable bays, low acoustic signature, and military-grade build (carbon/kevlar/fibreglass), it is ideal for defence, special-ops and high-end remote-operations teams requiring mission assurance and data security.

Evo Stealth platform specifications

Max. flight time:

266 minutes

Max. flight range:

266 km/ 166 mi

Max. radio range:

30 km

Ground control:

DeltaQuad controller

Radio options:

DQ 2.4 GHz

GNSS system:

Anti-Jamming L1 GPS

ATAK compatible:

Yes

Stealth switch:

Yes

Interference Avoidance:

N/A

Inertial Navigation:

Full inertial mission

Dimensions

Wingspan

269 cm

Length

75 cm

Height

33 cm (landing gear extended)

Wing area

84 sq. dm

Flight case dimensions

112 x 82 x 46 cm

Payload bay dimensions

20 x 20 x 11 cm

Evo weight and payload

Empty weight

4.8 kg

Empty weight including 1 battery

6.8 kg

Maximum takeoff weight

10 kg

Payload capacity

3 kg

Flight characteristics with dual battery

Flight speed

16.54 m/s (60 km/h)

Payload capacity

1 kg

Maximum flight time

272 minutes (4 hours 32 minutes)

Range through air

270 km (168 mi)

Power

Battery type

Semi Solid State Lithium-ion

Battery cells

6

Battery capacity

22 Ah per battery

Tolerances *

Maximum takeoff/landing wind

12.5 m/s (45 Km/h)

Maximum wind cruise flight

14 m/s (50 Km/h)

Maximum precipitation

7 mm/h (Drizzle)

Operating temperature

Between -20 and +45 Celsius

Maximum flight altitude AMSL

5500 m

  • 1 x Fuselage
  • 2 x Wing
  • 4 x DeltaQuad Evo Semi Solid-State Li-ion battery
  • DeltaQuad Dual Battery Charger
  • 1x auxiliary battery payload box
  • 1x empty payload box
  • Ground Control Station (Controller or ruggedized laptop) and accessories
  • Optional payloads

Remote Robotic is a North American authorized dealer for DeltaQuad Evo Stealth.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

DeltaQuad Evo user manual

We offer training for all robotic solutions

Learn more

Evo Stealth FAQ

Yes — it features anti-jamming CRPA GNSS, inertial and vision-based navigation cloud fallback, making it capable of sustained flight and landing when GPS is unavailable.

The system is designed for field rapid deployment – unpack, assemble, launch in under 5 minutes in many configs.

Critical mission data isn’t stored onboard, the radio link can be switched off for “deploy & forget” operations, and the system includes stealth logic to minimise detection.
