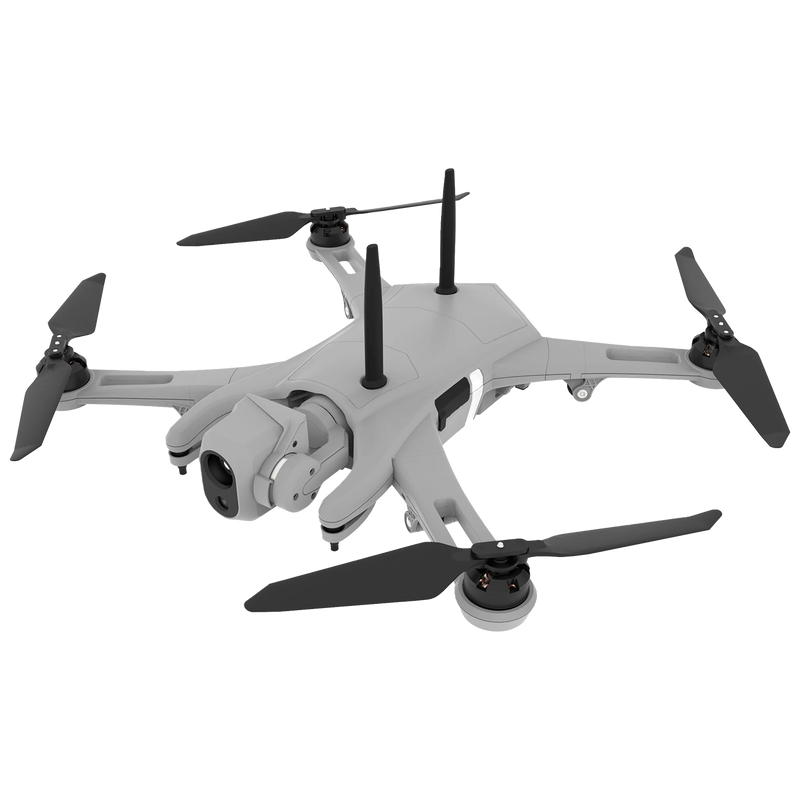

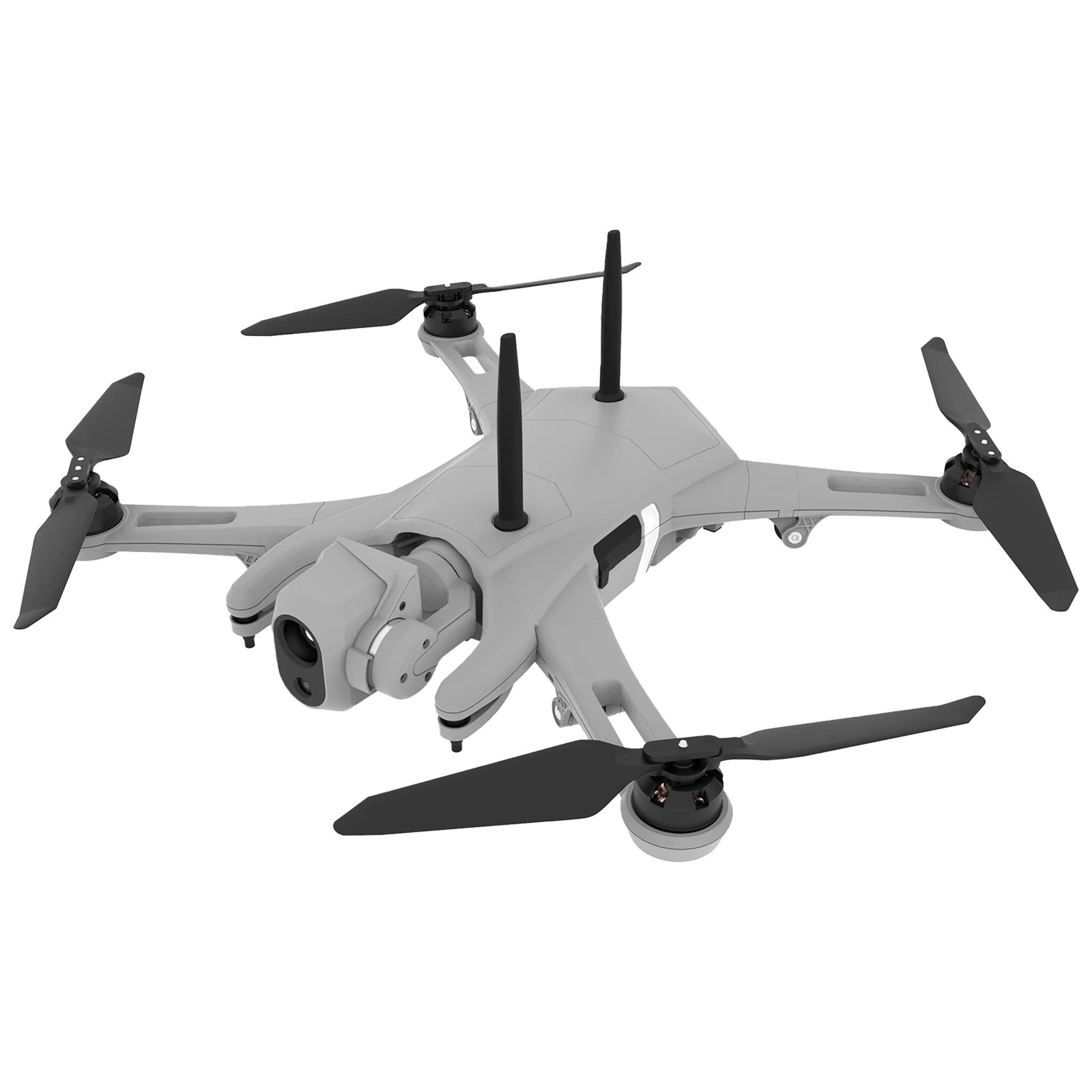

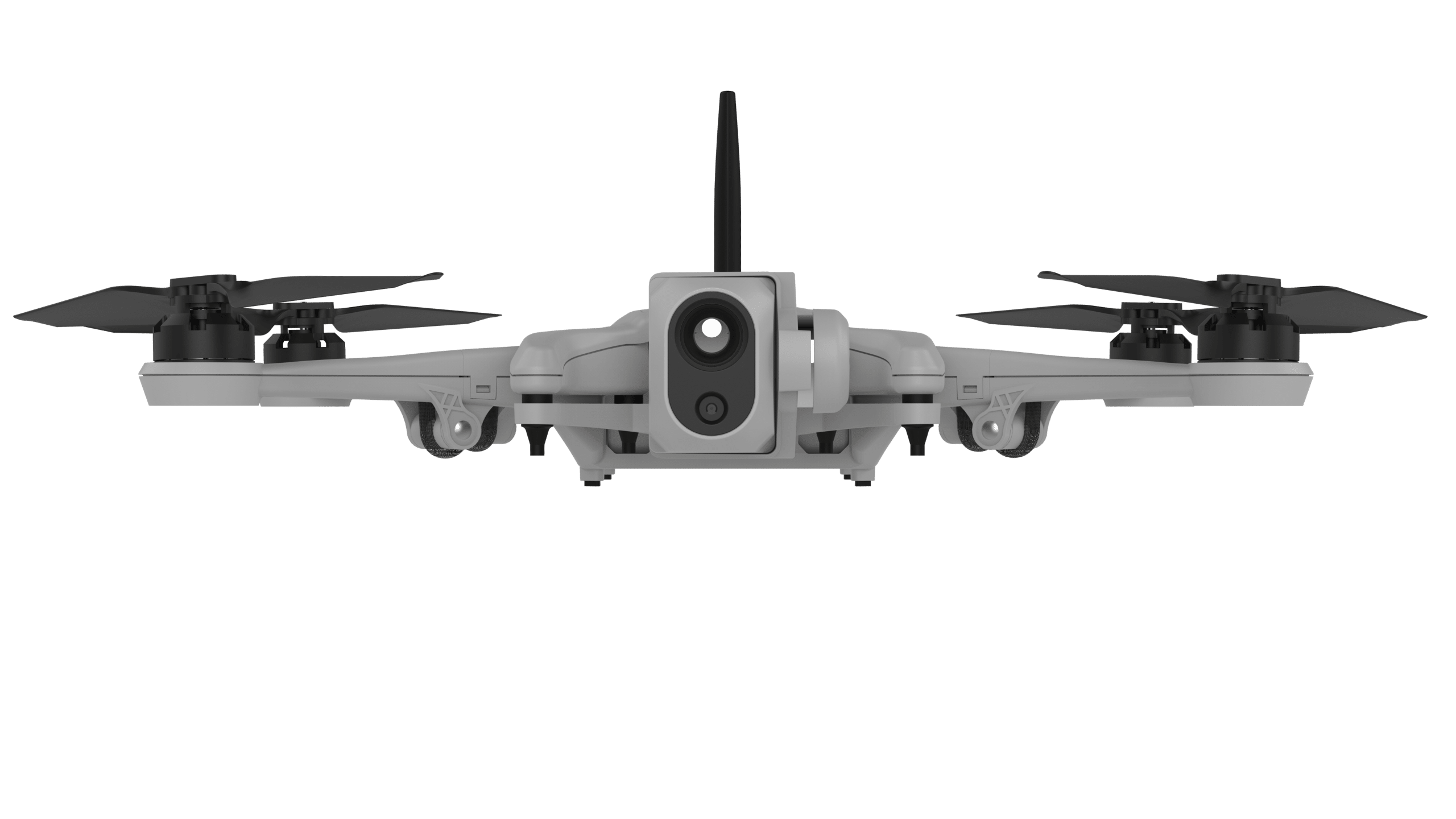

Teal 2

TEAL 2 AV

Flight Time: 30+ minutes (U.S. Standard Atmosphere 1976 — 59°F, Sea Level, 29.92 in Hg)
Weight: 2.75 lbs (1.25 kg)
Flight Speed: 10 m/s (23 mph)
Top Horizontal Speed: 32.8 ft/s (10 m/s, 23 mph)
Maximum Vertical Speed: 8.2 ft/s (2.5 m/s)
Maximum Service Ceiling: 10,000 ft (3,048 m) MSL
Operating Temperature Range: -32°F to 110°F (-35.6°C to 43.3°C)
Wind Limits: 18 mph (16 kn) sustained / 25 mph (22 kn) gusts
Maximum Range from Controller: Up to 5 km

Signal Range:

• 1.8 GHz line of sight – up to 2.17 miles (3.5 km)*
• 2.3 GHz MIMO line of sight – up to 1.86 miles (3 km)*
• 2.4 GHz MIMO line of sight – up to 1.86 miles (3 km)*

Maximum Auxiliary Payload Weight: 75 g
Operating Frequencies: 1.8 GHz, 2.3 GHz, 2.4 GHz
Encryption: AES 256
Protocol: MAVLink

EO Recording: 4000 × 3000 @ 15 FPS
Video Format: H.264 Transport Stream and MP4

Gimbal Range:

• Pitch: -120° to +120°
• Roll: -35° to +35°

IR Sensor: FLIR Boson, 640 × 512 pixels
IR Video Recording: 640 × 512 @ 30 FPS
GNSS: L1 GPS + GLONASS with SBAS and QZSS enabled

Range estimates represent maximum command and control (C2) link performance under optimal environmental conditions.
For safety, the AV must always be operated within the RPIC’s visual line of sight.

Remote ID Note:
Remote ID relies on georeferenced GPS position from onboard receivers. Loss or degradation of GPS signal may impact Remote ID performance and compliance with 14 CFR §89.310(h). Pilots must follow the manual’s operational limitations to avoid interruptions or RID failure.

Ingress Protection: IP53

TEAL 2 SYSTEM (sUA, GCS, Battery Packs)

Operating Temperature Range: -32°F to 110°F (-35.6°C to 43.3°C)
Note: In temperatures at or below 32°F (0°C), pre-heat the battery on the charger before flight.
Operating Humidity Range: 10% to 90% RH (non-condensing)

GCS SYSTEM

Operating Frequencies: 1.8 GHz, 2.3 GHz, 2.4 GHz
Tablet Display Resolution: WUXGA (1920 × 1200)
Tablet Display Brightness: 550 nits (outdoor readable)
Tablet Interaction: Glove Mode enabled
Wi-Fi: 802.11 a/b/g/n/ac (2.4 or 2.3 G + 5 GHz, VHT80)
GCS GNSS: GPS, GLONASS, GALILEO, BEIDOU

What’s in the box:

1 x Tactical Drone Case
1 x TEAL 2 Air Vehicle
1 x TAC GCS & Internal Radio
2 x Clockwise Propellers
2 x Counterclockwise Propellers
1 x Gimballed FLIR Hadron EO/IR Camera
1 x Gimbal / Camera Protective Cover
1 x Quick Start Guide
