Unitree

4D LiDAR L1

$348.60 CAD
$348.60 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Indoor/outdoor
230 grams
30 m LiDAR range
75×75×65 mm
360°×90° scanning
`

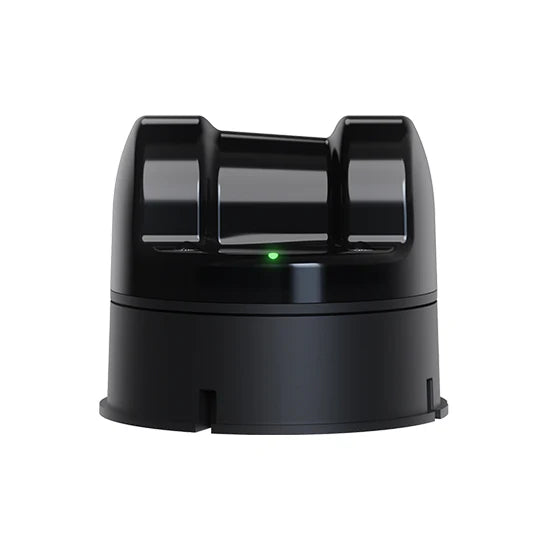

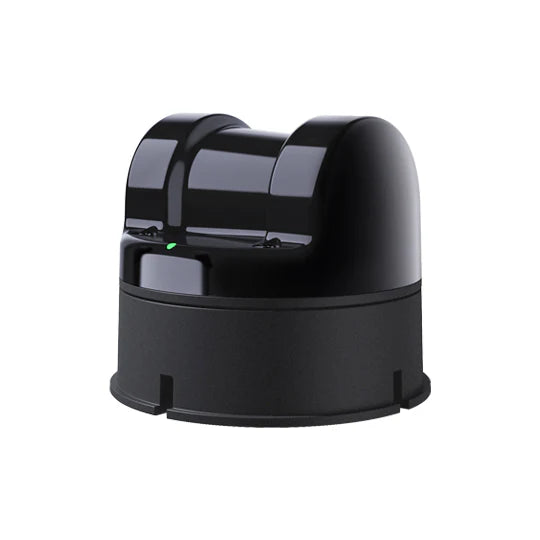

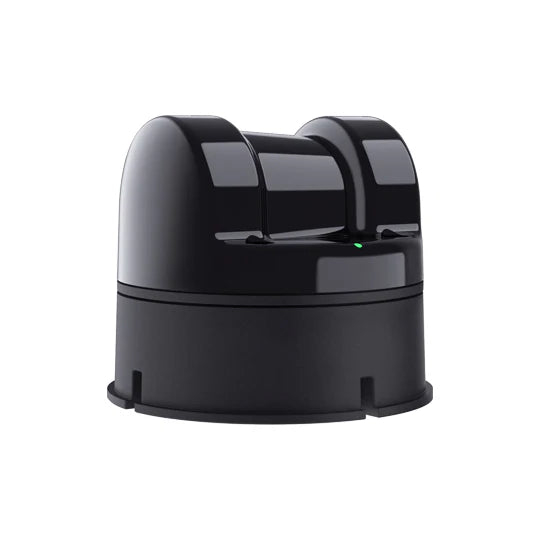

The Unitree 4D LiDAR L1 delivers high‐performance 360°×90° scanning in a compact, robot-friendly form. Weighing only ~230 g and measuring 75×75×65 mm, it scans from as close as 0.05 m up to ~30 m at 90% reflectivity for dense point clouds (~21,600 points/sec) and supports built-in IMU for slick mobile SLAM. Ideal for inspection robots, mobile platforms, mapping, autonomous navigation and obstacle avoidance in both indoor and outdoor environments.

  • Field of View (FOV): 360° (horizontal) × 90° (vertical)
  • Minimum Detection Distance (blind zone): 0.05 m
  • Maximum Detection Distance: ~30 m (at 90% reflectivity)
  • Sampling/Effective Frequency: Up to ~21,600 points/sec effective (some listings show 43,200 pts/s sampling)
  • Dimensions: 75 × 75 × 65 mm
  • Weight: ≈ 230 g
  • Operating Temperature Range: –10 °C to +60 °C (per manual)
  • Power Consumption: ~6 W
  • Technology: Laser Time-of-Flight (TOF) rotating mirror scanning; Built‐in 3-axis accelerometer + 3-axis gyroscope (IMU)
  • Blind-spot/Minimum Range: ~0.05 m; Anti-glare capability >100 kLux

Remote Robotic is a North American authorized dealer for Unitree 4D LiDAR L1.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

We offer training for all robotic solutions

Learn more

4D LiDAR L1 FAQ

Yes — the L1 supports anti-glare capability (>100 kLux) and is designed for both indoor & outdoor use.

It’s perfect for mobile robots, drones, AGVs and mapping vehicles requiring full-hemisphere environmental understanding thanks to its 360°×90° FOV and compact form.

The L1 outputs 3-D positional data (X/Y/Z) plus 1-D grayscale reflectivity per point, enabling richer perception (thus “4D”)
