Unitree

4D LiDAR L2

$587.00 CAD
$587.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Distance Resolution: 4.5 mm
Field of View (FOV): 360° × 96°
230 grams
30 m LiDAR range
Dimensions: 75 × 75 × 65 mm
Measurement Accuracy: ±2 cm
`

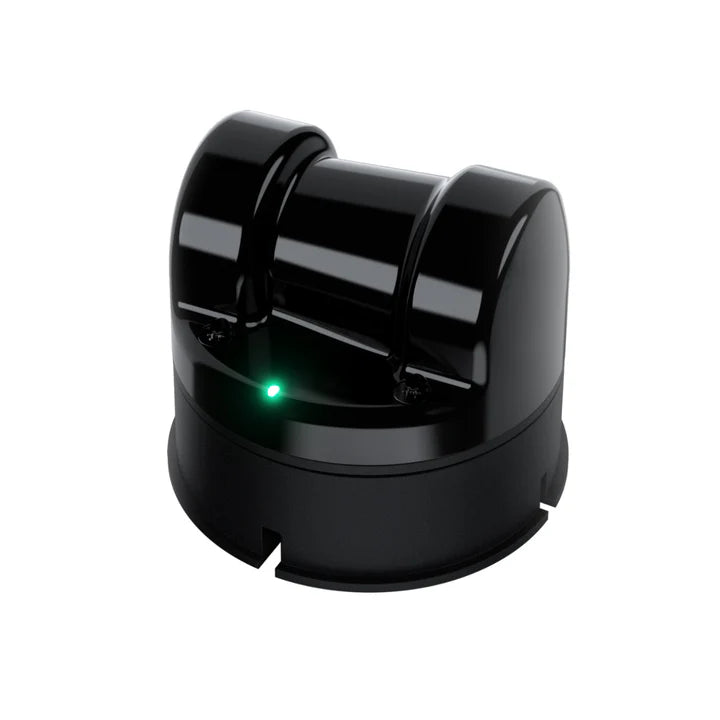

The Unitree 4D LiDAR L2 delivers high-performance, robot-friendly environmental sensing: 360° × 90° (or 96° in negative-angle mode) field of view, ultra-short blind distance (0.05 m), and maximum range up to 30 m for 90% reflectivity. Weighing only ~230 g and sized 75 × 75 × 65 mm, it’s ideal for mobile robotics, inspection platforms, SLAM, mapping and advanced autonomy. Built-in IMU and open SDK help you integrate seamlessly into robotic systems.

Model: Unitree L2

TECHNICAL SPECIFICATIONS

Scanning Distance:

  • 30 m (@90% reflectivity)
  • 15 m (@10% reflectivity)

Field of View (FOV): 360° × 96°
Sampling Frequency: 128,000 points/s
Effective Frequency: 64,000 points/s
Communication Interface: ENET UDP / TTL UART
4D Data Output: 3D position + 1D grayscale (supports 2D mode)

PERFORMANCE

Circumferential Scanning Frequency: 5.55 Hz (customizable adjustment)
Vertical Scanning Frequency: 216 Hz
Distance Resolution: 4.5 mm
Measurement Accuracy: ±2 cm

SYSTEM DESIGN

Scanning Method: Non-contact brushless rotating mirror scanning
Non-Repetitive Scanning: Supported
Data Reception / CPU Consumption: Extremely low (minimal processing load)

SENSORS & COMPONENTS

IMU: 3-axis accelerometer + 3-axis gyroscope
Power Consumption: 10 W
Operating Technology: Laser TOF (Time of Flight)

PHYSICAL CHARACTERISTICS

Dimensions: 75 × 75 × 65 mm
Weight: 230 g
Nearby Blind Area: 0.05 m
Operating Environment: Indoor / Outdoor

Remote Robotic is a North American authorized dealer for Unitree 4D LiDAR L2.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

We offer training for all robotic solutions

Learn more

4D LiDAR L2 FAQ

Yes — the L2 supports ultra-wide angle scanning, low blind-spot, and anti-glare capability, making it suited for dynamic mobile robotics in both indoor and outdoor settings.

The module produces standard 3-D positional data (X, Y, Z) plus a 1-D intensity/gray level (“reflectivity”) per point — hence “4D” (3 spatial + 1 reflectivity).

Confirm mounting interface (machine size/weight), power supply voltage and cable requirements, data interface (ENET / TTL UART), payload weight effects on robot, and environmental sealing/heat dissipation for outdoor use. Also validate the SDK and driver compatibility with your ROS or autonomous system.
