DeltaQuad

Aerial Payload Deployment System

  • DeltaQuad Evo
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply
DeltaQuad Integration
230 km Maximum flight range
Up to 2.5 kg cargo
200 x 180 x 90 mm Package dimensions
Weight: ~750 g

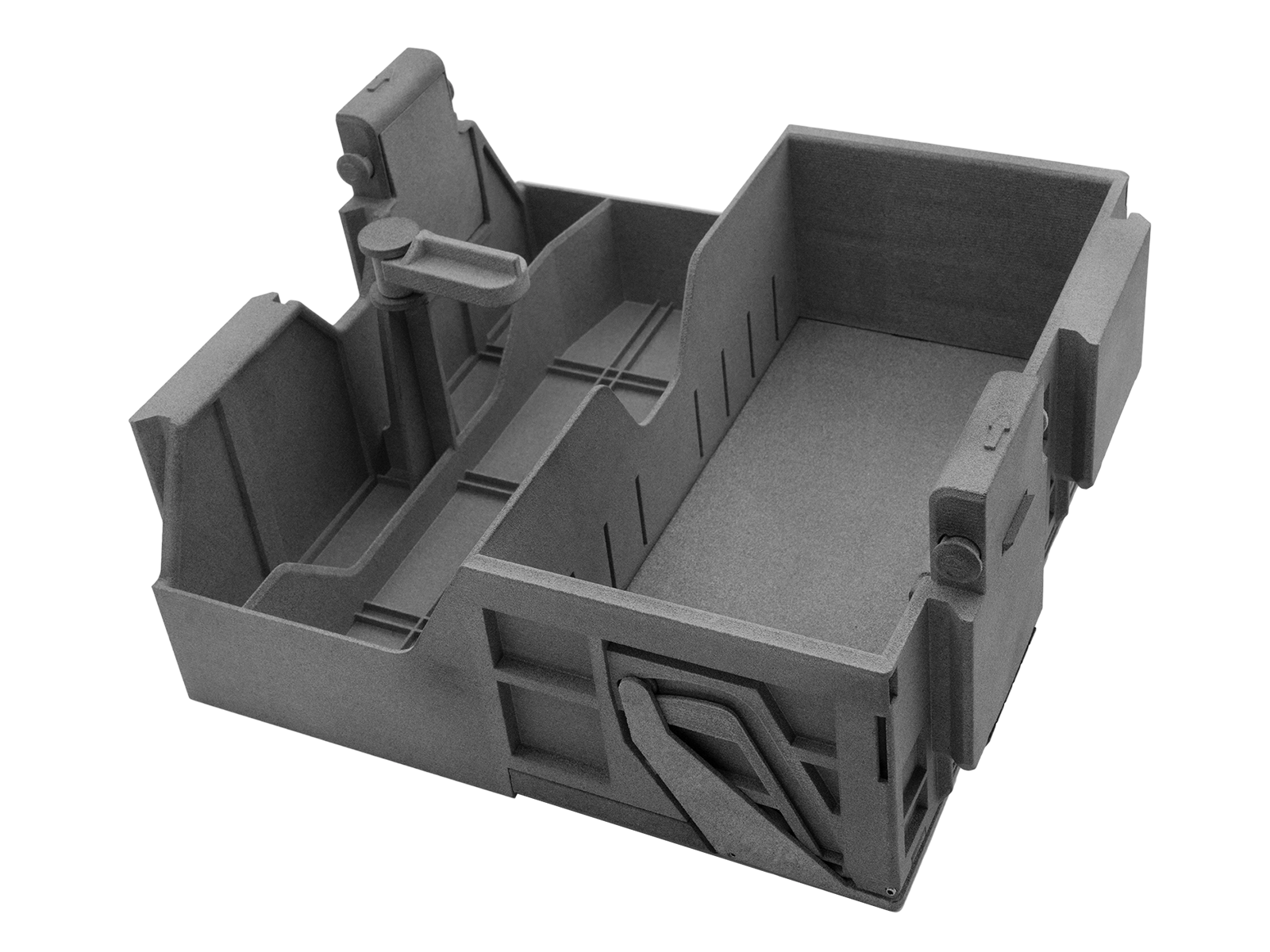

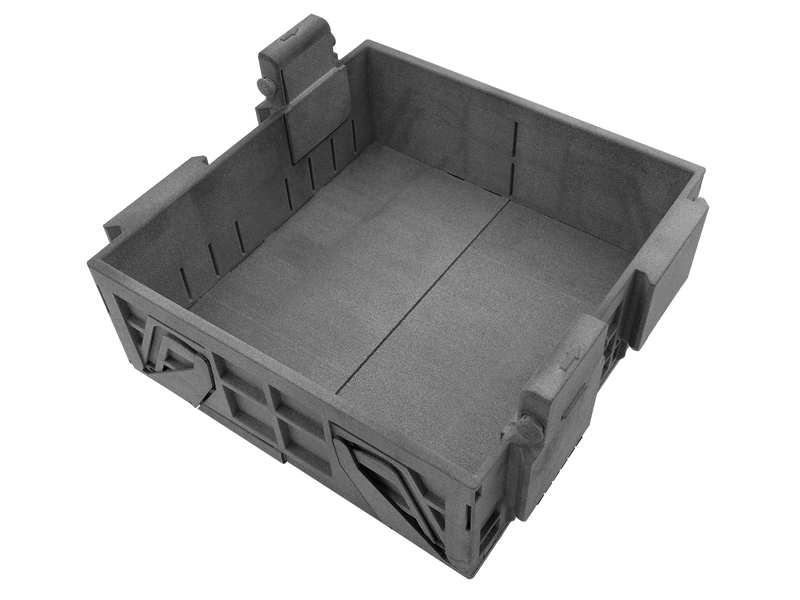

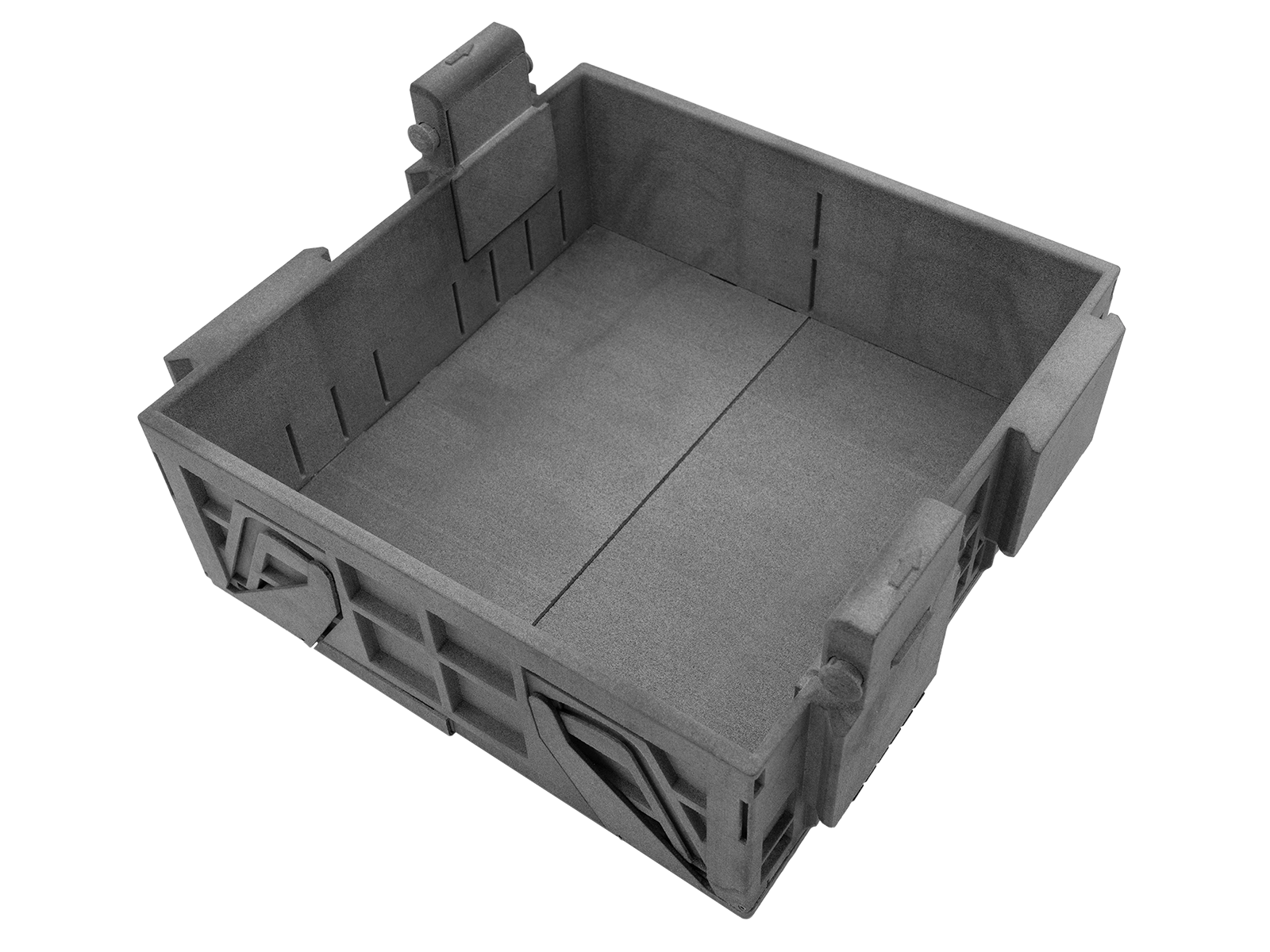

Automated cargo drop module
`

Designed to elevate your UAV missions, the DeltaQuad Aerial Payload Deployment System (APDS) enables seamless cargo drop capability and extended-range operations for the Evo platform. Whether delivering essential supplies to remote locations or deploying sensor pods mid-mission, the APDS integrates with the Evo’s dual-payload configuration to provide automated door releases, mission-planned drops and optional auxiliary battery support for longer endurance. With the APDS you unlock new logistics, humanitarian, inspection, and delivery workflows — all while maintaining flight autonomy and modular integration.

Specification Sheet

  • Model: DeltaQuad Aerial Payload Deployment System (APDS)
  • Cargo Max Weight (Single APDS): Up to 2.5 kg
  • Cargo Max Weight (APDS with Auxiliary Battery): Up to 1 kg
  • Package Dimensions: 200 × 180 × 90 mm
  • Payload Module Weight: ~750 g
  • Maximum Flight Time (with Aux Battery): 4+ hours (mission dependent)
  • Installation: Uses Evo dual-payload bay (slots 1 & 2) for full functionality
  • Mission Planning Guidance: Recommended drop altitude ~40 m AGL (“Payload drop – open both doors”)
  • Mounting: Tool-less integration with Evo payload system
  • Power: Draws from Evo power bus (verify voltage at integration)
  • Compatible Platforms: DeltaQuad Evo Standard and Evo Tactical configurations
  • Primary Function: Automated cargo release or auxiliary battery expansion module

Remote Robotic is a North American authorized dealer for DeltaQuad Aerial Payload Deployment System.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Aerial Payload Deployment Systems user manual

We offer training for all robotic solutions

Learn more

Aerial Payload Deployment System FAQ

For mission planning, create a waypoint at your target drop altitude (e.g., ~40 m), then add a custom action “Payload drop – open both doors” (or right/left door only) tied to that waypoint. The drone then flies into position and executes the cargo release.

Yes — the Single APDS version includes internal dividers allowing either one larger cargo or two smaller cargos at different release points.

The “with Aux Battery” version gives the system extended flight time/range by using the battery in place of a second cargo bay, while still providing an integrated door-release mechanism—ideal when mission endurance is the priority. The trade-off is reduced cargo weight (max ~1 kg) versus the 2.5 kg of the standard version.
