Leica

BLK ARC

  • Boston Dynamics Spot
$68,950.00 CAD
$68,950.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Accuracy indoor +/-10 mm
IP54 Rated
Compatible with Spot
25 m LiDAR range
Operating temperature: 0 to +40 °C
Laser Scanning module
`

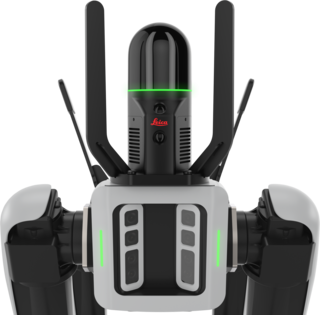

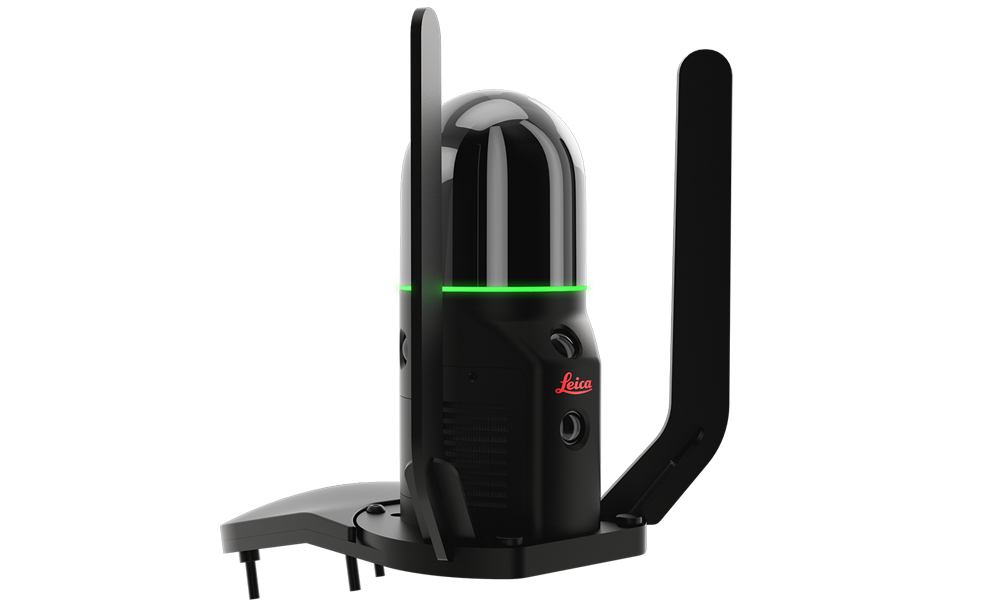

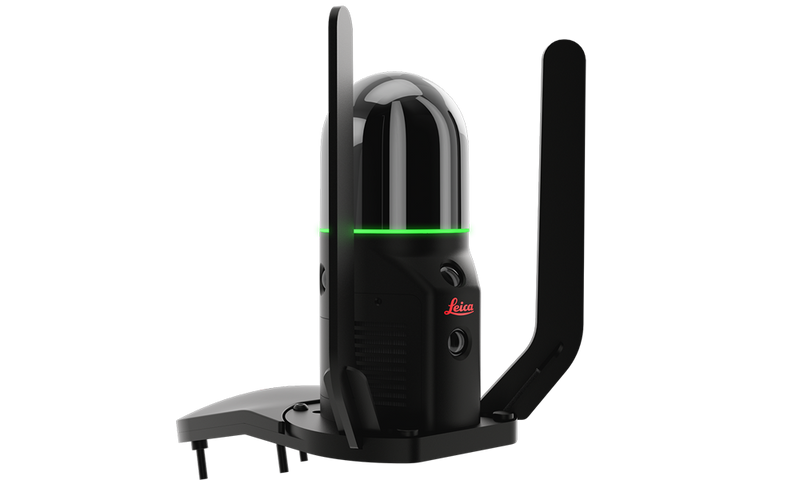

The Leica BLK ARC delivers high-performance autonomous reality capture in mobile applications. Designed to be mounted on robotic carriers (such as the Boston Dynamics Spot), this compact module captures full-environment 3D point clouds and panoramic imagery while the robot moves through the space. With its GrandSLAM fusion (LiDAR + Visual SLAM + IMU), the BLK ARC enables repeatable, autonomous missions in industrial, construction, inspection and hazardous-environment workflows—with minimal human intervention.

DESIGN & PHYSICAL

Housing:
Black powder coated aluminum

Weight:
690 g

Height:
183.6 mm

Front to back:
92.5 mm

Diameter:
80 mm



OPERATION

BLK ARC-UI (Leica Geosystems):
Browser-based app; planning and dispatch of autonomous missions and manual control of BLK ARC & Spot. Requires additional installation on Spot CORE I/O

Spot APP (Boston Dynamics):
Android app available for Spot users, BLK ARC control possible after installation of designated SW package on Spot CORE I/O

BLK Live app (Leica Geosystems):
Control BLK ARC data capture and preview data in real time. Android and iOS.

Leica Cyclone FIELD 360:
Control BLK ARC data capture, preview and pre-register data. Android and iOS

Communication:
USB 3.0 and Wireless (BLK ARC-UI connection)

Internal memory:
24 hours of scanning (compressed data) / 6 hours (uncompressed data)

Power supply:
USB: max 5.5V
Power cable: nominal 12V DC, operation range 9-48V DC, max power 25W



LiDAR & IMAGING

Laser class:
1
(in accordance with IEC 60825-1)

Wavelength:
830 nm

Field of view:
360° (horizontal)/270° (vertical)

Range:
Min. 0.5 m – up to 25 m

Point measurement rate:
420,000 pts/sec

High resolution camera:
12 Mpixel, 90° x 120°, rolling shutter

Panoramic vision system:
3-camera system, 4.8 Mpixel
360° x 135°, global shutter



SYSTEM PERFORMANCE
(GRANDSLAM-BASED)

Range noise * **:
+/-3 mm (dynamic)
+/-2 mm (static)

Accuracy indoor ***:
+/-10 mm



ENVIRONMENTAL

Robustness:
Designed for indoor and outdoor use

Operating temperature:
0 to +40° C

Dust & humidity protection:
IP54 (IEC 60529)



DATA PROCESSING

Data transfer:
Wireless and USB 3.0

Desktop Software:
Leica Cyclone REGISTER 360 PLUS and Cyclone REGISTER 360 PLUS (BLK Edition)

Cloud Software:
Reality Cloud Studio, powered by HxDR

Remote Robotic is a North American authorized dealer for Leica BLK ARC.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

BLK ARC Spec sheet

We offer training for all robotic solutions

Learn more

BLK ARC FAQ

Yes — it is specifically engineered for integration on robotic carriers (first announced with Spot) and supports both static and mobile scanning during the same mission.

It is built for indoor and outdoor use, including hazardous or remote sites where humans may need to be kept out of harm’s way.

The BLK ARC is capable of both static and dynamic (mobile) scanning, and accuracy specs refer to mobile mode performance (±10 mm indoor) when used on a robotic carrier.
