DJI E-Port V2 Development Kit

  • Matrice 400
$65.00 CAD
$65.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Plug-and-play on compatible platforms
Backed by the DJI Payload SDK
Compatible with Matrice 400
Development & Integration Kit
`

Turn your Matrice 400 into a payload development platform with the E-Port V2 Development Kit. Designed to break out the aircraft’s proprietary E-Port into multiple standard connectors (XT30 power ports, USB-C, coaxial, SkyPort V3, X-Port), this kit lets engineers focus on payload logic, sensor integration and rapid prototyping — without custom soldering. Ideal for developers, integrators and mission-driven teams building advanced UAV payloads.

Specifications

Development board dimensions: 89×60×13.4 mm (L×W×H)

XT30 VCC Output: 13.8 V/17.02 V/24 V, 5 A

XT30 12V Output: 12 V/4 A

XT30 5V Output: 5 V/4 A

1. For more information, visit https://developer.dji.com or email dev@dji.com.

2. If integrating the adapter board into a finished payload, be sure to design a heat sink and metal enclosure.

3. If you notice sparks, smoke, burning smell, or other abnormalities after powering on the adapter board, immediately turn off the power.

4. When using all three XT30 power output ports simultaneously, the total output power must be less than the aircraft’s maximum single-port output. Always develop payloads within the specified output limits.

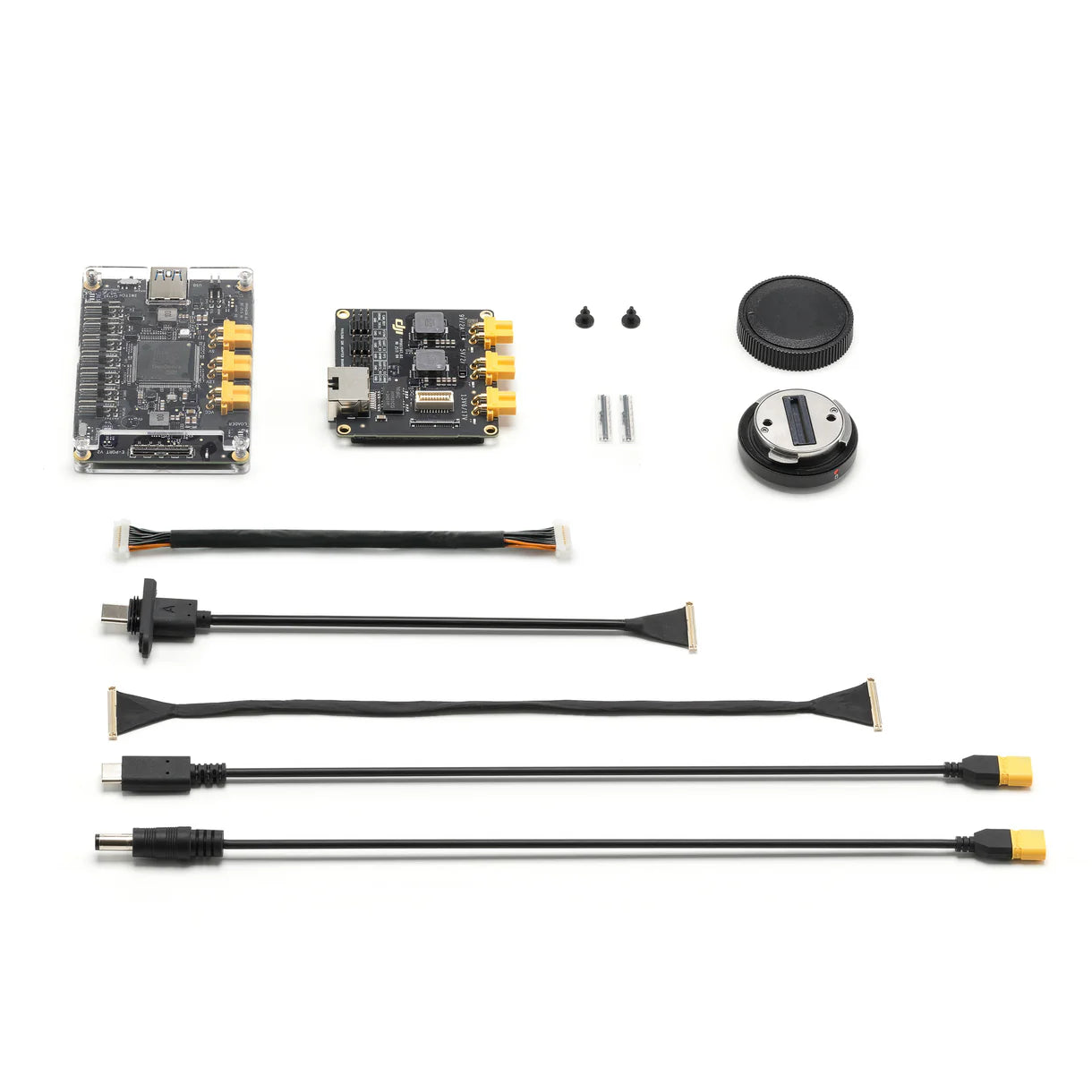

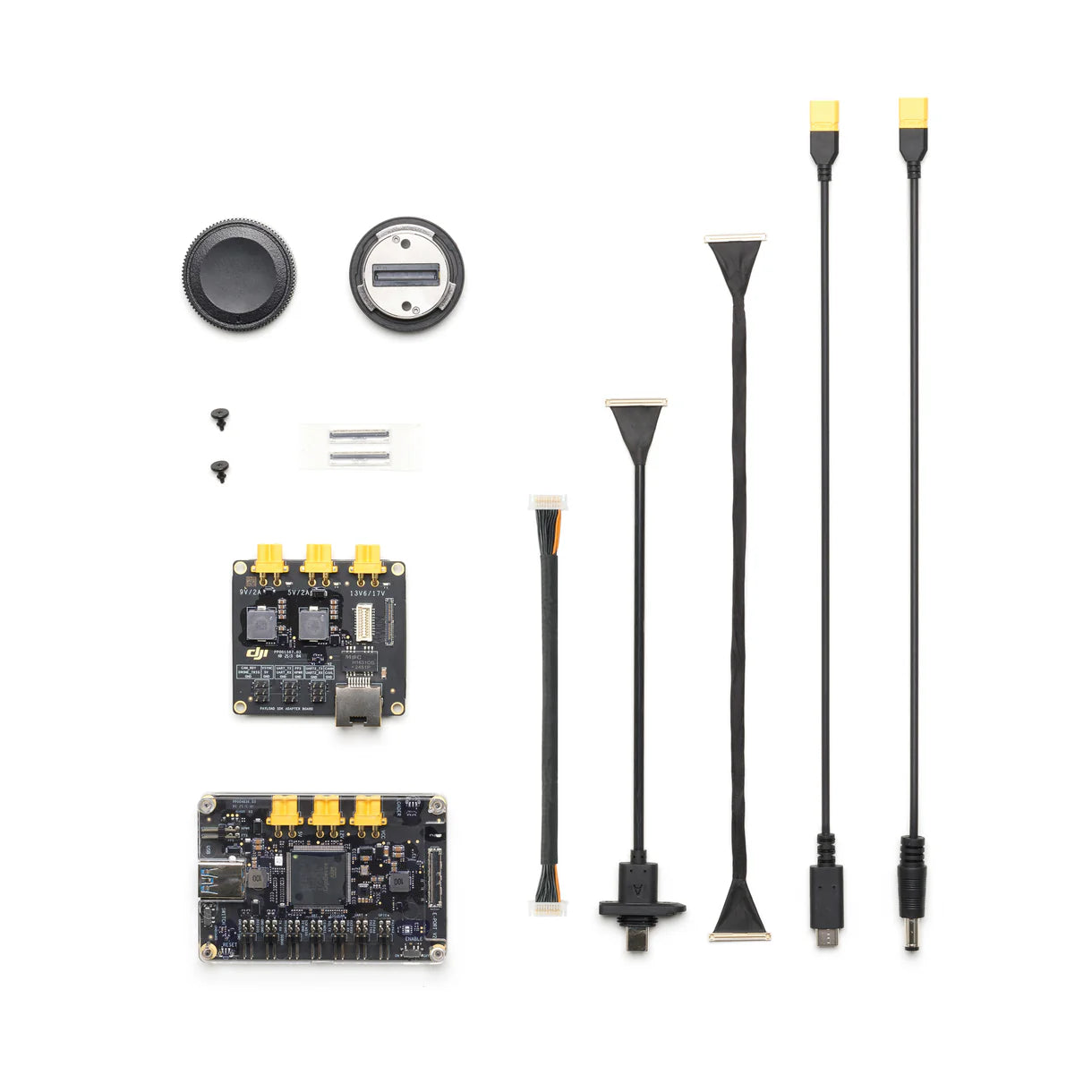

In The Box

DJI E-Port V2 Development Board × 1

DJI E-Port V2 Coaxial Cable × 1

XT30 to DC5.5 Power Cable × 1

XT30 to USB-C Power Cable × 1

SKYPORT V3 Coaxial Cable × 1 SKYPORT V3 Coaxial Cable Connector Terminal × 2 SKYPORT V3 Adapter × 1

X-Port Adapter Board × 1

X-Port Electronic Cable × 1

Remote Robotic is a North American authorized dealer for DJI DJI E-Port V2 Development Kit.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

User Manual

We offer training for all robotic solutions

Learn more

DJI E-Port V2 Development Kit FAQ

Compatible with the DJI Matrice 400 series and other DJI enterprise platforms that feature the E-Port V2 interface.

It offers XT30 power outputs (13.8V/17.02V/24V @5A), 12 V @4 A, 5 V @4 A, as well as USB-C and SKYPORT/V3/X-Port coaxial interfaces.

Ensure the total draw from all three XT30 ports stays within the aircraft’s power budget, design heat-sinking/enclosure when embedding the board, and avoid short circuits or exposed wiring.
