DJI

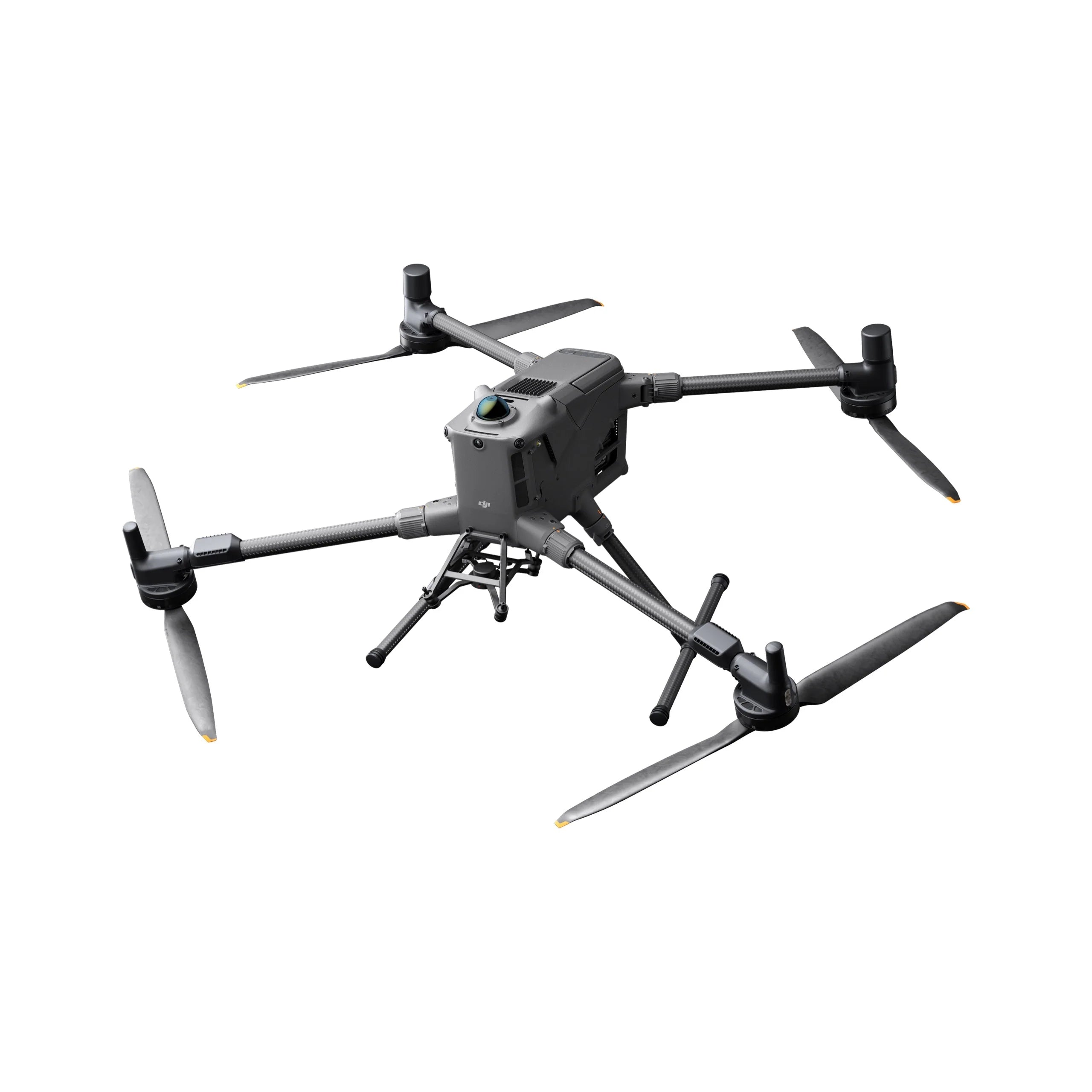

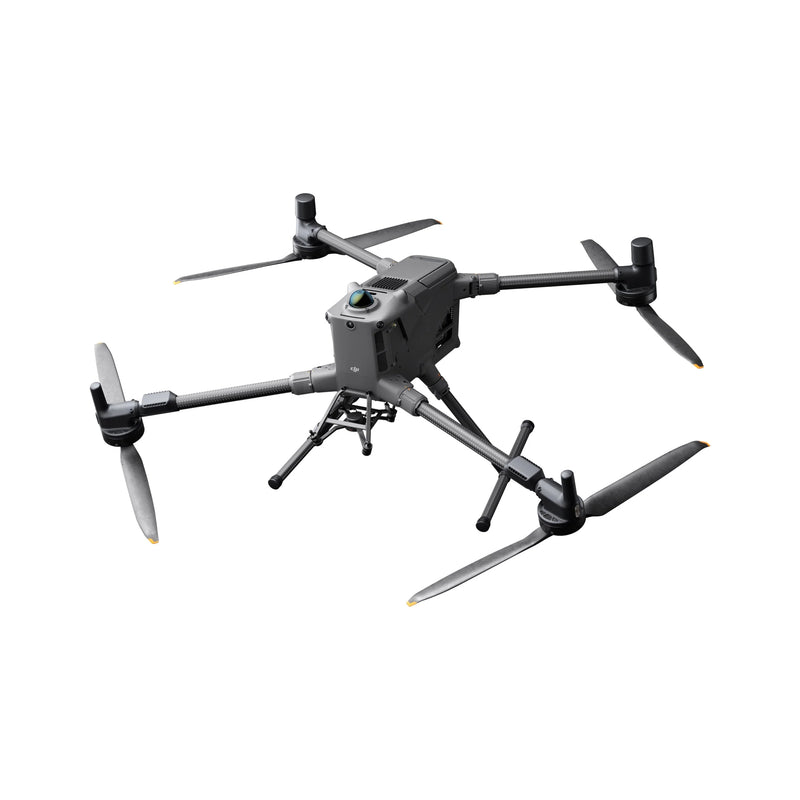

DJI Matrice 400

  • Matrice 400
$10,479.00 CAD
$10,479.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply
59 minutes of flight
IP55 Rating
6 kg Payload Capacity
40 km Range
-20° to 50° C
Interchangeable payloads
`

Experience unmatched endurance, flexibility, and safety in an enterprise drone: the DJI Matrice 400 delivers up to 59 minutes of flight in demanding conditions, supports up to 6 kg payload, and includes power-line-level obstacle sensing. It’s built to power critical missions — from inspections and mapping to emergency response — with smart automation, multi-sensor support, and rugged reliability. Because the M400 combines long flight time, versatile payload support, and advanced sensing, professionals can achieve more in fewer sorties — reducing downtime while increasing mission flexibility.

Aircraft Specifications

  • Takeoff Weight (with propellers)Without Batteries: 5020 ± 20 gWith Batteries: 9740 ± 40 gActual weight may vary due to batch materials and external factors.
  • Max Takeoff Weight: 15.8 kg
  • Dimensions:Unfolded: 980 × 760 × 480 mm (with landing gear)Folded: 490 × 490 × 480 mm (with landing gear and gimbal)Case: 779 × 363 × 528 mmMaximum dimensions exclude propellers.
  • Max Payload: 6 kg (measured at third gimbal connector at sea level)Payload capacity decreases with altitude.
  • Propeller Size: 25 inches
  • Diagonal Wheelbase: 1070 mm
  • Propeller Model: 2510F
  • Motor Model: 7510

Performance

  • Max Ascent Speed: 10 m/s
  • Max Descent Speed: 8 m/s
  • Max Horizontal Speed: 25 m/s (at sea level, no wind)
  • Max Takeoff Altitude: 7000 m
  • Max Flight Time (no wind): 59 minutes
  • Max Hover Time (no wind): 53 minutes
  • Max Flight Distance (no wind): 49 km
  • Max Wind Speed Resistance: 12 m/s (takeoff/landing)
  • Max Yaw Angular Velocity: 100°/s
  • Max Pitch Angle: 35°
  • Operating Temperature: -20° to 50° C (-4° to 122° F)
  • Ingress Protection Rating: IP55 (not permanent; may degrade with wear)

Navigation & Positioning

  • GNSS: GPS + Galileo + BeiDou + GLONASS*GLONASS supported only when RTK module is enabled.
  • RTK GNSS Accuracy: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
  • RTK Heading: ≤ 2°
  • ADS-B In: Dual antenna receiver (20 km range)
  • Hovering Accuracy (no wind):Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)Horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)

Ports & Connectivity

  • Internal Storage: N/A
  • Ports:USB-C Debug Port × 1 (USB 2.0)E-Port V2 × 4 (120W power each)Cellular Dongle 2 × 2 (underside)
  • Beacon: Built-in

Gimbal

  • Single Gimbal Max Payload: 1400 gIf exceeded, gimbal damper lifespan reduces from 1000 h → 400 h.
  • Dual Gimbal Max Payload: 950 g
  • Third Gimbal Max Payload:3 kg (quick release) / 6 kg (screw lock fastening)

Sensing & Avoidance

  • Sensing Type: Omnidirectional binocular vision + horizontal rotating LiDAR + upper LiDAR + downward 3D infrared + six-direction mmWave radar

Detection Ranges:

  • Forward: 0.4–21 m (measurement) | 0.4–200 m (detection)
  • Backward: 0.4–21 m | 0.4–200 m
  • Lateral: 0.6–21 m | 0.5–200 m
  • Downward: 0.5–19 m | FOV: Front/Rear 160°, Left/Right 105°

LiDAR Specifications:

  • Range: 0.5–100 m (10% reflectivity)
  • Power Line Detection: 35 m @ 30° tilt
  • FOV: 360° (H) × 58° (V)
  • Frequency: 520,000 pts/sec
  • Wavelength: 905 nm
  • Safety: Class 1 (Eye-safe, IEC60825-1:2014)

Upper LiDAR (3D ToF):

  • Range: 0.5–25 m at night (>10% reflectivity)
  • FOV: ±60°

Infrared Range Sensor:

  • Range: 0.3–8 m (>10% reflectivity)
  • FOV: ±60°

mmWave Radar:

  • Power Line Range: 36 m (12.5 mm wire) / 50 m (21.6 mm wire)
  • FOV: ±45° (H/V)
  • Unavailable in some regions.

FPV Camera

  • Resolution: 1080p
  • FOV: DFOV 150° | HFOV 139.6° | VFOV 95.3°
  • Frame Rate: 30 fps
  • Night Vision: Starlight grade

Video Transmission

  • System: DJI O4 Enterprise Enhanced
  • Live View: 3-channel 1080p @ 30fps
  • Frequencies:902–928 MHz1.43–1.44 GHz2.4 GHz5.1–5.8 GHz
  • Max Transmission Distance:40 km (FCC)20 km (CE/SRRC/MIC)
  • Max Download Speed: 80 Mbps
  • Antenna Configuration: 8 WLAN + 2 Sub2G + 4 4G
  • Operating Mode: 2T4R
  • Dual Control Mode: Supported

Compatibility

  • Supported Gimbals: Zenmuse H30 / H30T / L2 / P1
  • Supported Accessories: Zenmuse S1, V1, Manifold 3, D-RTK 2 / D-RTK 3, DJI Cellular Dongle 2, E-Port V2, SKYPORT V3, DJI X-Port

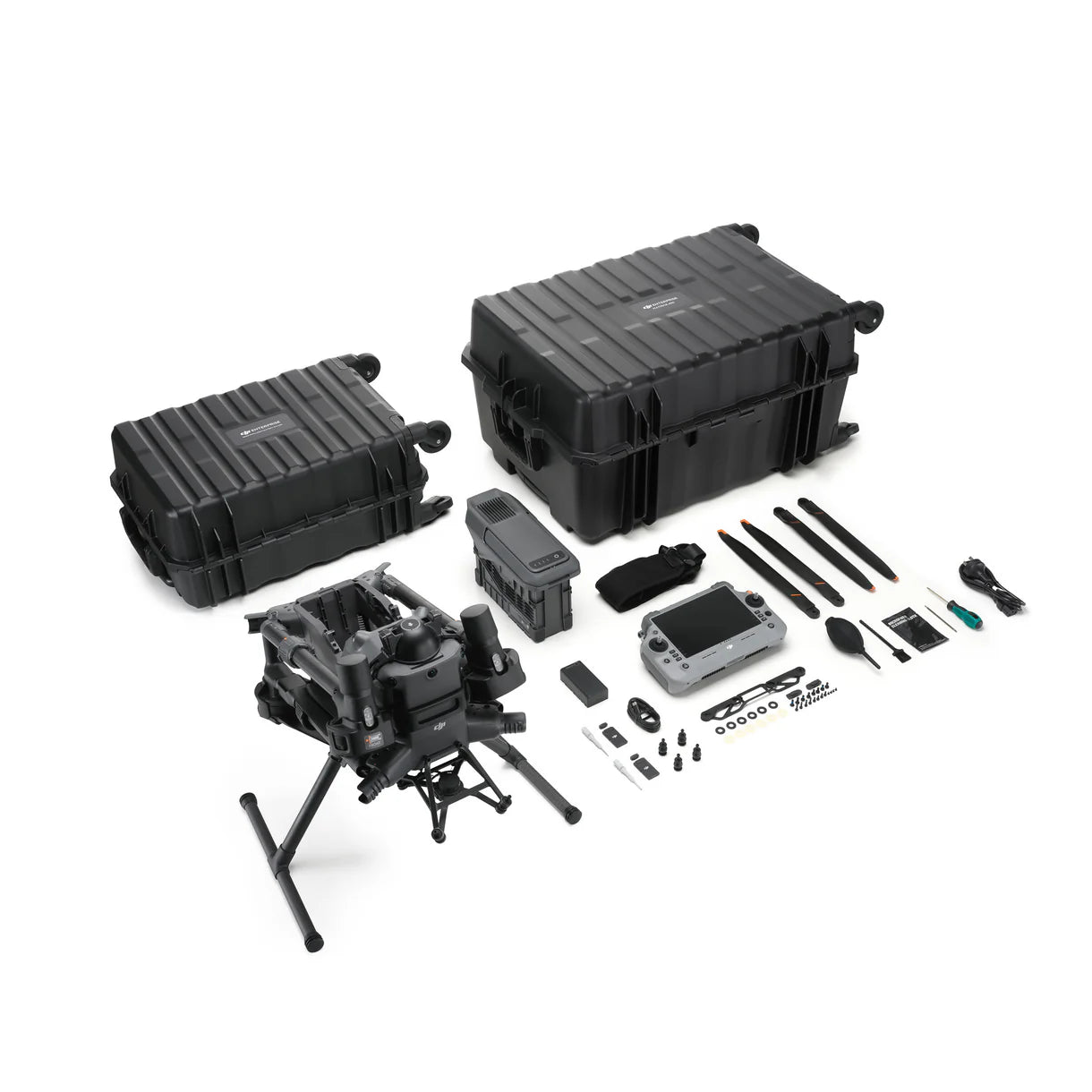

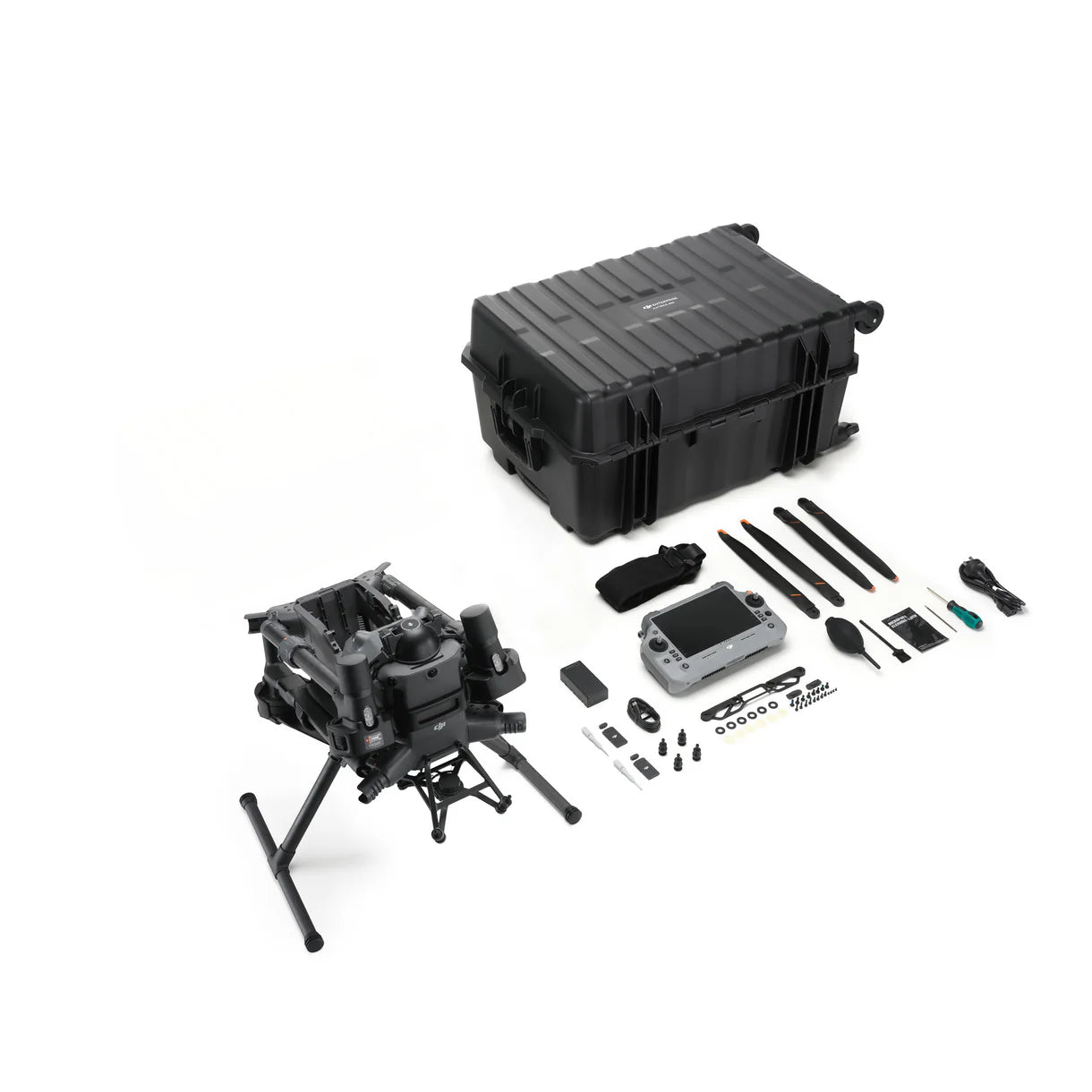

SP Plus Ready-to-Fly Full Package Includes

  • Matrice 400 Aircraft × 1
  • TB100 Intelligent Flight Battery × 1
  • BS100 Intelligent Battery Station × 1
  • DJI RC Plus 2 Enterprise Enhanced × 1
  • DJI RC Plus 2 Strap & Bracket Kit × 1
  • 2510F Propellers × 1 (set)
  • Gimbal Damper × 1
  • Carrying Case × 1
  • Rotating LiDAR Calibration Cover × 1
  • Front Propeller Holder × 1
  • Rear Propeller Holder × 1
  • USB-C to USB-C Cable × 1
  • WB37 Battery × 1
  • E-Port V2 Rubber Port Cover × 2
  • Rubber Plug Screws (2 × 2) × 4
  • Screws & Tools Kit × 1
  • Cleaning Tools × 1

Note:The regular SP Plus combo does not include the TB100 flight battery or BS100 charging system.

Remote Robotic is a North American authorized dealer for DJI DJI Matrice 400.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

DJI Matrice 400 User manual

We offer training for all robotic solutions

Learn more

DJI Matrice 400 FAQ

Industrial inspection (utilities, energy, telecom), mapping & photogrammetry, public safety, and long-duration overwatch.

Yes—M400 is built for enterprise work with a weather-resistant design and a wide operating-temperature range noted in DJI’s official documentation.

Interchangeable enterprise payloads such as Zenmuse H30/H30T (zoom/thermal), L2 (LiDAR), and P1 (full-frame mapping), enabling inspection, LiDAR mapping, and survey workflows.
