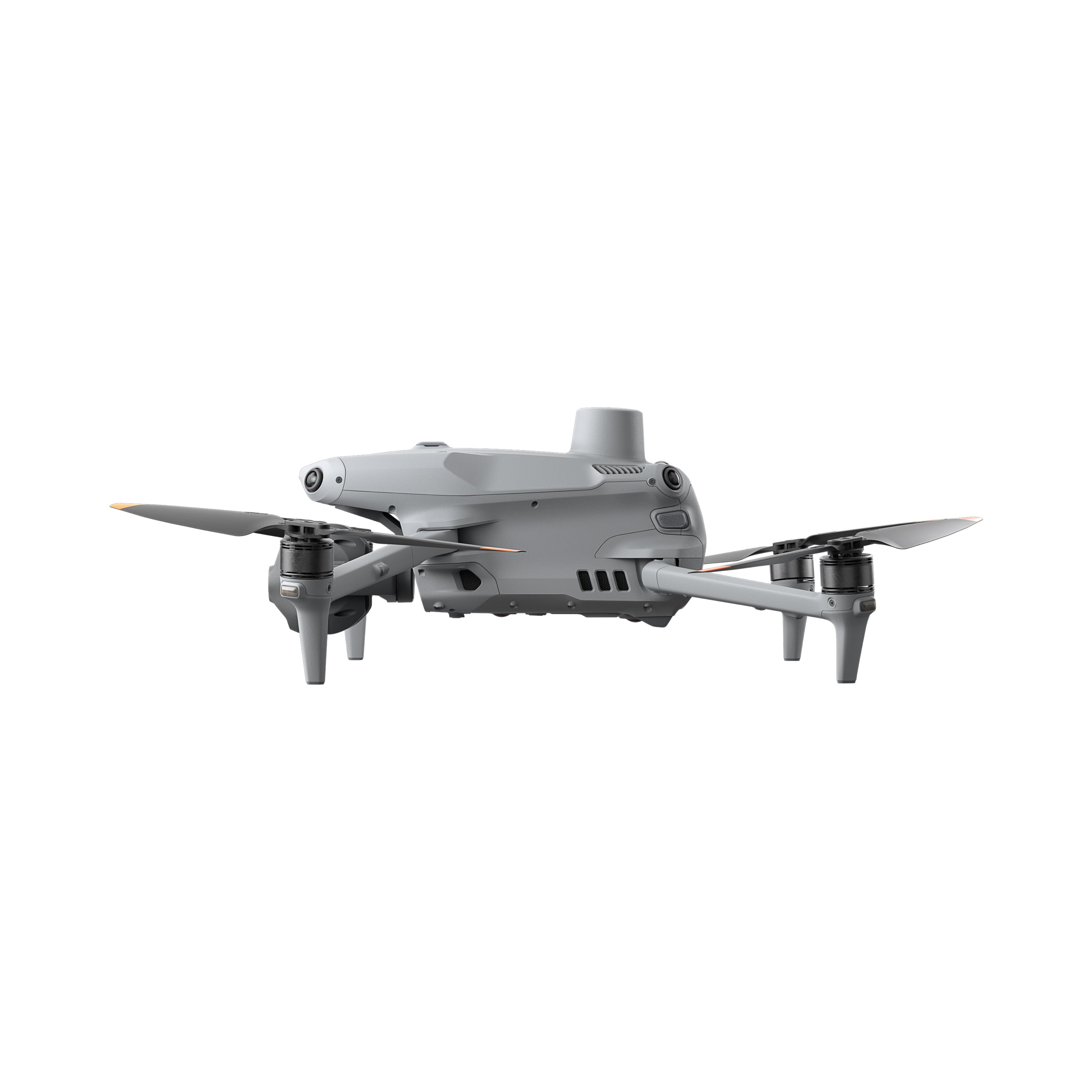

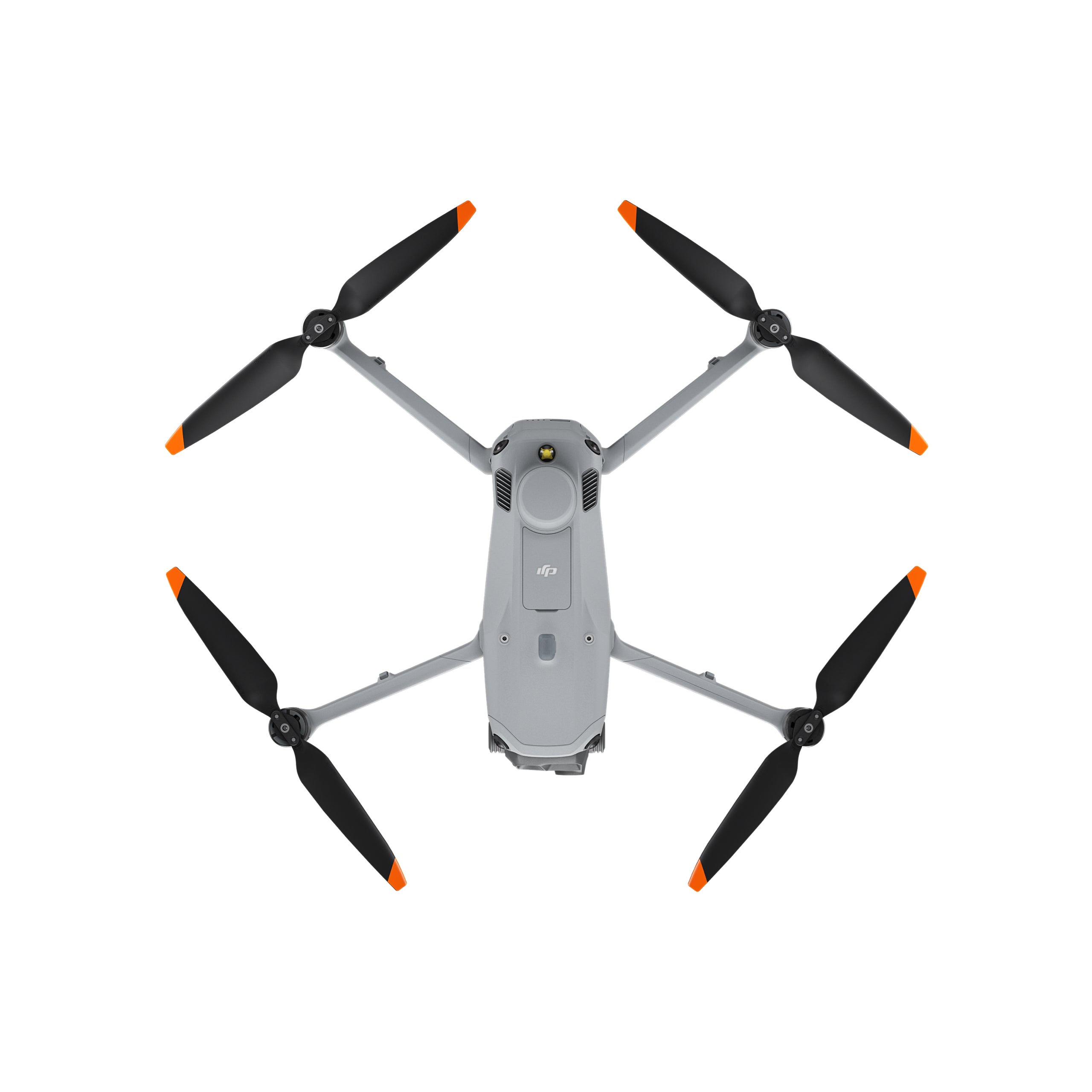

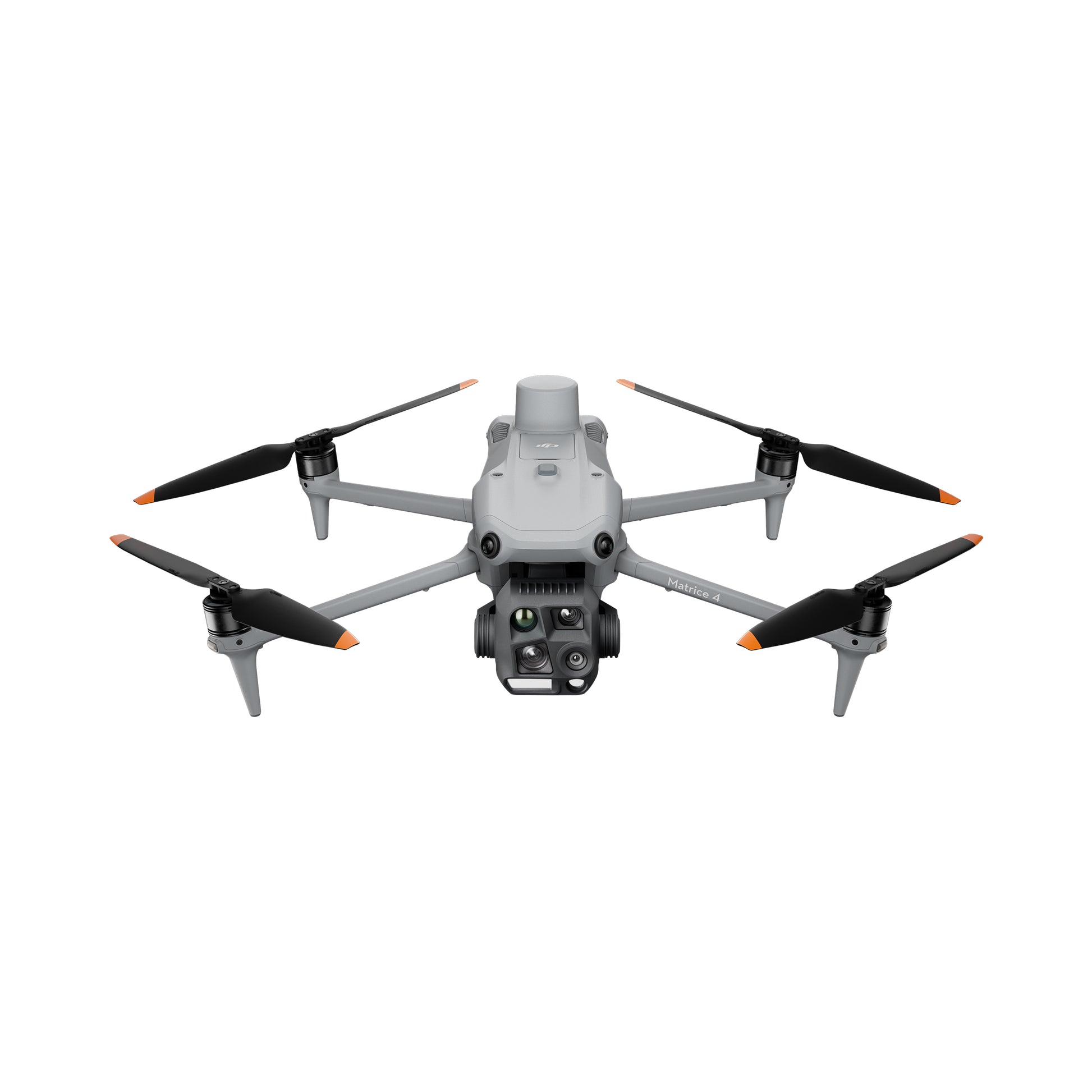

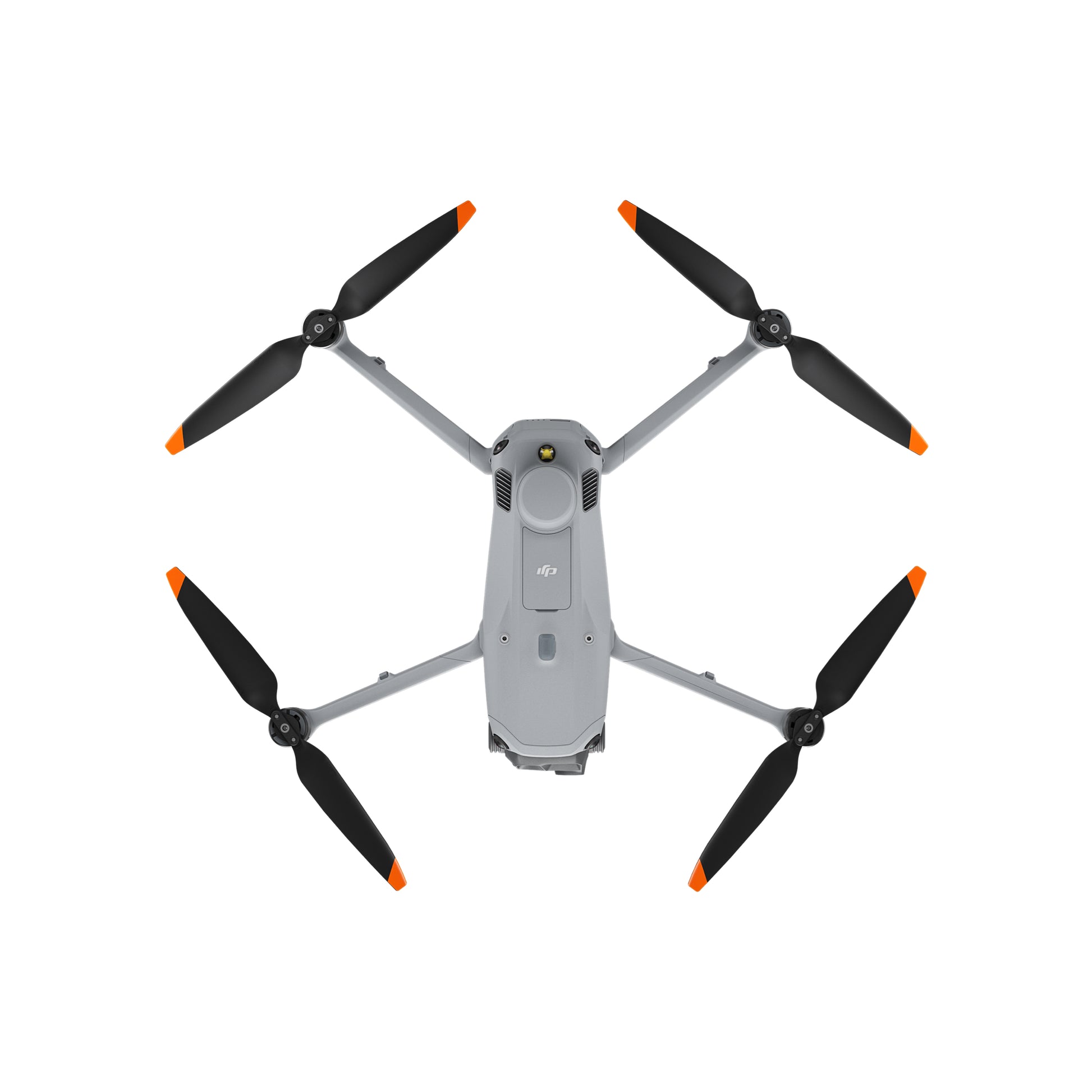

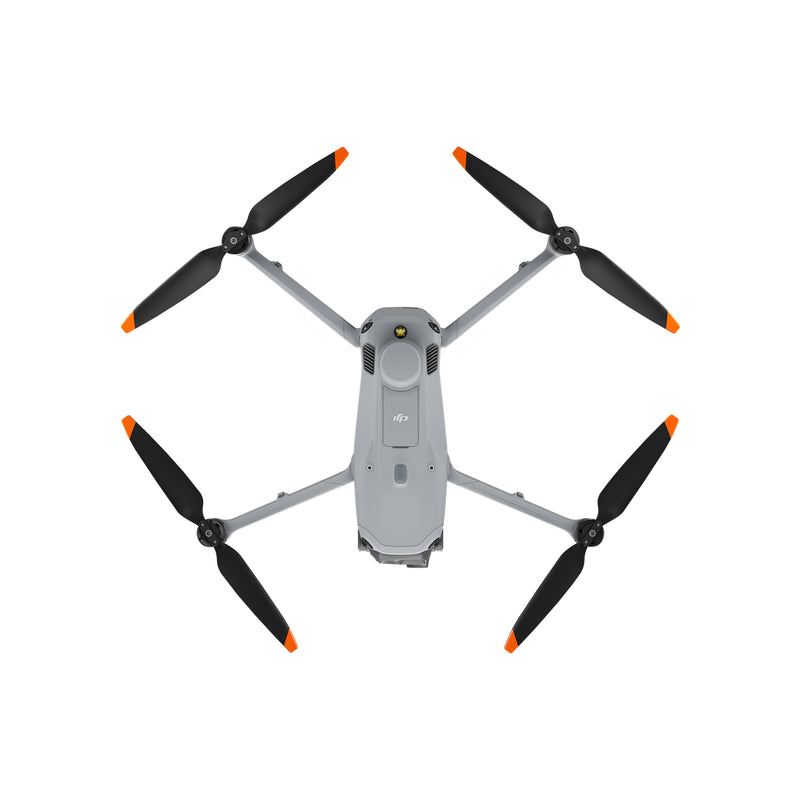

DJI Matrice 4T

Aircraft

• Takeoff Weight (with propellers)

• 1219 g*

  * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.

• Takeoff Weight (with Low-Noise propellers)

• 1229 g*

  * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.

• Max Takeoff Weight

• Standard Propellers: 1420 g
  Low-Noise Propellers: 1430 g

• Dimensions

• Folded: 260.6×113.7×138.4 mm (L×W×H)
  Unfolded: 307.0×387.5×149.5 mm (L×W×H)

  Maximum dimensions excluding propellers.

• Max Payload

• 200 g

• Propeller Size

• 10.8 in

• Diagonal Wheelbase

• 438.8 mm

• Max Ascent Speed

• 10 m/s

• Maximum Ascent Speed With Accessories

• 6 m/s

• Max Descent Speed

• 8 m/s

• Max Descent Speed With Accessories

• 6 m/s

• Max Horizontal Speed (at sea level, no wind)

• 21 m/s
  21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways*

  * No faster than 19 m/s with Sport mode in EU regions.

• Max Altitude

• 6000 m

• Max Operating Altitude with Payload

• 4000 m

• Max Flight Time (without wind)

• 49 min (standard propellers)
  46 min (low-noise propellers)

  Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.

• Max Hover Time (without wind)

• 42 min (standard propellers)
  39 min (low-noise propellers)

  Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.

• Max Flight Distance (no wind)

• 35 km (standard propellers)
  32 km (low-noise propellers)

  Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.

• Max Wind Speed Resistance

• 12 m/s*

  * Max wind speed resistance during takeoff and landing.

• Max Pitch Angle

• 35°

• Operating Temperature

• -10℃ to 40℃ (14°F to 104°F)

• GNSS

• GPS + Galileo + BeiDou + GLONASS*

  * GLONASS is supported only when the RTK module is enabled.

• Hovering Accuracy Range (windless or breezy)

• ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)


• RTK GNSS Accuracy

• RTK Fix:
  1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

• Internal Storage

• N/A

• Ports

• E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported)
  E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.

  Accessories or expansion modules must be installed before powering on.

• Propeller Model

• 1157F (standard propellers)
  1154F (low noise propeller)

• Beacon

• Built into the aircraft

Camera

• Image Sensor

• DJI Matrice 4T
  Wide:
  1/1.3-inch CMOS, Effective Pixels: 48 MP
  Medium Tele Camera:
  1/1.3-inch CMOS, Effective Pixels: 48 MP
  Telephoto:
  1/1.5-inch CMOS, Effective Pixels: 48 MP

  DJI Matrice 4E
  Wide:
  4/3-inch CMOS Effective Pixels: 20 MP
  Medium Tele Camera:
  1/1.3-inch CMOS, Effective Pixels: 48 MP
  Telephoto:
  1/1.5-inch CMOS, Effective Pixels: 48 MP


• Lens

• DJI Matrice 4T
  FOV: 82°
  Equivalent Focal Length: 24 mm
  Aperture: f/1.7
  Focus: 1 m to ∞

  DJI Matrice 4E
  FOV: 84°
  Equivalent Focal Length: 24 mm
  Aperture: f/2.8-f/11
  Focus: 1 m to ∞

  Medium Tele Camera
  FOV: 35°
  Equivalent Focal Length: 70 mm
  Aperture: f/2.8
  Focus: 3 m to ∞

  Tele camera
  FOV: 15°
  Equivalent Focal Length: 168 mm
  Aperture: f/2.8
  Focus: 3 m to ∞

• ISO Range

• Normal Mode: ISO 100 to ISO 25600

  Night Scene Mode:
  Matrice 4T:
  Wide Camera: ISO 100 to ISO 409600
  Midum Tele Camera: ISO 100 to ISO 409600
  Tele Camera: ISO 100 to ISO 819200

  Matrice 4E:
  Wide Camera: ISO 100 to ISO 204800
  Midum Tele Camera: ISO 100 to ISO 409600
  Tele Camera: ISO 100 to ISO 409600

• Shutter Speed

• DJI Matrice 4T
  2-1/8000 s

  DJI Matrice 4E
  Wide:
  Electronic Shutter: 2-1/8000 s
  Mechanical Shutter: 2-1/2000 s
  Medium Telephoto: 2-1/8000 s
  Telephoto: 2-1/8000 s

• Max Photo Size

• DJI Matrice 4T
  Wide: 8064 × 6048
  Medium Telephoto: 8064 × 6048
  Telephoto: 8192 × 6144

  DJI Matrice 4E
  Wide: 5280 × 3956
  Medium Telephoto: 8064 × 6048
  Telephoto: 8192 × 6144

• Minimum Photo Interval

• DJI Matrice 4T: 0.7 s
  DJI Matrice 4E: 0.5 s

• Still Photography Modes

• DJI Matrice 4T:
  Wide:
  Single: 12 MP/48 MP
  Interval: 12 MP/48 MP
  JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Shooting:12MP
  Panorama: 12 MP (raw image);100 MP (stitched image)

  Medium Tele Camera:
  Single: 12 MP and 48 MP
  Interval: 12 MP/48 MP
  JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Shooting: 12MP

  Telephoto:
  Single: 12 MP and 48 MP
  Interval: 12 MP/48 MP
  JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Shooting：12MP


  DJI Matrice 4E:
  Single: 20 MP
  Interval: 20 MP
  JPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
  JPEG + RAW：2/3/5/7/10/15/20/30/60 s
  Smart Shooting: 20 MP
  Panorama: 20 MP (raw image);100 MP (stitched image)

  Medium Tele Camera:
  Single: 12 MP and 48 MP
  Interval: 12 MP/48 MP
  JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Shooting：12 MP

  Telephoto:
  Single: 12 MP and 48 MP
  Interval: 12 MP/48 MP
  JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
  Smart Shooting: 12 MP

• Video Codec and Resolution

• Video Coding Format: H.264/H.265
  Coding Strategy: CBR, VBR
  Resolution:
  4K: 3840 × 2160@30fps
  FHD: 1920 × 1080@30fps

• Max Video Bitrate

• H.264: 60Mbps
  H.265: 40Mbps

• Supported File System

• exFAT

• Photo Format

• DJI Matrice 4T: JPEG

  DJI Matrice 4E:
  Wide: JPEG/DNG (RAW)
  Medium Tele Camera: JPEG
  Telephoto: JPEG

• Video Format

• MP4 (MPEG-4 AVC/H.264)

• Digital Zoom

• Telephoto:
  16x (112x hybrid zoom)

NIR Auxiliary Light

• Infrared Illumination

• DJI Matrice 4T:
  FOV: 5.7°±0.3°

Laser Module

• Laser Rangefinding

• Measurement Range: 1800 m (1 Hz) @20% reflectivity target*
  Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
  Blind Zone: 1 m
  Distance Measurement Accuracy:
  1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ
  Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)

  * Performance degradation may occur in rainy or foggy conditions

Infrared Thermal Camera

• Thermal Imager

• DJI Matrice 4T: uncooled vanadium oxide (VOx)

  DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.

• Resolution

• DJI Matrice 4T: 640 × 512

• Pixel Pitch

• DJI Matrice 4T: 12 μm

• Frame Rate

• DJI Matrice 4T: 30 Hz

• Lens

• DJI Matrice 4T DFOV: 45°±0.3°
  DJI Matrice 4T equivalent focal length: 53 mm
  DJI Matrice 4T Aperture: f/1.0
  DJI Matrice 4T Focus: 5 m to ∞

• Sensitivity

• DJI Matrice 4T: ≤50mk@F1.0

• Temperature Measurement Method

• DJI Matrice 4T: Spot Meter, Area Measurement

• Temperature Measurement Range

• DJI Matrice 4T:
  High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) ()
  Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)

• Palette

• DJI Matrice 4T:
  White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

• Photo Format

• DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit)

• Video Resolution

• DJI Matrice 4T:
  1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated)
  Other conditions: 640 × 512@30fps

• Video Bitrate

• DJI Matrice 4T:
  6.5Mbps (H.264 640 × 512@30fps)
  5Mbps (H.265 640 × 512@30fps)
  12Mbps (H.264 1280 × 1024@30fps)
  8Mbps (H.265 1280 × 1024@30fps)

• Video Format

• DJI Matrice 4T：MP4

• Still Photography Modes

• DJI Matrice 4T:
  Single: 1280 × 1024/640 × 512
  Interval: 1280 × 1024/640 × 512
  JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s

• Photo Resolution

• DJI Matrice 4T:
  Infrared: 1280 × 1024 (Super Resolution on)
  640 × 512 (Super Resolution off)

• Digital Zoom

• DJI Matrice 4T: 28x

• Infrared Wavelength

• DJI Matrice 4T: 8um to 14um

• Infrared Temperature MeasurementAccuracy

• DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greater
  DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater

Gimbal

Stabilization System

• DJI Matrice 4T：3-axis (tilt, roll, pan)
  DJI Matrice 4E：3-axis (tilt, roll, pan)

Mechanical Range

• DJI Matrice 4T
  Gimbal Mechanical Limits:
  Tilt: -140° to 113°
  Roll: -52° to 52°
  Pan: -65° to 65°
  Soft Limits:
  Tilt: -90° to 35°
  Roll: -47° to 47°
  Pan: -60° to 60°

  DJI Matrice 4E
  Gimbal Mechanical Limits:
  Tilt: -140° to 50°
  Roll: -52° to 52°
  Pan: -65° to 65°
  Soft Limits:
  Tilt: -90° to 35°
  Roll: -47° to 47°
  Pan: -60° to 60°

Controllable Rotation Range

• DJI Matrice 4T
  Tilt: -90° to 35°
  Pan: Not controllable

  DJI Matrice 4E
  Tilt: -90° to 35°
  Pan: Not controllable

Max Control Speed (tilt)

• 100°/s

Angular Vibration Range

• ±0.007°

Yaw Axis

• Manual operation is uncontrollable
  The MSDK interface program is controllable.

Ingress Protection Rating

• No Standard Protection Level

Operating Temperature

• Standard: -10°C to 40°C (14°F to 104°F)

Sensing

Sensing Type

• Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.

Forward

• Binocular Measurement Range: 0.4-22.5 m
  Measurement Range: 0.4-200 m
  Obstacle Avoidance Speed: Flight Speed ≤21 m/s
  FOV: 90° (horizontal), 135° (vertical)

Backward

• Measurement Range: 0.4-22.5 m
  Measurement Range: 0.4-200 m
  Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)

Lateral

• Measurement Range: 0.5-32 m
  Measurement Range: 0.5-200 m
  Obstacle Avoidance Speed: Flight Speed ≤21 m/s
  FOV: 90° (horizontal), 90° (vertical)

Downward

• Measurement Range: 0.3-18.8 m
  Obstacle Avoidance Speed: Flight Speed ≤10 m/s
  The FOV to the front and rear is 160° and 160° to the right and left.

Operating Environment

• Forward, Backward, Left, Right, and Upward:
  Delicate texture on the surface, adequate light.

  Downward:
  The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).

  * Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.

Video Transmission

Video Transmission System

• O4 Enterprise

Live View Quality

• Remote Controller: 1080p/30fps

Operating Frequency

• 2.400-2.4835 GHz
  2.400-2.4835 GHz
  5.725-5.850 GHz
  5.150-5.250 GHz (CE)

  Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

Transmitter Power (EIRP)

• 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)
  5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)
  5.15-5.25: < 23 dBm (FCC/CE)

Max Transmission Distance (unobstructed, free of interference)

• 25 km (FCC)
  12 km (CE)
  12 km (SRRC)
  12 km (MIC)

  Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.

Max Transmission Distance (with interference)

• Strong Interference - City Centers (approx. 1.5-5 km)
  Medium Interference - Suburban Areas (approx. 5-15 km)
  Micro interference：Suburbs/Seasides (approx. 15-25 km)

  * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.

Max Download Speed

• 20 MB/s

  The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.

Latency (depending on environmental conditions and mobile device)

• 130 ms

  Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.

Antenna

• 8 antennas, 2T4R

Others

• Cellular Dongle Compartment

Memory Card

Supported SD Cards

• U3/Class10/V30 or above is required, or use a memory card from the recommended list.

Recommended microSD Cards

• Lexar 1066x 64GB U3 A2 V30 microSDXC
  Lexar 1066x 128GB U3 A2 V30 microSDXC
  Lexar 1066x 256GB U3 A2 V30 microSDXC
  Lexar 1066x 512GB U3 A2 V30 microSDXC
  Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC
  Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC
  Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
  Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC

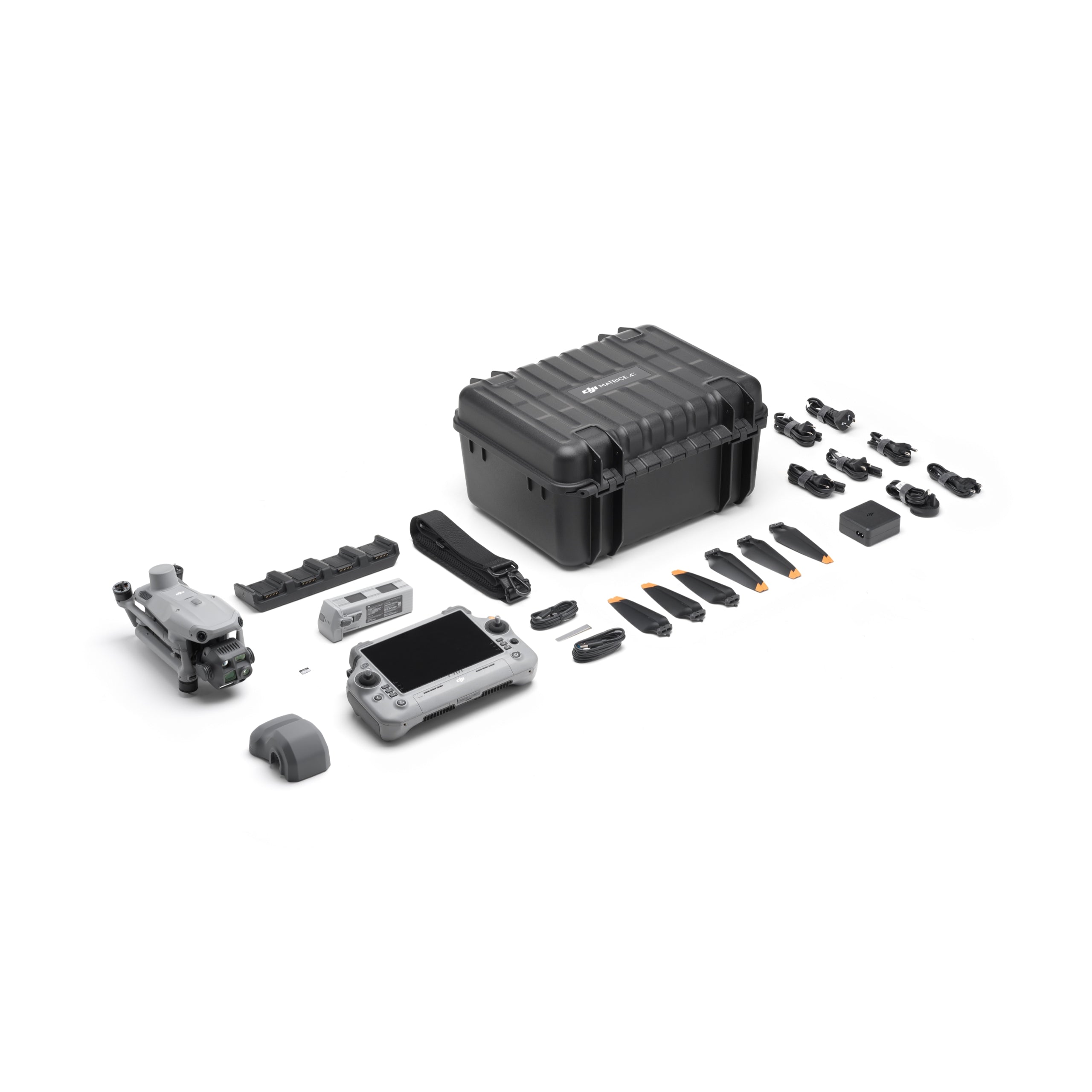

What's Included:

• DJI Matrice 4T
• DJI Matrice 4 Series Battery
• DJI RC Plus 2 Enterprise
• DJI 100W USB-C Power Adapter
• DJI Matrice 4 Series Charging Hub
• microSD Card
• DJI Matrice 4T Gimbal Protector
• DJI Cellular Dongle 2 Pry Bar
• 3x DJI Matrice 4 Series Propeller Pair
• 100W Power Adaptor AC Cable
• USB-C to USB-C Data Cable
• USB-A to USB-C Data Cable
• DJI Matrice 4 Series Storage Case
• DJI Matrice 4 Series Storage Case Shoulder Strap
