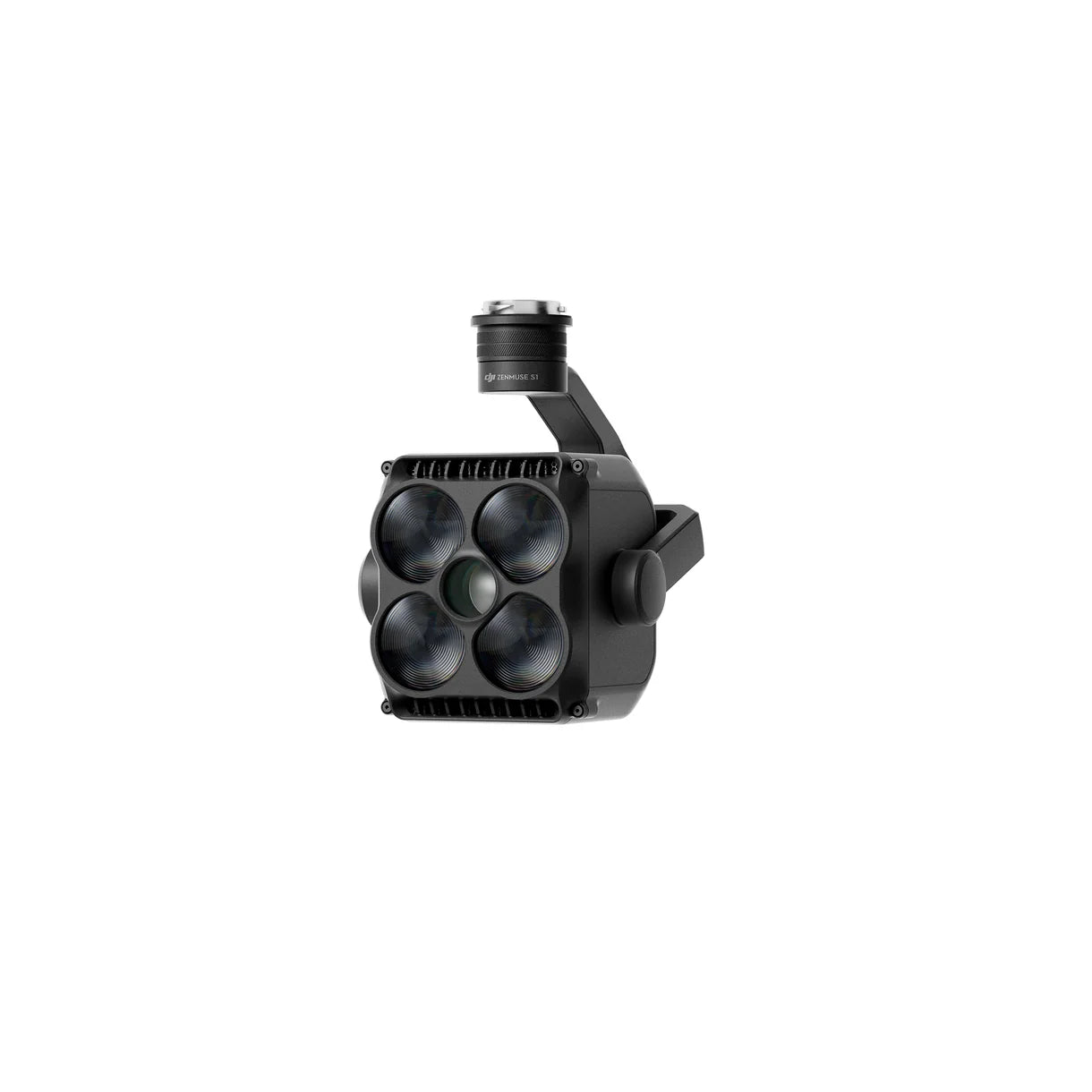

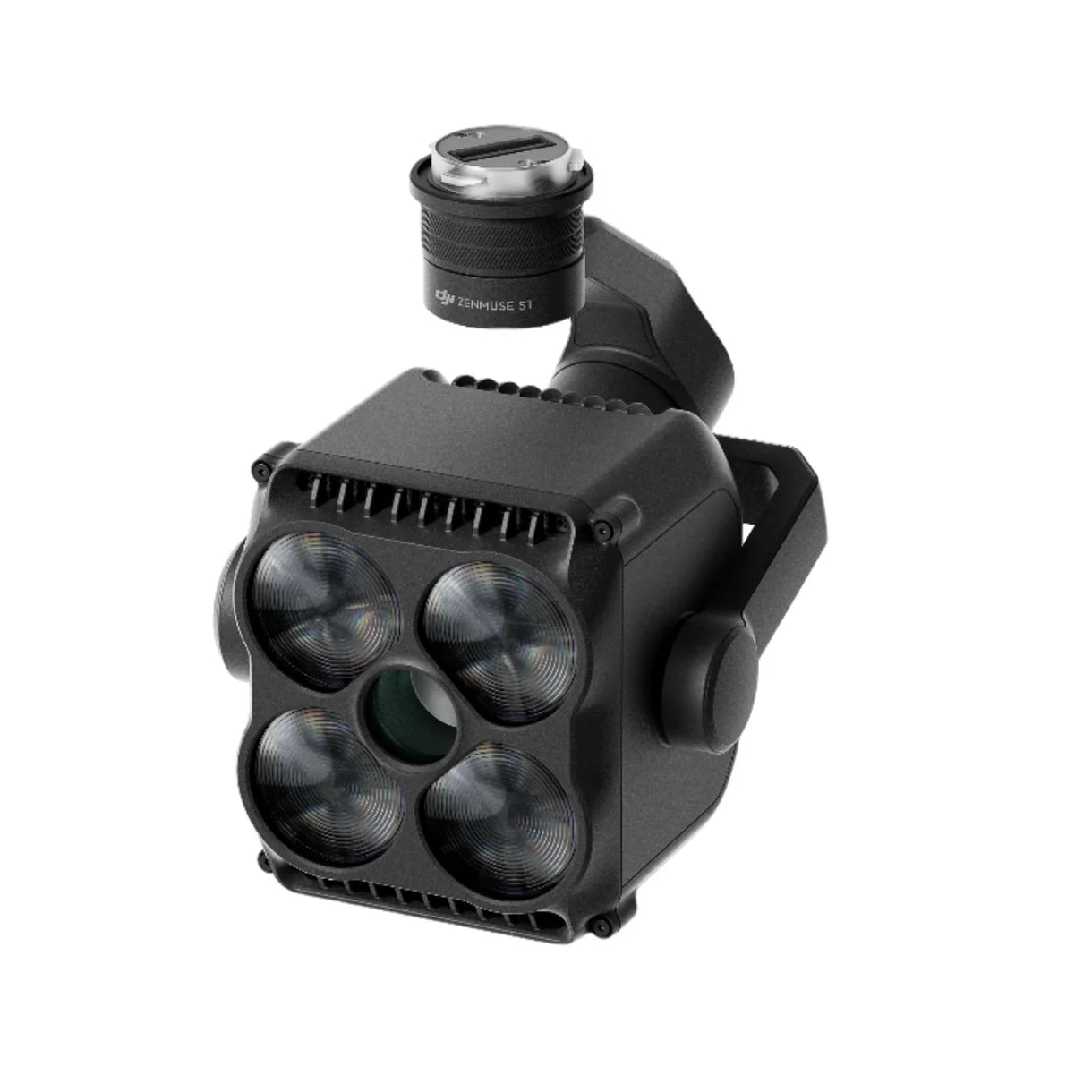

DJI Zenmuse S1 Spotlight

General

• Product Name
• Zenmuse S1
• Weight
• 760±10 g
• Dimensions
• 125×152×171 mm (L×W×H)
• Rated Power
• 120 W (Matrice 400)
  68 W (Matrice 300 RTK/Matrice 350 RTK)
• Supported Aircraft
• Matrice 400
  Matrice 350 RTK
  Matrice 300 RTK (requires DJI RC Plus)
• Eye Safety Class
• IEC 62471: Risk Group 1
• Shell Temperature
• <50° C (122° F, plastic shell)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
• Ingress Protection Rating
• IP54

  Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

Environment

• Operating Temperature
• -20° to 40° C (-4° to 104° F)
• Storage Temperature
• -20° to 60° C (-4° to 140° F)

Gimbal

• Stabilization System
• 3-axis (tilt, roll, pan)
• Angular Vibration Range
• Hover: ±0.01°
  Flight: ±0.02°
• Mounting
• Detachable DJI SKYPORT
• Mechanical Range
• Tilt: -129° to +73°
  Roll: ±55.8°
  Pan: ±327°

  Structural limit, not controllable range.
• Controllable Range
• Tilt: -120° to +60°
  Pan: ±320°
• Operation Mode
• Follow / Free / Re-center

Illuminance

• Maximum Central Illuminance
• 40 lux @ 100 m (Matrice 400, Both On mode)
  35 lux @ 100 m (Matrice 300 RTK/Matrice 350 RTK, Both On mode)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
• Low Beam Central Illuminance
• 20 lux @ 100 m (Matrice 400, Low Beam mode)
  13 lux @ 100 m (Matrice 300 RTK/Matrice 350 RTK, Low Beam mode)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
• High Beam Central Illuminance
• 30 lux @100 m (High Beam mode)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft
• Effective Illumination Angle
• 15±1° (10% relative illuminance, Low Beam mode and Both On mode)
  4±0.5° (10% relative illuminance, High Beam mode)
• Typical Color Temperature
• 6500K typical value (Low Beam mode)
  7500K typical value (High Beam mode)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F) using an integrating sphere. Actual results may vary slightly due to different experimental conditions, and the final effect is subject to actual use.
• Dimming Mode
• Analog dimming
• Effective Illumination Distance
• 500 m (Both On mode)

  Measured in a laboratory environment at an ambient temperature of 25° C (77° F). Actual conditions may vary slightly due to specific environmental humidity, weather conditions, and other factors. The final effect is subject to actual use.

Basic Features

• Lighting Control
• Turning light on/off, brightness adjustment
• Strobe Mode
• 5 Hz strobe
• Lighting Mode
• Low Beam mode, High Beam mode, Both On mode
• Remote Controller Buttons
• Can be set for turning the light on/off, brightness adjustment, or lighting mode changes
• Gimbal Synchronization
• Supports synchronized control with other gimbal-equipped payloads

Special Features

• Eye Protection
• Automatically limits brightness to 40% when not in flight
• Payload Protection
• LED, LEP temperature protection, overcurrent protection, and power protection to prevent damage.
• Synchronized Control
• When two Zenmuse S1 are mounted on Matrice 400, both spotlights can be controlled at the same time.
• Intelligent Beam Alignment
• When used with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization to automatically align the spotlight beam with the camera view.

What’s in the Box

• Zenmuse S1 spotlight payload unit
• Carrying case
• Quick-start & safety documentation
