Boston Dynamics

Fluke SV600 Acoustic Imager

  • Boston Dynamics Spot
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Sensor for Spot
IP54 Rated
Module: ~0.85 kg (1.7 lb)
Sensitivity -26 dBFS ± 1.5 dB
Operating Temperature: –20 °C to +50 °C
Acoustic imaging sensor module
`

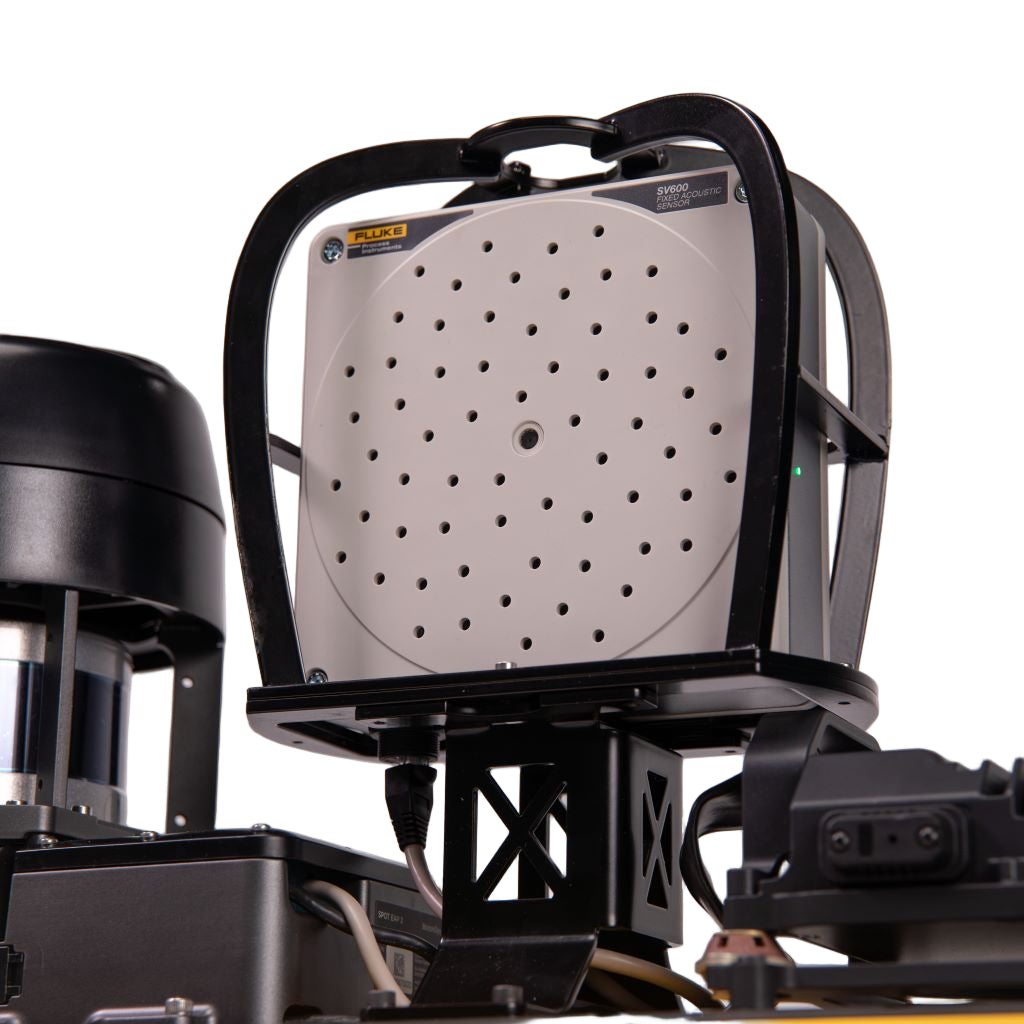

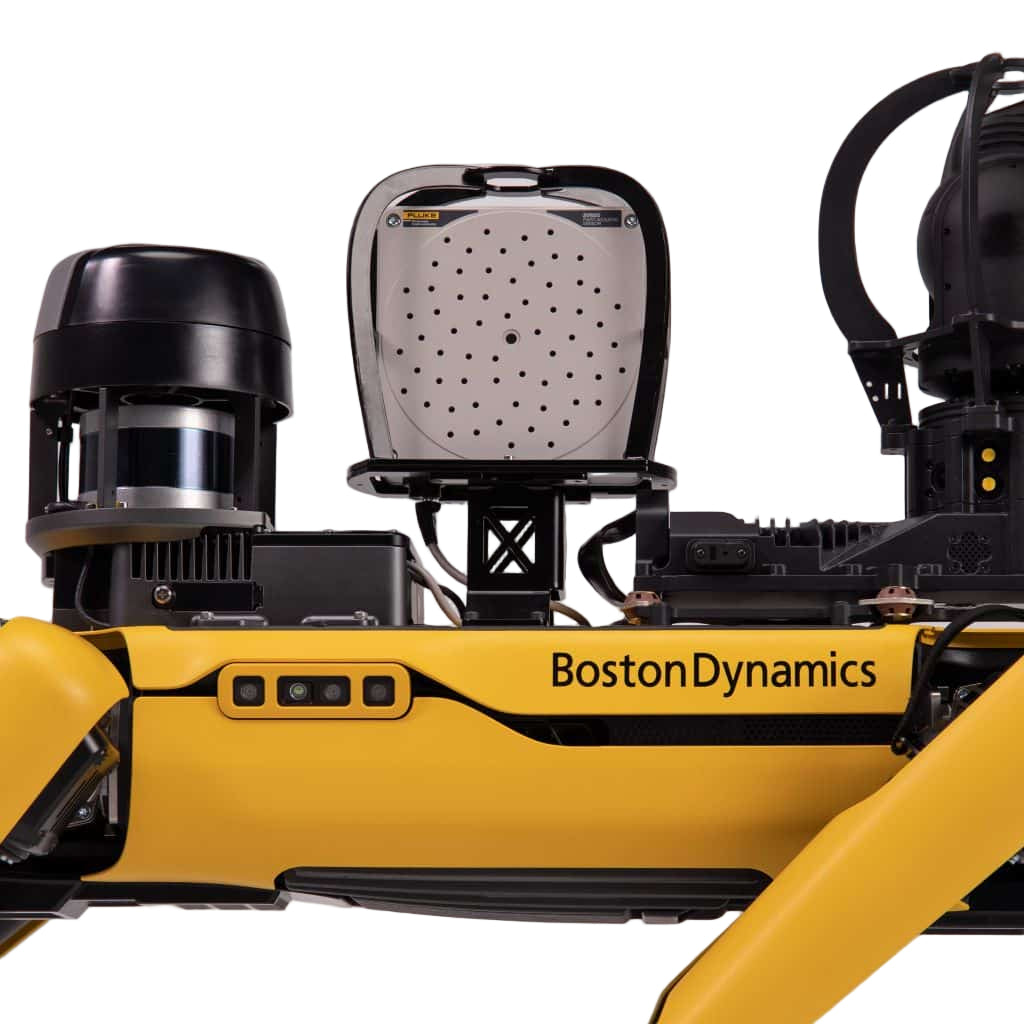

Augment your Spot robot with the SV600 Acoustic Imager to detect hidden air and gas leaks, monitor bearing / mechanical anomalies, and visualize sound signatures for proactive maintenance. The SV600 combines a 64-MEMS-microphone sunflower-array, visual camera, onboard processor and event-triggering logic—all mounted in a roll-cage for rugged use with Spot in industrial environments. Deploy for Condition-Monitoring, Compressed Air Leak Detection, Vibration/Acoustic Inspections and more.

SV600 SPECIFICATIONS

DIMENSIONS (SV600)
Length: 170 mm (6.69 in)
Width: 170 mm (6.69 in)
Depth: 65 mm (2.56 in)
Weight: 0.85 kg (1.7 lbs)

DIMENSIONS (MOUNTED – CAGE & RAIL ADAPTER)
Length: 208.1 mm (8.19 in)
Width: 302.2 mm (11.9 in)
Depth: 106.9 mm (4.07 in)
Weight: 3.7 kg (8.17 lbs)

DIMENSIONS (MOUNTED – CAGE & CORE I/O ADAPTER)
Length: 208.1 mm (8.19 in)
Width: 204.2 mm (8.04 in)
Depth: 210.5 mm (8.29 in)
Weight: 3.86 kg (8.5 lbs)

CAMERA
Resolution (Video): 720 × 1280
Aspect Ratio: 4:3
Camera Resolution: 720p @ 30 fps
Field of View (FOV): 65° ± 3°

MICROPHONES
Type: 64 Digital MEMS
Signal-to-Noise Ratio (SNR): 64 dB for 94 dB SPL @ 1 kHz (A-weighted)
Sensitivity: -26 dBFS ± 1.5 dB @ 1 kHz, 94 dB SPL
Acoustic Overload Point: 120 dB SPL @ 1 kHz, <10% THD

ENVIRONMENT
Ingress Protection: IP54
Operating Temperature: -20°C to 50°C (-4°F to 122°F)

DATA FORMATS
Audio: .wav
Pictures: .jpg, .png
Video: .mjpeg, .mp4
Data Messages: .json

Remote Robotic is a North American authorized dealer for Boston Dynamics Fluke SV600 Acoustic Imager.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Fluke SV600 user manual

We offer training for all robotic solutions

Learn more

Fluke SV600 Acoustic Imager FAQ

Yes — the SV600 integrates with Spot’s Autowalk and inspection missions, using event triggering to capture acoustic anomalies and leaks during robot routes.

The module is ideal for compressed air/gas leak detection, mechanical bearing or drive-train anomaly acoustic signatures, remote asset monitoring (e.g., pumps, valves, conveyors) and hazardous zone inspections where human access is limited.

The SV600 weight is modest (~0.85 kg) but still counts toward Spot’s payload budget; integration and mission planning should consider provisioning for power, mounting and robot route logic. Also confirm whether additional compute or data links are needed.
