DJI FC100 – Full Specifications
Aircraft
Weight (without payload)
55.2 kg (with lifting system)
60.2 kg (with winch system)
Excludes battery, dual battery compartment, cable, hook, and accessories.
Max Takeoff Weight
170 kg
Restricted to 150 kg in Brazil, Japan, Australia, Turkey, and Saudi Arabia.
Max Diagonal Wheelbase (motor-to-motor)
2330 mm
Diagonal Length (tip-to-tip)
3904 mm
Dimensions (arms & propellers unfolded)
3220 × 3224 × 975 mm
Dimensions (arms folded, propellers unfolded)
1820 × 1840 × 975 mm
Dimensions (arms & propellers folded)
1105 × 1265 × 975 mm
Folding Method
Arms fold toward the aircraft body
Battery Configuration
Supports single-battery and dual-battery operation
Single battery mode intended for emergency use.
Flight Performance
Max Flight Distance (takeoff weight <149.9 kg)
• Dual battery: 12 km
• Single battery: 6 km
(Data measured at 25°C, no wind, optimal speed, sea level.)
Max Hovering Endurance (takeoff weight <149.9 kg)
• Dual battery: 12 minutes
• Single battery: 6 minutes
Max Flight Time (takeoff weight <149.9 kg)
• Dual battery: 14 minutes
• Single battery: 7 minutes
Operating Temperature
-20° to 40° C
High temperatures may reduce component lifespan.
Ingress Protection
IP55
Not applicable to propulsion system.
Hovering Accuracy (strong GNSS signal)
RTK enabled: ±10 cm horizontal, ±10 cm vertical
RTK disabled: ±60 cm horizontal, ±30 cm vertical
GNSS Systems
GPS, Galileo, BeiDou, GLONASS
Max Ascent Speed
5 m/s
Max Descent Speed
5 m/s
Max Horizontal Speed
20 m/s
Max Flight Altitude (above sea level)
6000 m
Maximum safe altitude with dual batteries and no payload.
Max Relative Flight Altitude from Takeoff Point
1500 m
Total altitude also limited by takeoff altitude.
Max Wind Resistance
12 m/s (during takeoff and landing)
Propulsion System
Stator Size
155 × 16 mm
Motor KV
60 rpm/V
Propeller Material
Carbon fiber composite
Propeller Size
62 inches (1574.8 mm)
Propeller Type
Dual-blade folding propellers
Number of Rotors
8 pairs (octocopter configuration)
Safety System
System includes:
• Front millimeter-wave radar
• Rear radar (single board)
• Downward radar (single board)
• LiDAR
• Quad-vision system
• FPV camera
Radar Transmit Power (EIRP)
<20 dBm
Operating Temperature
-20° to 40° C
Operating Environment Requirements
Adequate light, clear surroundings; terrain and obstacle detectability varies with reflectivity, material, and weather.
Field of View
LiDAR: 272° vertical, 60° horizontal
Front radar: 360° horizontal, ±45° vertical
Downward radar: ±12.5° left/right, ±22.5° front/back
Rear radar: ±45° left/right and front/back
Quad-vision: 360° horizontal, 180° vertical
FPV camera: ±86° horizontal, 108° vertical
Measurement Range
≤ 60 m
Important Notes
• Downward sensing supports terrain following; collisions due to bottom contact are user responsibility.
• System cannot autonomously avoid moving objects.
• Lifting cables and cargo may collide with obstacles; user responsibility.
DJI O4 Video Transmission
Max Transmission Distance
20 km (FCC)
10 km (CE)
12 km (SRRC)
10 km (MIC)
Operating Frequencies
2.400–2.4835 GHz
5.725–5.850 GHz
(Varies with local regulations.)
Transmitter Power (EIRP)
2.4 GHz: <33 dBm FCC, <20 dBm CE/SRRC/MIC
5.8 GHz: <33 dBm FCC, <30 dBm SRRC, <14 dBm CE
Live View Quality
1080p/30fps
Antenna System
4 antennas, 2T4R
4G Enhanced Transmission
Supported
Lighting System
Illumination Direction
Forward and downward
Control Modes
Auto / Manual
Max Illumination Power
46 W (standard)
Parachute System
Model
E2MSF-100A
Touchdown Speed
≤ 7 m/s
(Tested at sea level, 25°C, no wind, 100 m deployment.)
Parachute Shape
Square
Material
Nylon
Minimum Opening Height
100 m
Operating Temperature
-20° to 40° C
Ingress Protection
IP55
Mainboard Backup Battery Life
≥ 1 hour
Memory Capacity
Stores flight logs for 10 flights (real-time recording)
Alarm Methods
Buzzer + visual alert
Opening Methods
Manual and automatic

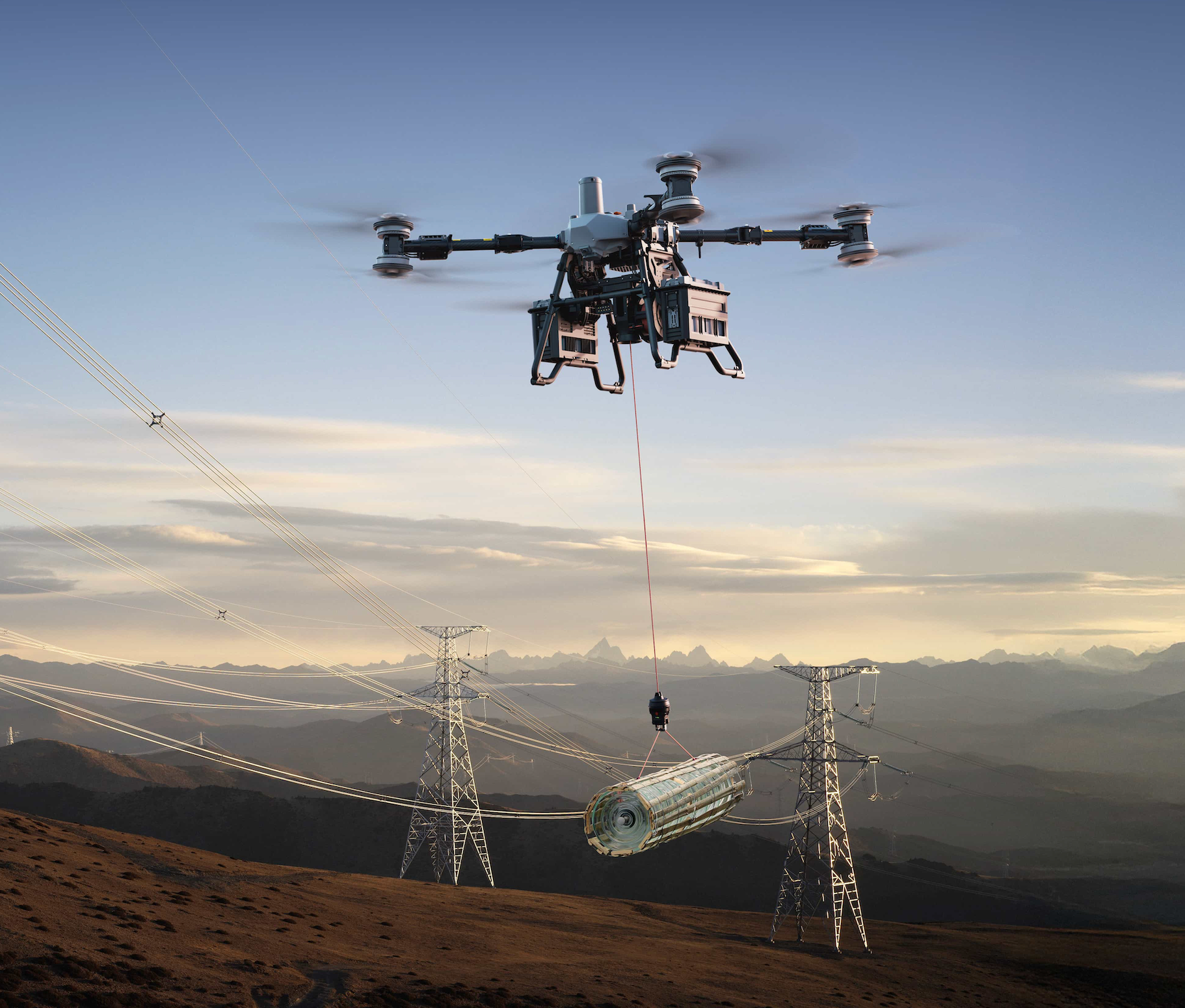

Winch System
Model
A2EWH-100A
Dimensions
960 × 805 × 669 mm
Hook Charging
Wireless charging
USB-C charging
Wireless charging requires the hook to be fully tightened.
Hook Power Supply Duration
10 hours (ideal conditions)
Cable Length
0–30 meters
Max Retraction Speed
1.2 m/s
Functions
• Weighing
• Hook opening and closing via app/button
• Cable Discard Escape (emergency release)
• Auto balance control
• Manual wheel retraction
• One-tap release/retraction
• Intelligent deceleration protection

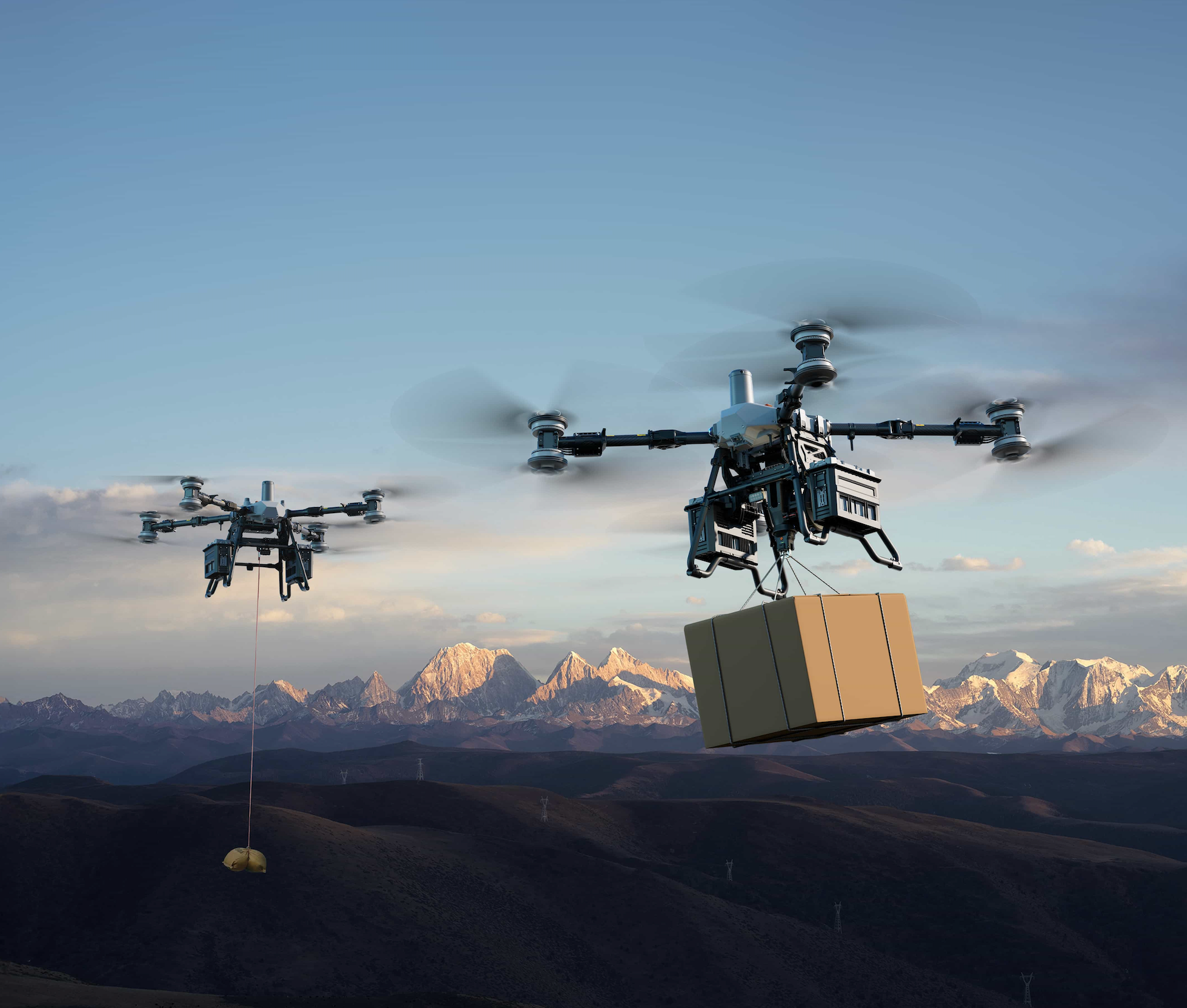

Lifting System
Model
A2EDL-100A
Dimensions
960 × 805 × 669 mm
Cable Length
10 meters
Recommended: 10–15 meters
Emergency Escape Mode
Cable Cut Escape
Functions
• Auto balance
• Weighing support
DJI DB2160 Intelligent Flight Battery
Weight
14.7 kg
Capacity
41 Ah
Standard Voltage
52 V
Remote Controller (TKPL 2)
App
DJI Delivery App
Display
7-inch LCD touchscreen
1920 × 1200 resolution
1400 cd/m² brightness
Operating Temperature
-20° to 50° C
Built-In Battery Life
3.8 hours
External Battery Life
3.2 hours
Charging Method
USB-C fast charging, ≥65 W recommended
Charging Time
Built-in battery: 2 hours
Built-in + external battery: 2.5 hours (device powered off)
4G Enhanced Transmission
Supported
RTK High-Precision Module
Supported
Dual-Operator Mode
Supported (requires additional controller)
SDK Support
PSDK Communication Interface
Eport-Lite
Requires DJI FC100 PSDK Connection Cable Combo.
PSDK Power Interface
Supports up to 3000 W
Cable combo required for third-party payloads.
C12000 Intelligent Power Supply
Model
CSX901-12000
Dimensions
456 × 291 × 107 mm
Weight
13.13 kg
Input Voltage
Three-phase AC: 175–520 V
Single-phase AC: 200–264 V
Output Voltage
62 V
Rated Output Current
194 A
Rated Power
12,000 W (three-phase 380 V input)
3,000 W (single-phase 220 V input)
Charging Time
9 minutes (from 30% to 95%)
Temp 15°–40°C, sea level.
Protection Features
Over-temperature, over/under-voltage, short circuit, fan stall, etc.
Operating Temperature
0° to 40° C
Output Channels
1
D14000iE Multifunctional Inverter Generator
Output Channels
- DC recharge: 42–61.6 V / 11,500 W
- Air-cooled radiator: 12 V / 6 A
- AC output: 220 V / 1500 W
Charging Time
9 minutes (30% to 95%)
Fuel Tank Capacity
30 L
Starting Method
One-button start
Operating Temperature
0° to 40° C
Dimensions
757 × 704 × 677 mm
Weight
87 ± 0.5 kg
(Includes 2 kg wheels and handle, optional.)
Fuel Type
Gasoline, 92 octane or higher
Fuel Consumption
500 mL/kWh
Engine Oil Capacity
1.3 L
Oil Type: DJI S10W-40
D-RTK 3 Multifunctional Station (Optional)
Dimensions
163 × 89 mm (without OcuSync antennas)
Weight
Approx. 1.26 kg
Operating Frequencies
Relay mode: 2.4 / 5.2 / 5.8 GHz
Base station mode: 2.4 / 5.8 GHz
Relay Range Enhancement
3–5× range improvement in severe obstruction
1–3× improvement in mild obstruction
Battery Life
Relay mode: 4 hours
Base station mode: 7 hours
Ingress Protection
IP67
Positioning Accuracy
Single-point (uncalibrated):
• Horizontal: 1.5 m (RMS)
• Vertical: 3.0 m (RMS)
Satellite differential accuracy (20 min convergence):
• Horizontal: 30 cm (RMS)
• Vertical: 40 cm (RMS)
DJI Battery Incubator (Optional)
Operating Temperature
-20° to 40° C
