GreenValley International

LiAir H600

  • Matrice 400
$47,676.00 CAD
$47,676.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Compatible with Matrice 300/350/400
IP64 Rated
Weight 1.3 kg
Detection Range 750 m
Operating Temperature: -20~50 ℃
Accuracy (Vertical) ±5 cm @ 200 m
`

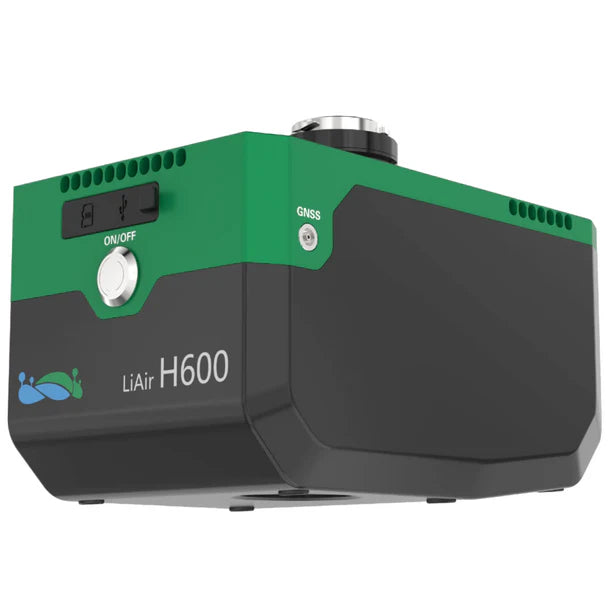

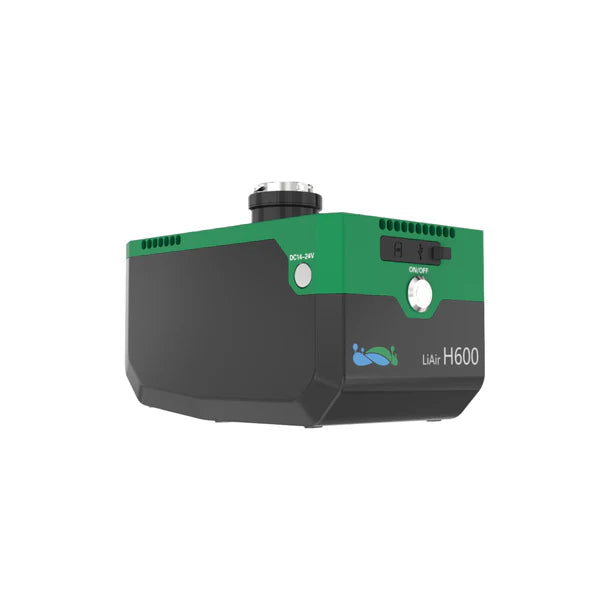

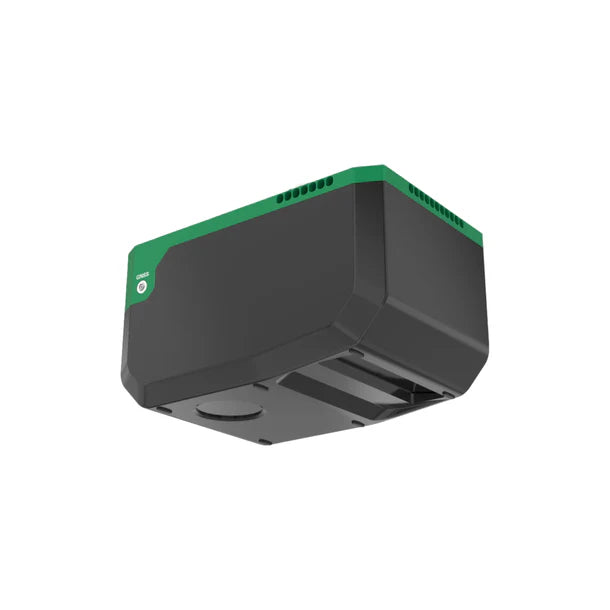

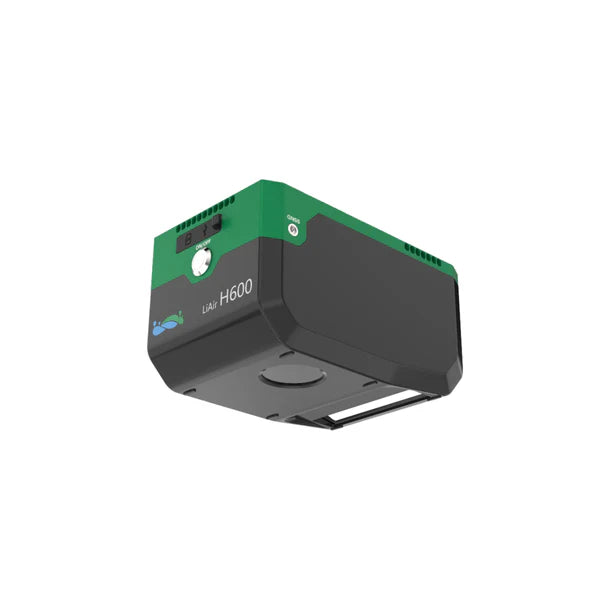

The LiAir H600 is a next-generation, lightweight medium-range UAV LiDAR system designed to deliver mapping-grade performance from small multicopter or fixed-wing platforms. Weighing only ~1.3 kg, it integrates a high-performance laser scanner, a 26 MP mapping camera and a proprietary inertial navigation system — enabling high-accuracy point clouds, dense canopy penetration, and fast survey workflows.


Whether you’re performing power-line inspection, forestry canopy surveys, terrain mapping or emergency response reconnaissance, the LiAir H600 gives you professional results with minimal payload weight.

SYSTEM PARAMETERS

System Accuracy (Vertical): ±5 cm @ 200 m
Weight: 1.3 kg
Dimensions: 179 × 114 × 127.2 mm
Storage: 256 GB TF Card
Voltage: 14–24 V, 2.34 A @ 24 VDC
Power Consumption: ~50 W
Communication: Wi-Fi / USB-C
Operating Temperature: –20°C to 50°C
Storage Temperature: –20°C to 50°C
Protection Class: IP64

LiDAR SENSOR PARAMETERS

Wavelength: 1535 nm
Detection Range:

  • 267 m @ 10% reflectivity
  • 750 m @ 80% reflectivity
    Field of View (FOV): 80°
    Repeatability Accuracy: 5 mm @ 100 m
    Number of Returns: Unlimited waveform returns*
    Scan Rate: 100,000–550,000 pts/s

INERTIAL NAVIGATION SYSTEM

GNSS: GPS, GLONASS, BDS, Galileo
IMU Data Frequency: 500 Hz
Azimuth Accuracy: 0.019°
Attitude Accuracy: 0.006°

CAMERA PARAMETERS

Pixels: 26 MP
Focal Length: 16 mm / 24 mm (Equivalent Focal Length)
Image Resolution: 6252 × 4168

SOFTWARE

Control Software: GreenValley Pre-Processing LiGeoreference
Post-Processing Software: LiDAR360 / LiPowerline (Optional)

  • LiAir H600 LiDAR system
  • GNSS Antenna
  • GNSS Antenna assembly
  • USB Cable
  • Card Reader
  • USB Flash drive
  • Microfibre cloth
  • Documentation

Remote Robotic is a North American authorized dealer for GreenValley International LiAir H600.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

LiAir H600 User manual

We offer training for all robotic solutions

Learn more

LiAir H600 FAQ

The LiAir H600 is designed to mount to small rotorcraft (e.g., DJI M300/M350/M400 RTK) and fixed-wing UAVs; simplified installation (antenna-free mode) is supported for rapid deployment.

We can help integrate with other platforms, contact us!

Yes — thanks to a small laser spot size, high pulse frequency, multi-return capability (supports up to 7 returns) it achieves detailed point clouds under canopy.

The unit pairs with GreenValley’s Flight Assistant app for data acquisition and supports the LiGeoreference, LiDAR360, and LiPowerline suites for post-processing workflows.
