LiAir X3C-H

  • Matrice 400
$21,646.00 CAD
$21,646.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Vertical Accuracy: ±5 cm
26 MP RGB Camera
Weight: 1.12 kg
Detection Range: up to ~300 m
Operating Temperature: -20~50 ℃
Compatible with Matrice 300/350/400
`

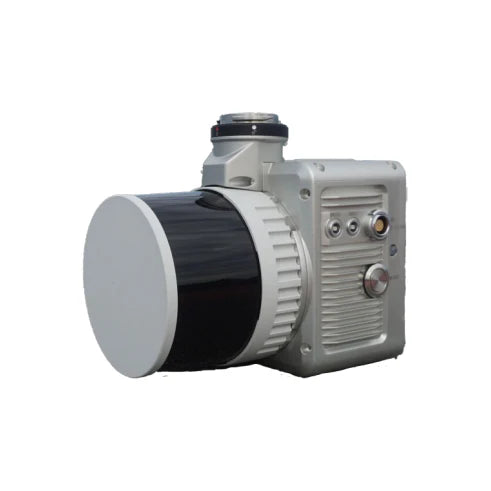

The LiAir X3C-H from GreenValley International is a high-performance, ultra-lightweight UAV LiDAR suite designed for agile mapping, inspection and terrain missions. It features an integrated LiDAR-scanner, 26 MP mapping camera, onboard storage and streamlined interface for rapid deployment. Can be used in handheld mode with the optional accessory.

With a weight of only ~1.12 kg and a broad 360° × 40.3° field-of-view, it fits seamlessly on DJI M300/M350 RTK and other small platforms while delivering centimetre-scale accuracy.

Ideal for utilities, forestry, agriculture, infrastructure and mobile survey teams who value speed, accuracy and minimal payload overhead.

SYSTEM SPECIFICATIONS

Detection Range:

  • 80 m @ 10% reflectivity
  • 200 m @ 54% reflectivity
  • 300 m @ 90% reflectivity

System Accuracy (Vertical): 5 cm @ 70 m
Typical Flight Speed: 5–10 m/s
Weight: 1.12 kg
Storage: 256 GB TF Card
Voltage: 12–24 V
Power Consumption: 24 W
Operating Temperature: –20°C to 50°C
Storage Temperature: –30°C to 60°C
Communication: Wi-Fi

LiDAR SENSOR PARAMETERS

Wavelength: 905 nm
Number of Channels: 32

Point Rate:

  • Single Return: 640,000 pts/s
  • Dual Return: 1,280,000 pts/s
  • Triple Return: 1,920,000 pts/s

Field of View (FOV): 360° (Horizontal) × 40.3° (Vertical)
Number of Returns: 3

INERTIAL NAVIGATION SYSTEM

GNSS: GPS, GLONASS, Galileo, BDS
Azimuth Accuracy: 0.038°
Attitude Accuracy: 0.008°
IMU Data Frequency: 200 Hz

CAMERA PARAMETERS

Pixels: 26 MP
Image Resolution: 6252 × 4168
Focal Length: 16 mm / 24 mm (Equivalent Focal Length)

SOFTWARE

Control Software: GreenValley Pre-Processing LiGeoreference
Post-Processing Software: LiDAR360 / LiPowerline (Optional)

COMPATIBLE PLATFORMS

DJI, Freefly, etc.

HANDHELD SYSTEM PARAMETERS

Handheld Size: 181.8 × 108 × 88 mm
Handheld Weight: 0.68 kg (including base)
Voltage: 15.2 V

Battery Box Size: 146 × 57 × 148 mm
Battery Capacity: 5870 mAh
Battery Box Weight: 0.81 kg
Antenna: AT-106

Working Time (Per Battery Block): 3 h
Maximum Continuous Operation Time (Single Flight): 55 min

Applicable Environment: Suitable for multiple indoor and outdoor scenarios

MAPPING METHOD

Mapping Principle: SLAM, PPK-SLAM
Real-Time Calculation: Not Supported

DATA RESULTS

Absolute Accuracy: ≤ 5 cm
Point Cloud Format: LAS, LiData

  • LiAir X3C-H LiDAR system
  • USB Cable
  • GNSS Antenna assembly
  • GNSS Antenna
  • 256GB TF Card
  • Card reader
  • USB flash drive
  • Tool
  • Documentation

Remote Robotic is a North American authorized dealer for GreenValley International LiAir X3C-H.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

LiAIr X3C-H user manual

We offer training for all robotic solutions

Learn more

LiAir X3C-H FAQ

Yes — the LiAir X3C-H is designed for platforms like the DJI M300/M350/M400 RTK and supports streamlined installation.

You can expect ~±5 cm system accuracy vertically under good GNSS conditions, with high-density point cloud capture.

Yes — the system supports handheld accessory kits and SLAM for indoor or GNSS-denied missions.
