LiBase RTK

  • Mapping
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Tilt-pole measurement (60°)
IP67 Rated
Full-constellation tracking
Centimetre-level accuracy
Working range for data link: Up to ~15 km
Multi-mode RTK (Base/Rover)
`

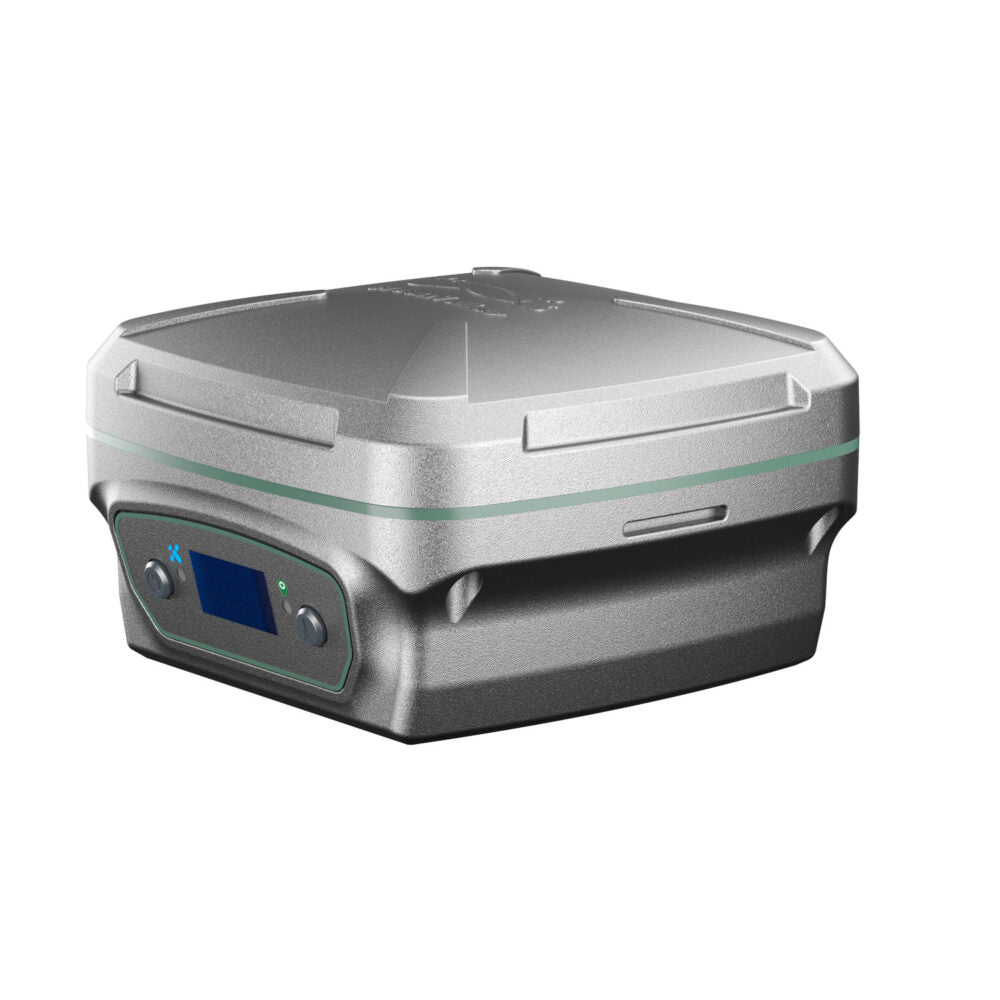

The LiBase RTK from GreenValley International is a professional-grade multi-constellation RTK GNSS receiver designed for high-accuracy survey, mapping and inspection workflows. With advanced channel architecture, full GNSS coverage, tilt-compensation down to 60°, and built-in radio/data link features, it delivers reliable centimetre-level positioning even in challenging environments.

Whether you’re deploying as base-station or rover, mounting on a survey pole, vehicle, or integrating into LiDAR or UAV payloads, the LiBase RTK offers the flexibility and precision demanded by modern geospatial workflows.

COMMUNICATIONS

Built-in Network: 4G
Network RTK: VRS, FKP, MAC, NTRIP protocol support
Built-in Transceiver: Receive & Transmit UHF
Transmission Power: 0.5 W, 1 W, 2 W
Communication Protocols: Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
Frequency Range: 410–470 MHz
Channel Spacing: 12.5 kHz
Over-Air Baud Rate: 9.6 kbps
Bluetooth®: Version 4.0 (BLE & BR/EDR)
Wi-Fi: Supports web configuration and web data download
Plug-in Radio: CDL7 radio, PDL radio (optional) and other high-power digital radios

ELECTRICAL PARAMETERS

Accepted Power Supply: DC 6–28 V
Charging: Compatible with QC2.0 and QC3.0 chargers; supports self-start configuration after power-on
Operating Time: Up to 12 hours
Power Consumption: < 2.85 W (mobile network mobile station)
Communication Ports: 1 × RS232 serial port, 1 × USB port (7-pin LEMO header), Bluetooth
Baud Rate: Expandable up to 921,600 bps

GENERAL PARAMETERS

Dimensions: 123 × 123 × 70 mm
Weight: 834 g (with 2 batteries)
Controls: 1 function key, 1 power/confirm key
Status Indicators: 1 differential light, 1 satellite light
Display Panel: 0.93-inch OLED (blue light display)
Casing Material: Aluminum-magnesium alloy

ENVIRONMENTAL PARAMETERS

Ingress Protection: IP67 (dustproof and waterproof)
Drop/Vibration Resistance:

  • Withstands 2 m drop from a survey pole onto hard surfaces
  • Complies with ISO 9022-36-08 and MIL-STD 810G 514.6 Cat.24 vibration standards
    Sealing: 100% hermetically sealed, condensation proof
    Operating Temperature: –30°C to +65°C
    Storage Temperature: –40°C to +85°C

GNSS PARAMETERS

Satellite Systems:

  • BDS: B1I, B2I, B3I, B1C, B2a
  • GPS: L1, L2P, L2C, L5
  • GLONASS: G1C, G2C, G1P, G2P
  • GALILEO: E1, E5a, E5b
  • QZSS: L1, L2C, L5
  • SBAS: L1C/A (Supports WAAS, EGNOS, MSAS, GAGAN)

SBAS Support: Yes
Number of Channels: 1590

Remote Robotic is a North American authorized dealer for GreenValley International LiBase RTK.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

LiBase user manual

We offer training for all robotic solutions

Learn more

LiBase RTK FAQ

Yes — it supports one-click switch between mobile station (rover) and base station modes.

By allowing accurate measurement even at up to 60° tilt, the LiBase RTK enables faster pole work, less setup time, safer operation on rough terrain and increased efficiency.

Yes — given its full-constellation GNSS capability, lightweight form and high accuracy, it is suitable for integration with airborne LiDAR and mobile mapping systems.
