Inspired Flight

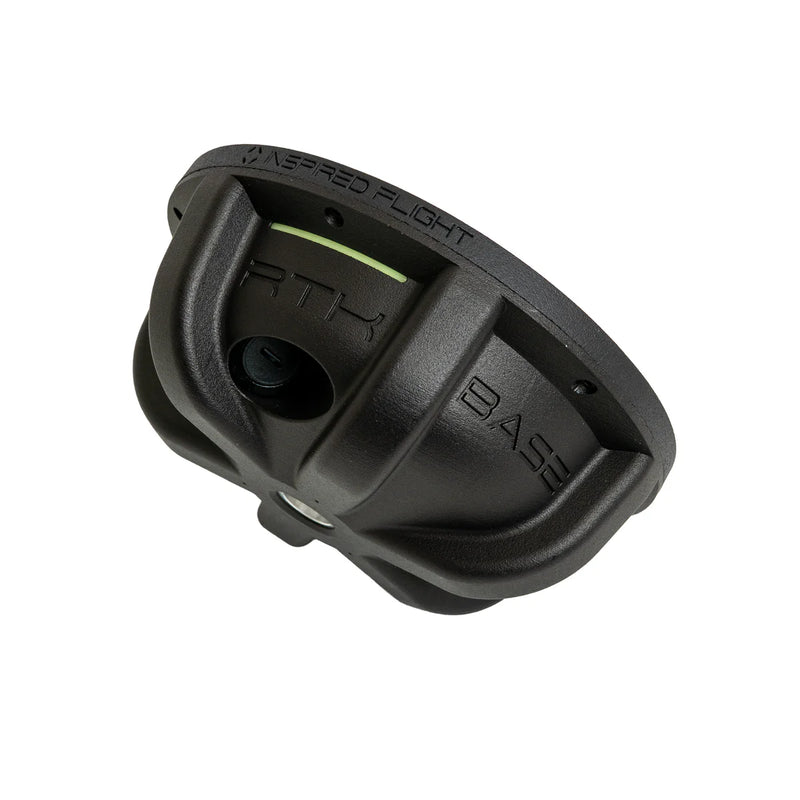

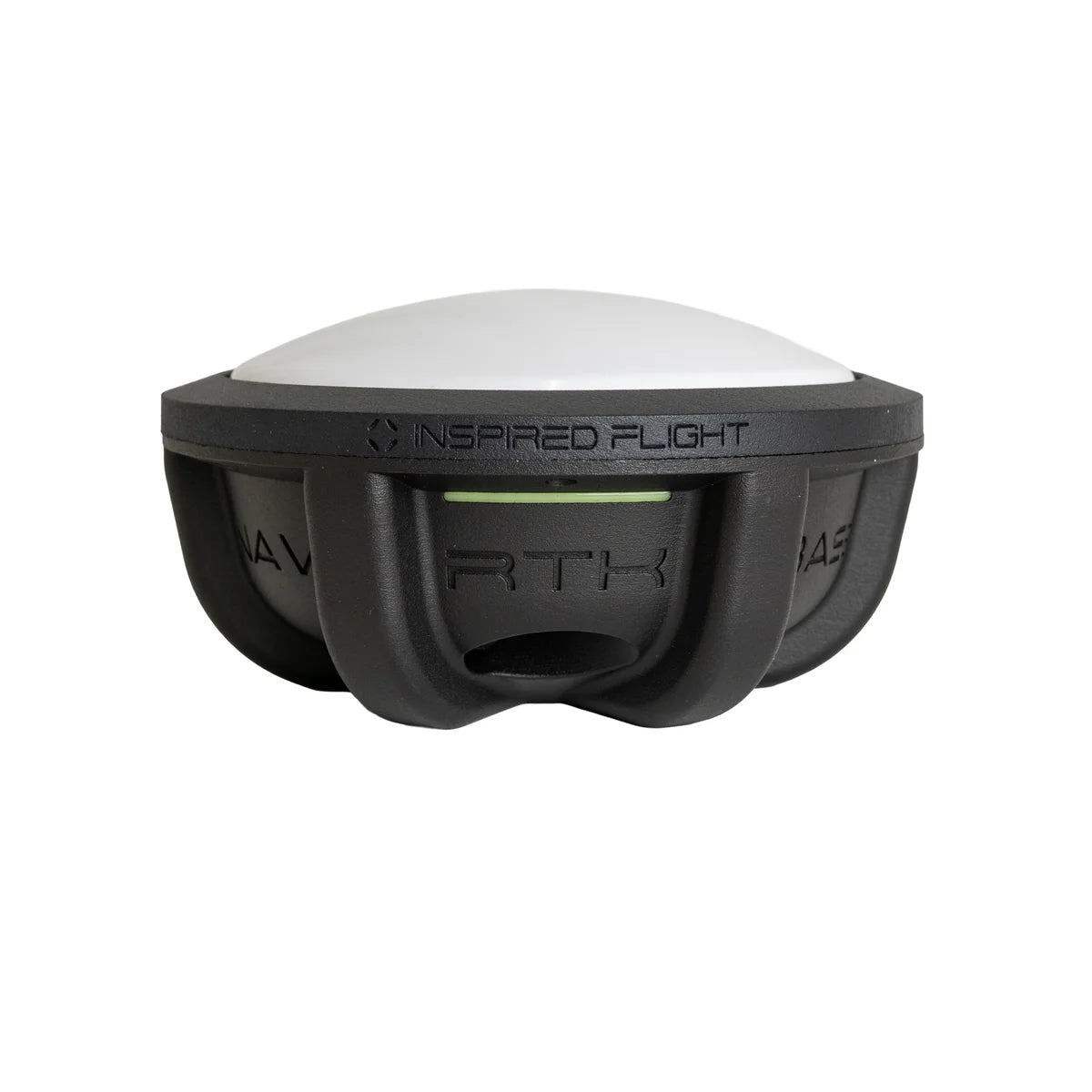

NAV RTK BASE

  • IF1200
  • IF800
$1,680.00 CAD
$1,680.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Tripod mountable via standard 5/8-11 thread
IP43 Rated
Provides RTK correction data
Centimetre-level accuracy for positioning
Operating temperature: -40 ॰C to 70 ॰C
Compatible with IF800 / IF1200
`

Unlock centimetre-level positioning precision for your enterprise drone missions with the NAV RTK Base Station. Engineered specifically for the Inspired Flight IF800 Tomcat and IF1200 platforms, this base station acts as a fixed GNSS reference point, delivering high-accuracy correction data to your onboard dual GNSS modules — enabling mapping, inspection and surveying workflows with confidence in positional accuracy.

NAV BASE RTK Specs:

  • Constellations

GPS, BEIDOU, GALILEO

  • Bands

GPS (L1, L5), BeiDou (B1, B2), Galileo (E1, E5a)

  • Module

U-Blox F9P

  • Receiver Type

up Multi-band GNSS High Precision Receiver

  • Frequency of Time Pulse Signal

0.25 Hz to 19 MHz (configurable)

  • Velocity Accuracy

0.05 m/s

  • Dynamic Heading Accuracy

0.3 ॰

  • Horizontal Pos. Accuracy

0.01 m + 1 ppm CEP

  • Vertical Pos. Accuracy

0.01 m + 1 ppm R50

  • Phase Center Accuracy

±2mm

ELECTRICAL

  • Connection Type

USB-C (10ft USB-A to USB-C Cable Included)

  • Supply Voltage

5V

MECHANICAL

  • Size

170mm x 170mm x 90mm

  • Weight

618 Grams

  • Tripod Mounting

⅝”-11 UNC (⅜”-16 / ¼”-20 Adapters Included)

OPERATING CONDITIONS

  • Temperature

-40 ॰C to 70 ॰C

  • IP Rating: 43

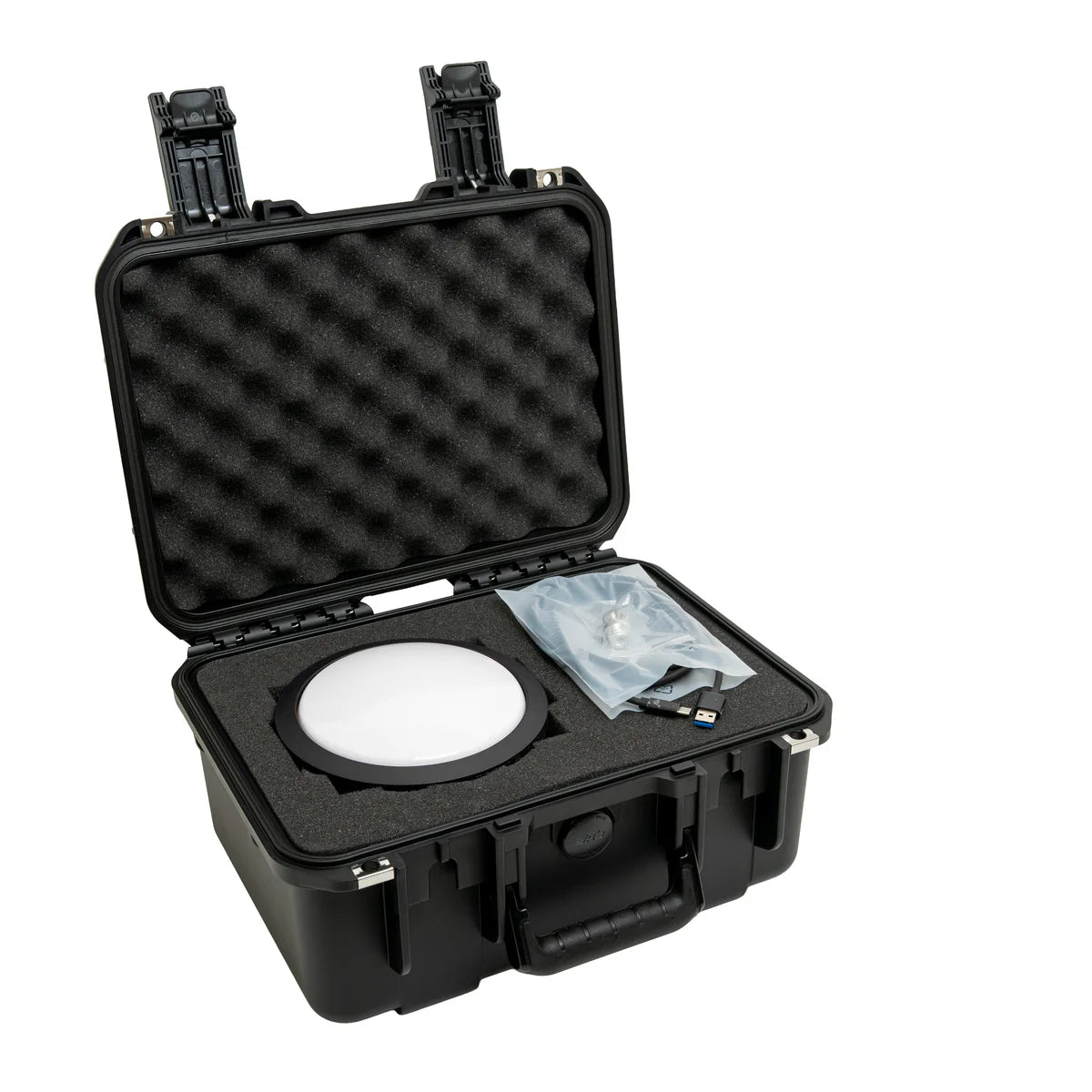

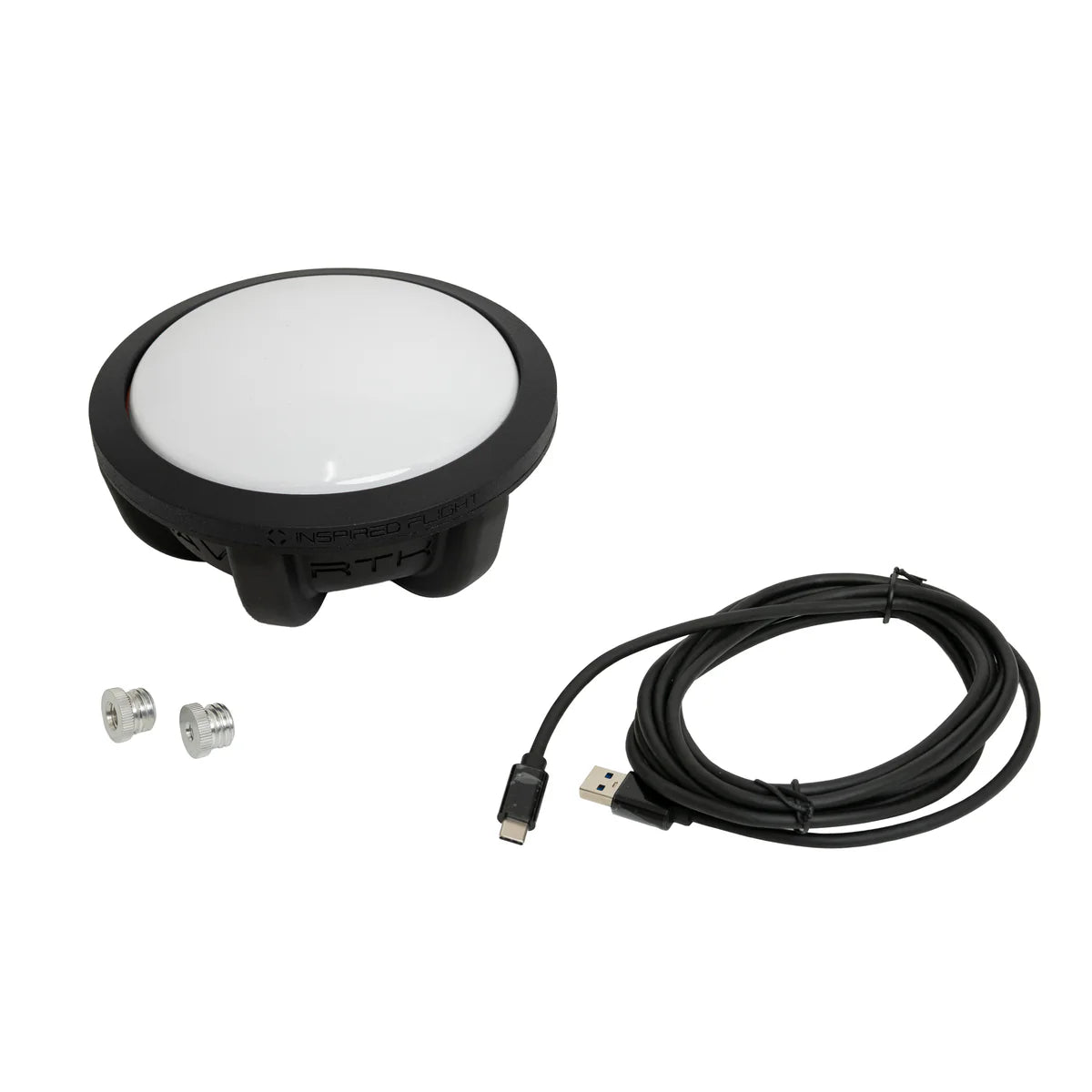

  • NAV RTK BASE unit
  • 10ft USB to USB-C cable
  • 5/8-11 to 3/8-16 Adapter
  • 5/8-11 to 1/4-20Adapter

Remote Robotic is a North American authorized dealer for Inspired Flight NAV RTK BASE.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Nav RTK Base user manual

We offer training for all robotic solutions

Learn more

NAV RTK BASE FAQ

Yes — according to the documentation, you need a laptop (or supported controller software) to connect and manage the base station and drone’s RTK correction stream.

The FAQ notes that you may need to wait 30-60 seconds for a “fixed” signal. Additionally, ensure the base station is mounted >6.5 ft above ground and clear of tall obstructions for best performance.

While designed specifically for the IF800 and IF1200 platforms, users should verify compatibility and integration with other systems — the manufacturer emphasises use with the matching dual GNSS modules in those platforms.
