Boston Dynamics

Spot CORE I/O

  • Boston Dynamics Spot
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Payload for Spot
IP54 Rated
NVIDIA GPU/CPU
5G/LTE Enabled
Operating Temperature: –20 °C to +45 °C
Compute & connectivity payload
`

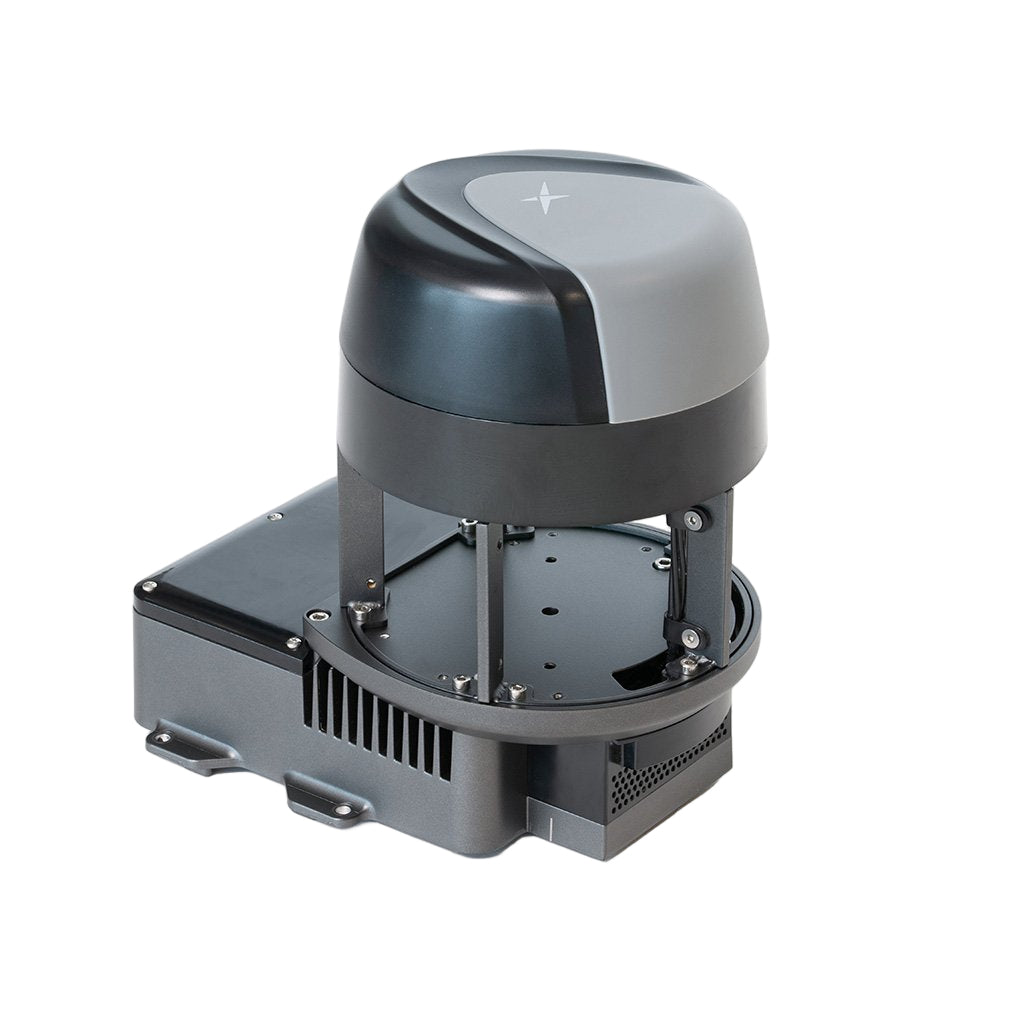

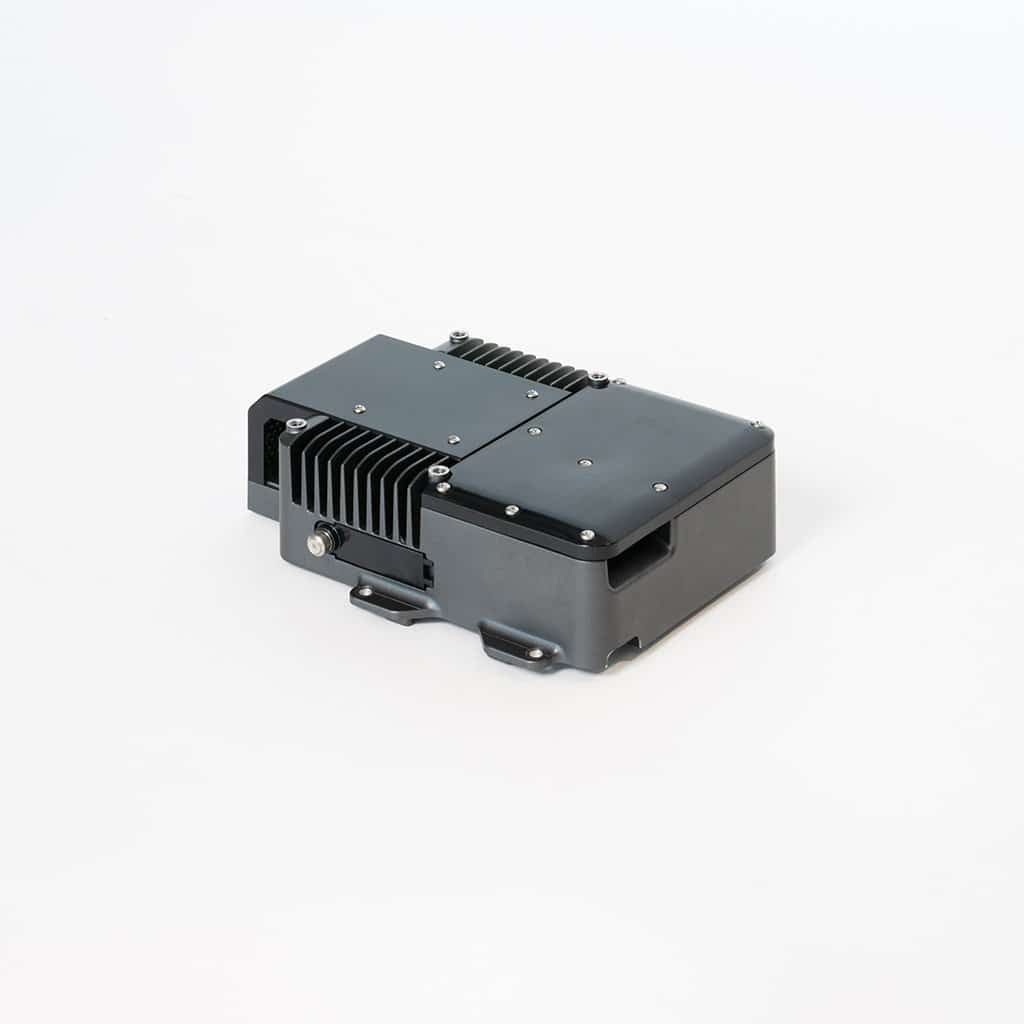

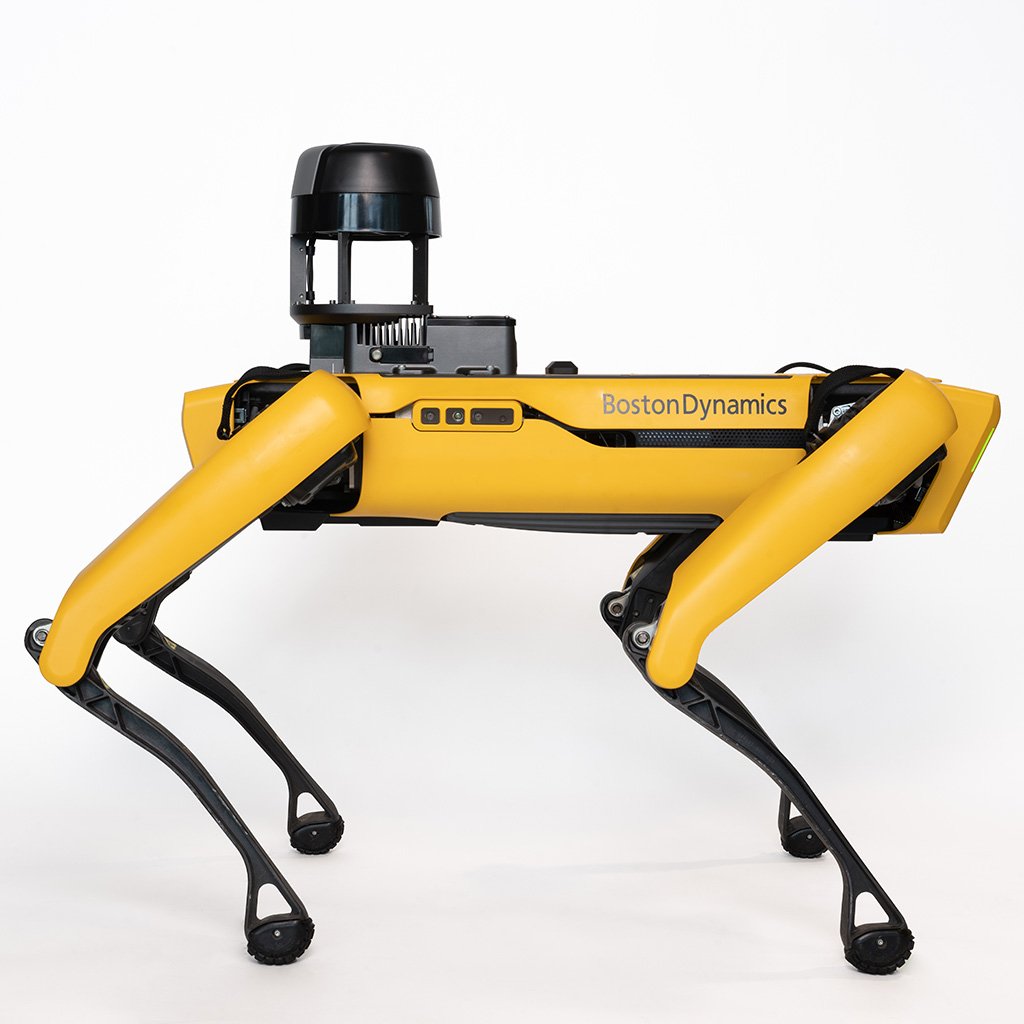

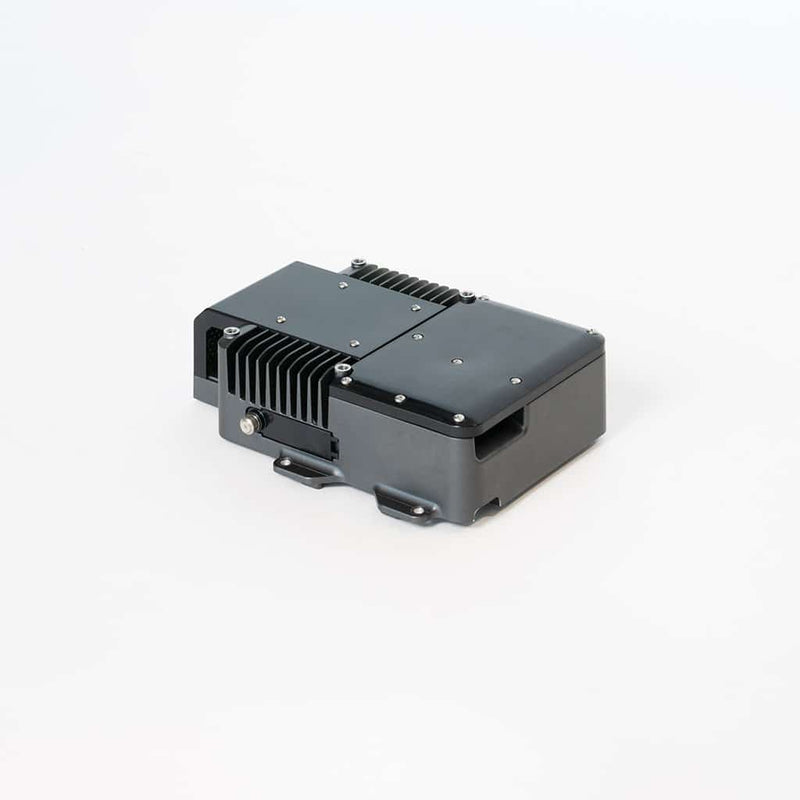

Upgrade your Spot robot’s capabilities with the CORE I/O module: built-in high-performance computing (NVIDIA Jetson Xavier NX), 5G/LTE modem, dual Gigabit Ethernet, multiple regulated power outputs and rugged weather-sealed housing (IP54) make it ideal for advanced autonomy, real-time analytics, remote inspection and communications-heavy missions. Integrate custom sensors, lidar, AI inferencing and network-edge compute on the same mobile platform.

SPOT CORE I/O SPECIFICATIONS

DIMENSIONS
Length: 224 mm (8.8 in)
Width: 173 mm (6.8 in)
Height (with antenna): 246 mm (9.7 in)
Height (without antenna): 64 mm (2.5 in)

PROCESSING (JETSON XAVIER NX)
CPU: 6-core NVIDIA Carmel ARM v8.2 64-bit CPU with 6MB L2 + 4MB L3 cache
GPU: 384-core NVIDIA Volta GPU with 48 Tensor cores
Memory: 16GB 128-bit LPDDR4x at 51.2 GB/s

CONNECTIVITY AND STORAGE
5G/LTE: User-installable SIM card [a]
Ethernet: GbE interface, unmanaged 2-port Ethernet switch for additional connectivity
Storage: 512GB SSD [b]
USB 3.1: 2 × USB 3.1 ports (4.5W support)
USB-C: 1 × USB-C port (50W power delivery + video output)
SD Card: 1 × SD card slot

Other Connections:

  • E-Stop interface
  • PPS output
  • GPIO (configurable to PWM output)
  • I²C ports

POWER OUTPUTS

  • 48V or robot battery voltage (for Spot Explorer models)
  • 24V, 50W
  • 12V, 50W
  • 5V, 30W

SECURITY
Disk Encryption: SSD encrypted using LUKS standard technology
Network Encryption: TLS 1.2 and 1.3
Authentication: Access restricted to authenticated users
Secure Boot: Tamper-proof filesystem with hardware root of trust
Firmware Verification: All updates must be cryptographically signed

ENVIRONMENT
Storage Temperature: -40°C to 70°C
Operating Temperature: -20°C to 45°C
Ingress Protection: IP54

LIDAR [c]
Model: Velodyne VLP-16
Sensor: 16 channels
Measurement Range: 100 m
Range Accuracy: ±3 cm
Vertical Field of View: +15° to -15° (30° total)
Vertical Angular Resolution: 2.0°
Horizontal (Azimuth) Field of View: 360°
Horizontal Angular Resolution: 0.1° – 0.4°
Rotation Rate: 5 – 20 Hz
Laser Product: Class 1 eye-safe (IEC 60825-1:2007 & 2014)
Laser Wavelength: 903 nm
Power: 8 W
Voltage: 9 – 18 V
Other: Integrated web server for monitoring and configuration

NOTES
[a] SIM cards manufactured by SoftBank are incompatible with Spot Core I/O.
[b] Actual available storage is reduced by space used by the operating system.
[c] LiDAR feature applies only to Spot EAP 2.

Remote Robotic is a North American authorized dealer for Boston Dynamics Spot CORE I/O.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Spot Core I/O user manual

We offer training for all robotic solutions

Learn more

Spot CORE I/O FAQ

It brings high-end edge computing (Jetson Xavier NX), full network connectivity (5G/LTE, Ethernet), multiple regulated power outputs and mounting interfaces so you can add sensors, lidar or custom compute—transforming Spot into a mission-specific data platform.

Yes — the module itself adds ~2.8 kg with antenna; since Spot’s total payload capacity is 14 kg it is essential to include this module plus any attached sensors inside that limit. Also additional compute/sensor draw may reduce mission runtime, so factor in battery and environment.

Yes — the module is designed with weather-sealed enclosure, IP54 ingress protection, and hardcore compute and communications connectivity—ideal for industrial or remote operations. Confirm rugged use-case with vendor especially for harsh-environment conditions.
