Boston Dynamics

Spot EAP-2

  • Boston Dynamics Spot
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

NVIDIA GPU/CPU
IP54 Rated
3.1 kg (6.8 lbs) with out antenna
100m LiDAR sensor
Operating Temperature: -20 to 55°C
LiDAR for Spot
`

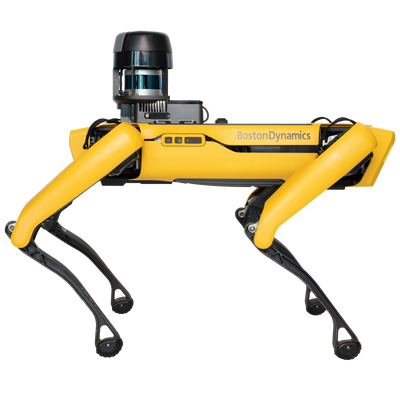

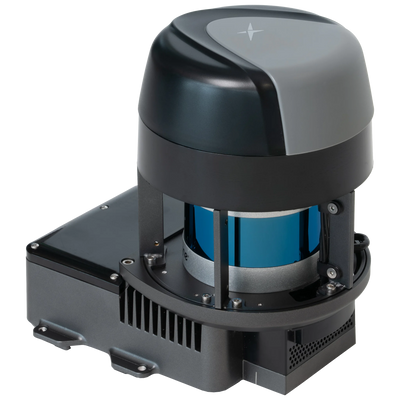

Supercharge your Spot robot’s autonomy and connectivity with the EAP-2 module. This advanced payload adds long-range LiDAR (~100 m), high-performance compute (Jetson Xavier NX), integrated 5G/LTE modem (CBRS support), and robust regulated power outputs — all in a rugged IP54-rated enclosure. Ideal for large‐scale industrial maps, remote operations and enterprise inspection environments, EAP-2 enables Spot to sense farther, compute smarter and connect globally.

SPOT CORE I/O SPECIFICATIONS

DIMENSIONS
Length: 224 mm (8.8 in)
Width: 173 mm (6.8 in)
Height (with antenna): 246 mm (9.7 in)
Height (without antenna): 64 mm (2.5 in)
Mass/Weight (with antenna): 3.6 kg (7.9 lbs)
Mass/Weight (without antenna): 3.1 kg (6.8 lbs)

PROCESSING (JETSON XAVIER NX)
CPU: 6-core NVIDIA Carmel ARM v8.2 64-bit CPU with 6MB L2 + 4MB L3 cache
GPU: 384-core NVIDIA Volta GPU with 48 Tensor cores
Memory: 16GB 128-bit LPDDR4x at 51.2 GB/s

LIDAR
Model: Velodyne VLP-16
Sensor: 16 channels
Measurement Range: 100 m
Range Accuracy: ±3 cm
Field of View (Vertical): +15° to -15° (30° total)
Angular Resolution (Vertical): 2.0°
Field of View (Horizontal): 360°
Angular Resolution (Horizontal/Azimuth): 0.1° – 0.4°
Rotation Rate: 5 Hz – 20 Hz
Laser Product: Class 1 eye-safe (IEC 60825-1:2007 & 2014)
Laser Wavelength: 903 nm
Power: 8 W
Voltage: 9–18 V
Other: Integrated web server for monitoring and configuration

SECURITY
Disk Encryption: SSD encrypted using standard LUKS technology
Network Encryption: TLS 1.2 and 1.3
Authentication: Restricted to authenticated users only
Secure Boot: Tamper-proof filesystem with hardware root of trust
Firmware Verification: Updates must be cryptographically signed

CONNECTIVITY AND STORAGE
5G/LTE: User-installable SIM card

  • Supported 5G provider (U.S.): AT&T
  • International users: Must obtain SIM from local carrier (network restrictions may apply)
    Ethernet: GbE interface with unmanaged 2-port Ethernet switch for additional connectivity
    Storage: 512GB SSD*
    USB 3.1: 2 × USB 3.1 ports (4.5W support)
    USB-C: 1 × USB-C port (50W power delivery and video output)
    SD Card: 1 × SD card slot

Other Connections:

  • E-Stop interface
  • PPS output
  • GPIO (configurable to PWM output)
  • I²C ports

Power Outputs:

  • 48V or robot battery voltage (Spot Explorer models)
  • 24V, 50W
  • 12V, 50W
  • 5V, 30W

MODEM SUPPORTED BANDS (TELIT FN980)
Regions: North America, EMEA, APAC

5G FR1 Bands:
n1, n2, n3, n5, n7, n8, n12†, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

LTE Bands:
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29DL, 30, 32, 34, 38, 39, 40, 41, 42, 43†, 46(LAA), 48(CRS), 66, 71

WCDMA Bands:
1, 2, 3, 4, 5, 6, 8, 9, 19

ENVIRONMENT
Storage Temperature: -40°C to 70°C
Operating Temperature: -20°C to 55°C
Ingress Protection: IP54

* Actual available storage will be reduced by the operating system.
† Noted frequency bands will be supported in a future release.

Remote Robotic is a North American authorized dealer for Boston Dynamics Spot EAP-2.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

Spot EAP 2 integration guide

We offer training for all robotic solutions

Learn more

Spot EAP-2 FAQ

The EAP-2 adds long-range LiDAR (100 m) instead of Spot’s base stereo cameras (~4 m), significantly improving Spot’s sensing, mapping and navigation in larger or more dynamic environments.

Yes — the onboard 5G/LTE modem and powerful compute module allow you to deploy edge AI, remote-connect missions, and custom sensor integrations more easily, reducing separate payload integration work.

Yes — the module adds ~3.1-3.6 kg. Since Spot's total payload capacity is ~14 kg, you’ll need to account for module + any additional sensors within that limit, and consider additional power draw may reduce runtime.
