YellowScan

Surveyor Ultra

  • DeltaQuad Evo
Contact us for pricing
Contact us for pricing

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

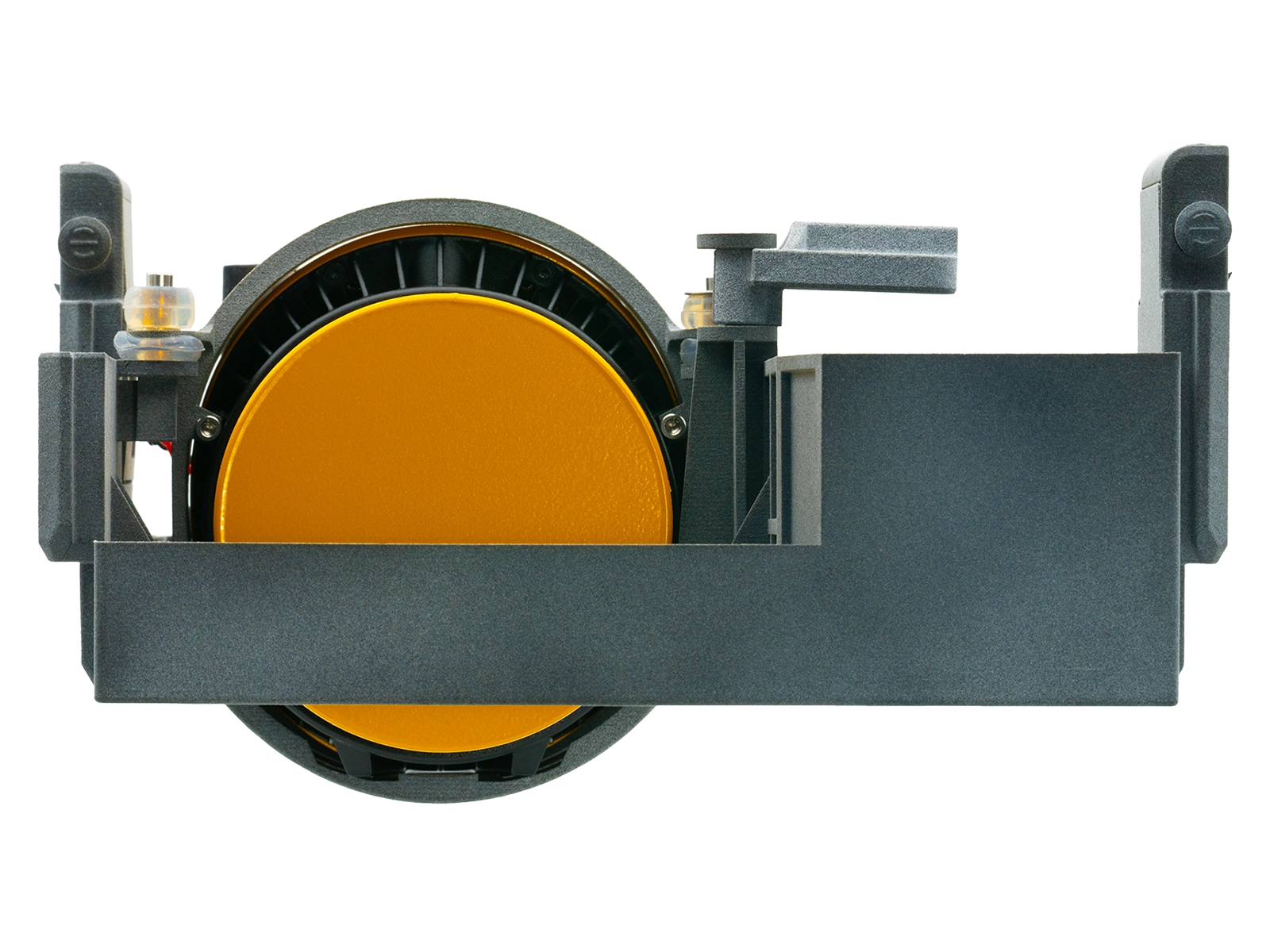

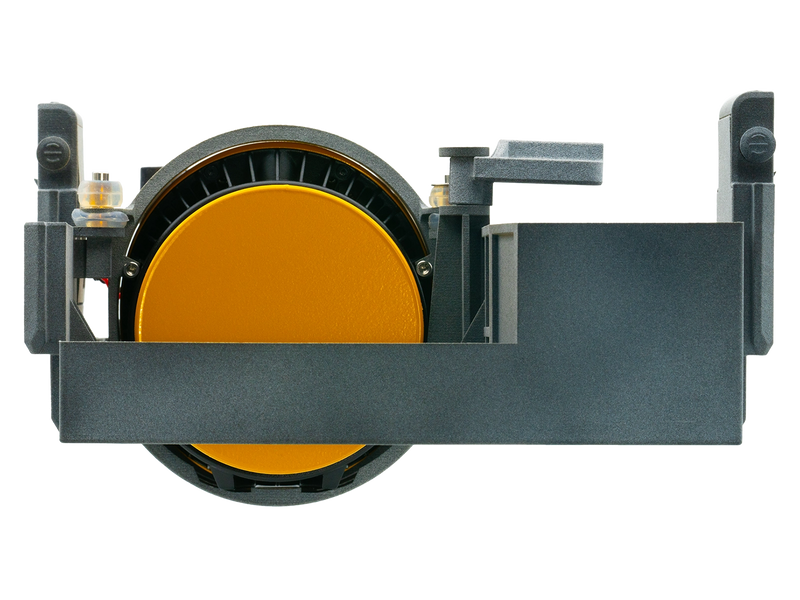

DeltaQuad Integration
2.5 cm accuracy
0.98 kg excluding battery
140m range
Operating Temperature: –10 °C to +40 °C
360° LiDAR scanner + RGB camera
`

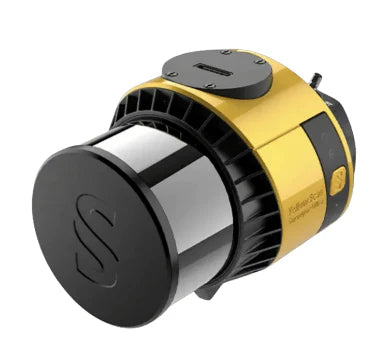

Deploy the YellowScan Surveyor Ultra to capture high-density 360° LiDAR and RGB data from UAVs with unmatched flexibility. With precision to 3 cm and accuracy to 2.5 cm, a full 360° field-of-view, and compatibility with multirotor, fixed-wing/VTOL and land-vehicle platforms, this system enables vertical mapping (cliffs, towers, vegetation) and high-productivity surveys. It integrates an embedded 8MP global shutter camera, supports up to 300 m laser range, and is built for rapid integration into your inspection, surveying or asset-management workflows.

  • Laser scanner: Hesai XT32M2X
  • Laser wavelength: 905 nm
  • Laser range: Up to 300 m
  • Precision: 3 cm
  • Accuracy: 2.5 cm
  • Typical flight speed: 10 m/s
  • Max AGL altitude: 100 m (some sources 140 m)
  • Point density: ~60 pts/m² @ 100 m AGL @10 m/s
  • Scanner field-of-view: 360° × 40.3°
  • Shots per second: Up to 640 000
  • Echoes per shot: Up to 3
  • Weight: 0.98 kg (2.2 lb) battery excluded
  • Size: L 153 × W 113 × H 117 mm
  • Power consumption: ~20 W
  • Operating Temperature: –10 °C to +40 °C
  • YellowScan Surveyor Ultra unit
  • 2 batteries + charger
  • GNSS antenna (AV18) and cable
  • 2 USB keys (256 GB)
  • Software bundle: YellowScan CloudStation Essential licence & SBG Quanta Micro GNSS/IMU licence

Remote Robotic is a North American authorized dealer for YellowScan Surveyor Ultra.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

We offer training for all robotic solutions

Learn more

Surveyor Ultra FAQ

The Surveyor Ultra is compatible with multirotor, fixed-wing/VTOL and land vehicle platforms, making it highly flexible for different mission profiles.

Yes. It includes an embedded global shutter RGB camera for colourizing the point cloud during the same flight.

Absolutely. With a full 360° field-of-view and high point density, it is expressly designed for vertical surfaces and complex terrains such as bridges, cliffs and tower inspections.
