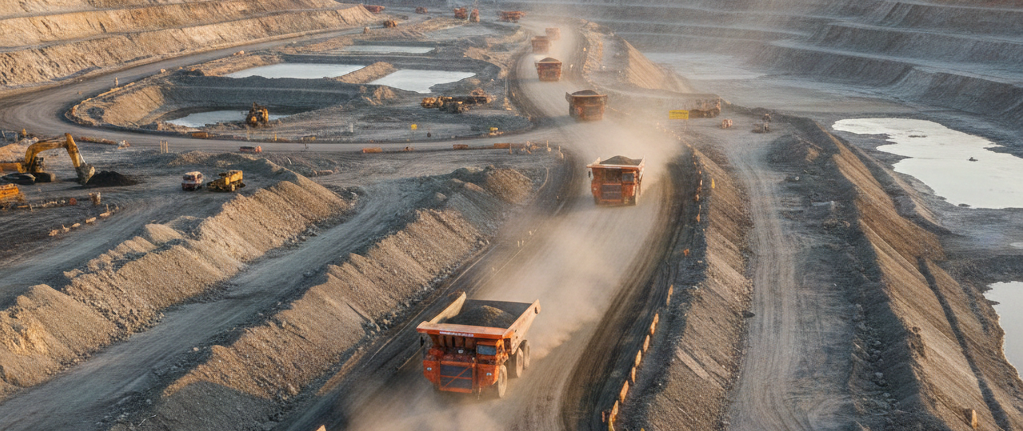

Drone-Based Haul Road Inspection in Oilsands Mining

How Photogrammetry and AI Improve Safety, Uptime, and Cost Control

Haul roads are the lifelines of surface mining operations. In large oilsands and open-pit mines, these roads support continuous heavy-equipment movement, and even small inefficiencies in road conditions can cascade into major safety risks, maintenance costs, and production losses. Traditional inspection methods rely heavily on visual checks and manual surveys, which are time-consuming, inconsistent, and often reactive rather than predictive.

Today, drone-based inspection programs combined with photogrammetry are transforming how mining operators monitor and maintain haul roads. By converting aerial imagery into measurable digital models, operations teams can detect defects earlier, prioritize maintenance more accurately, and reduce the operational risks tied to poor road conditions.

This article explores how drone-based haul road inspection works, why it matters for oilsands and surface mining, and how industrial operators can implement a scalable inspection workflow that improves safety, reduces costs, and increases uptime.

Why Haul Roads Matter in Mining Operations

In surface mining, haulage is often one of the largest operational cost centers. Some studies estimate truck haulage can account for up to 50% of total operating costs, meaning road quality directly influences fuel consumption, tire wear, cycle times, and maintenance expenses.

Beyond cost, haul roads are also a primary safety concern. Large haul trucks operate continuously in dynamic environments—changing weather, shifting terrain, and heavy traffic patterns. Regulatory frameworks and industry best practices emphasize that haul roads must be constructed and maintained to ensure vehicles can operate safely at all times.

In Canadian oilsands operations, for example, regulations require proper road geometry, drainage, and berm construction to reduce the risk of vehicle incidents. These requirements make consistent, auditable inspection programs essential.

The Limitations of Traditional Haul Road Inspections

Conventional haul road inspection methods typically include:

• Visual inspections by supervisors

• Ground-based survey crews

• Spot measurements

• Equipment operator feedback

While valuable, these methods have limitations:

• Limited spatial coverage

• Inconsistent measurements

• Exposure of personnel to active haul traffic

• Delayed detection of defects

• Difficulty tracking changes over time

Manual inspections also make it challenging to capture measurable data across large mine sites. Without repeatable digital records, maintenance decisions often rely on experience rather than quantifiable trends.

How Drone Photogrammetry Works for Haul Roads

Drone-based inspection uses aerial photogrammetry to capture high-resolution imagery of haul roads and convert it into measurable mapping products.

Key Outputs

Typical deliverables include:

• Orthomosaic maps

• Digital surface models (DSM)

• 3D point clouds

• Elevation profiles

• Cross-section measurements

An orthomosaic is a geometrically corrected aerial map that allows accurate measurement of distances and areas. A digital surface model adds elevation data, enabling analysis of slope, drainage, and deformation.

These outputs allow engineers and maintenance teams to measure road geometry and track changes over time with high precision.

The Inspection Workflow

A typical drone-based haul road inspection workflow follows a repeatable process:

1. Mission planning
   Standardized flight paths ensure comparable data across inspections.

2. Data capture
   Drones collect overlapping high-resolution images.

3. Processing
   Photogrammetry software generates maps and 3D models.

4. Analysis
   Engineers and AI tools identify defects and deviations.

5. Maintenance planning
   Teams prioritize repairs based on measurable data.

6. Verification flights
   Follow-up surveys confirm maintenance effectiveness.

Because the workflow is repeatable, operators can track road conditions over time and identify deterioration trends before failures occur.



Benefits of Drone-Based Haul Road Inspection

1. Faster Inspections

Drones can cover large areas quickly, reducing inspection time compared with ground-based surveys. Reusable flight plans allow consistent monitoring at regular intervals.

2. Reduced Equipment Wear

Poor road conditions increase rolling resistance and shock loading on haul trucks. Maintaining smoother roads reduces:

• Tire wear

• Fuel consumption

• Suspension damage

• Maintenance costs

Even small improvements in road conditions can significantly reduce operating costs.

3. Increased Uptime

Better road conditions mean fewer breakdowns and fewer delays caused by maintenance or incidents. This leads to more consistent cycle times and improved production efficiency.

4. Improved Safety

Drone inspections reduce the need for personnel to walk or drive on active haul roads. They also help identify safety hazards earlier, including:

• Inadequate berms

• Steep grades

• Drainage failures

• Obstructed visibility

5. Data-Driven Maintenance

With objective measurements and historical data, maintenance teams can prioritize repairs where they will have the greatest impact.

Safety and Compliance Considerations

Haul road inspections must align with regulatory and operational safety standards. Drone programs should consider:

• Airspace regulations

• Pilot certification requirements

• Site safety procedures

• Data accuracy standards

• Integration with existing maintenance systems

In Canada, drone operations must follow Transport Canada rules based on aircraft type, operating environment, and proximity to people or airspace restrictions.

Integrating Drone Data Into Maintenance Programs

Drone inspection programs are most effective when integrated into a closed-loop maintenance system:

Capture → Process → Analyze → Decide → Execute → Verify

Key implementation steps include:

Establish Baselines

Define measurable standards for road geometry, drainage, and defects.

Standardize Surveys

Use consistent flight parameters and georeferencing methods to ensure accurate comparisons.

Automate Analytics

Implement AI tools for defect detection and trend analysis.

Prioritize Repairs

Use data to determine which segments require maintenance first.

Verify Results

Conduct follow-up surveys to confirm repairs improved conditions.

---

Environmental and Operational Benefits

Proper haul road maintenance also reduces environmental impact. Improved drainage and erosion control help minimize sediment runoff and maintain stable road surfaces.

Drone-derived elevation models can identify drainage issues, ponding, and erosion patterns, allowing teams to correct problems before they escalate.

---

Best Practices for Canadian Mine Sites

For mining operations in Canada, successful drone inspection programs typically include:

• Regular scheduled surveys

• RTK or PPK positioning for accuracy

• Standardized reporting templates

• Integration with maintenance planning

• Compliance with aviation regulations

• Clear safety protocols

Treating haul roads as measurable infrastructure assets—rather than just operational pathways—helps operations teams optimize performance and reduce costs.

Drone-based haul road inspection is rapidly becoming a standard practice in oilsands and surface mining operations. By combining photogrammetry, and repeatable survey workflows, mining companies can improve safety, reduce costs, and extend equipment life.

For operations where haulage represents a significant portion of operating expenses, even small improvements in road conditions can deliver substantial financial and operational benefits.

As mining sites continue to digitize and automate, drone-based inspection programs will play a central role in maintaining safe, efficient, and cost-effective haul road networks.
