DJI AL1 Spotlight

DJI Matrice 4 Series
DJI Matrice 4D

Regular price: $459.00 CAD
Sale price: $459.00 CAD
Regular price

99 grams

IP55 rated (with Matrice 4D Series)

Built for Matrice 4 series

100 m illumination range

Operating Temperature: -20 °C to +50 °C

Spotlight module

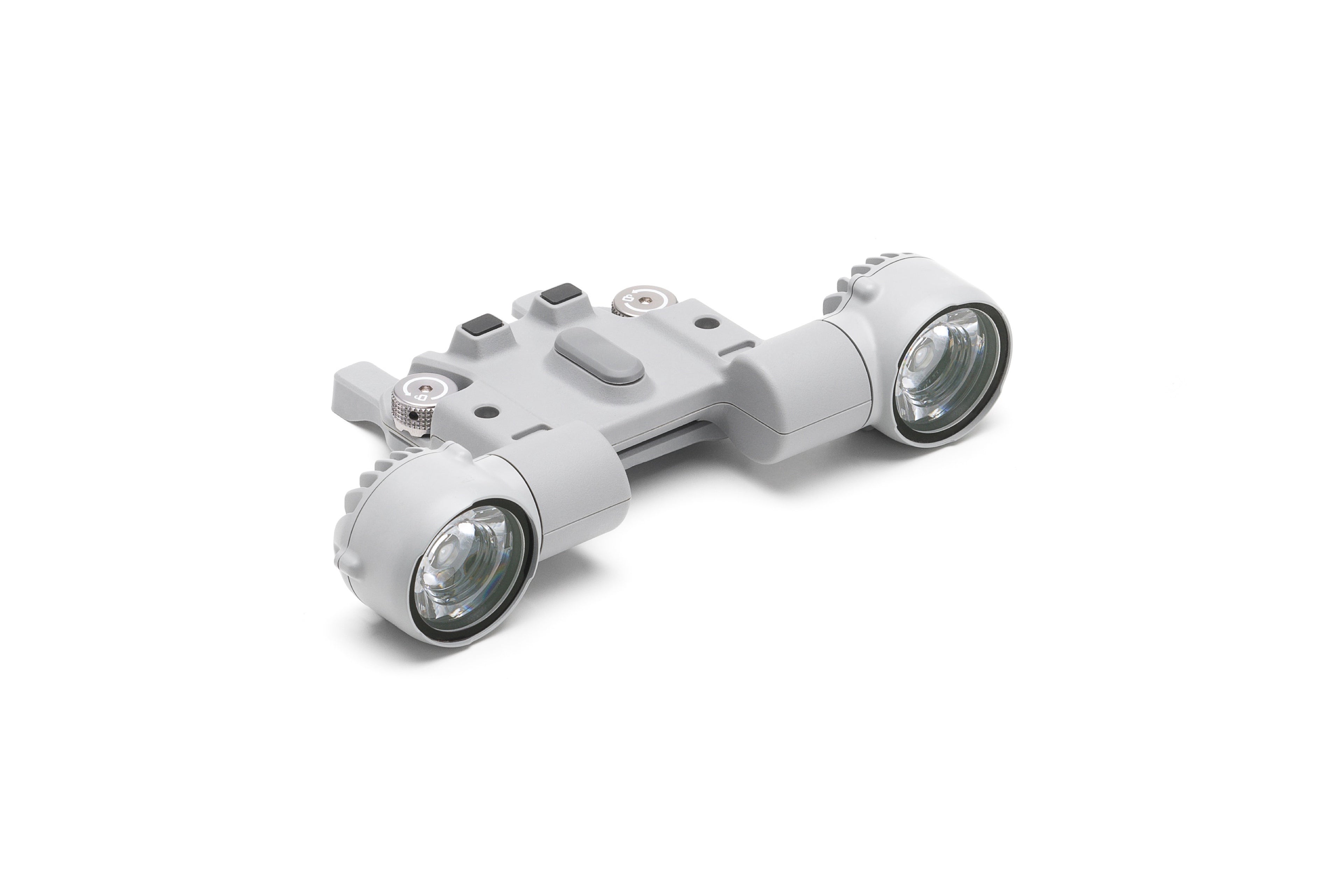

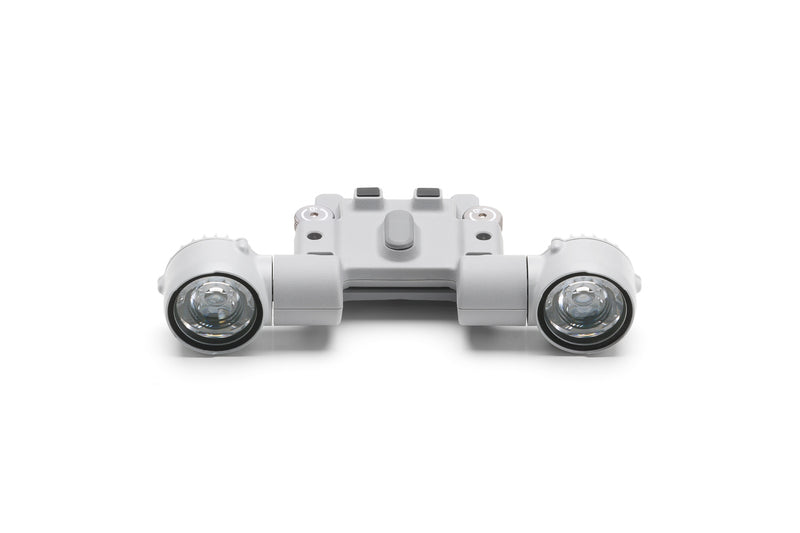

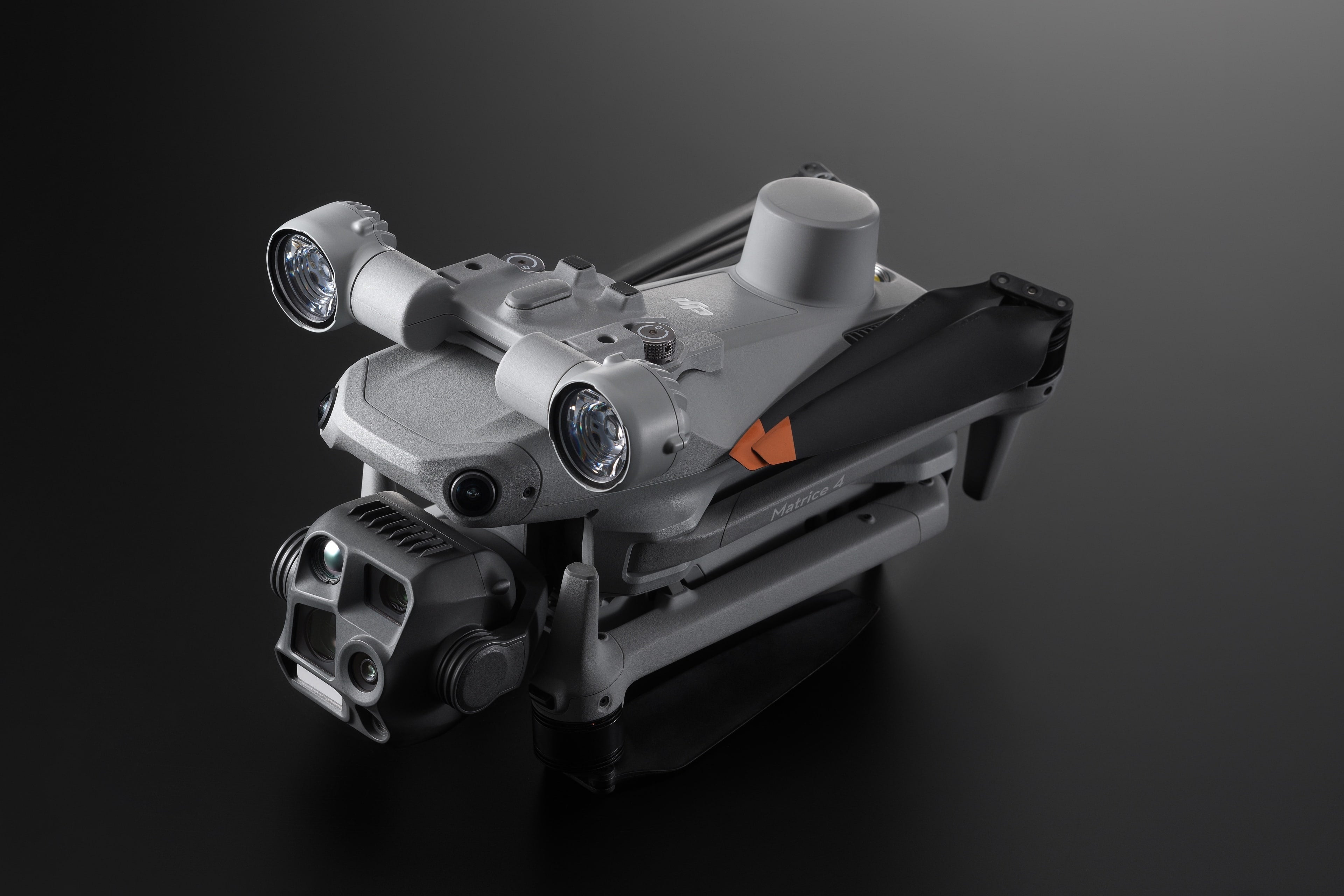

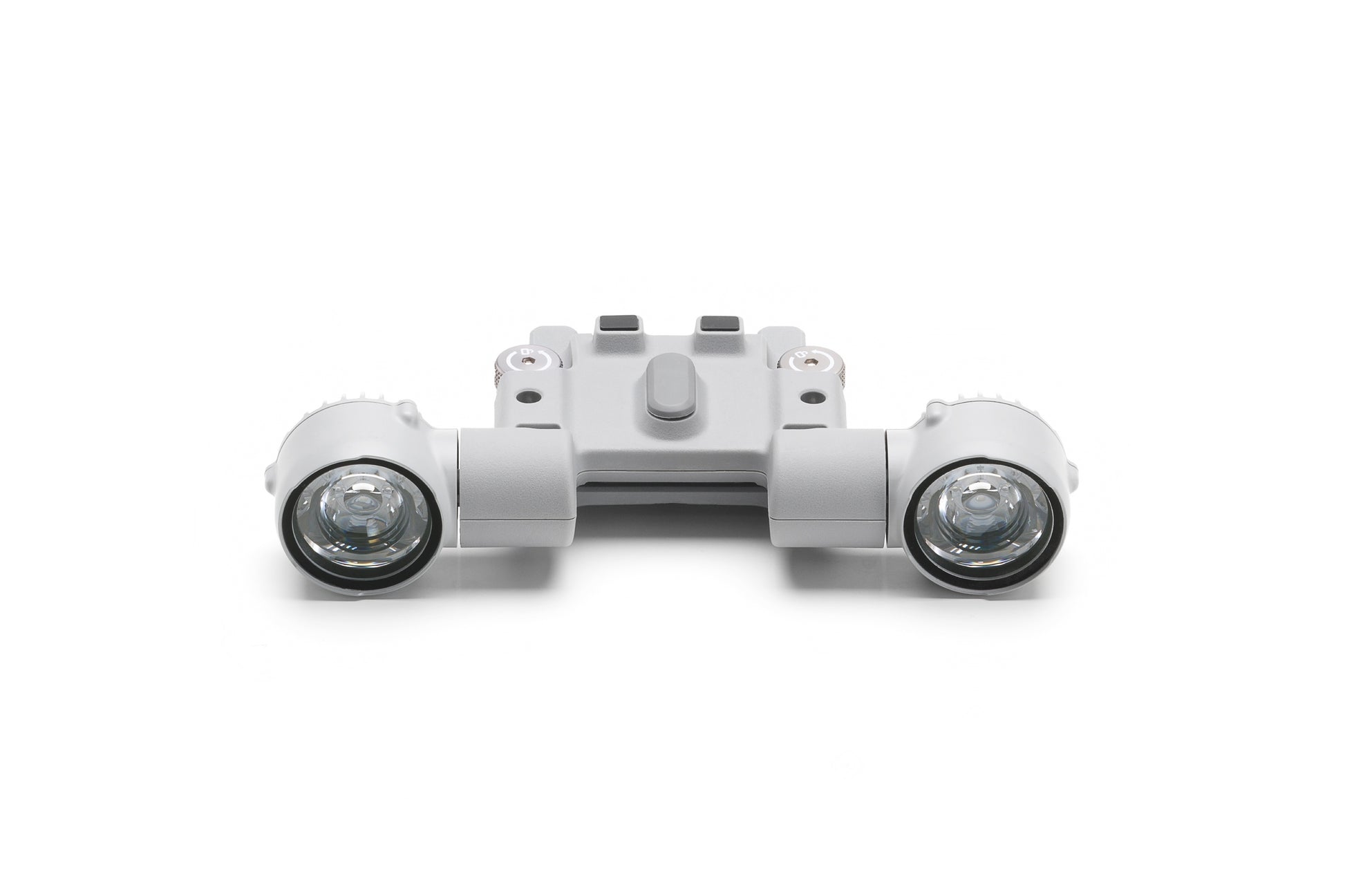

The DJI AL1 Spotlight turns your Matrice 4 into a powerful mobile illumination platform. With a max output of 32 W, coverage out to 100 m, and dual lighting modes (always-on & strobe), it’s designed for night inspections, search & rescue, security patrols and infrastructure work. Lightweight and gimbal-integrated, the AL1 delivers reliable field lighting so your team captures more and risks less.

Specifications

AL1 Spotlight

Weight:

91 g (excluding bracket)

Dimensions:

79×164×28 mm (L×W×H, excluding bracket)

Maximum Power: 32 W

Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters*

Effective Illumination Angle: 23°(10% relative illuminance)

Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)

2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)

Modes: Always-on and strobe

Gimbal Mechanical Range (Tilt): -140° to 50°

Gimbal Controllable Range (Tilt): -90° to 35°

Max Control Speed (tilt): 120°/s

Gimbal Alignment Accuracy: ±0.1°

Operating Temperature:-20° to 50° C (-4° to 122° F)

Mounting Method: Quick-release hand-tightened screws

Protection Rating: IP55 (with Matrice 4D Series)

* The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C (77° F).

1. When installing the spotlight on drones, tighten the screws and ensure proper sealing of the interface. When using for long-term or with DJI Dock, use the included hex key to tighten the screws again.

2. When installed on Matrice 4D Series drones, please remove the adapter bracket at the bottom.

3. After installation, connect to the internet to activate the spotlight as instructed. If there is a firmware update notification, update to the latest firmware promptly.

4. After installing the spotlight, the obstacle avoidance performance on the left and right sides of Matrice 4 Series drones will be reduced, and the upward obstacle avoidance of Matrice 4D Series drones will be disabled. Additionally, the drones' power performance will be affected. Please ensure flight safety.

5. When the spotlight is turned on, the obstacle avoidance function will deactivate automatically. Please ensure flight safety.

6. DO NOT point the spotlight directly at people's eyes.

7. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.

What’s in the Box

AL1 Spotlight unit × 1
Spare screws × 2
Hex key × 1
