DJI Manifold 3

  • Matrice 400
$1,935.00 CAD
$1,935.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply

Computing Power: Up to 100 TOPS
IP55 Rated
120 g
Compatible with Matrice 400
Operating Temperature: -20 °C to +50 °C
Onboard Compute Module
`

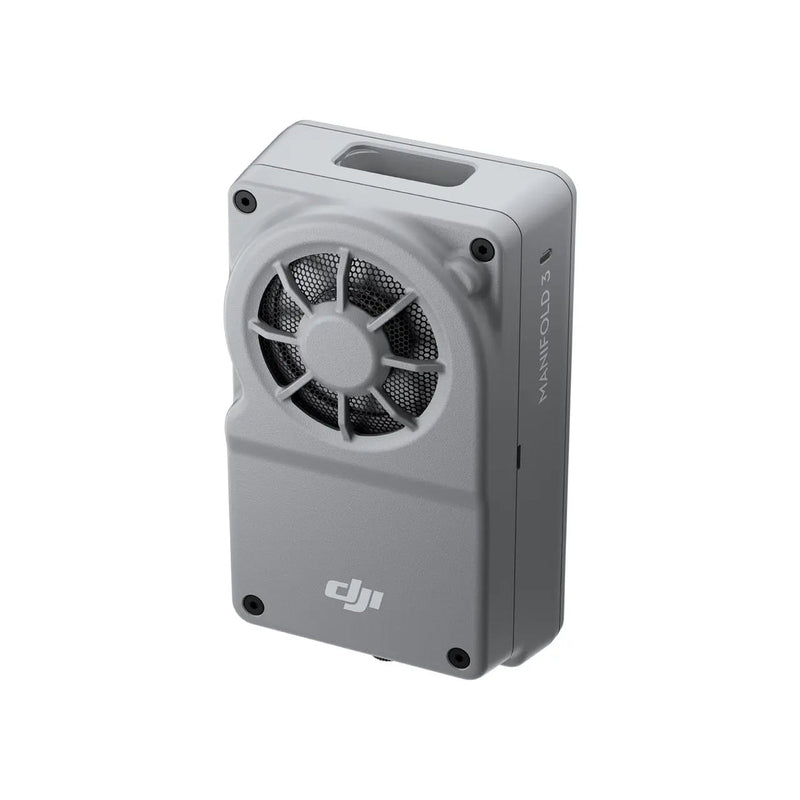

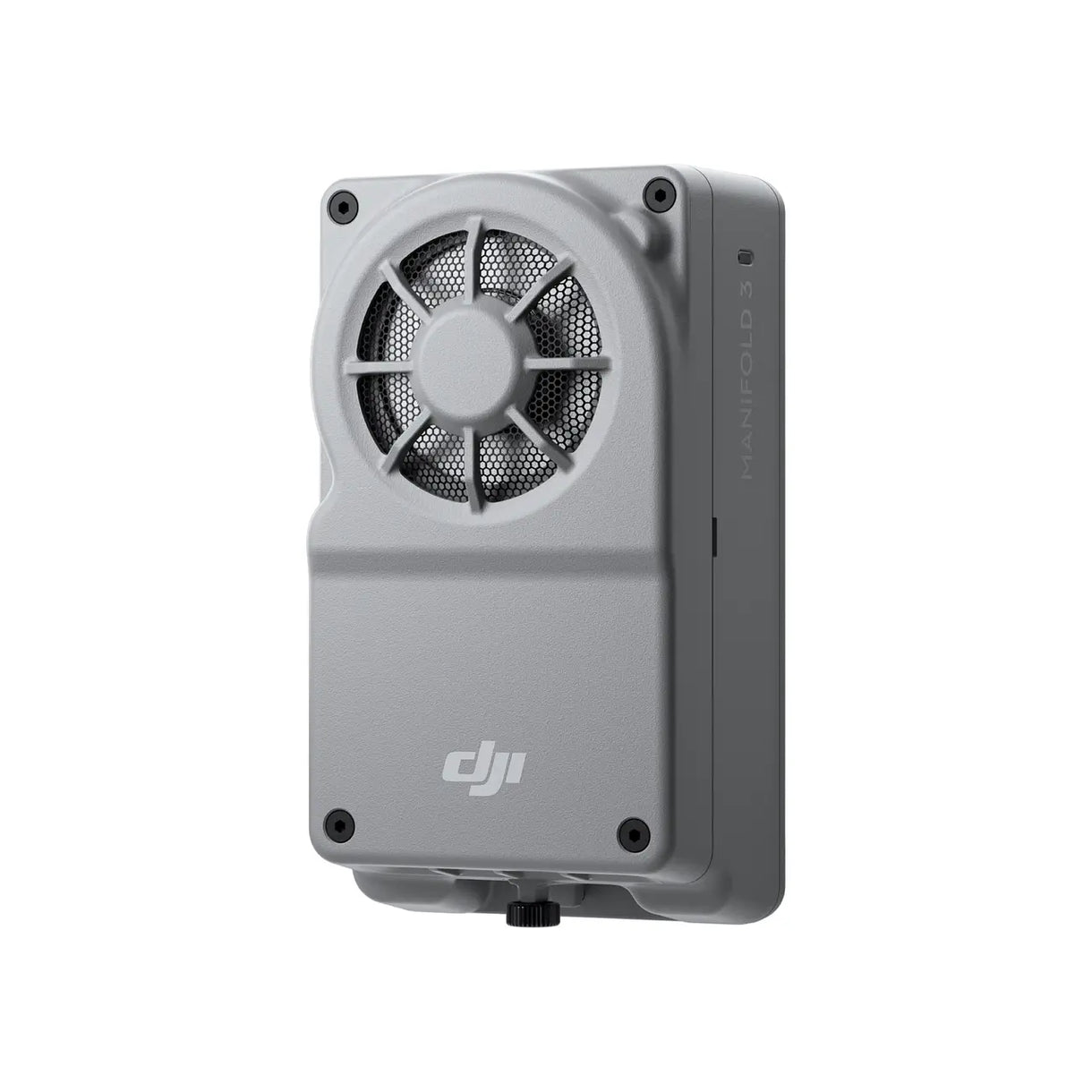

The DJI Manifold 3 is a high-performance onboard computing module engineered for enterprise UAVs like the Matrice series. With up to 100 TOPS (trillion operations per second) processing power in a compact ~120 g package, it transforms your drone into an intelligent edge-AI platform — enabling real-time object detection, autonomous flight logic, and data processing directly on board. Whether for infrastructure inspection, mapping, or defense missions, Manifold 3 accelerates your workflows and unlocks next-generation mission capabilities.

Specs

General

  • Product Name
  • Manifold 3
  • Weight
  • 120±5 g
  • Dimensions
  • 98×57×36 mm (L×W×H)
  • Rated Power
  • 33 W
  • Supported Model
  • Matrice 400
  • Memory
  • 16GB LPDDR5
  • Storage
  • 256GB SSD
  • Computing Power
  • Up to 100 TOPS*

    * Measured using the INT8 computation precision standard, based on a sparse computing model.
  • Interface
  • E-Port Interface: Supports DJI Matrice 400 E-Port V2 interface
    USB-C Interface: USB 3.2 Gen 1 protocol, with transfer rates up to 5 Gbps

    * On Matrice 400, Manifold 3 only supports the E1, E2, and E3 ports of the E-Port V2, with E3 being the recommended option.

Environmental Parameters

  • Operating Temperature
  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature
  • -20° to 60° C (-4° to 140° F)
  • Ingress Protection Rating
  • IP55

    Measured under controlled conditions. The rating is not permanently effective and may decrease due to product wear and tear.

Power Supply

  • E-Port Power Supply
  • Matrice 400 E-Port V2: 24V Input
  • USB Power Delivery (PD)
  • You can use a power adapter that supports the PD protocol to supply power via the USB-C interface.

What’s in the Box

  • DJI Manifold 3 compute module
  • Quick-start & safety documentation

Remote Robotic is a North American authorized dealer for DJI DJI Manifold 3.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

DJI Manifold 3 Manual

We offer training for all robotic solutions

Learn more

DJI Manifold 3 FAQ

Manifold 3 is compatible with DJI enterprise UAVs such as the Matrice 400 series and Matrice 4 series, connecting via E-Port or USB-C interface.

It offers up to 100 TOPS of AI-acceleration performance, enabling real-time object recognition, environment mapping, and autonomous decision-making — used in inspection, mapping, and public-safety missions.

Weighing only ~120 g and consuming just ~33 W of power, it has minimal impact on flight time and payload capacity — making it easy to integrate into industrial UAV workflows.
