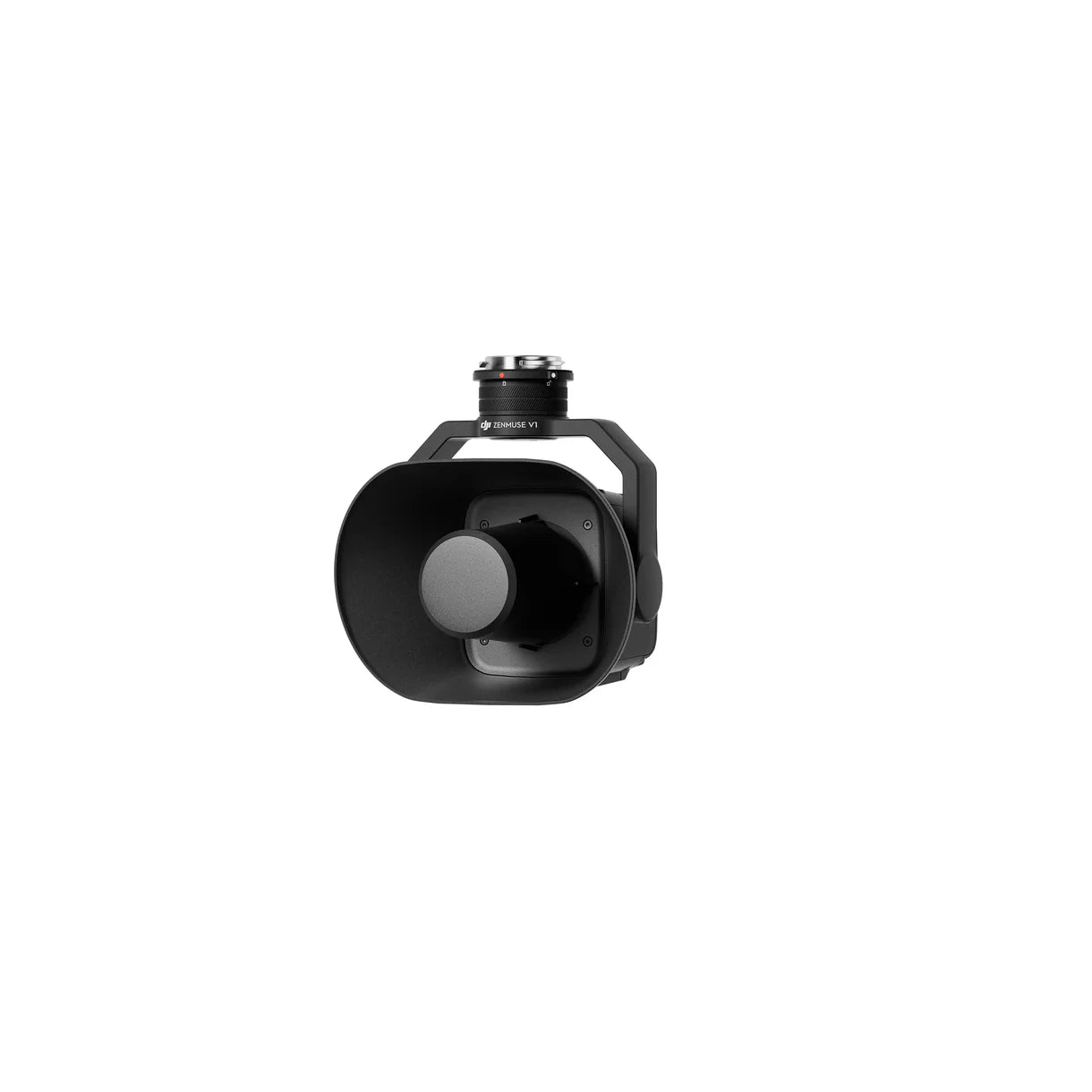

DJI Zenmuse V1 Speaker

Specs

General

• Product Name
• Zenmuse V1
• Weight
• 690±10 g
• Dimensions
• 134×119×140 mm (L×W×H)
• Rated Power
• 30 W
• Supported Aircraft
• Matrice 400
  Matrice 350 RTK
  Matrice 300 RTK (requires DJI RC Plus)
• Shell Temperature
• <50° C (122° F, plastic shell)

  Measured in a laboratory environment with the speaker installed on the aircraft at an ambient temperature of 25° C (77° F).
• Ingress Protection Rating
• IP54

  Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

Environment

• Operating Temperature
• -20° to 50° C (-4° to 122° F)
• Storage Temperature
• -20° to 60° C (-4° to 140° F)

Gimbal

• Stabilization System
• Single-axis (tilt)
• Angular Vibration Range
• Hover: ±0.01°
  Flight: ±0.02°
• Mounting
• Detachable DJI SKYPORT
• Mechanical Range
• Tilt: -125° to +25°

  Structural limit, not controllable range.
• Controllable Range
• Matrice 400:
  Single or Dual Downward Gimbal Connector: -120° to -5°
  Third Gimbal Connector on the Underside: -60° to 0°

  Matrice 300 RTK/Matrice 350 RTK:
  Single or Dual Downward Gimbal Connector: -120° to -5°
  Single Upward Gimbal Connector: -5° to +120°
• Operation Mode
• Follow / Free / Re-center

Speaker

• Impedance
• 4 Ω
• Nominal Power
• 25 W
• Effective Broadcast Distance
• 700 m (Matrice 400)
  500 m (Matrice 350 RTK/Matrice 300 RTK)

  Measured in a laboratory environment at 25° (77° F). Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use..
• Max Sound Pressure Level
• 129 dB @ 1 m (Matrice 400)
  127 dB @ 1 m (Matrice 350 RTK/Matrice 300 RTK)

  Measured in a laboratory environment at 25° (77° F). Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
• Effective Bandwidth
• 800 Hz to 8 kHz

Basic Features

• Record & Broadcast
• Record & broadcast
  Real-time broadcasting (Matrice 400 only)
• Text-to-Speech
• Text-to-speech and storage
  Matrice 400: Chinese, English, Spanish, Korean, Japanese, and French.
  Matrice 350 RTK/Matrice 300 RTK: Chinese and English.
• Audio File Playback
• Supports importing local files in MP3, AAC, and WAV formats.
  Supports simultaneous file transfer and playback when paired with Matrice 400.
• Playback Control
• Start / Stop recording / Loop playback / Volume adjustment
• Remote Controller Button
• Can set one button to press once to start recording, and press again to stop and play the recording.
• Gimbal Synchronization
• Supports synchronized control with other gimbal-equipped payloads

Special Features

• Intelligent Volume Adjustment
• When paired with Matrice 400, Zenmuse V1 intelligently adjusts the volume of live recordings and audio files through automatic gain control.
• Directional Audio Recording
• The remote controller supports directional audio pickup and environmental noise reduction
• Payload Protection
• Speaker temperature protection, overcurrent protection, and power protection to prevent damage.
• Directional Broadcasting
• The DJI Pilot 2 app can use AR projection to visually indicate the orientation of the speaker.

What’s in the Box

• Zenmuse V1 loudspeaker payload unit
• Storage box
