Inspired Flight

IF800 LiDAR Kit

  • IF800
$3,500.00 CAD
$3,500.00 CAD

Proof of concept program

Remote Robotic helps enterprise and public-sector teams validate advanced robotics solutions—drones, UGVs, ROVs, docking systems, and sensors—through a hands-on Proof-of-Concept (POC) program.

Designed for utilities, public safety, mining, energy, and large industrial organizations that need clarity, ROI, and operational certainty before investing.

Learn more and apply
Up to 30 minutes of LiDAR mapping
LiDAR payloads up to ~3 kg
Smart dovetail system
LiDAR integration kit for IF800
`

he IF800 LiDAR Kit transforms the medium-lift IF800 Tomcat into a high-precision aerial mapping powerhouse. Designed to support LiDAR payloads up to ~3 kg, this integration kit includes precision mounting rails, tool-free dovetail connections and tested configurations that consistently deliver 30+ minutes flight time even under full payload load. Ideal for surveying, mining, forestry, infrastructure inspections and other data-intensive missions.

Maximize Your Aerial Capabilities with a LiDAR Kit for the IF800

Upgrade your drone operations with the IF800 LiDAR Kit, designed to accommodate any medium-sized LiDAR payload up to 3 kg. Our newly designed mounting rails enhance the IF800's maximum weight capacity, ensuring seamless integration of your chosen LiDAR equipment.

Key Features:

  • Innovative Rail System: Features four adjustable notches to perfectly balance the LiDAR, optimizing the center of gravity for a broad range of payloads.
  • Tool-Free Payload Swaps: Equipped with the Smart Dovetail connections, the IF800 LiDAR Kits allow for effortless, tool-free payload changes, enhancing interoperability and reducing downtime.
  • Proven Performance: Extensive real-world flight testing has shown consistent flight times exceeding 30 minutes with a full 3 kg payload, under optimal conditions.

Enhance your drone’s versatility and performance in the field with the IF800 LiDAR Kits, your solution for advanced aerial surveying and mapping technologies.

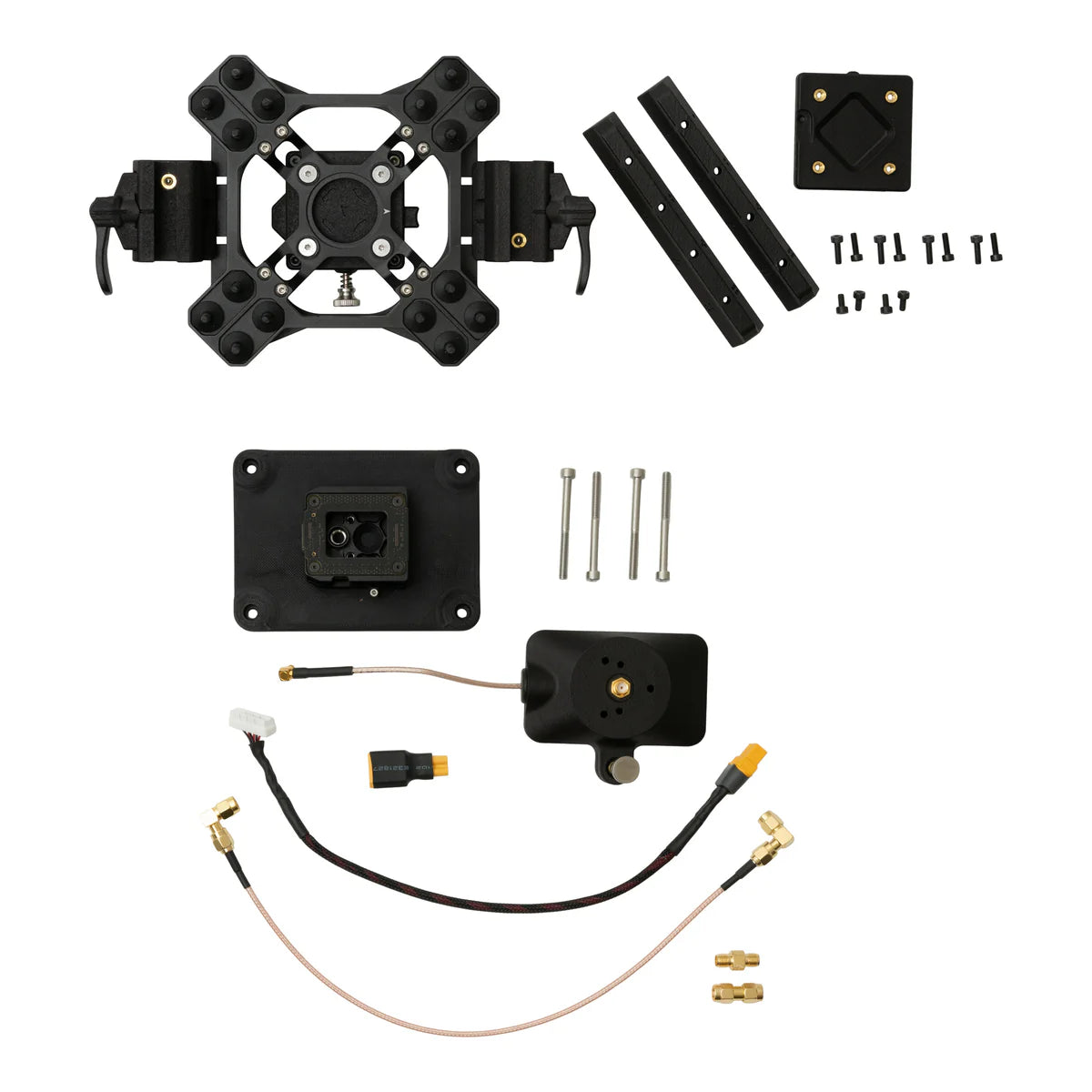

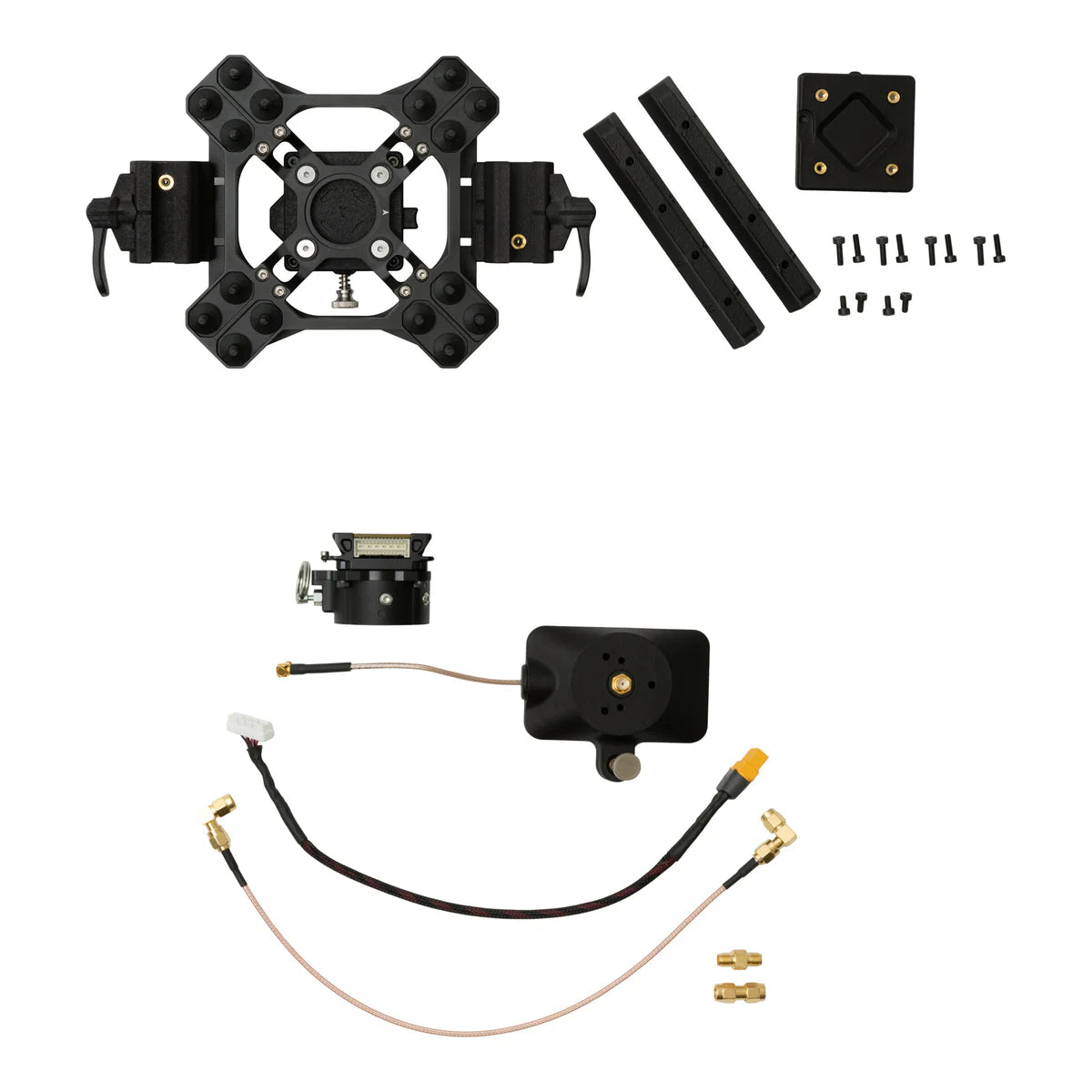

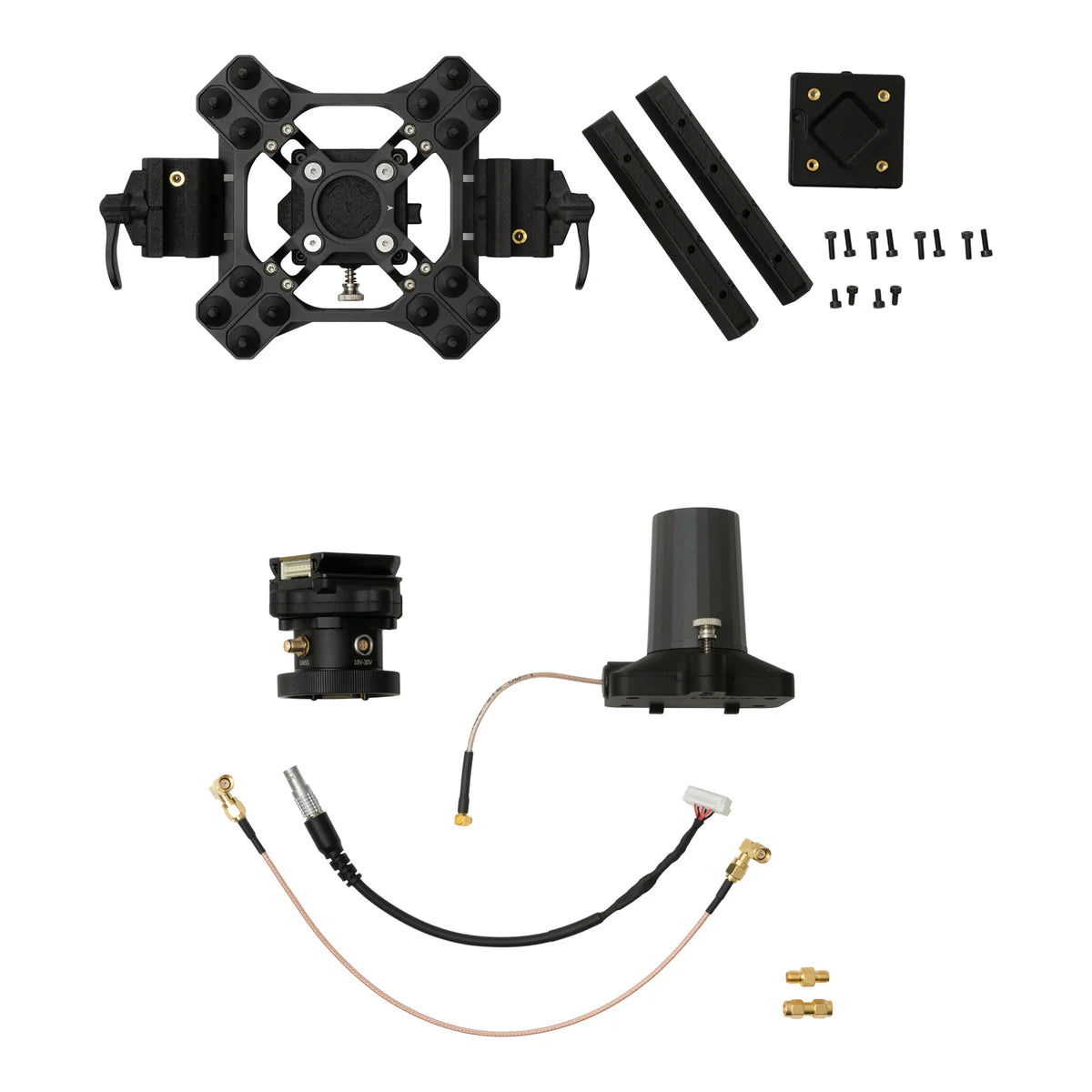

Parts this Kit

  • Smart Dovetail Adapter
  • GNSS Cable
  • Lidar Power Cable
  • GNSS Mount
  • SMA Adapters

(May vary depending on the kit chosen)

Remote Robotic is a North American authorized dealer for Inspired Flight IF800 LiDAR Kit.

Your purchase includes the full standard manufacturer warranty, and we also offer optional support programs to help protect your equipment and keep it performing at its best.

Learn more about Extended Care Program

IF800 Lidar kit user manual

We offer training for all robotic solutions

Learn more

IF800 LiDAR Kit FAQ

The kit supports a wide range of industry-leading LiDAR sensors including Rock Robotic R3 Pro, YellowScan Mapper+, Riegl MiniVUX and others — allowing you to pair the IF800 with the optimum sensor for your mission.

It uses specially designed adjustable rails with four notches to fine-tune the center-of-gravity for varying LiDAR payloads, ensuring optimal flight dynamics and stability under load.

While actual flight time varies by conditions, testing has shown the IF800 with this LiDAR kit and ~3 kg payload sustaining 30 + minutes of flight time in optimal conditions.
